Laguna MSHAP5010-0130 Pro Shaper 220V 5HP Single Phase
This item may incur additional shipping costs and lead times.
Product Details

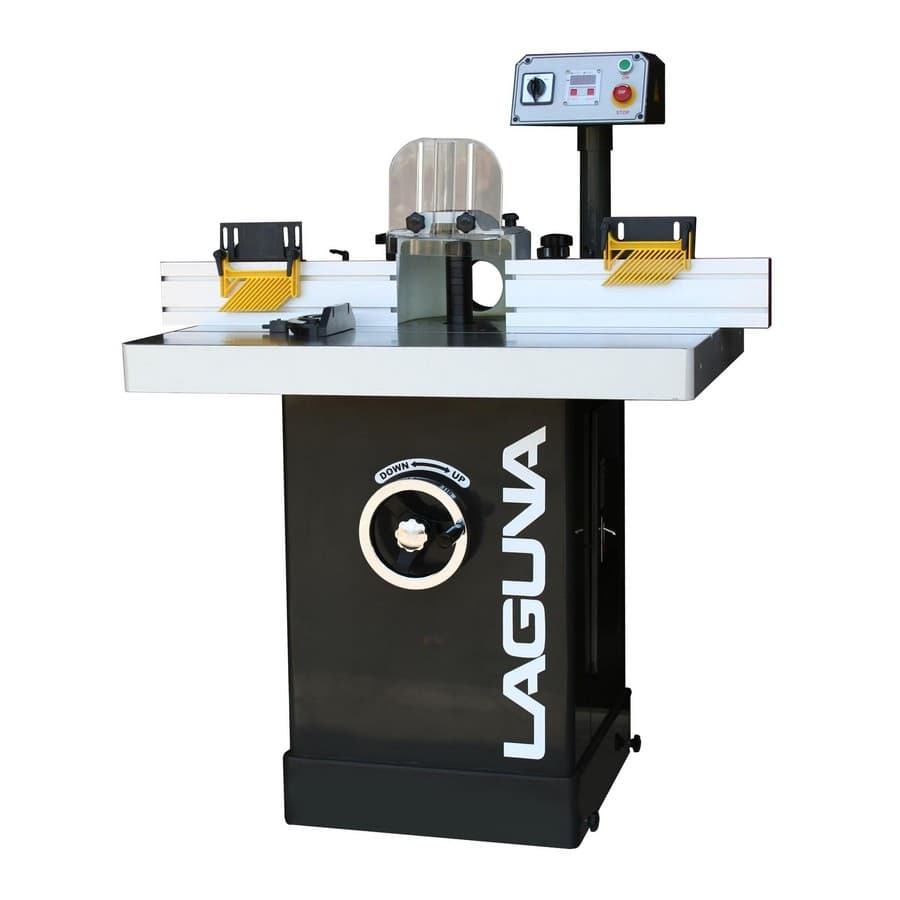

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines.
For starters, the table measures an impressive 31" x 39" and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16" adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick-change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.
The fit and finish on this machine are top-notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble-free performance without breaking the bank.
Specs:
- Motor: 5HP 1 phase 220V 60 HZ
- Table size: 39-5/16″ X 31-7/16″ X 3-1/2″
- Spindle travel: 4″
- Spindle Sizes: 3/4″ and 1-1/4″
- Capacity Under Nut: 6″ (for 1-1/4″) & 4″ (for 3/4″)
- Router Collets: 1/4″ and 1/2″
- Spindle speeds: 5000 / 7000 / 10000 rpm
- Table Opening Diameter: 7-5/16″
- Digital Readout: Standard
- Direction: Forward/Reversing Switch
- Fence: Micro Adjustment
- Weight (Net/Ship): 640/720 Lbs.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
