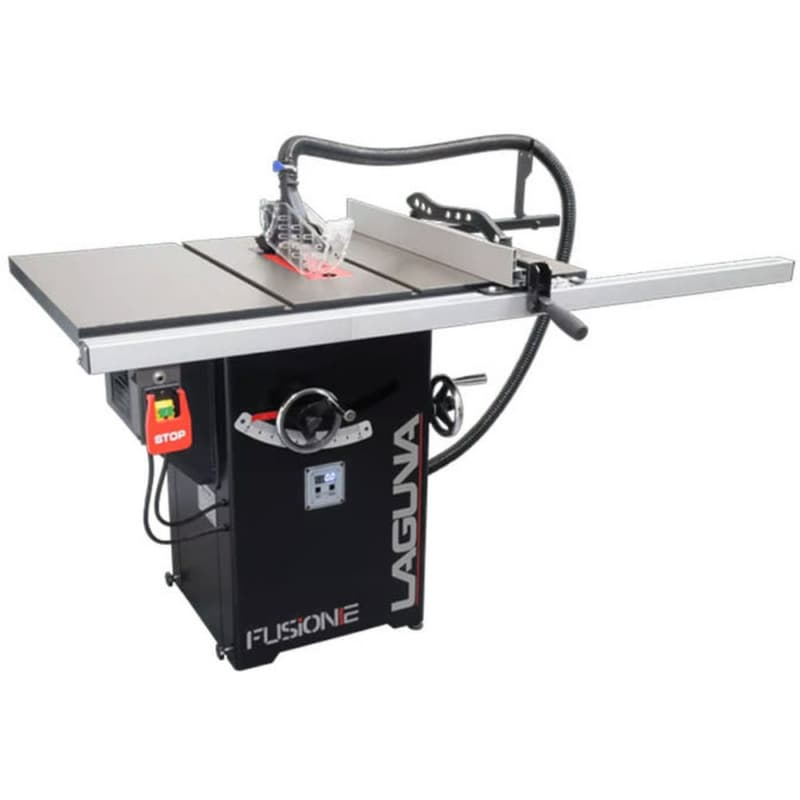

Laguna MTSF236110175-0130 F2 Fusion Tablesaw 110V 1.75HP

The new Laguna Fusion line was developed for demanding woodworkers.
Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

 All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. Permanently lubricated bearings & Acme screws are  part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
 • robust and versatile fence
 • cabinet mounted trunnion

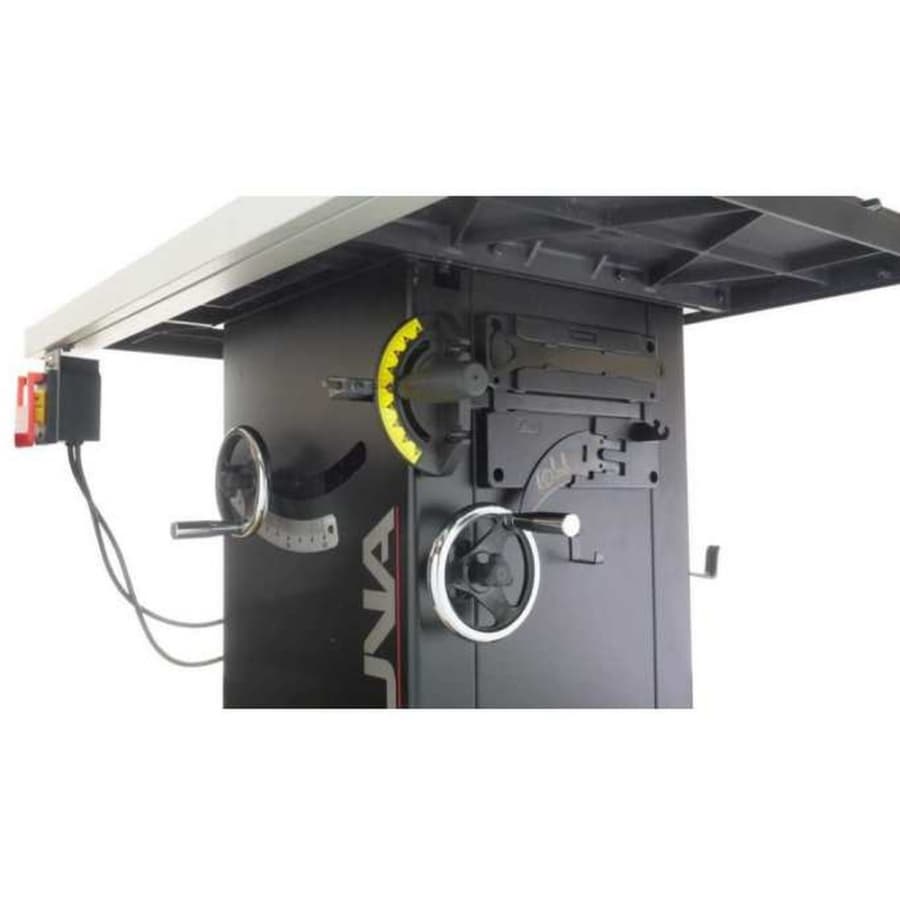

 • mechanically assisted blade movements
 • hybrid cabinet saw with trunnion that rides on two solid steel 1" posts

2 New Features Now Standard On F2 & F3 Fusions

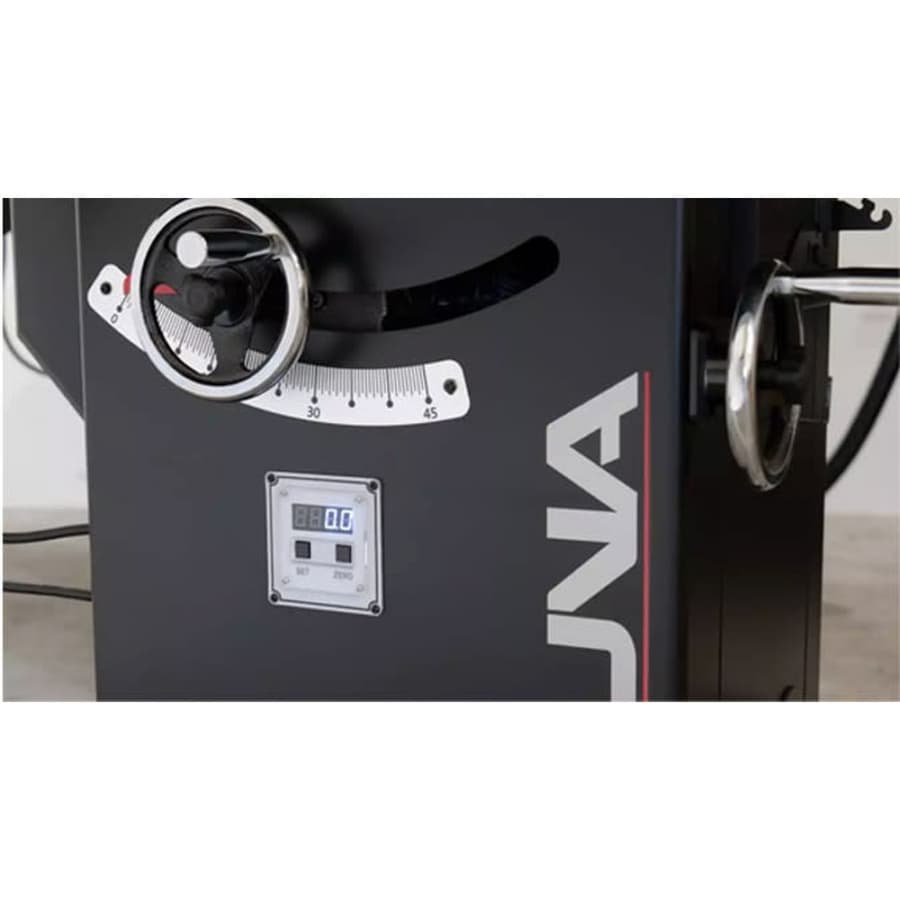

•  DRO For The Tilt Angle Of Blade

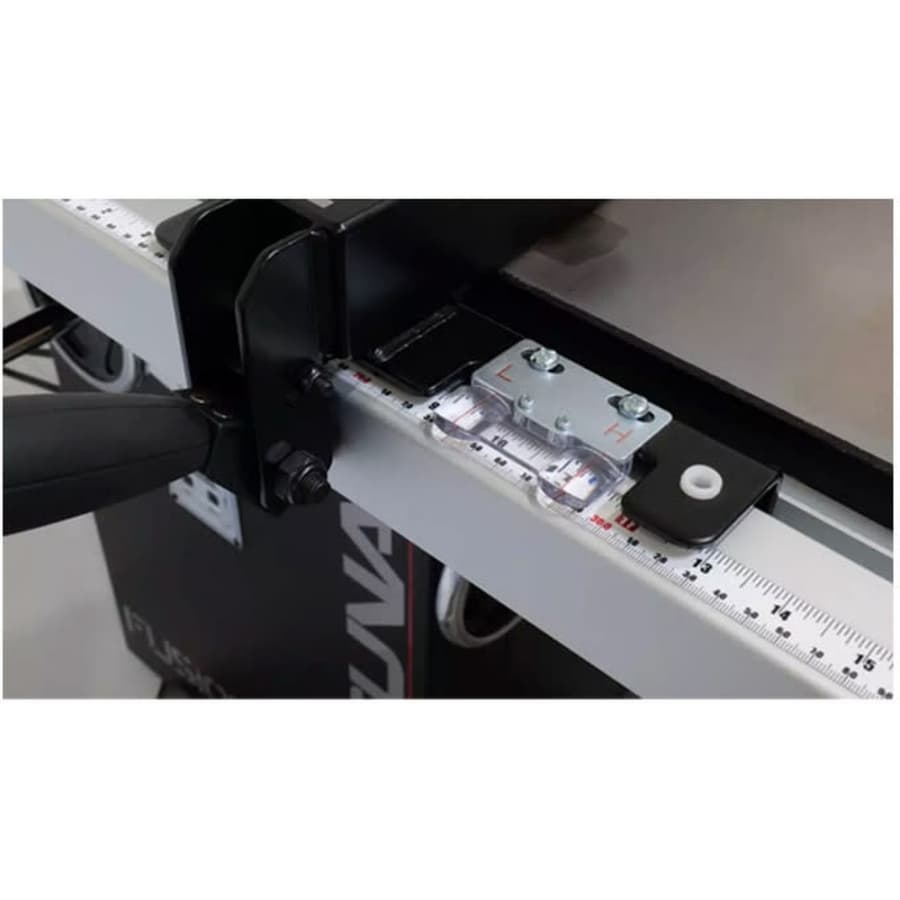

•     Double Window With Hairline For Hi/Low Fence

Specs:

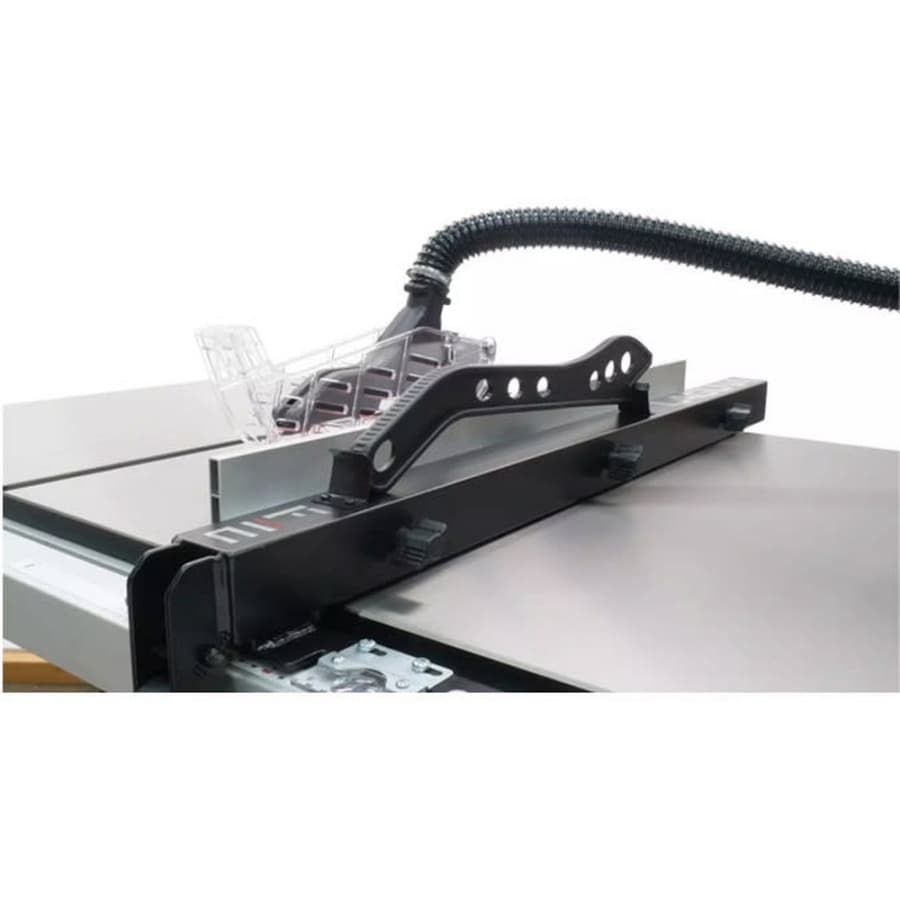

• The hybrid fence on the Laguna Fusion offers the best of European and American fence features.

• This fence is NOT designed to be used on the LEFT side of the blade!

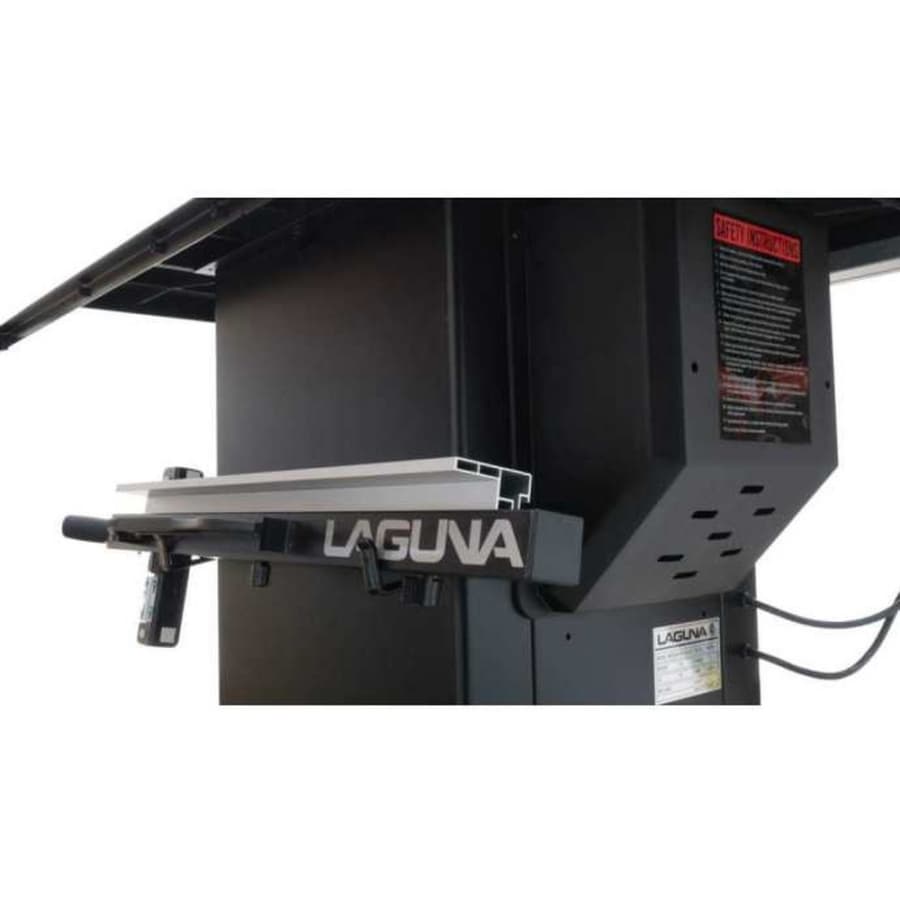

• Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable. Electrical:

• Power Requirements:    110V-1PH-60HZ*

• Amperage (FLA)    :14 AMP

• Motor Power:    1.75 HP

• Motor Speed:    3450 RPM

• Starter Switch:    Magnetic

• Plug Included:    5-15

• Circuit Breaker Req.:    110V - 25 AMP

• Receptacle Req.    : 5-15

General

• Certification:    CSA C/US 175370

• Net Weight:    275 lbs (125 Kgs)

• Shipping Weight:    368 lbs (167 Kgs)

• Shipping Dimensions:    L29-3/4" W46-5/8" H42-5/8"

• Overall Size:    L39-3/4” W65-5/8” H38”

• Tablesaw:

• Rip Capacity:    36" STD, 52" OPTION

• Blade Size:    10"

• Vertical Cut Height:    3 1/8”

• 45° Cut Height:    2 1/8"

• Tilt:    0-45° Left

• Min. Kerf:    3mm ~1/8" (actual: 0.1875")

• Max. Kerf (Dado Blade):    13/16"

• Arbor Speed:    4500 RPM

• Arbor Diameter:    5/8"

• Mitre Slot:    3/4" to 1" T

• Throat Plate:    Zero Clearance Square Composite, w/ adjustment

• Fence:    Double Rail Cam Action

Dimensions

• Overall Size:    L39-3/4" W65-5/8" H38"

• w/ 52" Extension:    +16" to W in Overall Size

• Base:    L18-5/8" W19-1/4"

• Floor to To Table:    H34-3/4"

• Table:    L27" W20"

• Extension Wing:    L27" W12" (x2)

• Throat Plate:    L14-5/8" W4-1/16" th1/2"

• Dust Collection:

• Dust Port Outer Diameter:    3-7/8"

• CFM Requirement:    350 CFM

• Dust Port Outer Diameter:    3-7/8"

Materials

• Table:    Cast Iron

• Table Wing:    Cast Iron

• Cabinet:    Sheet Steel

• Throat Plate:    Composite

• Arbor Wheels:    Iron

• Fence:    Aluminum Rail, Steel Body

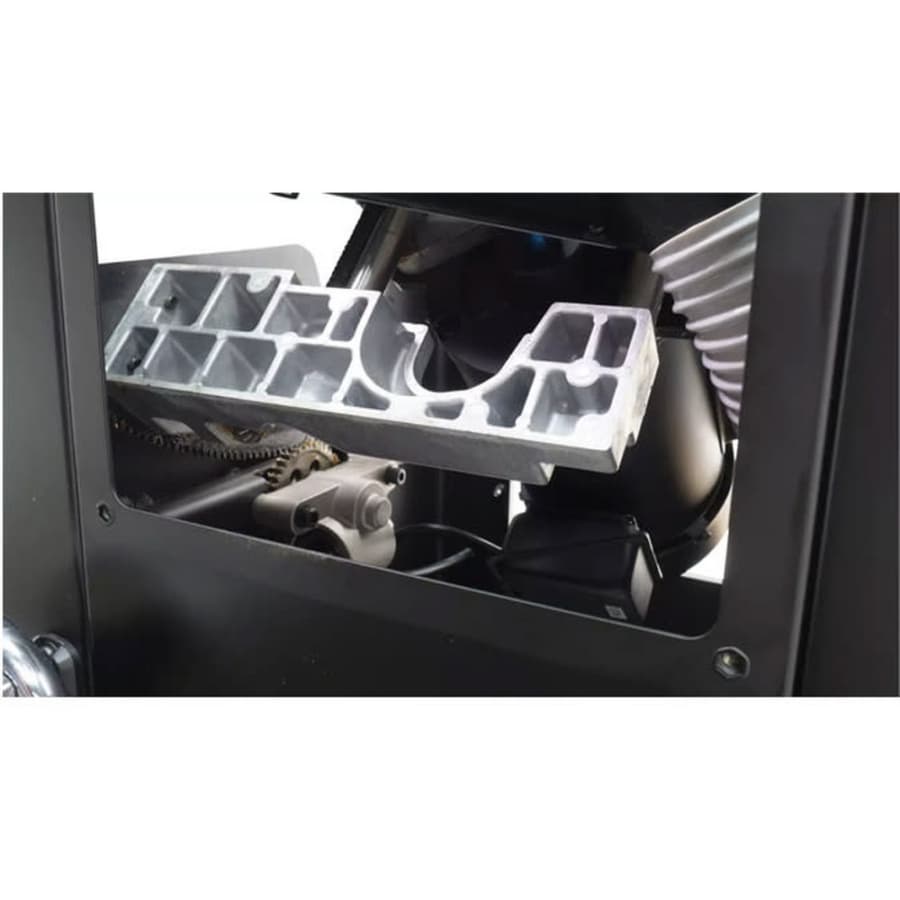

• Upper : Trunnion Cast Aluminum Alloy

• Lower Trunnion    : Cast Aluminum Alloy

Features & Comparison

• Industrial Use:    NO

• Enclosed Cabinet:    YES

• Integrated Mobility:    YES

• Quick Release Guards:    YES

• Quick Blade Change:    YES

• Integrated Tool Holder:    YES

• TEFC Motor:    YES

• 110V Power:    YES

• Iron Upper Trunnion: NO

Accessories & Options

• Dado Throat Plate: PTSF236110175-001

• Thin Kerf Riving Knife:    PTSF132110150-0130-000

• Right of wing table: NO

• Outfeed Table Attachment: NO

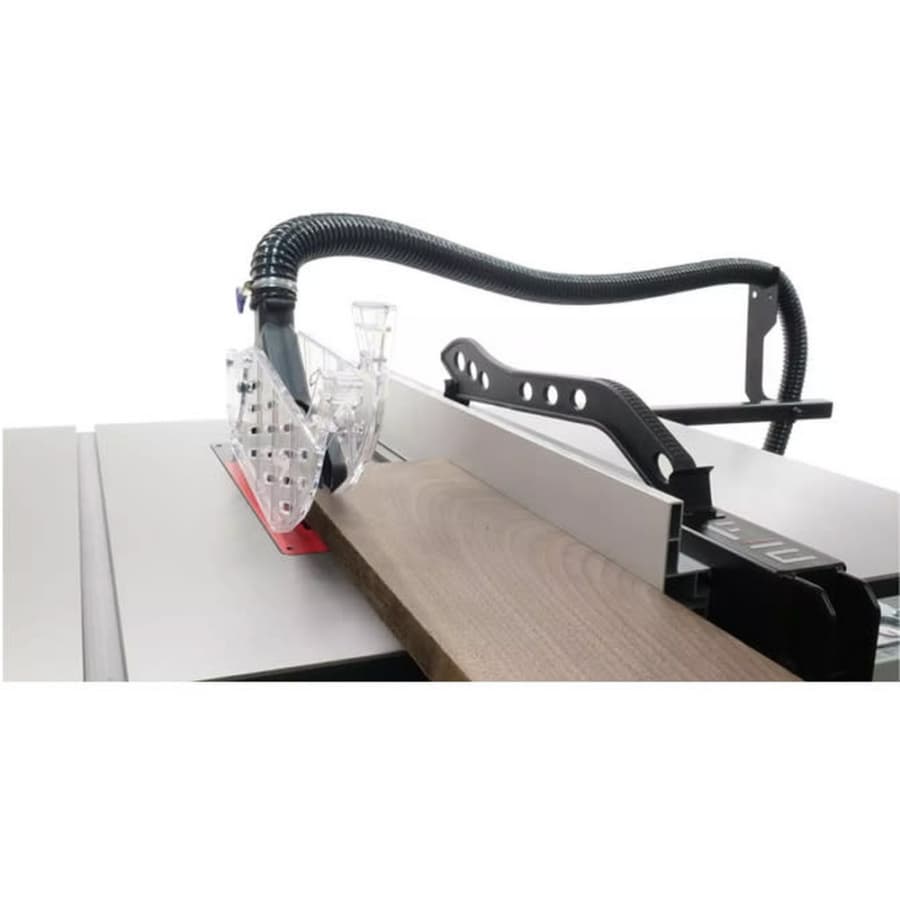

• Dust Collection Guard: Included with purchase

• Mitre Guage: Included with purchase

• Blade Guard: Included with purchase

• Arbor Wrench: Included with purchase

• Riving Knife: Included with purchase

• Standard Throat Plate: Included with purchase
