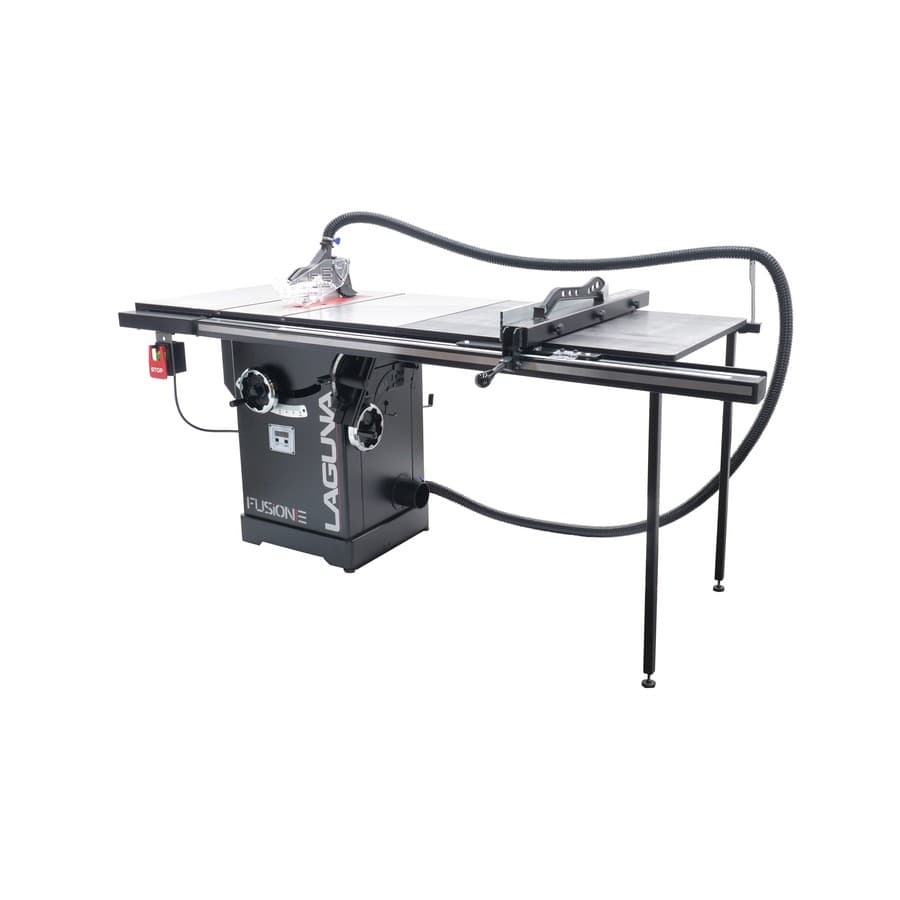

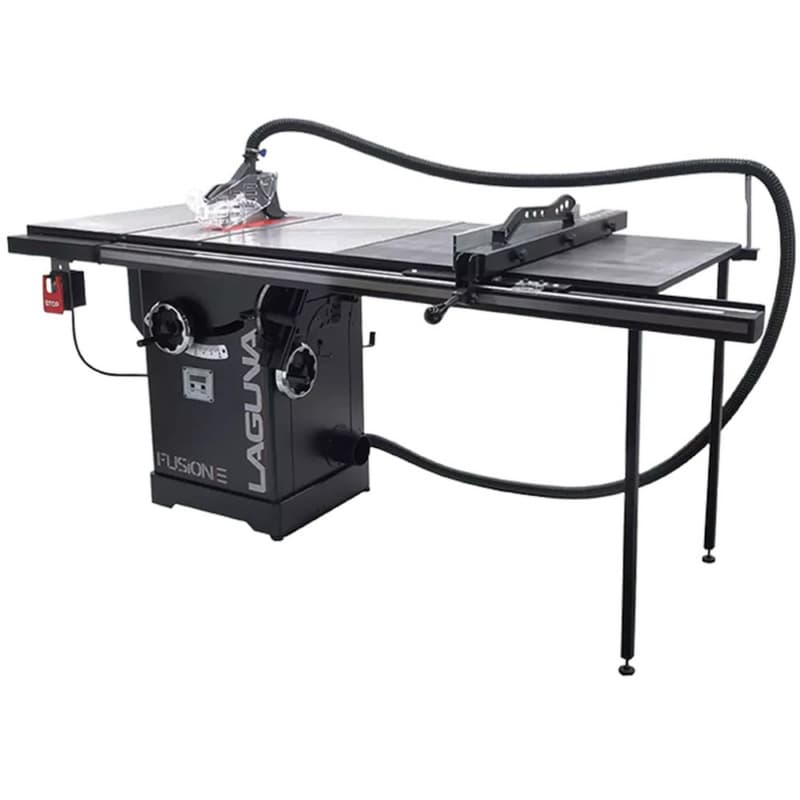

Laguna MTSF3362203-0130-52 F3 Fusion Tablesaw 52" 220V 3HP Single Phase

The new Laguna Fusion line was developed for demanding woodworkers.
Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
  All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.
Permanently lubricated bearings & Acme screws are part of the internal DNA.
 Fusion 3 is the big brother to Fusion 2.

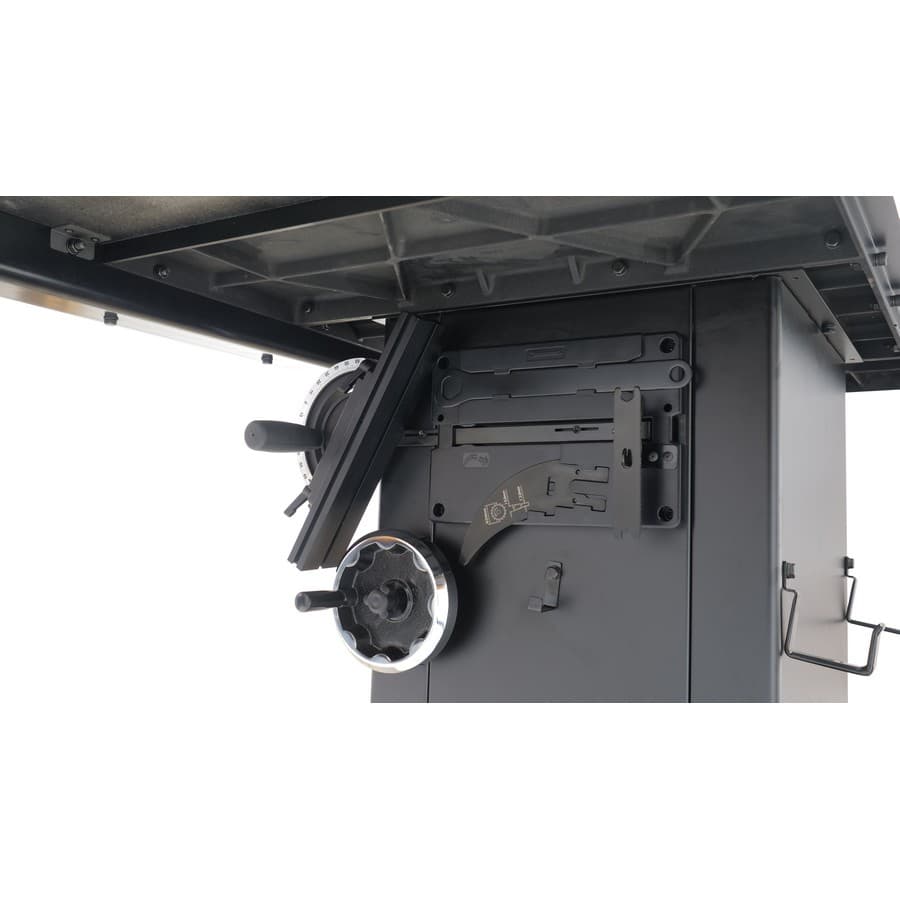

 •    cast iron trunnion
 •    upgraded handles & Miter Gauge

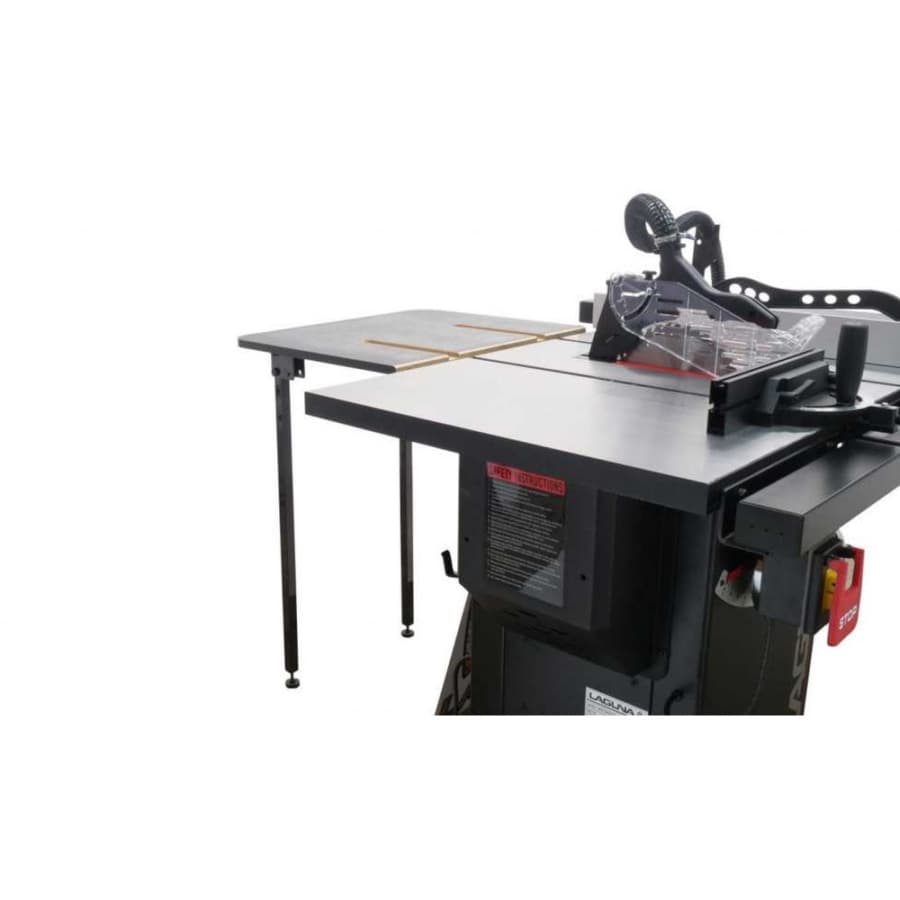

 •    outfield table equipped with double miter slots
 •    built with an extra heavy-duty cabinet, 36" steel fence

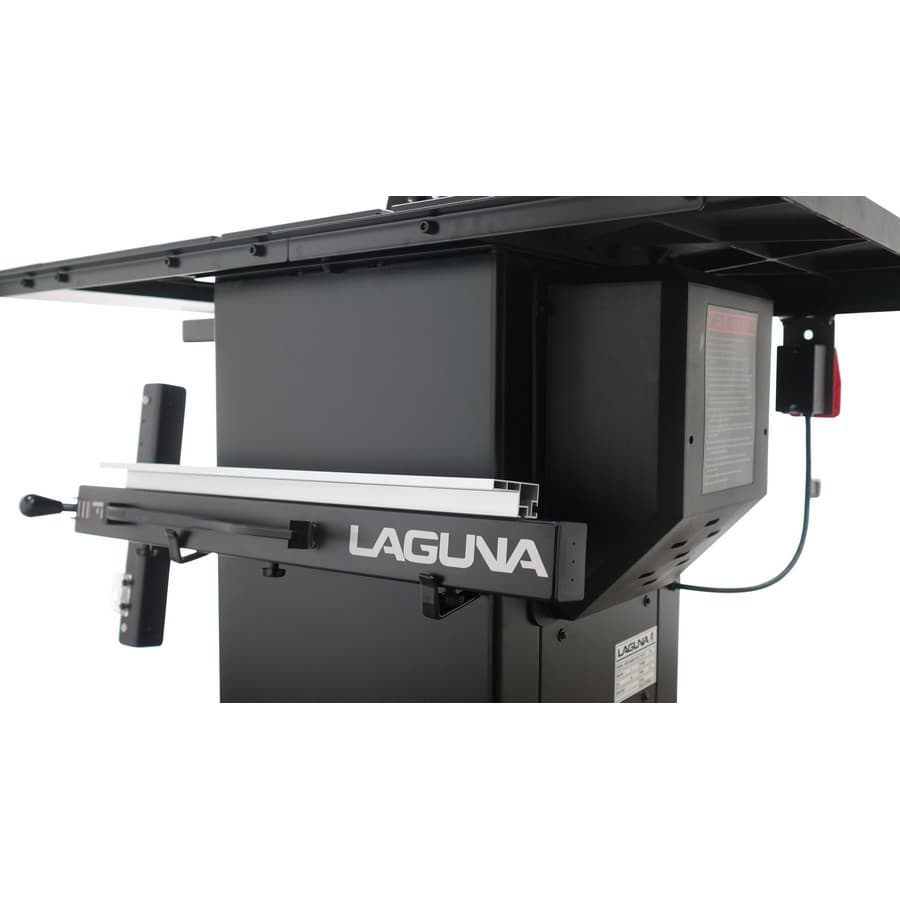

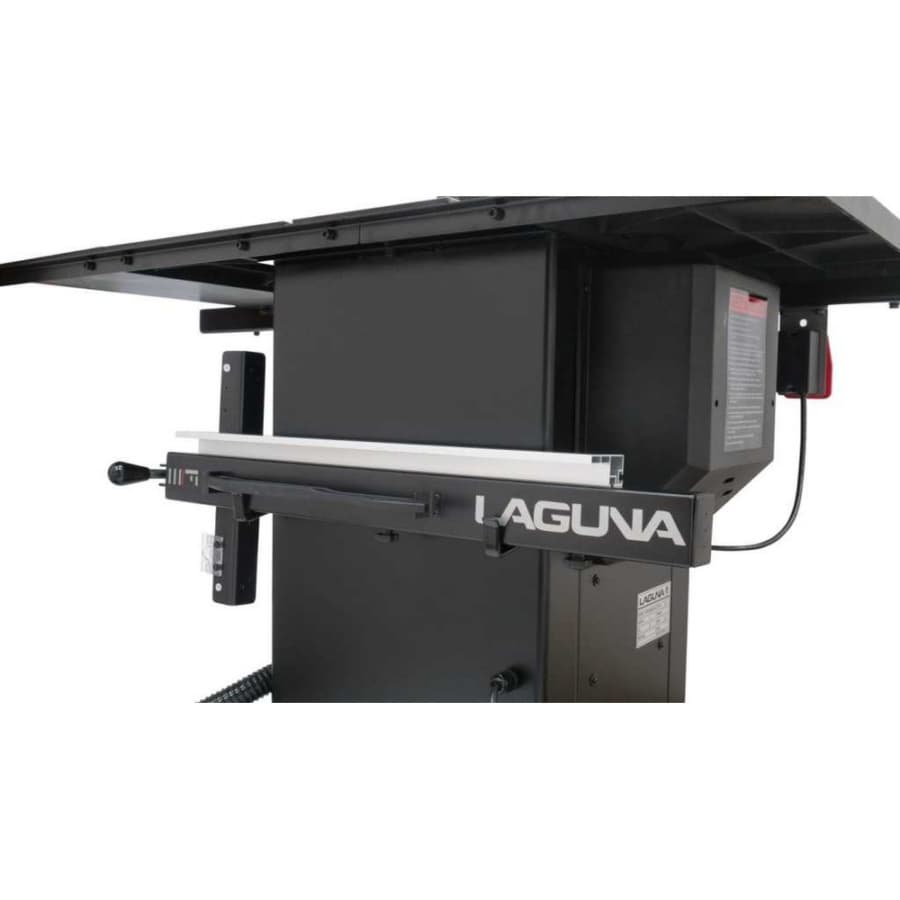

 The onboard storage of all accessories.
 The Fusion F3 features professional cabinet saws built with no compromises.

2 New Features Now Standard On F2 & F3 Fusions

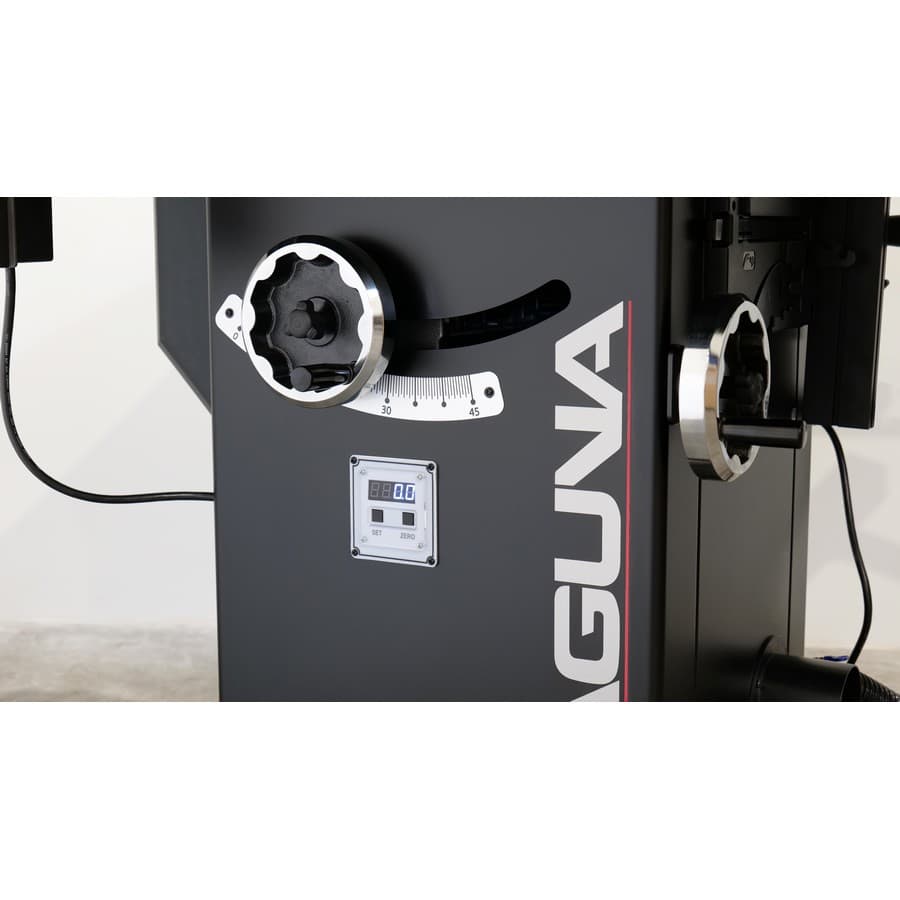

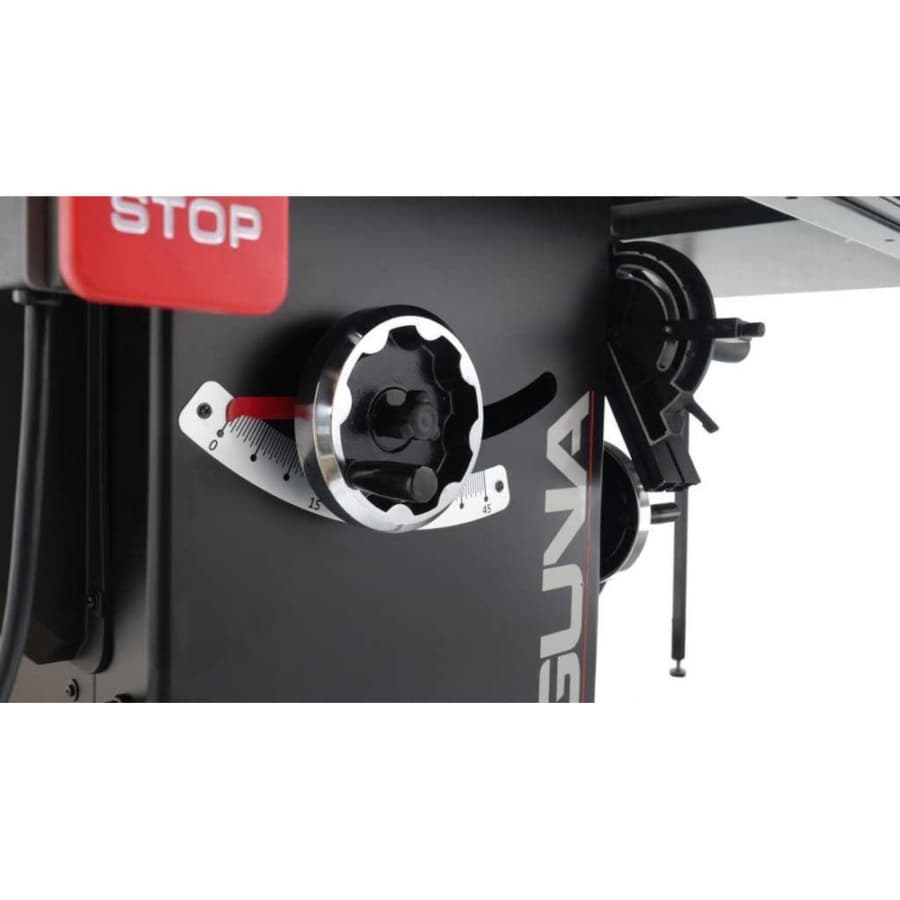

•     DRO For The Tilt Angle Of Blade

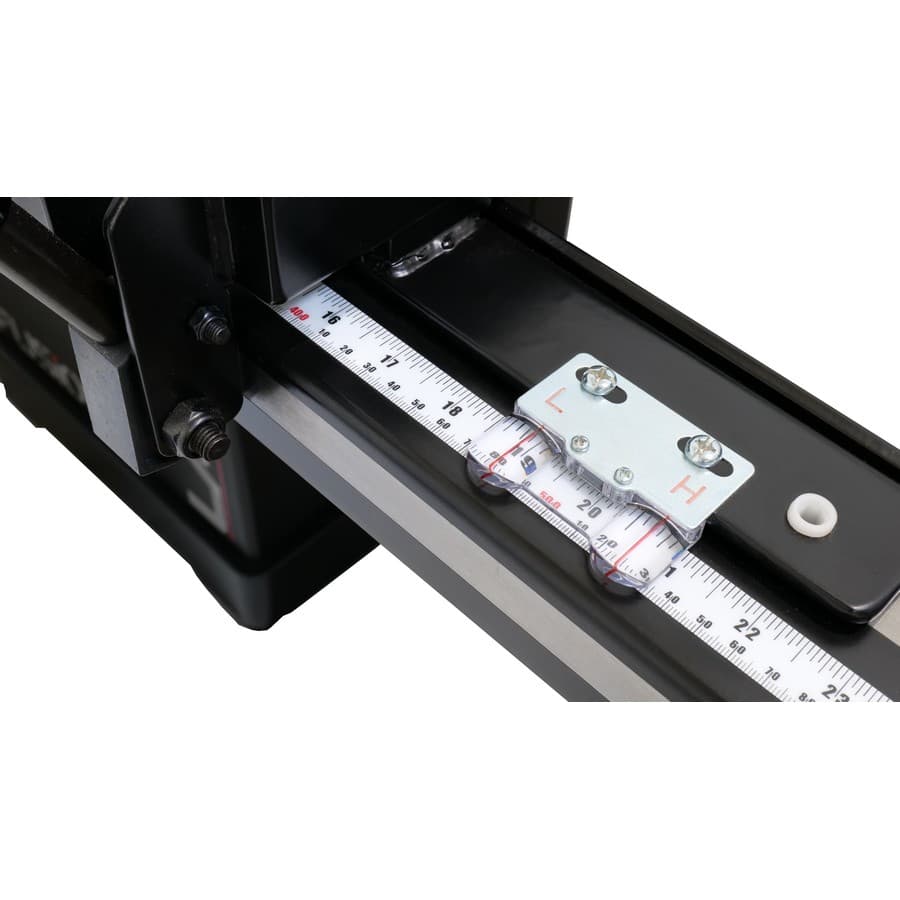

•     Double Window With Hairline For Hi/Low Fence

Specs:

• The hybrid fence on the Laguna Fusion offers the best of European and American fence features.

• This fence is NOT designed to be used on the LEFT side of the blade!

• Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable. Electrical

• Power Requirements: 220V-1PH-60HZ

• Amperage (FLA): 14 AMP

• Motor Power:    3 HP

• Motor Speed:    3450 RPM

• Starter Switch:    Magnetic

• Plug Included:    6-15

• Circuit Breaker Req.:    220V - 25 AMP

• Receptacle Req.    : 6-15

General:

• Certification:    CSA C/US 175370

• Net Weight:    290 lbs (132 Kgs)

• Shipping Weight:    390 lbs (177 Kgs)

• Shipping Dimensions:    L29-3/4" W46-5/8" H42-5/8"

• Overall Size:    L39-3/4" W65-5/8" H38"

Tablesaw:

• Rip Capacity:    36" STD, 52" OPTION

• Blade Size:    10"

• Vertical Cut Height:    3 1/8”

• 45° Cut Height:    2 1/8"

• Tilt:    0-45° Left

• Min. Kerf:    3mm ~1/8" (actual: 0.1875")

• Max. Kerf (Dado Blade): 13/16"

• Arbor Speed:    4500 RPM

• Arbor Diameter:    5/8"

• Mitre Slot:    3/4" to 1" T

• Throat Plate:    Zero Clearance Square Composite, w/ adjustment

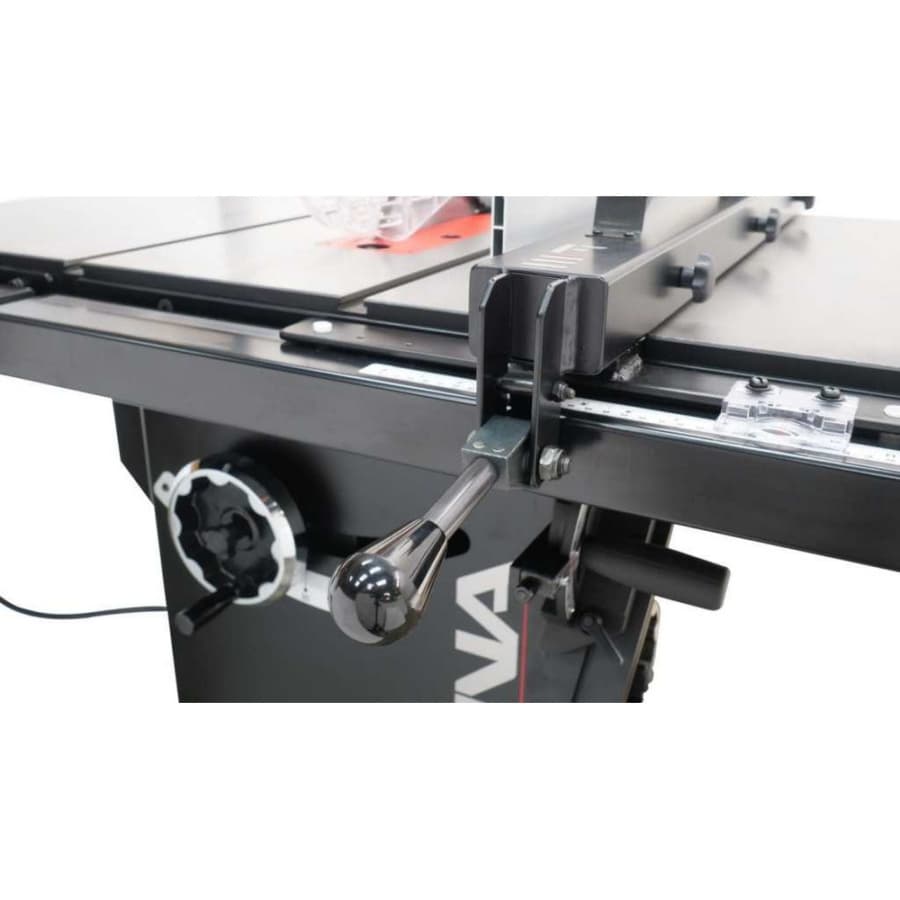

• Fence:    Double Rail Cam Action

Dimensions:

• Overall Size:    L39-3/4" W65-5/8" H38"

• w/ 52" Extension:    +16" to W in Overall Size

• Base:    L18-5/8" W19-1/4"

• Floor to To Table:    H34-3/4"

• Table:    L27" W20"

• Extension Wing: L27" W12" (x2)

• Throat Plate:    L14-5/8" W4-1/16" th1/2"

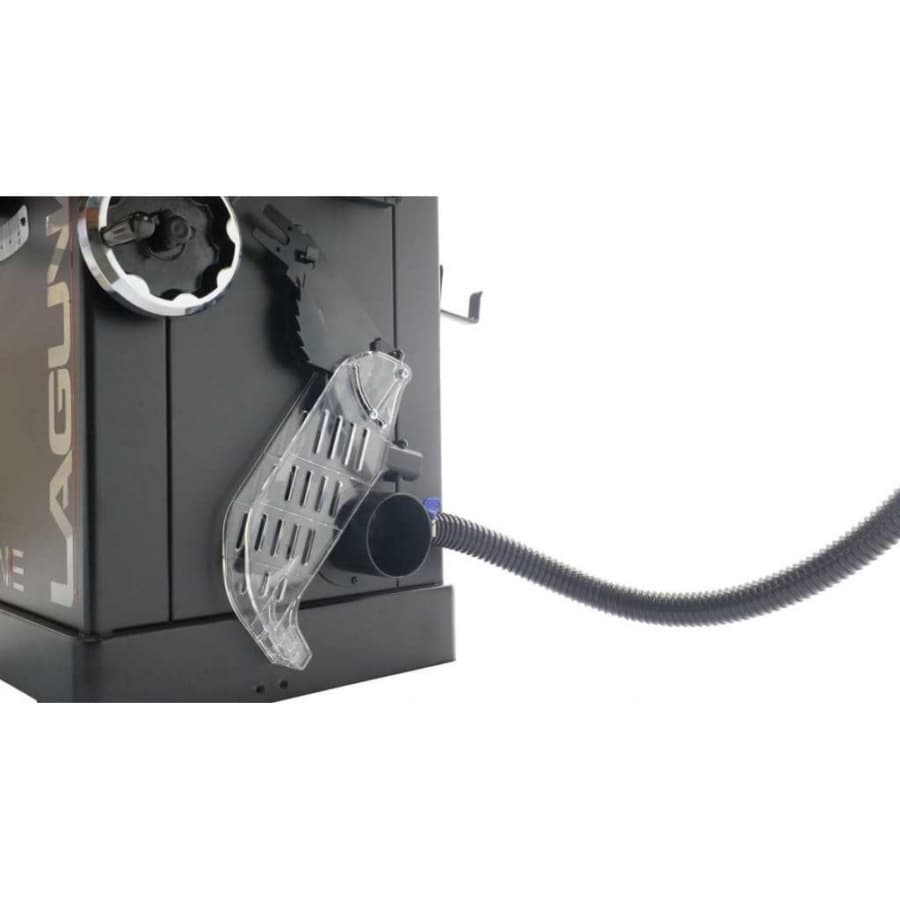

    Dust Collection:

• Dust Port Outer Diameter:    3-7/8"

• CFM Requirement:    350 CFM

• Dust Port Outer Diameter:    3-7/8"

Materials:

• Table:    Cast Iron

• Table Wing:    Cast Iron

• Cabinet    Thick: Sheet Steel

• Throat Plate:    Composite

• Arbor Wheels:    Premium Iron

• Fence:    Aluminum Rail, Steel Body

• Upper Trunnion    : Cast Iron

• Lower Trunnion    : Cast Aluminum Alloy

Features & Comparison

• Industrial Use:    YES

• Enclosed Cabinet:    YES

• Integrated Mobility:    YES

• Quick Release Guards:    YES

• Quick Blade Change:    YES

• Integrated Tool Holder:    YES

• TEFC Motor:    YES

• 110V Power:    NO

• Iron Upper Trunnion:    YES

Accessories & Options:

• Dado Throat Plate: PTSF236110175-001

• Thin Kerf Riving Knife: PTSF132110150-0130-000

• Right of wing table:    Included with purchase

• Outfeed Table Attachment:    Included with purchase

• Dust Collection Guard:    Included with purchase

• Mitre Guage:    Included with purchase

• Blade Guard:    Included with purchase

• Arbor Wrench:    Included with purchase

• Riving Knife:    Included with purchase

• Standard Throat Plate:    Included with purchase
