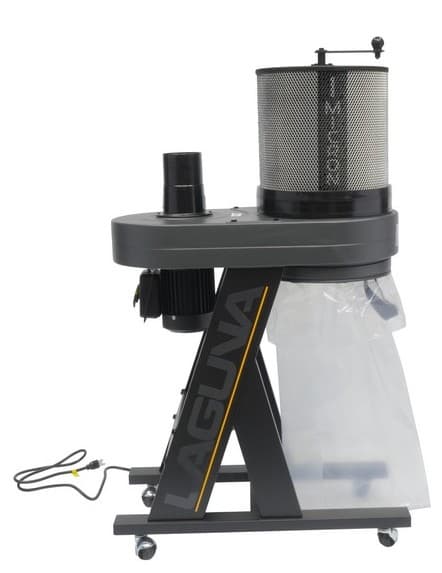

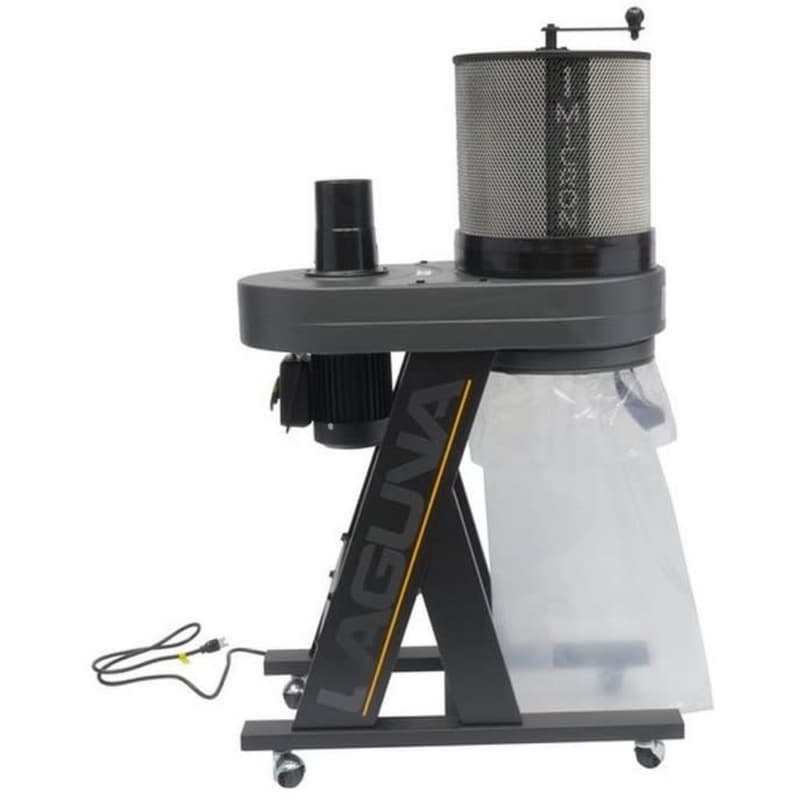

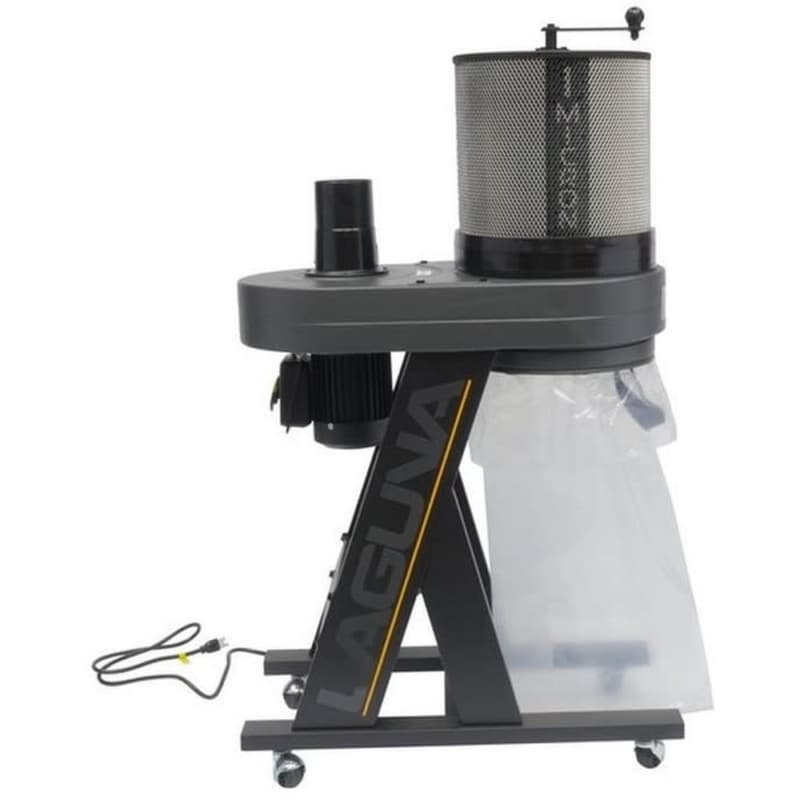

Laguna MDCBF1110C1M B|Flux Single Stage Dust Collector 110V 1HP Single Phase

The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.

The b|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.

Specs:

• Motor HP: 1HP

• Phase: 1

• Voltage: 110v

• Amps: 8.4 Amps

• Hertz: 60

• Plug: Yes

• RPM: 3450

• Switch type: Motor mounted direct switch

• Hand held remote control: None

• Shop Setting CFM*: 550

• Inlet CFM: 650

• Max Static Pressure (inches of water): 4.86″

• Impeller/Fan Size: 9″

• Impeller Material: Steel

• Impeller type: Radial Fin

• Balanced To:: ISO 1940

• Inlet Diameters: 4″ x 1 ports

• Drum collection bag (Dia. x L): Plastic bag (Ø350 x 980mmL)

• Canister Filter type: 1 Micron

• Filtration efficiency: 0.2-2micron @ 99.97%

• MERV rating: 12

• Canister diameter: Ø360mm (14.2″)

• Cansiter length: 300mm (11.8″)

• Filter Surface Area: 1.6m²/17.2ft²

• Canister cleaning: Manual Handle crank 360°

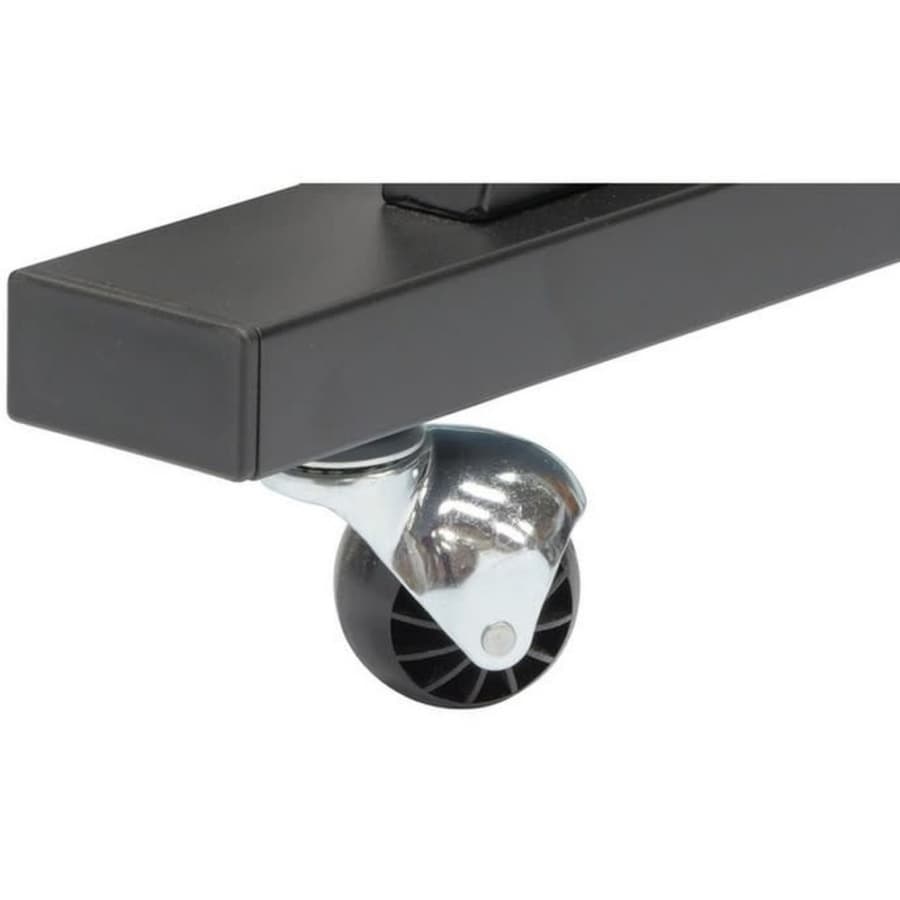

• Wheels: 2″ Ball Caster

• CSA Approved: Yes

• Decibel Reading: 76 d B(A) (@9.8ft)

• Machine weight: 32kgs/71Lbs

• Shipping weight: 35kgs/77Lbs

• Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736x376x1280mm
