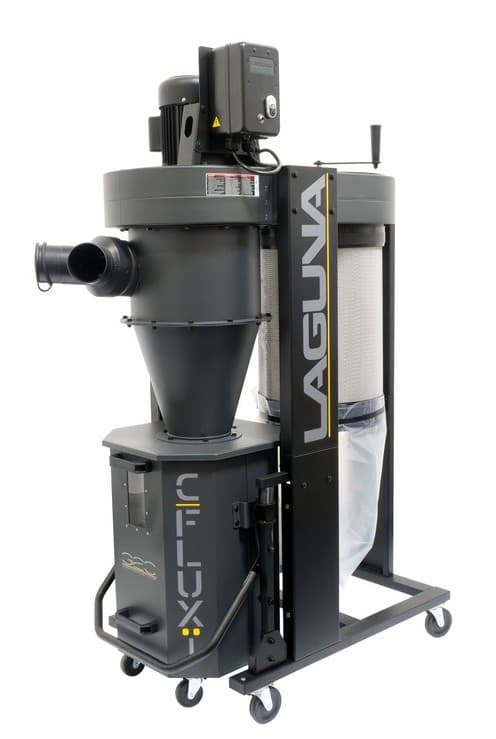

Laguna MDCCF15110 C|Flux: 1 Dust Collector 110V 1.5HP Single Phase

The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions have been reevaluated to optimize performance.

 The c|flux:1 comes standard with a 1-micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

Specs:

• Motor HP: 1.5 HP

• Phase: 1

• Voltage: 110v

• 220v Option available – sold separately

• Full Load Amperage Draw [FLA]: 18.8(110V) / 9.4(220V)

• Hertz: 60

• Plug: No

• RPM: 3450

• Switch type: Radio Frequency Remote switch – Black Box

• Hand held remote control: HF

• Shop Setting CFM*: 900

• Inlet CFM: 1314

• Max Static Pressure (inches of water): 10.1″

• Impeller/Fan Size: 13.5″

• Impeller Material: Steel

• Impeller type: Radial Fin

• Balanced To:: ISO 1940

• Inlet Diameters: 6″ by 4″ x 2 ports

• Drum Capacity:  25 Gal.

• Octagon drum: Metal drum insert

• Drum collection bag (Dia. x L): Plastic bag (Ø610 x 950mmL)

• Canister Filter type: 1 Micron

• Filtration efficiency: 0.2-2micron @ 99.97%

• MERV rating: 12

• Canister diameter: Ø400mm (15.75″)

• Cansiter length: 500mm (19.69″)

• Filter Surface Area: 4.5m²/48ft²

• Canister cleaning: Manual Handle crank. 270 degrees/*Optional Auto cleaning kit available

• Canister filter lower dust collection: Plastic bag (Ø400 x 600mmL)

• Base with perforated sheet across canister floor: N/A

• Wheels: 4″ Flat Caster

• US/CSA Approved: Yes

• Decibel Reading: 82 d B(A) (@9.8ft)

• Machine weight: 105kgs/232Lbs

• Shipping weight: 130kgs/287Lbs

• Assembled Dimensions (L x W x H): 42.5″ x 24″ x 68.5″ | 1078x614x1740mm
