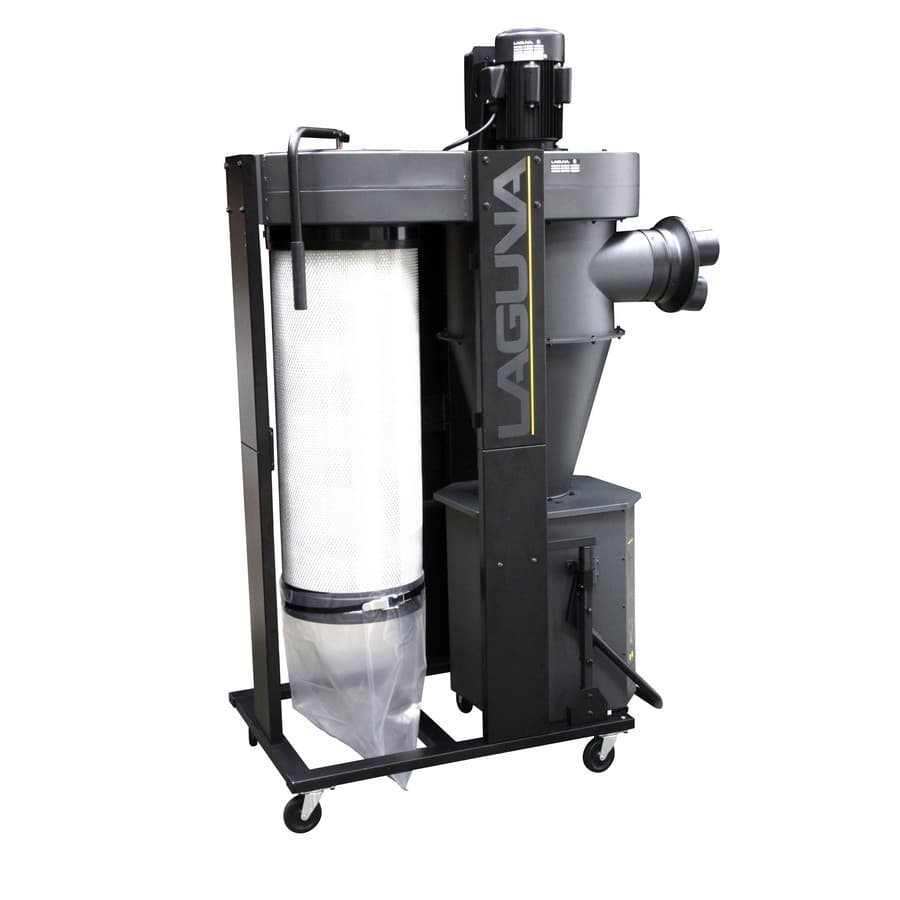

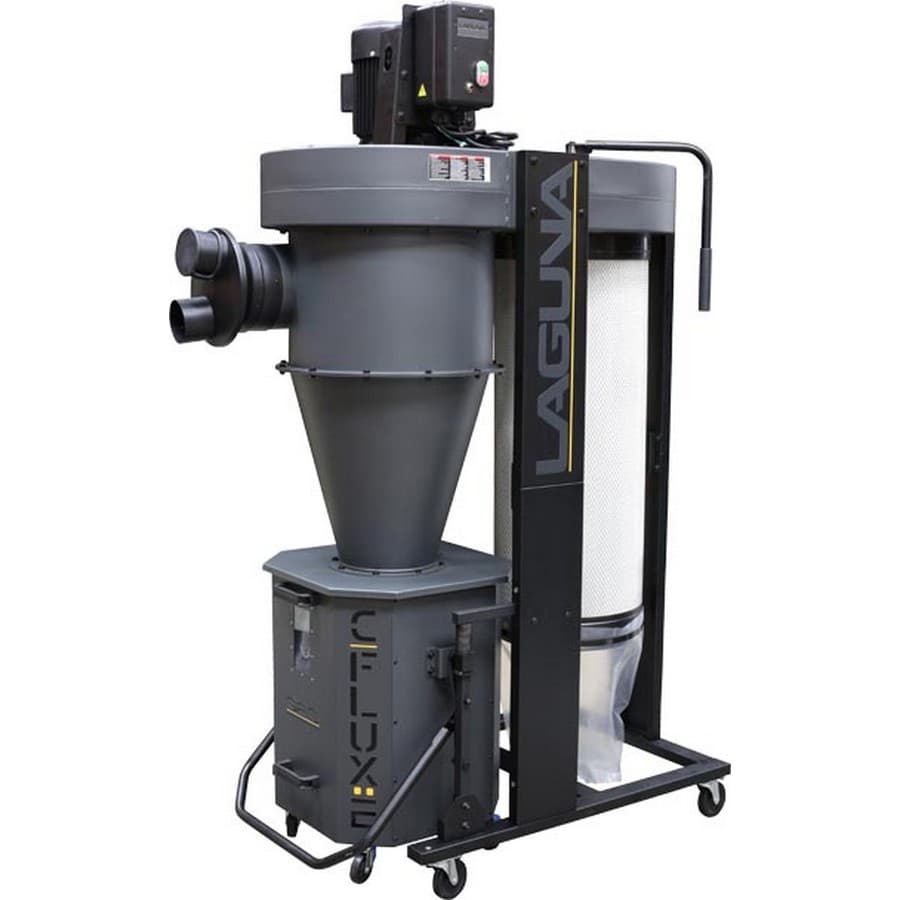

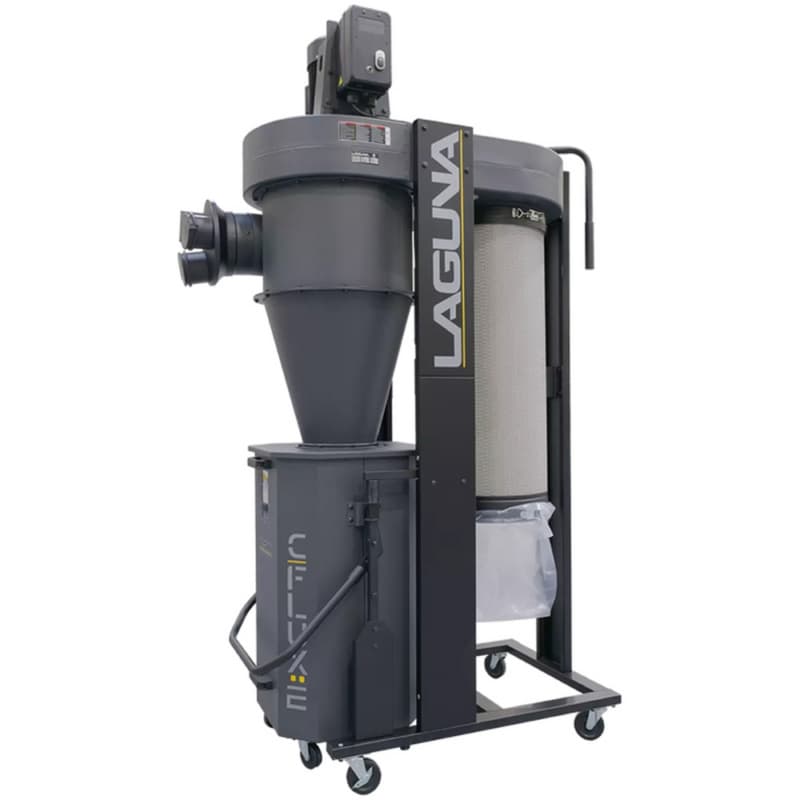

Laguna MDCCF22201 C|Flux: 2 Dust Collector 220V 2HP Single Phase

The C|Flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance. The C|Flux:2 comes standard with a 1-micron canister providing filtration of 99.97% particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

Specs:

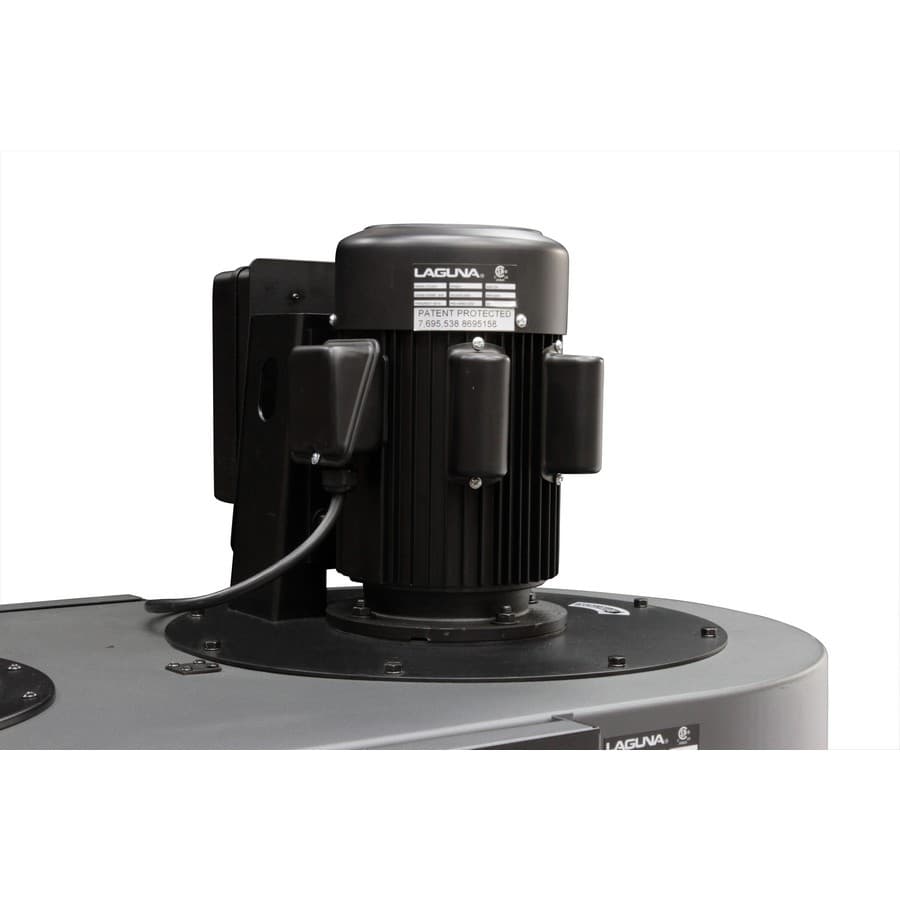

• Motor HP: 2 HP

• Phase: 1

• Voltage: 220v

• Amps: 14 Amps

• Hertz: 60

• Plug: No

• RPM: 3450

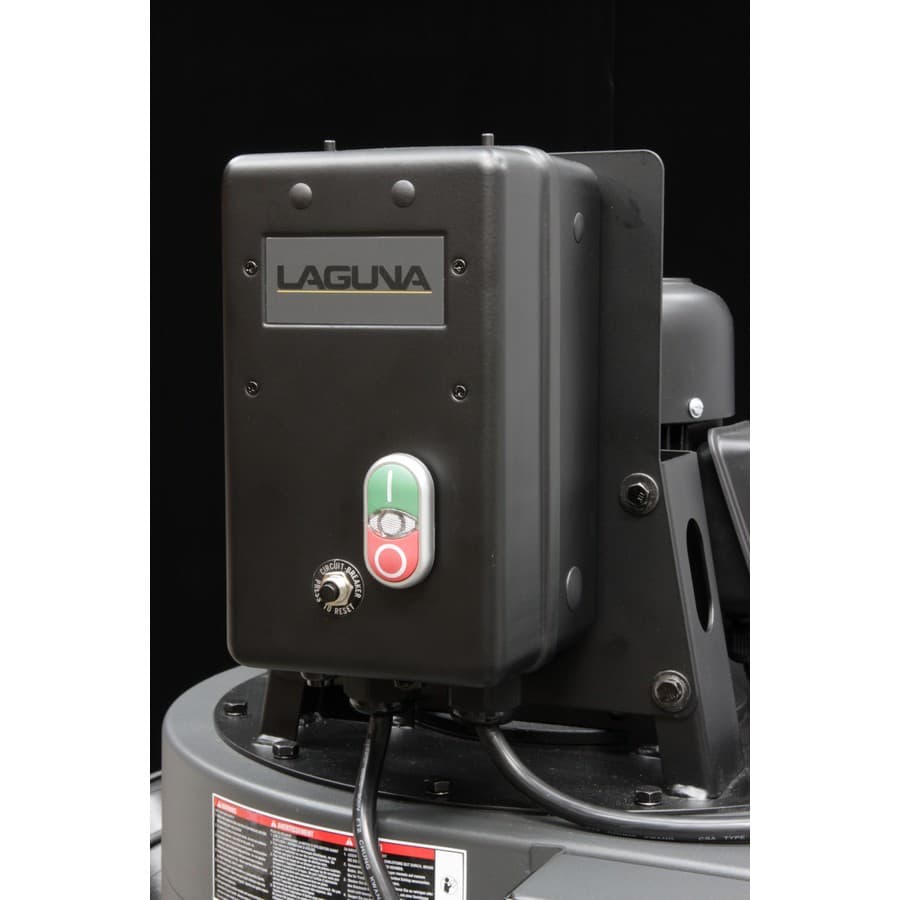

• Switch type: Radio Frequency Remote switch – Black Box

• Hand held remote control: HF

• Shop Setting CFM*: 1166

• Inlet CFM: 1740

• Max Static Pressure (inches of water): 9.3″

• Impeller/Fan Size: 14.5″

• Impeller Material: Steel

• Impeller type: Radial Fin

• Balanced To:: ISO 1940

• Inlet Diameters: 8″ main to 4″ x 2 ports

• Drum Capacity: 33 Gal.

• Octagon drum: Metal drum insert

• Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)

• Canister Filter type: 1 Micron

• Filtration efficiency: 0.2-2micron @ 99.97%

• MERV rating: 12

• Canister diameter: 400mm (15.75″)

• Cansiter length: 900mm (19.69″)

• Filter Surface Area: 9.5m²/109ft²

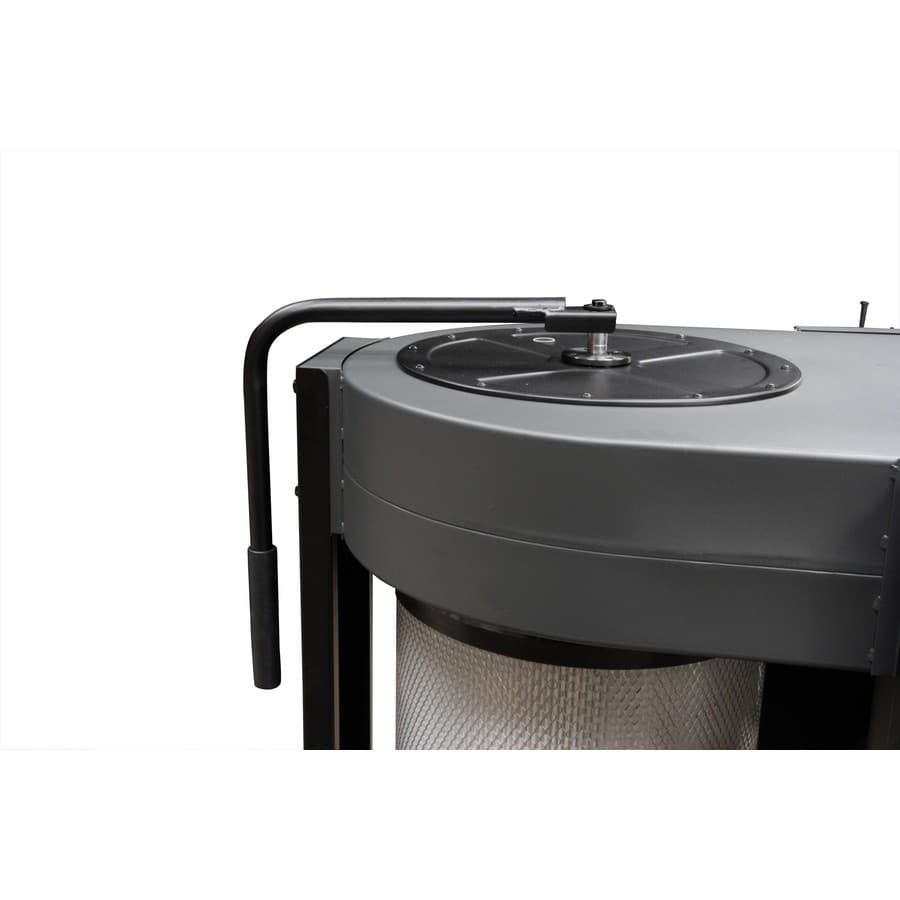

• Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available

• Canister filter lower dust collection: Plastic bag (400 x 600mmL)

• Base with perforated sheet across canister floor: N/A

• Wheels: 4″ Flat Caster

• US/CSA Approved: Yes

• Decibel Reading: 88 d B(A) (@9.8ft)

• Machine weight: 134kgs/296Lbs

• Shipping weight: 165kgs/364Lbs

• Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178x690x2025mm
