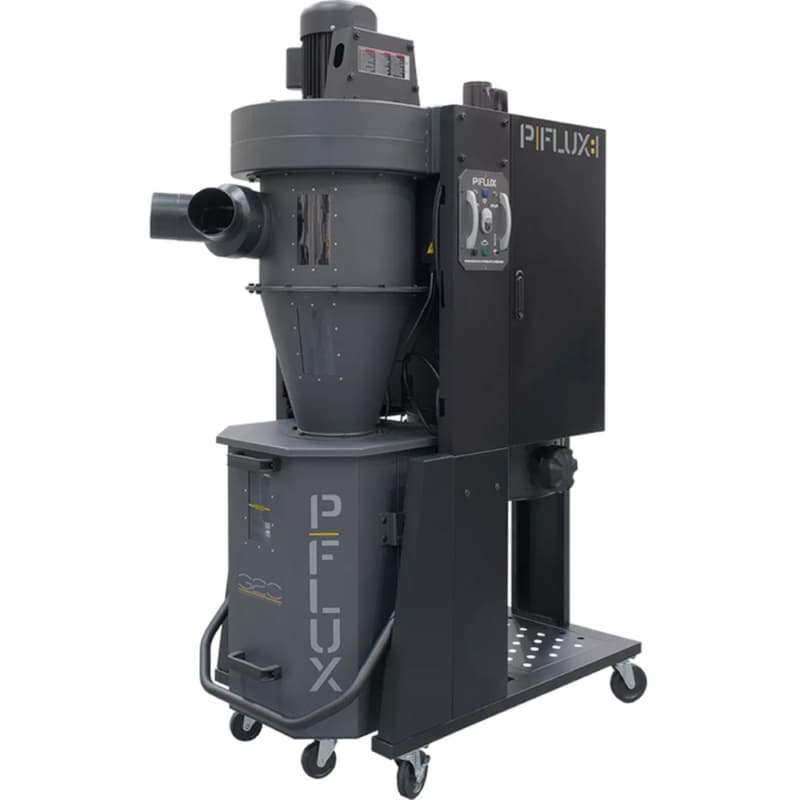

Laguna MDCPF15110 P|Flux: 1 Dust Collector 110V 1.5HP
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
• LED shows when the drum is full
• LED shows when the filter needs cleaning
• Swing-away doors sport acoustic foam on the inside to lower noise level.
Specs:
- Motor HP: 1.5 HP
- Phase: 1
- Voltage: 110v
- 220v Option available – sold separately
- Amps: 18.8 Amps
- Hertz: 60
- Plug: No
- RPM: 3450
- Control Panel: Embedded Anodized Aluminum w. Magnetic On/Off
- Hand held remote control: High Frequency
- Shop Setting CFM*: 900
- Inlet CFM: 1314
- Max Static Pressure (inches of water): 10.1″
- Impeller/Fan Size: 13.5″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced To:: ISO 1940
- Inlet Diameters: 6” manifold 4” x 2
- Drum Capacity: 25 Gal.
- Octagon Drum: Low Pressure Suction
- Drum Collection Bag (Dia. x L): Plastic bag (24” x 37 3/8”)
- Canister Filter Type: HEPA
- Filtration Efficiency: 0.4micron @ 99.2%
- MERV Rating: 16+/Refer to tab 4
- Canister Diameter: Ø400mm (15.75″)
- Canister Length: 500mm (19.69″)
- Filter Surface Area: 4.5m²/48ft²
- Canister Cleaning: Clean using external air compressor (not incl)
- Canister Filter Lower Dust Collection: Metal end cap with 4″ hookup window & quick release
- Frame Wheels: (4x) 4″ PU Caster
- Drum Wheels: (4x) 4″ PU Caster
- US/CSA Approved: Yes
- Decibel Reading: 70 d B(A) (@9.8ft)
- Machine weight: 122kgs/269Lbs
- Shipping weight: 150kgs/331Lbs
- Assembled Dimensions (L x W x H): 45 1/2″ x 24 1/4 x 68 1/2″ : 1078x614x1722mm
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
