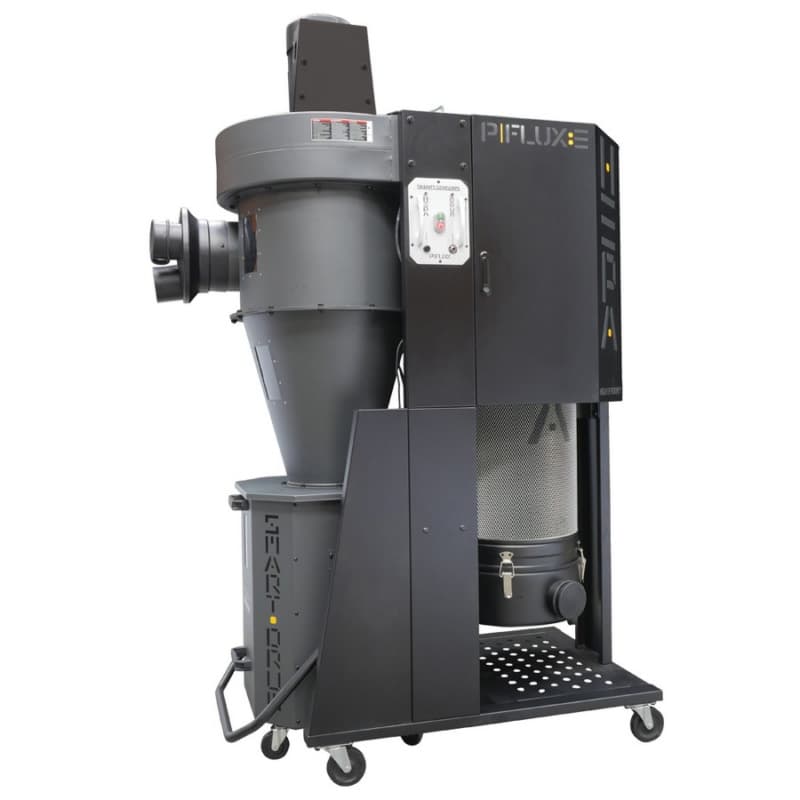

Laguna MDCPF22201 P|Flux: 2 Dust Collector 220V 2HP Single Phase
This item may incur additional shipping costs and lead times.
Product Details
Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
• LED shows when the drum is full
• LED shows when the filter needs cleaning
• Swing-away doors sport acoustic foam on the inside to lower noise level.
Specs:
- Motor HP: 2 HP
- Phase: 1
- Voltage: 220V
- Amps: 14 Amps
- Hertz: 60
- Plug: No
- RPM: 3450
- Control Panel: Embedded Anodized Aluminum w. Magnetic On/Off
- LED Drum: : Probe activates LED when drum is full
- LED Canister:: Sensor detects rise in static pressure inside HEPA Filter & activates LED
- Hand Held Remote Control: High Frequency
- Shop Setting CFM*: 1166
- Inlet CFM: 1740
- Max Static Pressure (inches of water): 9.3″
- Impeller/Fan Size: 14.5″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced: ISO 1940
- Inlet Diameters: 8″ main to 4″ x 2 ports
- Drum Capacity: 33 Gal.
- Octagon Drum: Low Pressure Suction
- Drum Collection Bag (Dia. x L): Plastic Bag (Ø610 x 950mmL)
- Canister Filter Type: HEPA
- Filtration Efficiency: 0.4micron @ 99.2%
- MERV Rating: 16+/Refer to tab 4
- Canister Diameter: Ø400mm (15.75″)
- Canister Length: 900mm (35.43″)
- Filter Surface Area: 9.5m²/109ft²
- Canister Cleaning: Clean using external air compressor (not incl)
- Canister Flter Lower Dust Collection: Metal end cap with 4″ hookup
- Wheels: (4x) 4″ PU Caster
- US/CSA Approved: Yes
- Decibel Reading: 76 d B(A) (@9.8ft)
- Machine Weight: 154kgs/340Lbs
- Shipping Weight: 185kgs/408Lbs
- Assembled Dimensions: (L x W x H)1178 x 690 x 2025 mm
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
