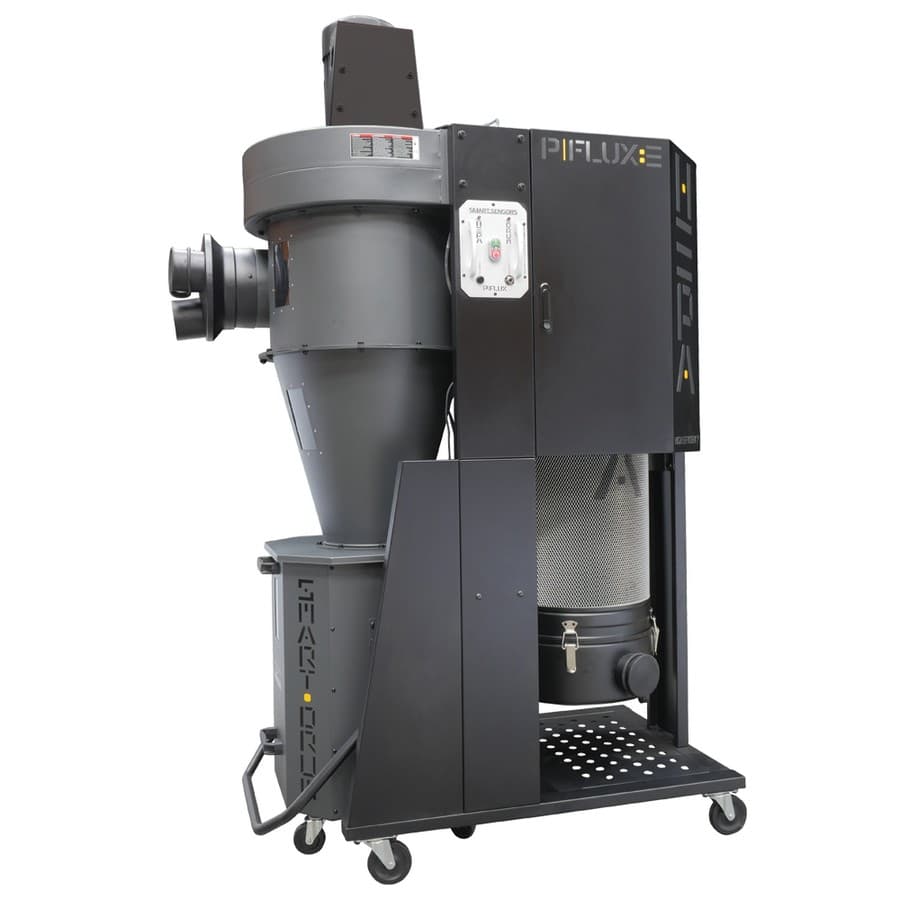

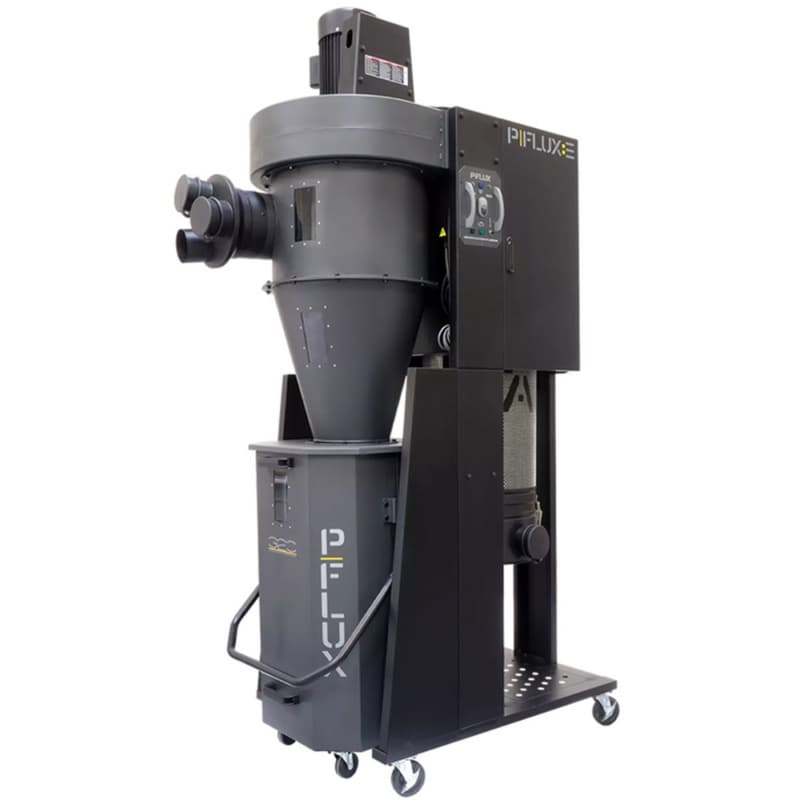

Laguna MDCPF32201 P|Flux: 3 Dust Collector 220V 3HP Single Phase
This item may incur additional shipping costs and lead times.
Product Details
Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
• LED shows when drum is full
• LED shows when filter needs cleaning
• Swing-away doors sports acoustic foam on the inside to lower noise level.
Specs:
- Motor HP: 3 HP
- Phase: 1
- Voltage: 220V
- Amps: 22 Amps
- Hertz: 60
- Plug: No
- RPM: 3450
- Switch type: Sunken Radio Frequency Remote switch with LED Full drum detection & LED HEPA dirty detection
- Hand held remote control: High Frequency
- Shop Setting CFM*: 1624
- Inlet CFM: 2817
- Max Static Pressure (inches of water): 11.2″
- Impeller/Fan Size: 15.5″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced: ISO 1940
- Inlet Diameters: 8″ by 4″ x 3 Ports
- Drum Capacity: 33 Gal.
- Octagon Drum: Low Pressure Suction
- Drum collection bag (Dia. x L): Plastic bag (Ø610 x 950mmL)
- Canister Filter type: HEPA
- Filtration Efficiency: 0.4micron @ 99.2%
- MERV Rating: 16+/Refer to tab 4
- Canister Diameter: Ø400mm (15.75″)
- Canister length: 900mm (35.43″)
- Filter Surface Area: 9.5m²/109ft²
- Canister filter lower dust collection: Metal end cap with 4″ hookup
- Base with perforated sheet across canister floor: Included
- Wheels: 4″ Flat Caster
- US/CSA Approved: Yes
- Decibel Reading: 76 d B(A) (@9.8ft)
- Machine weight: 159kgs/351Lbs
- Shipping weight: 190kgs/419Lbs
- Assembled Dimensions (L x W x H): 1178x690x2025mm
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
