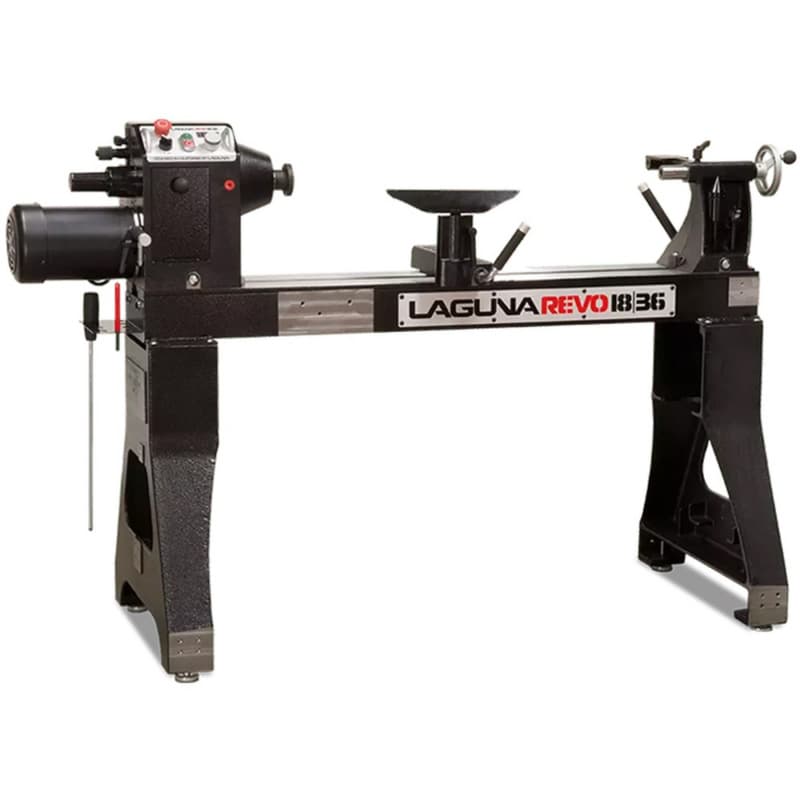

Laguna MLAREVO 1836-220 18|36 Lathe 220V 2HP
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

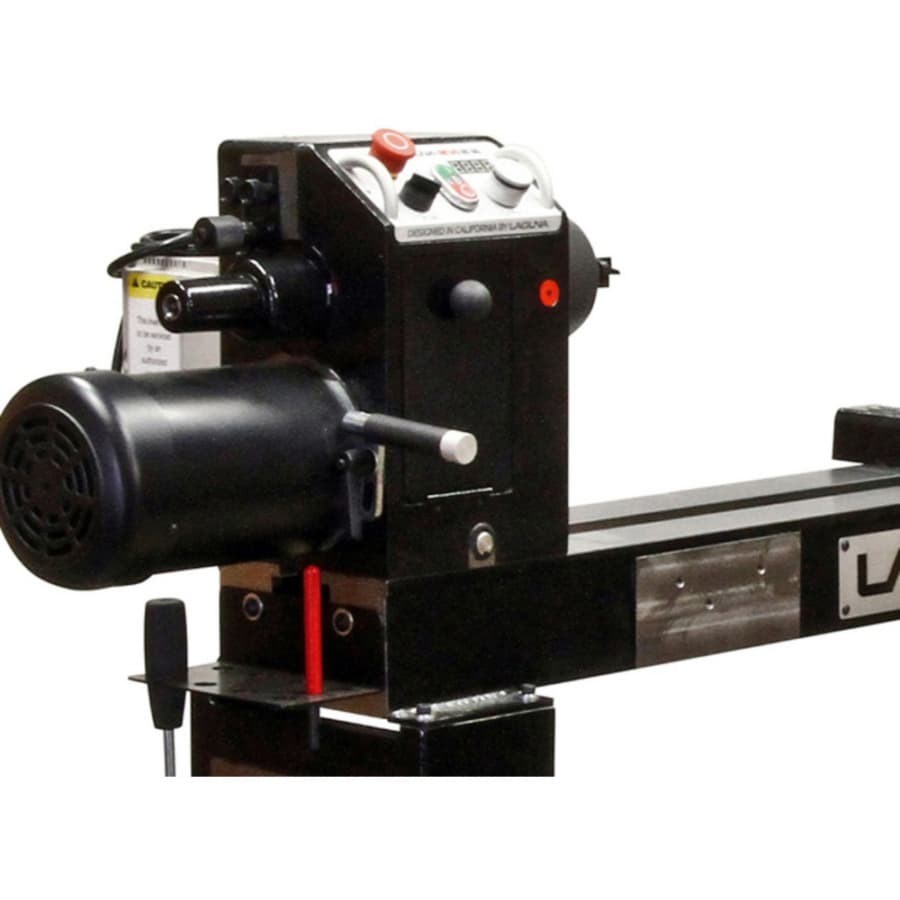

The first feature that will catch your attention is undoubtedly the ergonomically angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity & strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your workflow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Specs:
- Electrical: 2HP, 220 Volt, 60 hz
- Motor: Induction, 1725 RPM, TEFC

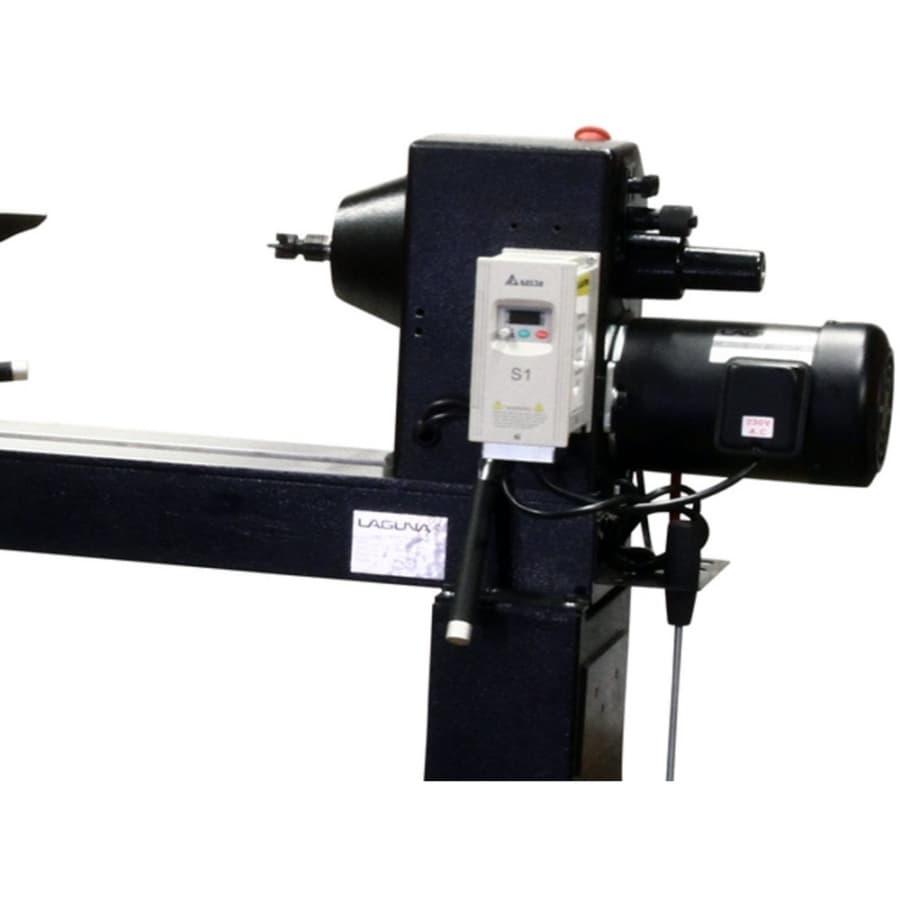

- VFD: Delta S1 Variable Frequency Drive
- Phase: 1 Phase input, 3 Phase output
- Poly-Groove Drive Belt w EZ Access
- Recommended Breaker: 15 Amp
- Spring Loaded Spindle Lock
- Max. Outboard Swing: 32”
- Swing over Banjo: 13 ½”
- Steel Bed: ASTM A36
- Spindle Taper: MT#2
- Swing over Bed: 18”
- RPM High:135-3500
- RPM Low: 50-1300
- Tailstock Quill: 4 ½”, Engraved, Self-Ejecting
- Floor to Spindle Center: 41 ½” w Pads
- Front Bearing: TPI Taiwan 6207LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 14/36/48 w Lock
- Distance between Centers: 36”
- Headstock Through-Bore: 3/8”
- Headstock Travel: Full Length
- Tailstock Through-Bore: 3/8”
- Tailstock Storage of centers
- Spindle Size: 1 ¼” X8 TPI RH
- Floor to Bed: 32 ½” w Pads
- Accepts vacuum chuck: Yes
- Floor Space: W 60” D 26” H 47”
- Weight (Net/Ship): 427/480 Lbs.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
