Cantek PS52DA 52" Wide Belt Sander

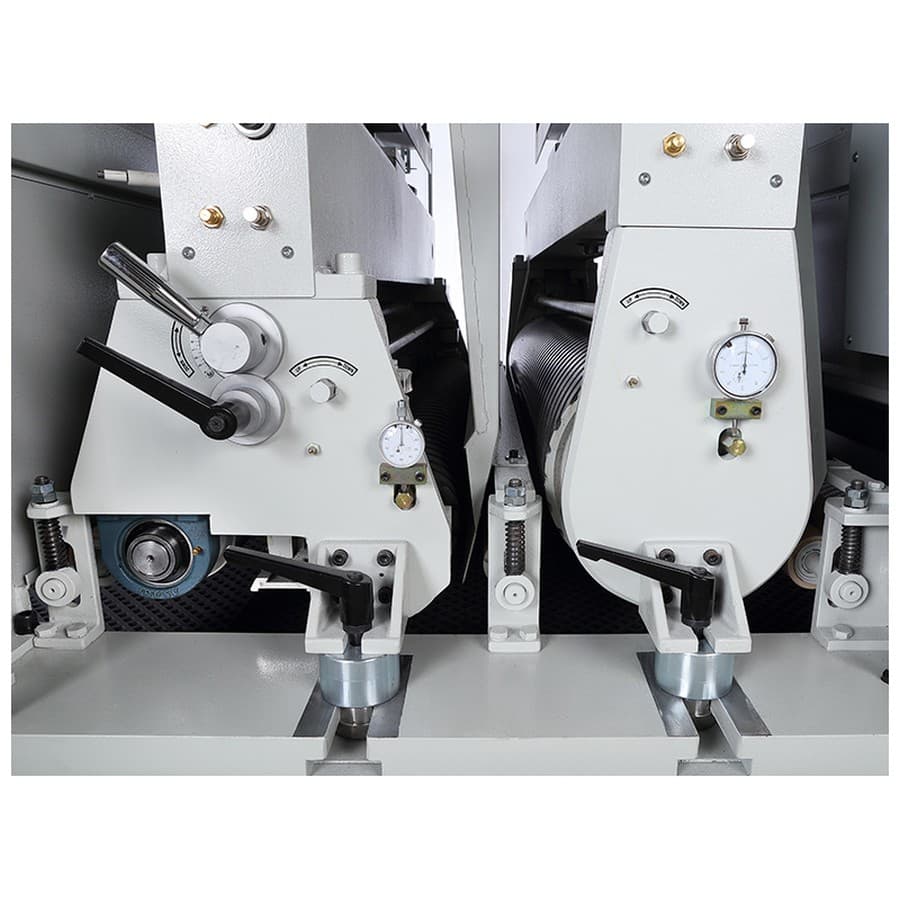

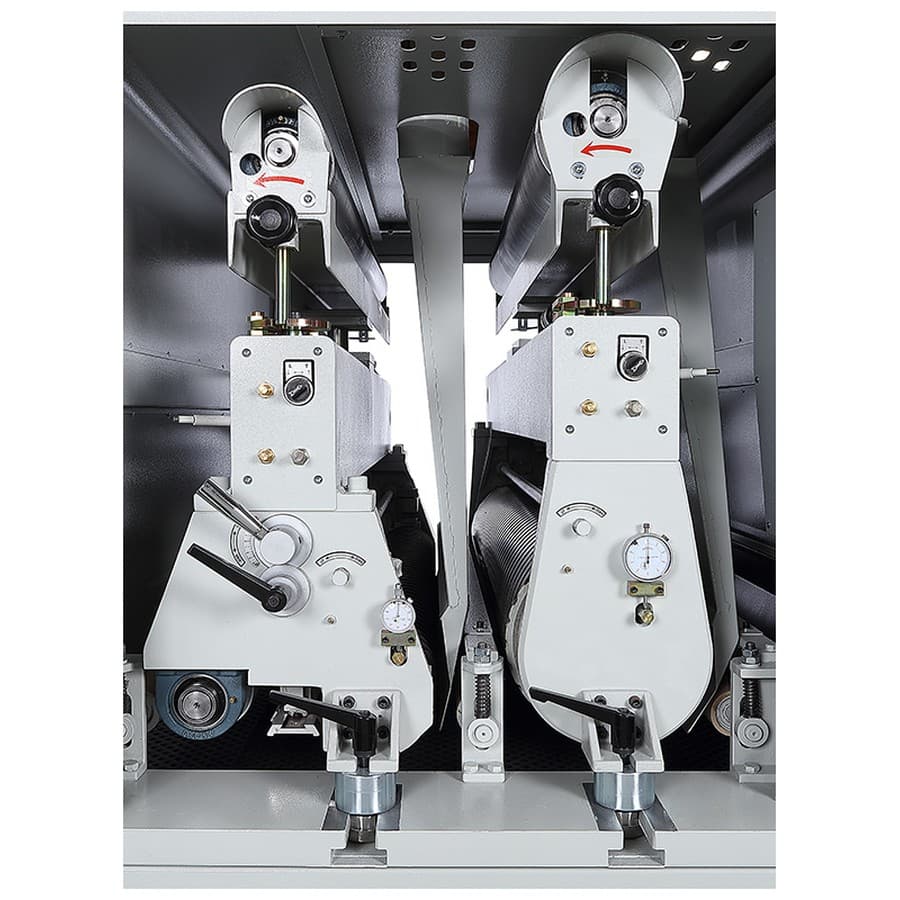

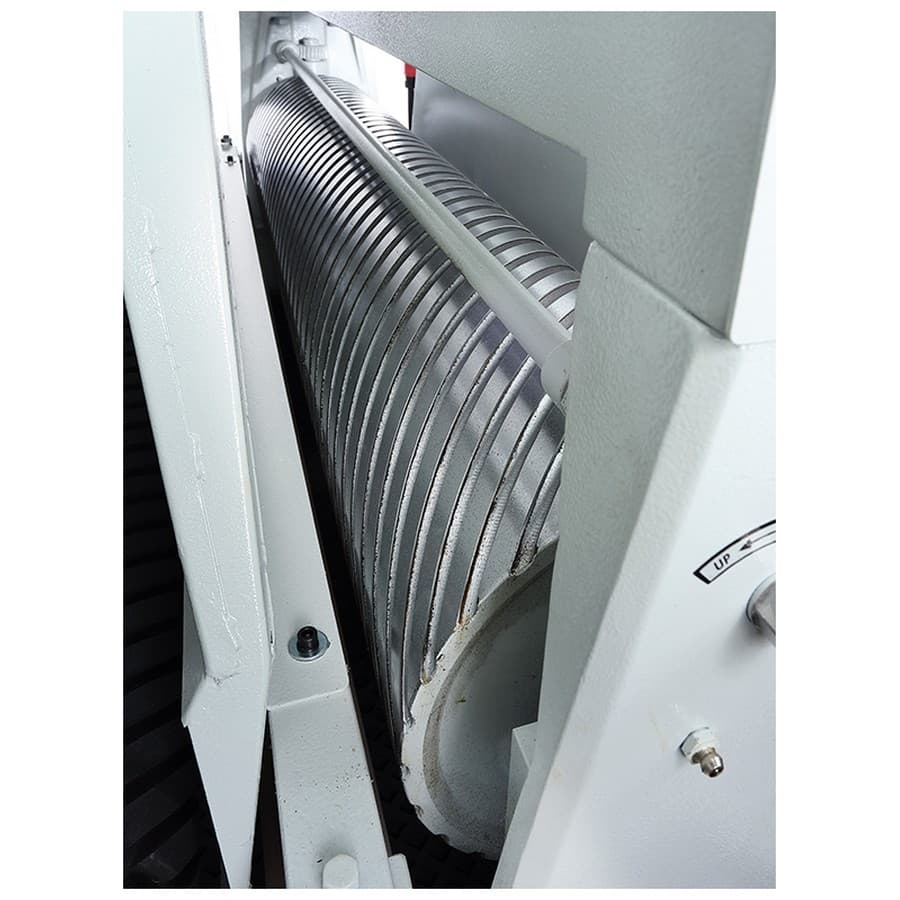

The Cantek PS52DA 51″ Widebelt Sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality & reliability.  The dual sanding heads result in less passes through the sander resulting in increased efficiency and throughput.  The first sanding head is a steel contact drum with superior calibration capacities and durability.  The second head consists of a versatile combination head with rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits.  The 75” long belts allow for longer runs between belt changes.   The quick setting digital thickness control allows for accurate, automatic adjustment of the table for precise sanding results.

Key Advantages

• Heavy duty welded steel frame with cast iron sanding head assemblies for vibration free sanding.
• Dual rubber covered pressure rollers on infeed and outfeed for consistent material hold down.

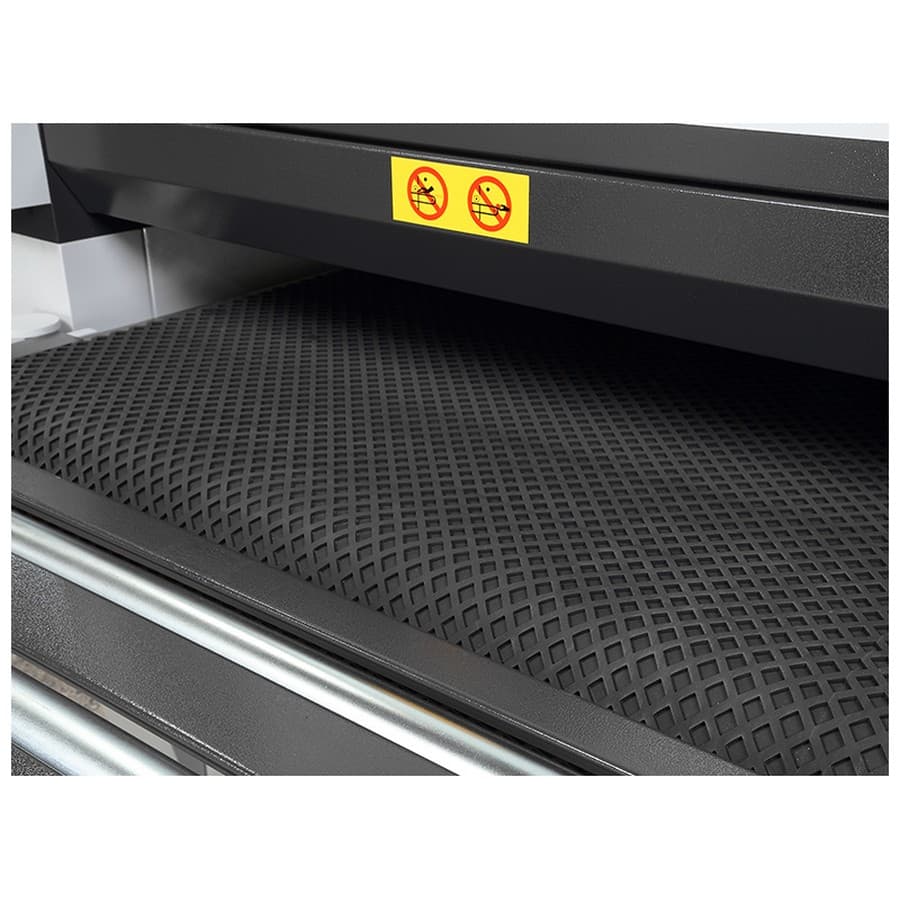

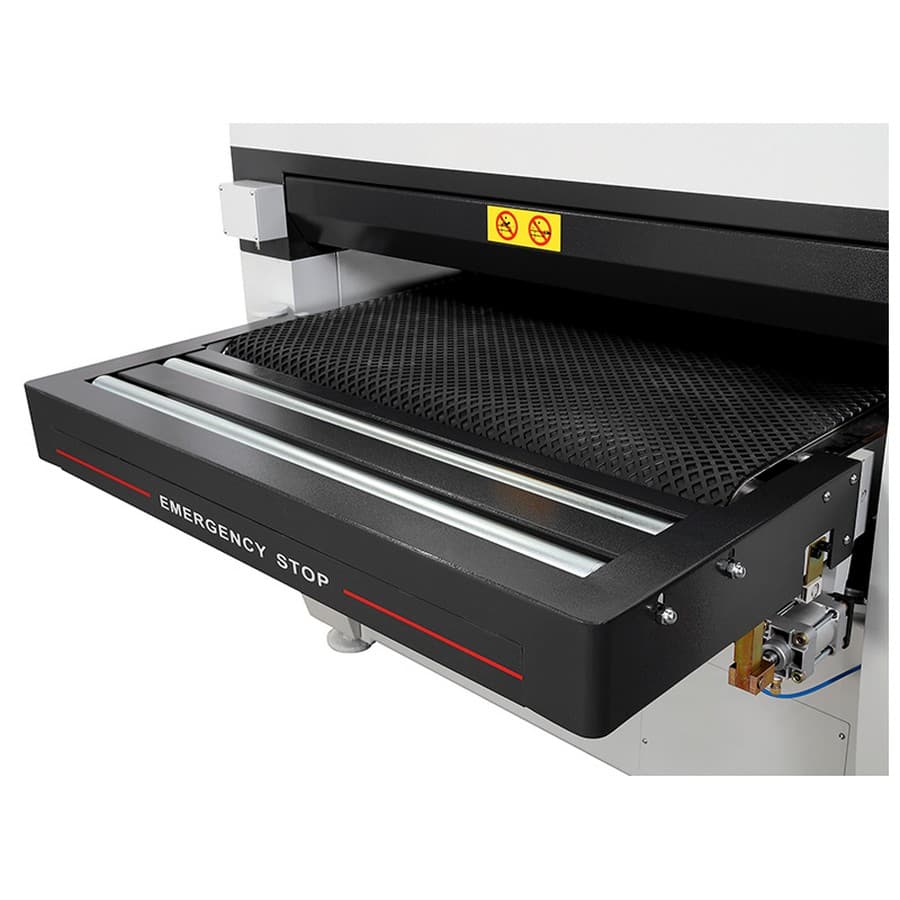

• High quality rubber conveyor with automatic pneumatic belt tracking
• Extended infeed bed with two table rollers

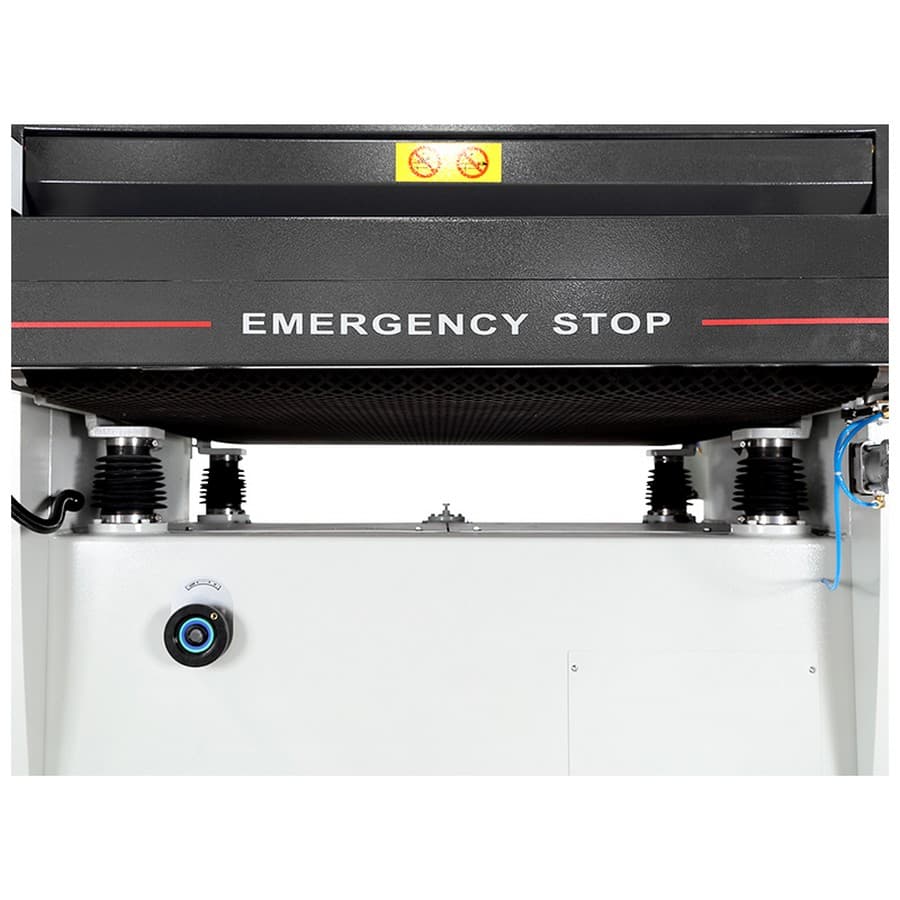

• Table is adjusted using four heavy duty jack screws driven by robust chain system.

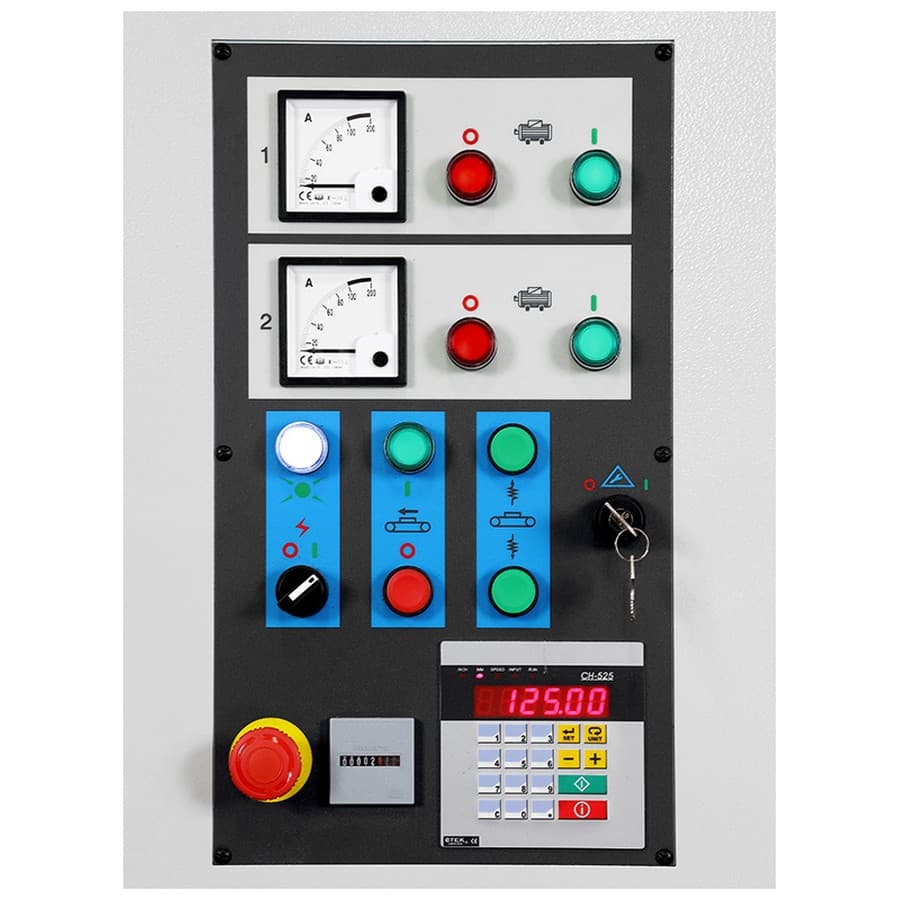

• Automatic caliper thickness setting
• Electronic sanding belt tracking
• Pneumatic belt tensioning & quick release outboard support for fast belt changes
• Automatic disc brakes for the sanding heads allows for fast belt changeover
• Safety switches on all access doors.

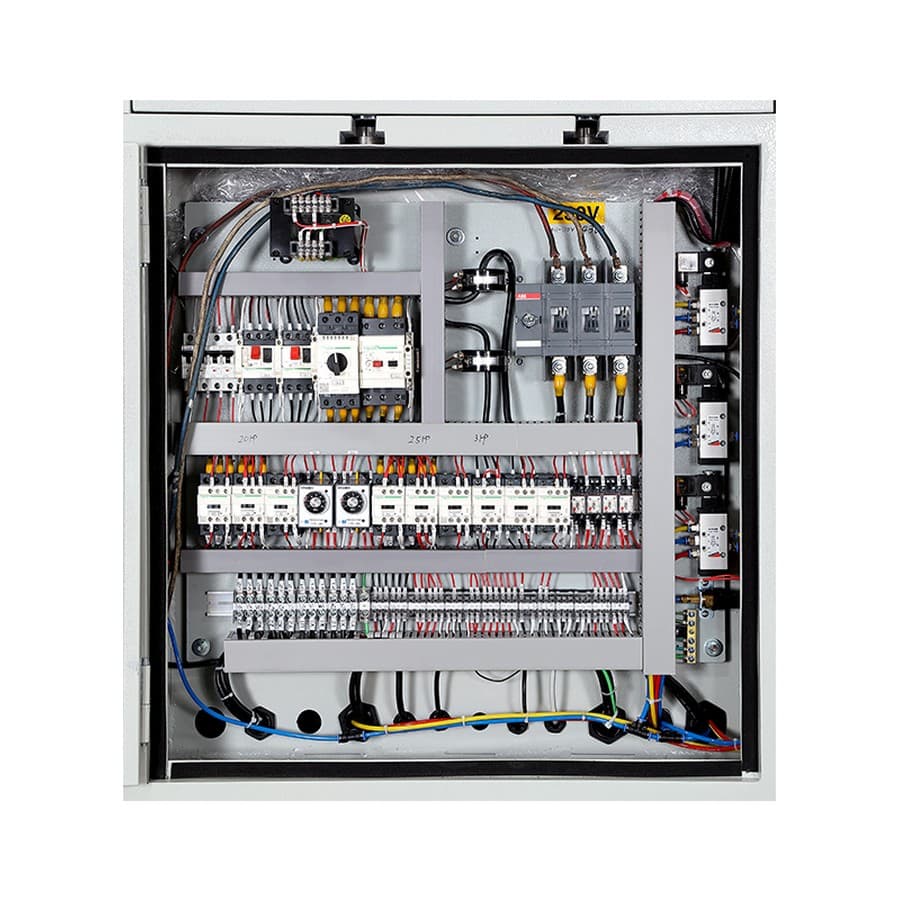

• High quality Schneider electrical controls and Comozzi pneumatic valves

Specifications

Abrasive Belt	52" X 75"	1320 x 1900mm
Main Motor: First Head	25 HP	18 KW
Main Motor: Second Head	20 HP	14 KW
Feed Motor	3 HP	2 KW
Table Rise/Fall Motor	1/2 HP	0.33 KW
Maximum Sanding Width	51"	1295mm
Minimum Part Length	17.5"	450mm
Minimum Material Thickness	1/8"	3mm
Maximum Material Thickness	5.9"	150mm

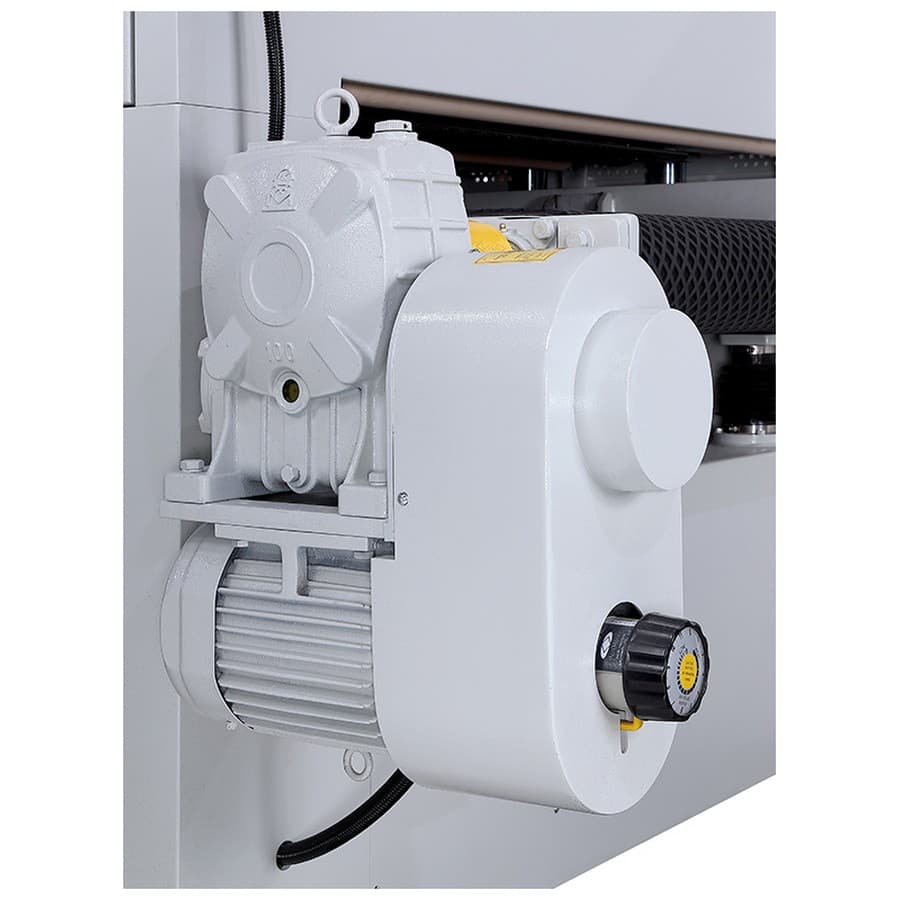

Feed Speed: Variable	12 - 46 FPM	3.6 - 14m/min
