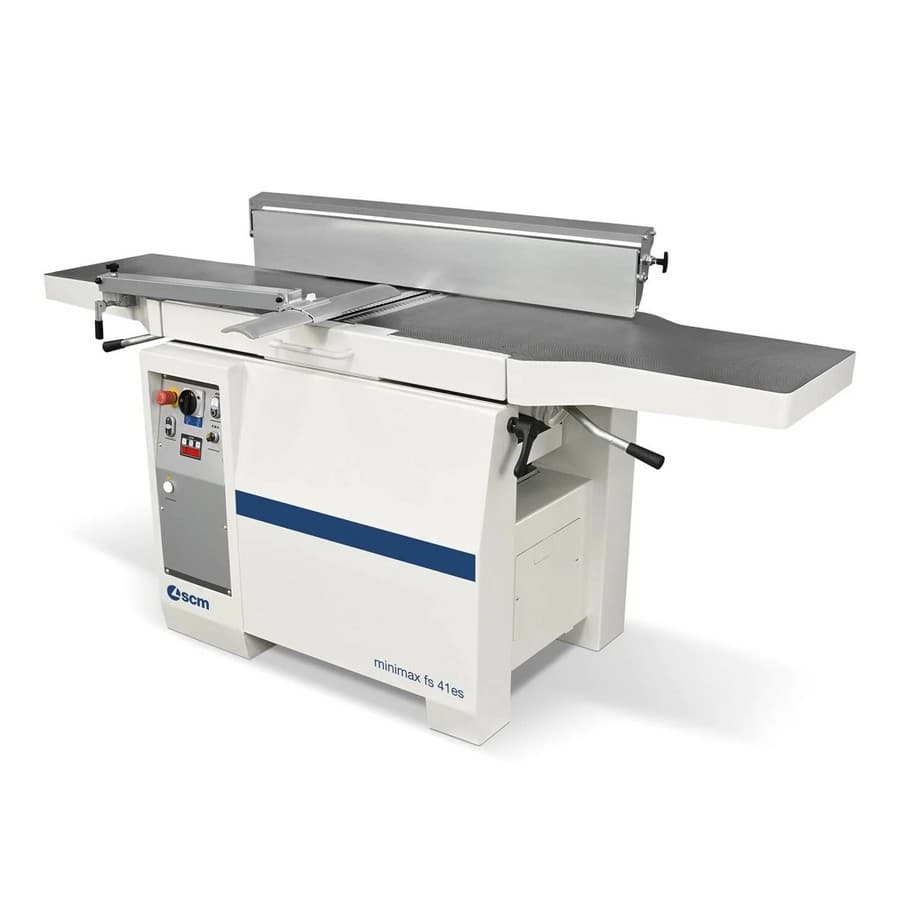

SCM minimax fs 41 es Single Phase High Performance Combination Jointer and Planer
This item may incur additional shipping costs and lead times.
Product Details
Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.
Advantages
Perfect Finish

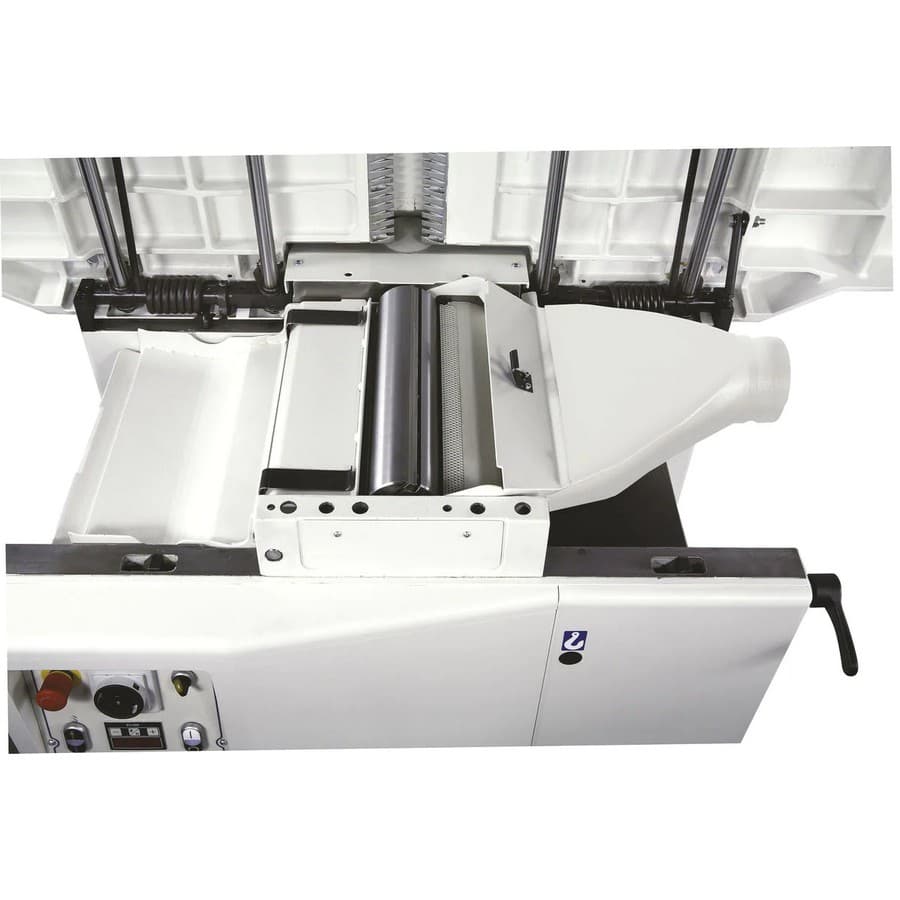

An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
Stability Over Time

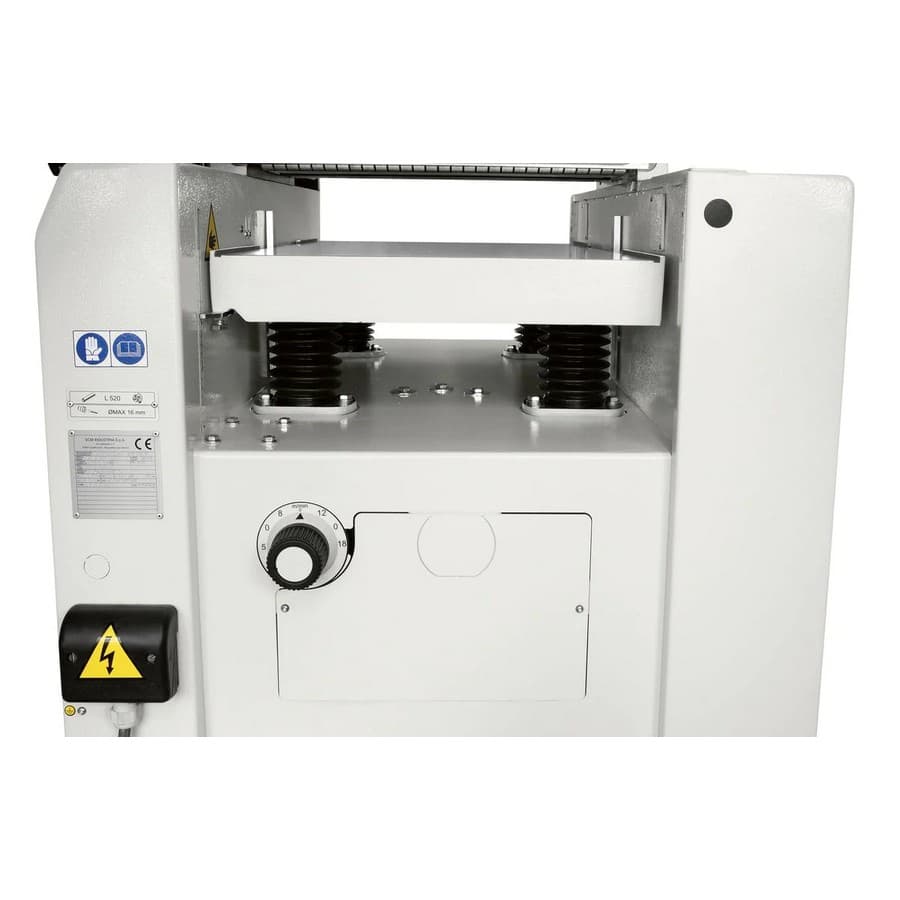

For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.
High Rigidity

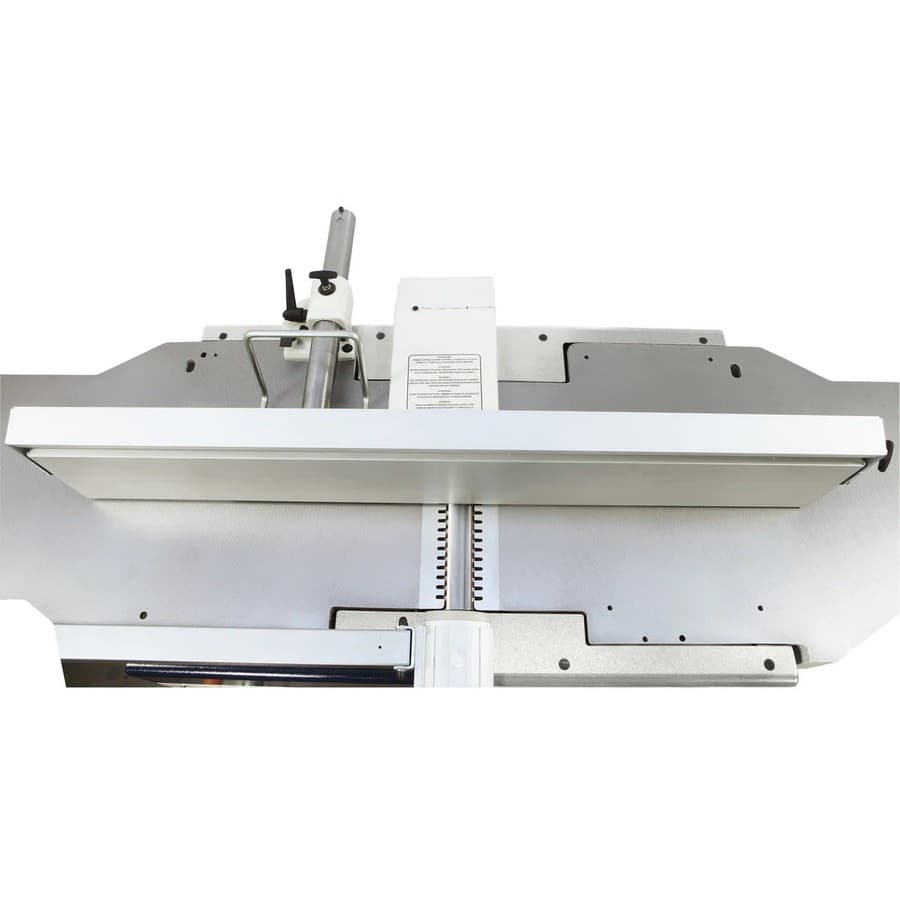

High rigid fence with a smooth movement thanks to the central locking on round bar.

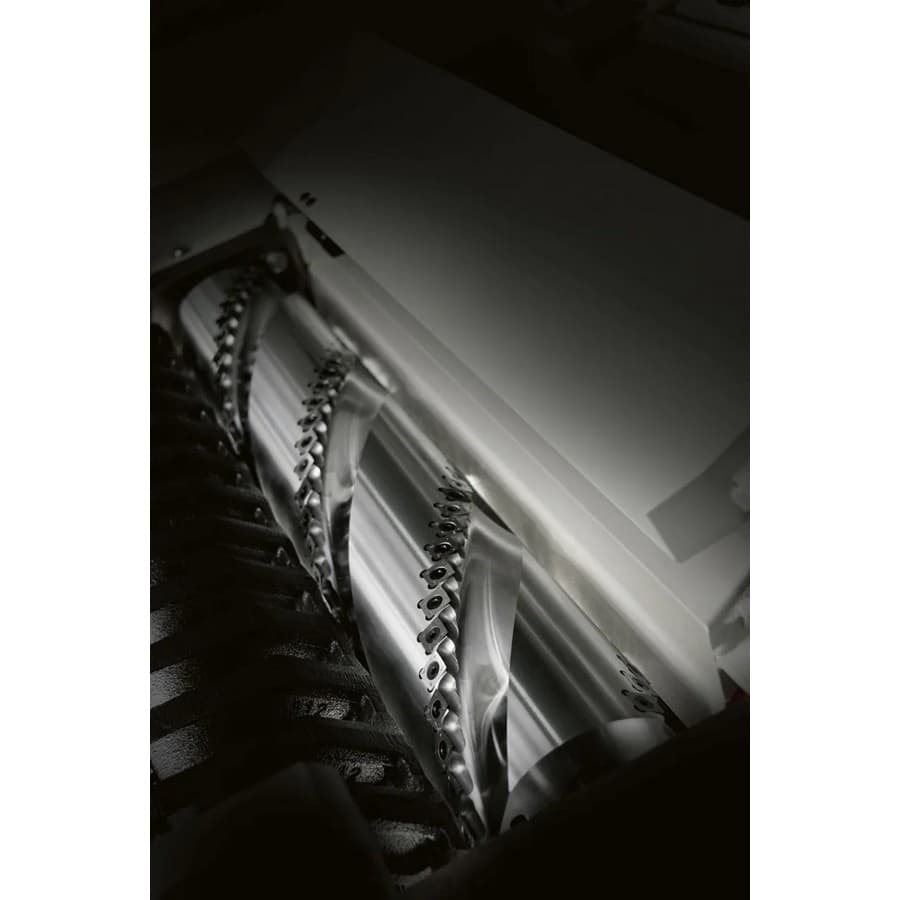

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
| Cutterhead working width | mm / inches | 410 / 16 |
| With TERSA Straight-knife Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
95 / 4 410 x 30 x 3 |
| With XYLENT Spiral helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
95 / 66 15 x 15 x 2.5 |
| Max. stock removal | mm | 5 |
| Jointer table length | mm / inches | 2200 / 86.6 |
| Planer table dimensions | mm / inches | 410 x 775 / 16 x 30.5 |
| Planer feed speeds | m/min | 6 / 12 |
| Min. - max. planer working height | mm | 3 - 240 / 0.12 - 9.5 |
| Three-phase motor | Hp | 8 |
| Fence Tilt | degrees | 0 - 45 |
Specifications
| Box Quantity | 1 |
