Omal JOLLYCOLLA Precision Metering Glue Gun
This item may incur additional shipping costs and lead times.
Product Details
A perfect complement for dowel construction for controlling the exact amount of glue to be deposited in the end panel prior to assembly in the case clamp. Manual glue application from a squirt bottle can result in too much glue and the resultant clean up issues or failure due to hydraulic pressure when inserting the dowel or not enough glue and a starved glue joint and potential joint failure.

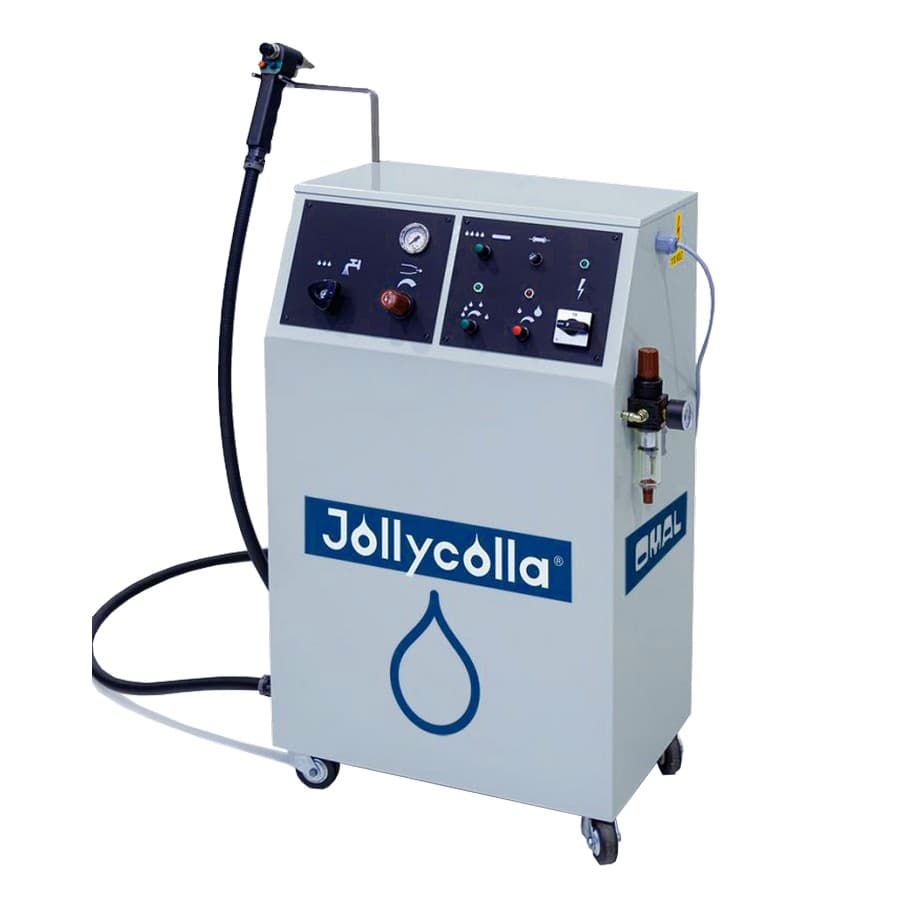

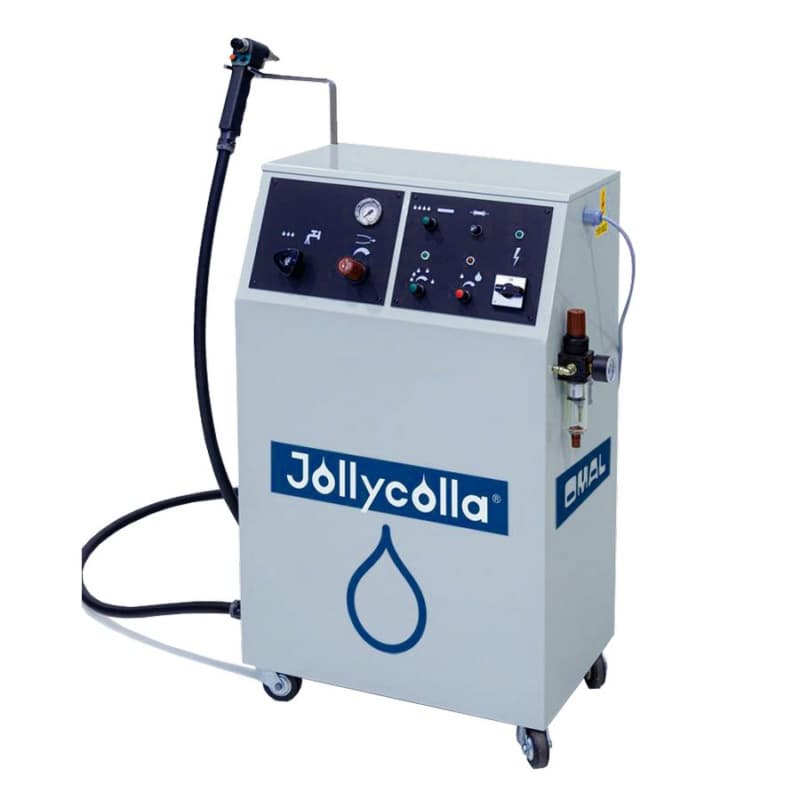

The automatic multifunctional glue dosing machine, Jollycolla is designed to deposit dosed quantities of glue either with continuous or impulse mode.
Technical Data
- Glue Tank Capacity: 8 liters
- Washing Tank Capacity: 8 liters
- Air Pressure: 1-6 atm
- Glue Viscosity: 1500-4000 cps
- Minimum Glue PH: 4
- Feed Tube Length: 3 m
- Absorbed Power: 250 w
- Voltage: 110 V Single Phase
- Control Voltage: 12 V cc
OMAL recommends Franklin High Tack Assembly Adhesive or similar adhesive for this automatic gluing machine.
Glues with lower than 4 ph are acidic and can slowly erode the tank welds thru an exothermic reaction.OMAL recommends using a plastic line tank with these types of adhesives.
Specifications
| Box Quantity | 1 |
