Product Details

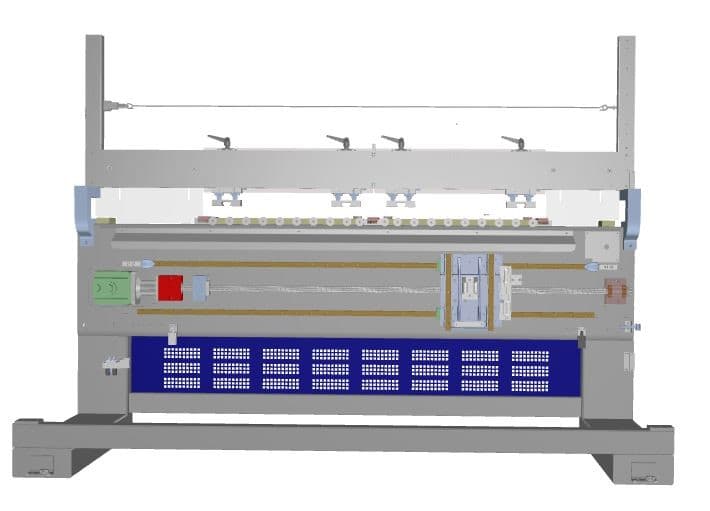

Base Design and Construction
OMAL machines are built for maximum durability. The frame is constructed with 10 mm thick tubular steel which is internally welded and gusseted every 400mm for strength and rigidity. It is then heat treated and cooled slowly to make a stress-free, reliable machine.
Machine Operation
TPA Software – Wood System Control
OMAL utilizes Wood System by TPA as the software interface for the machine. The user friendly software makes the machine extremely versatile. The machine is equipped with a full PC interface used for writing and storing programs. Programs can be written parametrically, can include IF/THEN conditional statements, and are generated using graphical icons (drill, glue, dowel check boxes). The selection of the offset of tools for inserting and for operations on different left and right hand references is automatic.

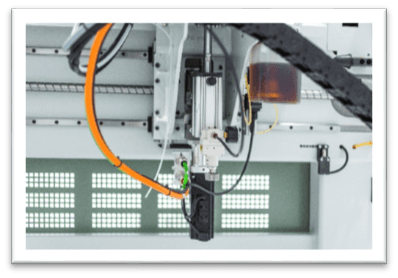

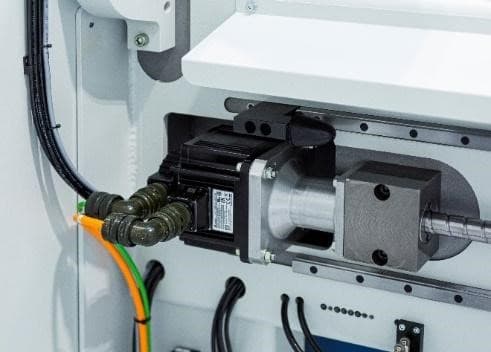

The machine is programmable in the X and Z axis (Y axis optional) and equipped with precision brushless motor, ball nut and ball screw for quick positioning. The movement of the carriage is on linear rails with square guides.
The software has a list manager that allows different parts to be run in each field and to control the production sequence. Lists can be saved for future reference plus the machine can be controlled by bar code list and/or program names.
The HBD 1300 OF is manufactured by OMAL under contract for SCM Group
Machine Configuration
Drill-Glue-Dowel Reference:

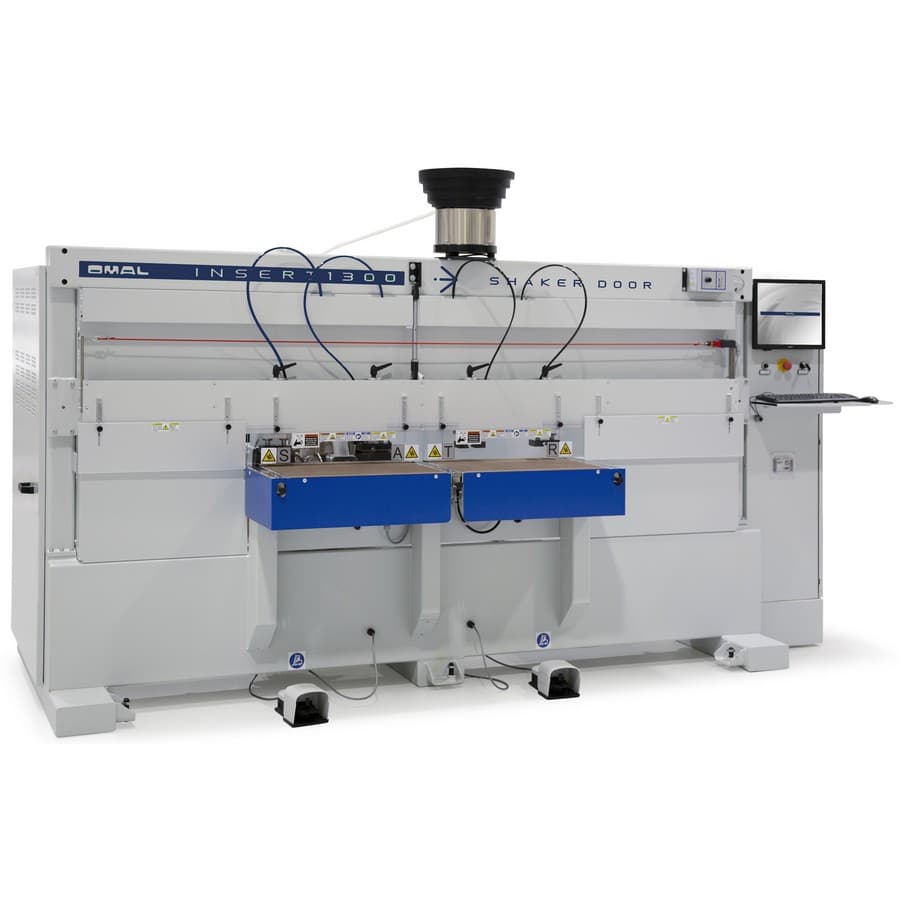

The HBD 1300 OF Horizontal Bore, Glue, and Dowel machine is a numerically controlled machine to drill, glue and insert dowels on horizontal pieces with FOUR loading zones.
Cycle time of approximately ONE second for each bore, glue, and dowel insertion when holes are on 64 mm intervals!!
The machine is equipped standard with a single drill and piggyback glue and dowel insertion unit with standard set up for 8mm dowels. The selection of the loading zone (left, left center, right center, or right) is executed by CNC. Open Frame configuration with central and side references excludable for large panels. This means that you can process up to an 8’ panel using alternate referencing

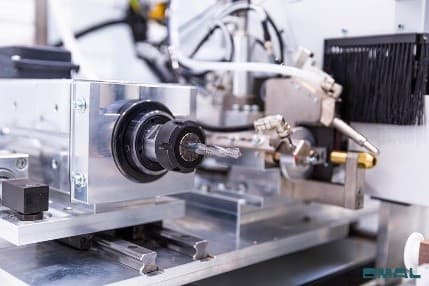

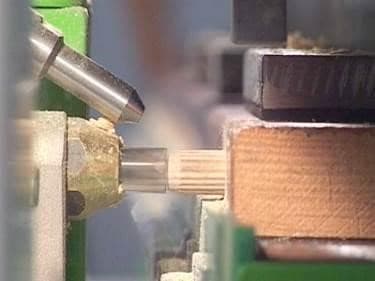

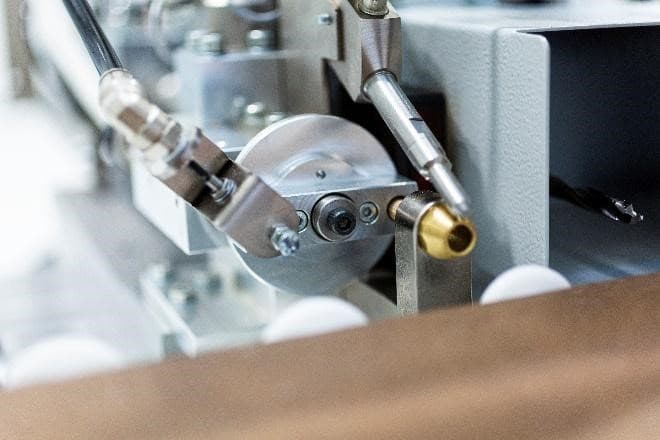

The dowel insertion revolver holds a dowel while a dowel is inserted plus checks via fiber optic sensor to see if next dowel is present to prevent misfeeds. The OMAL “SURE SHOT” revolver system guarantees a dowel is inserted every time!
Machine Specifications

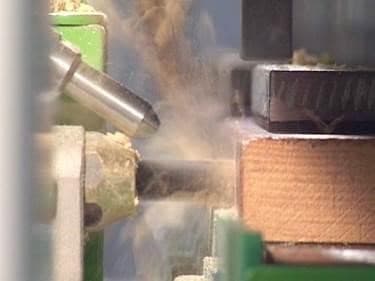

Drilling Unit
Number of drilling units 2 Drill motor kw/Hp .75/1 Drills rotation speed 6000 rpm Maximum depth of holes 30mm (1.18") Maximum diameter of drill 10mm (3/8")
Dowel Insertion Unit
Number of dowel insertion units 1 Standard dowel dimension
ø 8 x 50 mm
Secondary dowel dimension
ø 8 x 35 mm
Maximum dowel length 50mm
Maximum dowel projection
25mm
• 2 position revolver for dowel
• Fiber optic sensor for dowel presence
• The drill and dowel inserter are 64mm centers unless otherwise specified
Horizontal Router
Number of units 1 Tool rotation speed 12000 rpm Motor power 5.5 Hp each Collet ER32

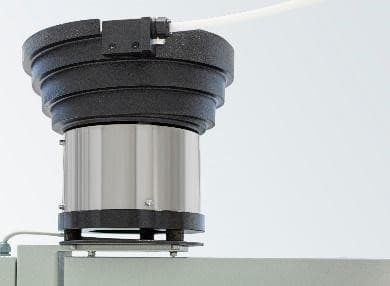

Dowel Vibrator Bowl
Capacity 2000 dowels

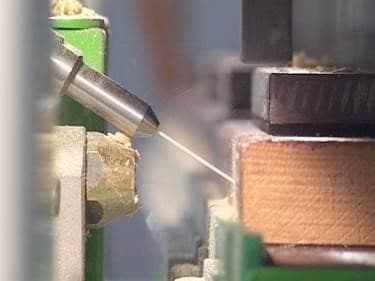

Glueing and Cleaning Unit
Capacity of glue tank 8 liters Capacity of cleaning tank 8 liters Maximum glue viscosity 900 cps
• Programmable control of glue amount
• Injector unit with inductive sensor to verify glue is shot
• Injector with double, reinforced seals to ensure no nozzle leakage
Technical Data
X axis, CNC ball screw with brushless motor
Installed torque 2.4 Nm Working Area 1300mm (50") Carriage travel speed 90m/min (250ft/min)
DEPTH “Y” axis (manual setting)
Working stroke 40mm (1.57")
THICKNESS “Z” axis, CNC ball screw with brushless motor
Installed torque 1 Nm Working area 40mm (1.57") Head travel speed 7.5m/min
Equipped with side and back safety protection fence
Automatic lubrication system for all linear bearings
Pneumatic frontal reference; useful for parts with profiled edges like coped rails.
Standard dimensions of pieces (other dimensions on request)
Maximum width when using right and left references 1300mm Maximum width when dropping right and left references 2600mm Height of pieces 10-40mm

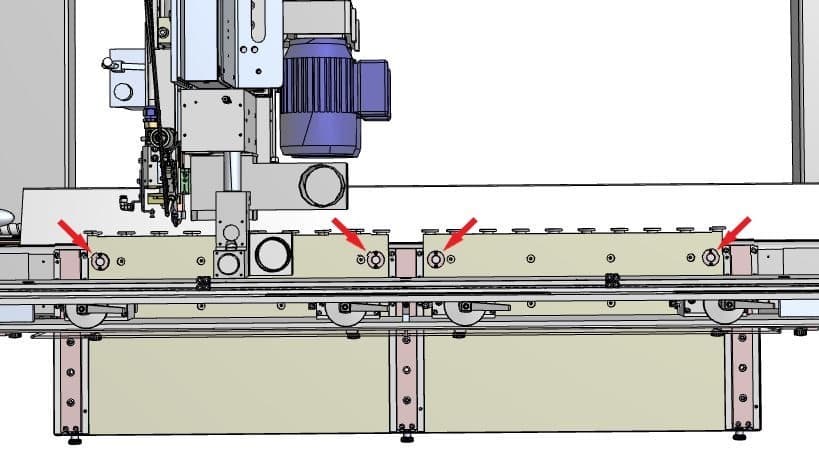

• Equipped with four (4) heavy duty, 2 outlet clamps
Machine Controller
PC Numerical Control
Machine equipped with PC for control of all axes
• Operating System: Windows 10 Pro 64 Bit
• Color 17” flat screen monitor
• 4 GB RAM
• 512 Gig SSD
• Complete keyboard + mouse
• Ethernet network card 10/100
• Multitasking CNC
• Connection to CNC with LAN port
CNC Characteristics
• 2 axis NC
• 3Mbit Fieldbus for input/output remote
• Very simple and intuitive software

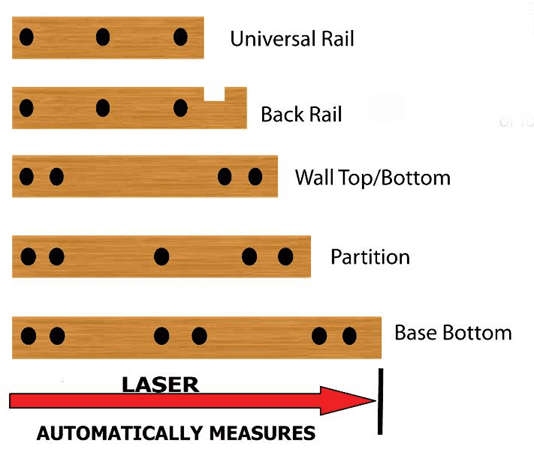

• Automatic left, center, and right programming
• List manager to sequence programs
• Graphic menu for selection of macros:
• Boring
• Boring + Gluing
• Boring + Gluing + Dowel insertion
• Gluing + Dowel insertion
• Parametric programming
• Graphical aids
• Conditional programming with buit in simulation checking
• Pre-programmed executive lists which can be edited run-time and structured into articles
• Internal self-diagnosis, historical report of alarms
General information
Vertical and horizontal clamps 4 (standard) Voltage
480V(220V)/60Hz/3~
Amps 10A (16A) Control Voltage 24 VDC Air Pressure 7 BAR (101 psi) Net Weight 1200 kg (2645lbs)
