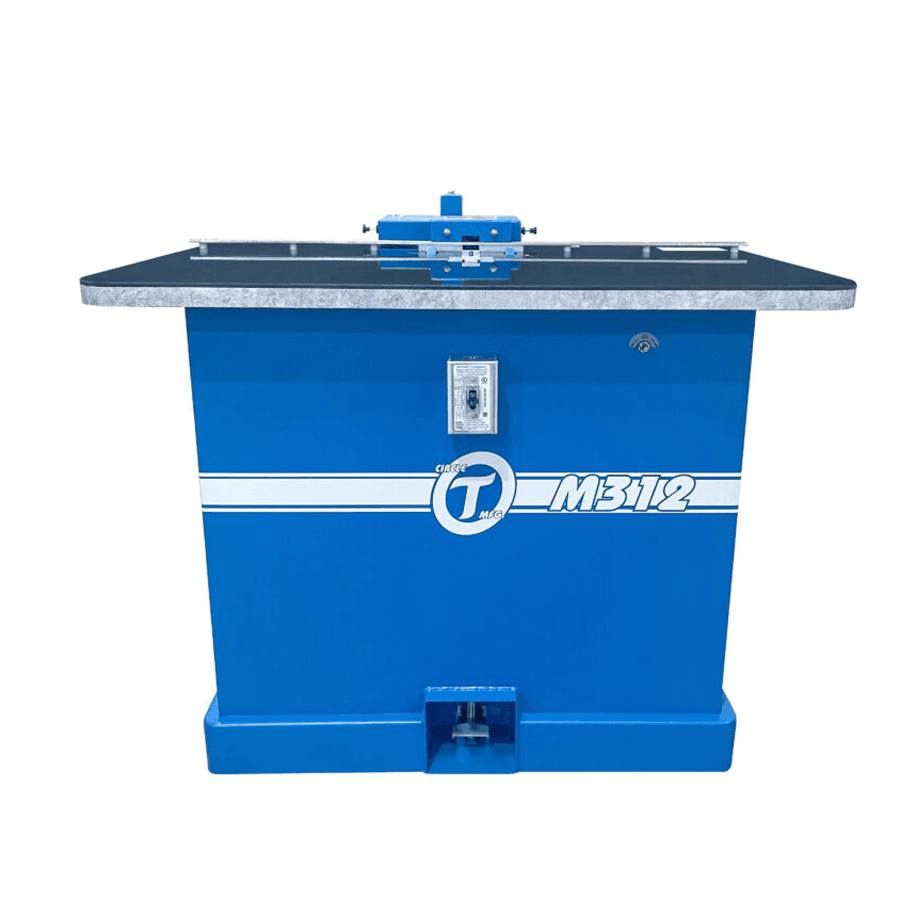

Circle T M312 EASY Drawer Notcher for 35mm 3PH 230V
Item # CIRM312
•Mfr # M312
$9,650.00
/Each
Freight: $895.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
EASY Drawer Notcher M312 Details
- This upgraded model includes EASY Foot Cycle Switch!!!
- HIGH WEAR Phenolic Top!!!
- Under mount notched and locating hole drilled simultaneously!
- EASY drawer locating regardless of box width using center stop!
- LOW MAINTENANCE machine for a GREAT VALUE!
APPLICATION SPECIFICATIONS:
- Notch Dimension: 35mm W x 1/2″ H
- Locating Hole Diameter: 6mm
- Operating Performance: Over 200 boxes per hour
DRIVE PACKAGE SPECIFICATIONS:
- Main Motor: 1.5 HP
- Pneumatic Drill Included

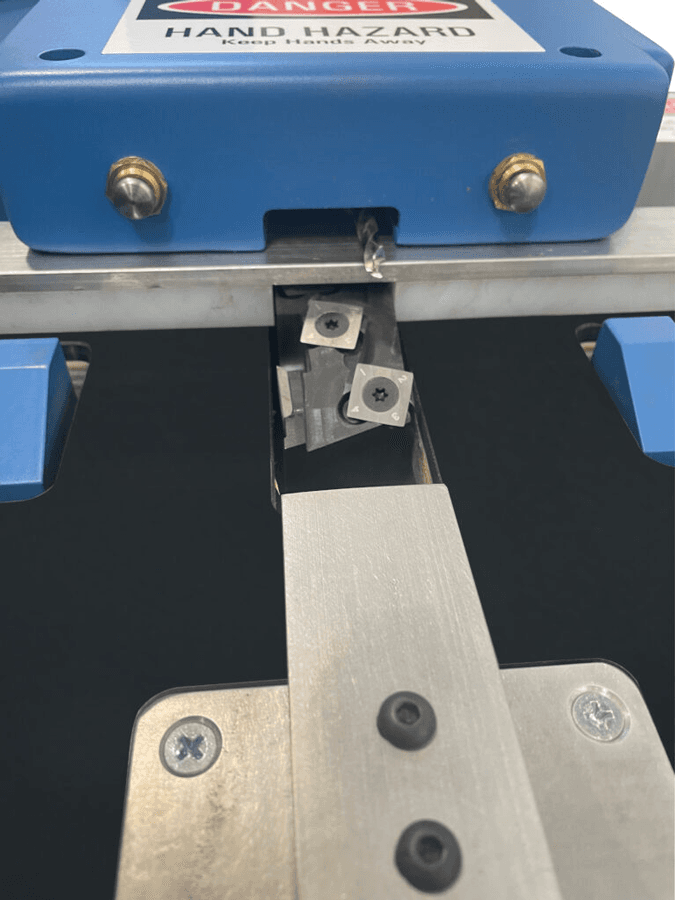

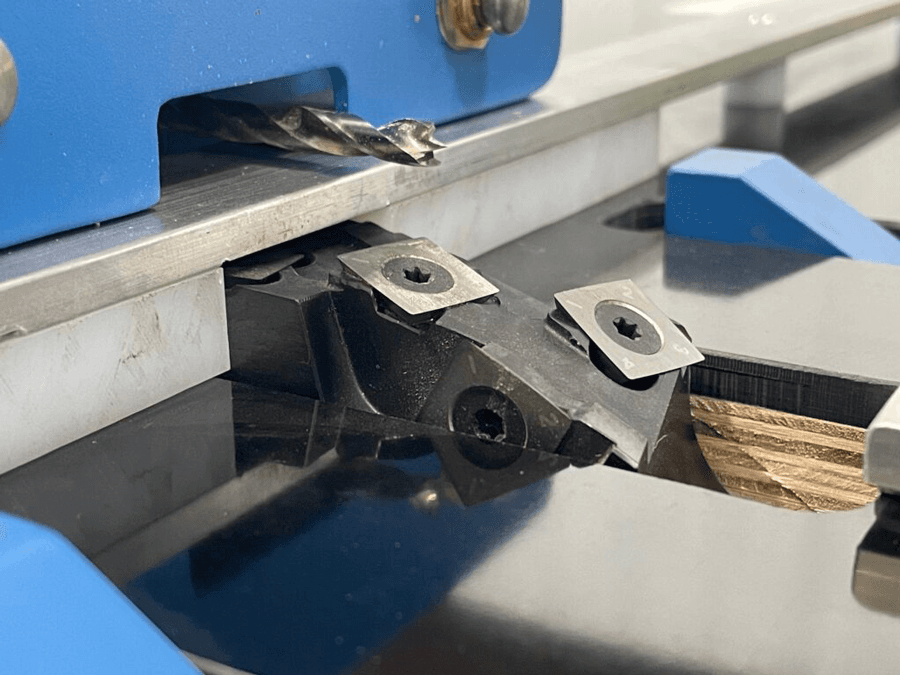

- Insert Cutterhead
- Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Package as well
UTILITY REQUIREMENTS
- Dust Collection Requirements: 670 CFM, 4″ Outlet
- Pneumatic Requirements: 90-100 PSI to power drill and control system
DIMENSION SPECIFICATIONS:
- Table Size: 22″ x 48″
- Table Height: 36″
- Footprint: 52″ W x 42″ D X 42″ H
SHIPPING WEIGHT: 625bs
NET WEIGHT: 460lbs
Specifications
| Box Quantity | 1 |
