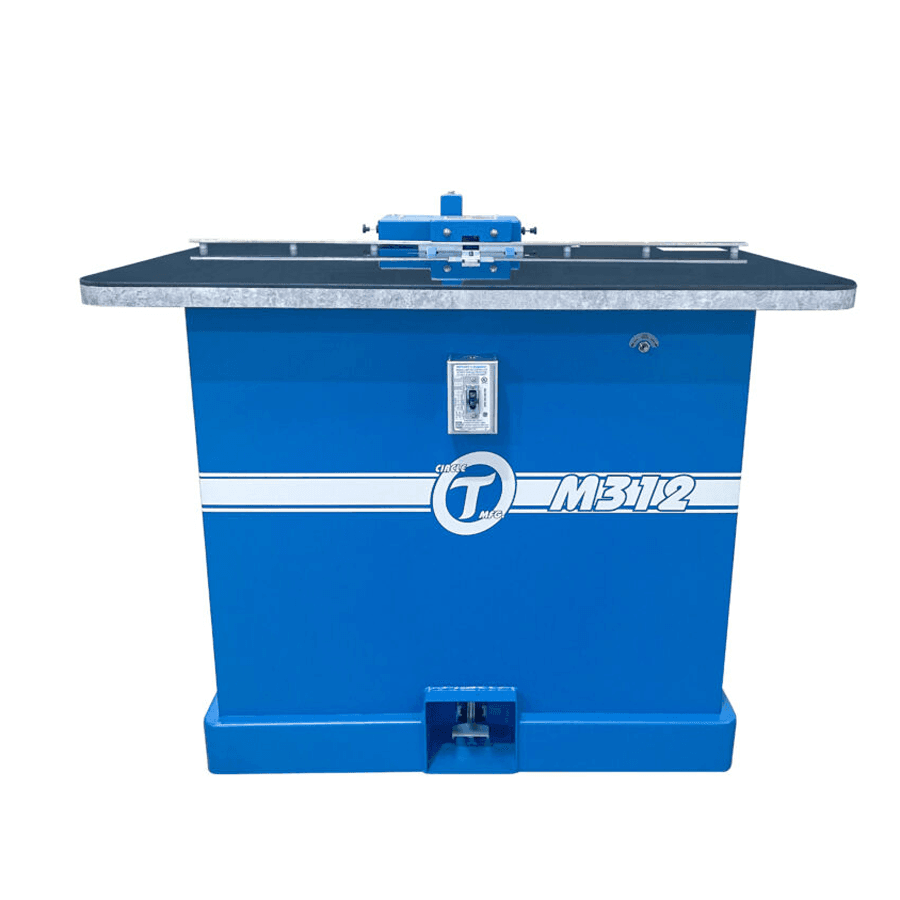

Circle T M312-WN EASY Drawer Notcher 50mm 3PH 230V

EASY Drawer Notcher M312-WN Details

• This upgraded model includes EASY Foot Cycle Switch!!!
• HIGH WEAR Phenolic Top!!!

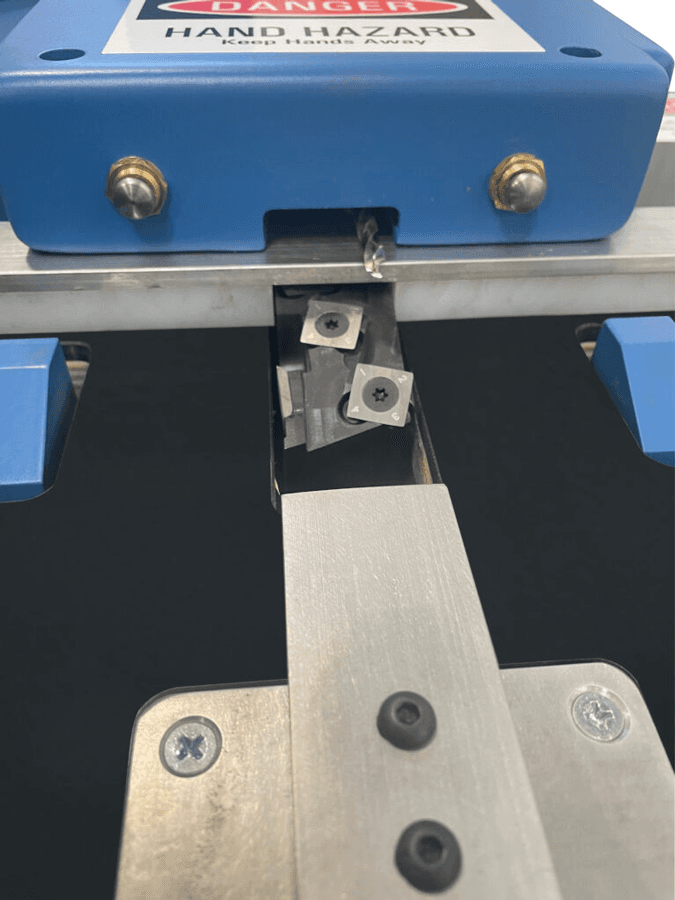

• Under mount notched and locating hole drilled simultaneously!
• EASY drawer locating regardless of box width using center stop!
• LOW MAINTENANCE machine for a GREAT VALUE!

APPLICATION SPECIFICATIONS:

• Notch Dimension: 50mm W x 1/2″ H
• Locating Hole Diameter: 6mm
• Operating Performance: Over 200 boxes per hour

DRIVE PACKAGE SPECIFICATIONS:

• Main Motor: 1.5 HP
• Pneumatic Drill Included

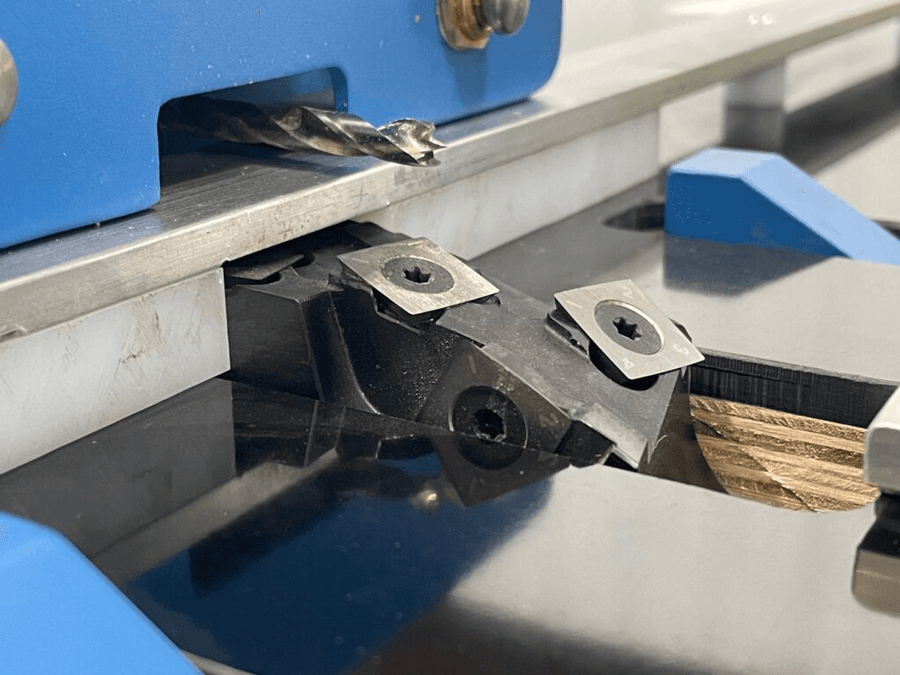

• Insert Cutterhead
• Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Package as well

UTILITY REQUIREMENTS

• Dust Collection Requirements: 670 CFM, 4″ Outlet
• Pneumatic Requirements: 90-100 PSI to power drill and control system

DIMENSION SPECIFICATIONS:

• Table Size: 22″ x 48″
• Table Height: 36″
• Footprint: 52″ W x 42″ D X 42″ H

SHIPPING WEIGHT: 625bs

NET WEIGHT: 460lbs
