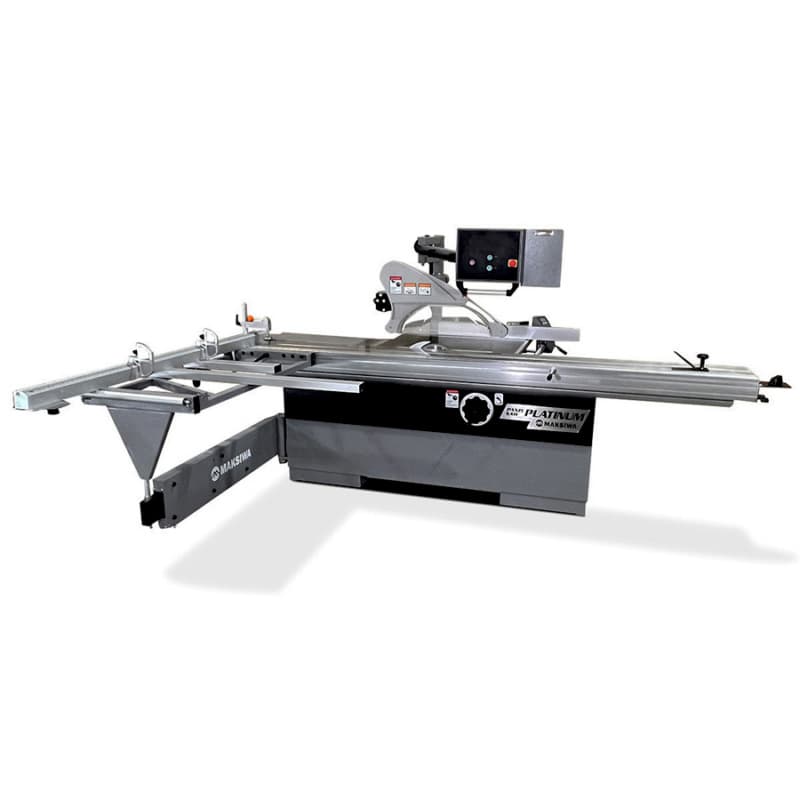

Maksiwa BMP.3200.IR Platinum Sliding Panel Saw 7.5 HP 3PH
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

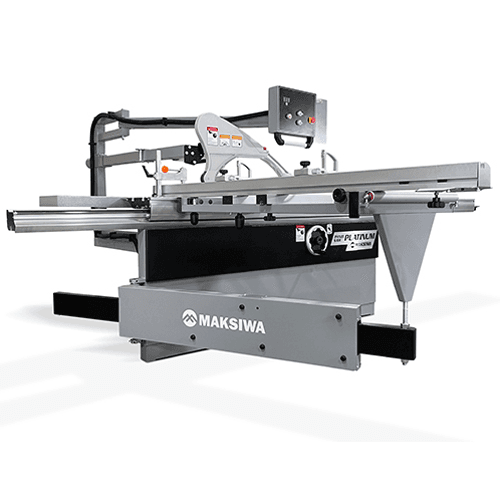

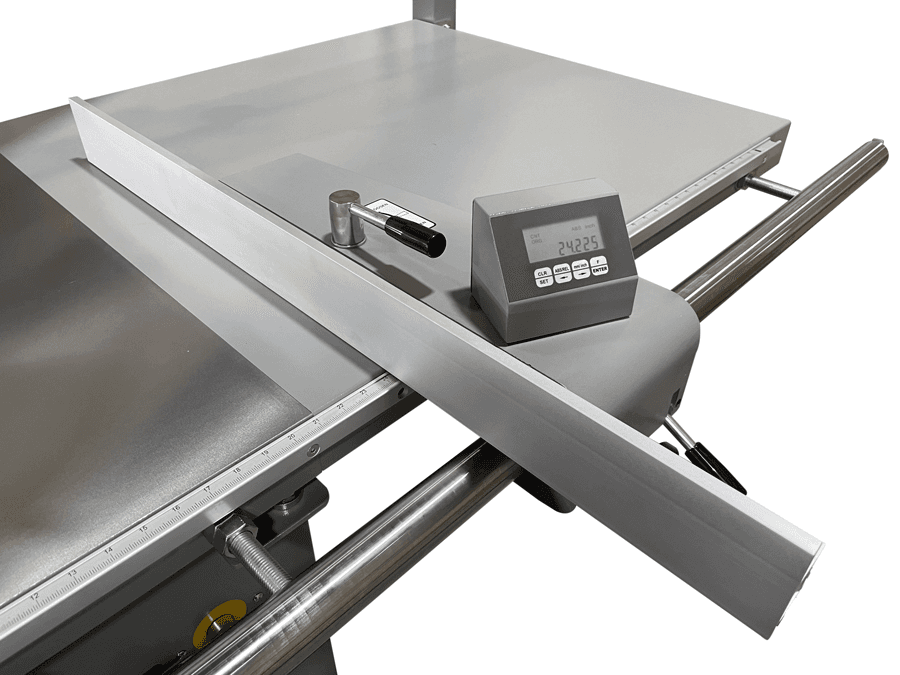

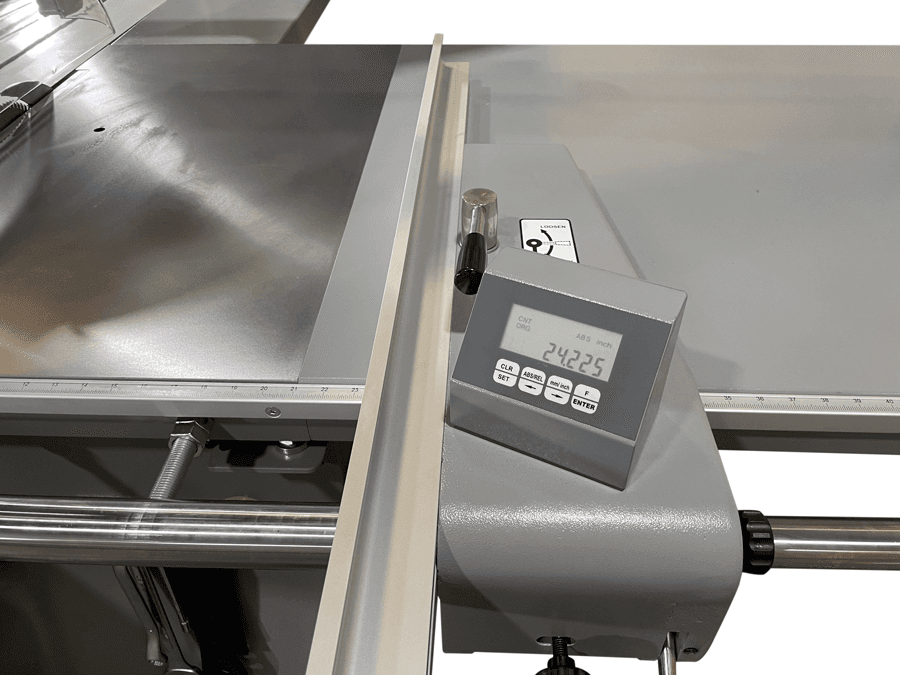

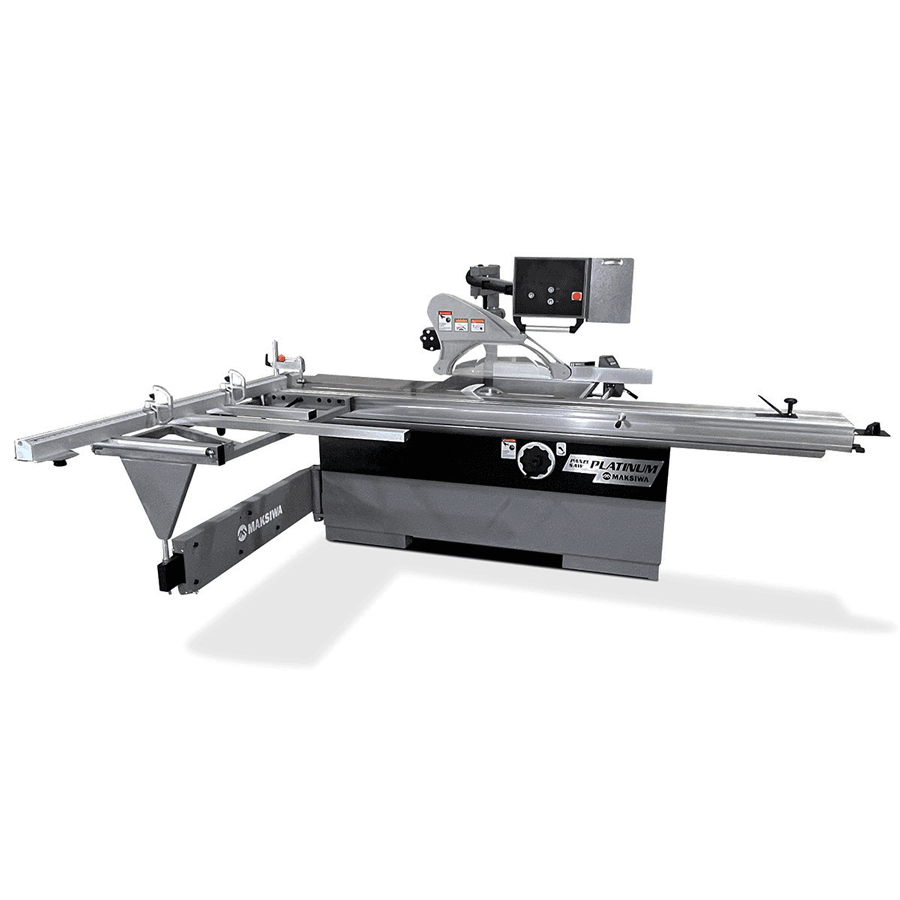

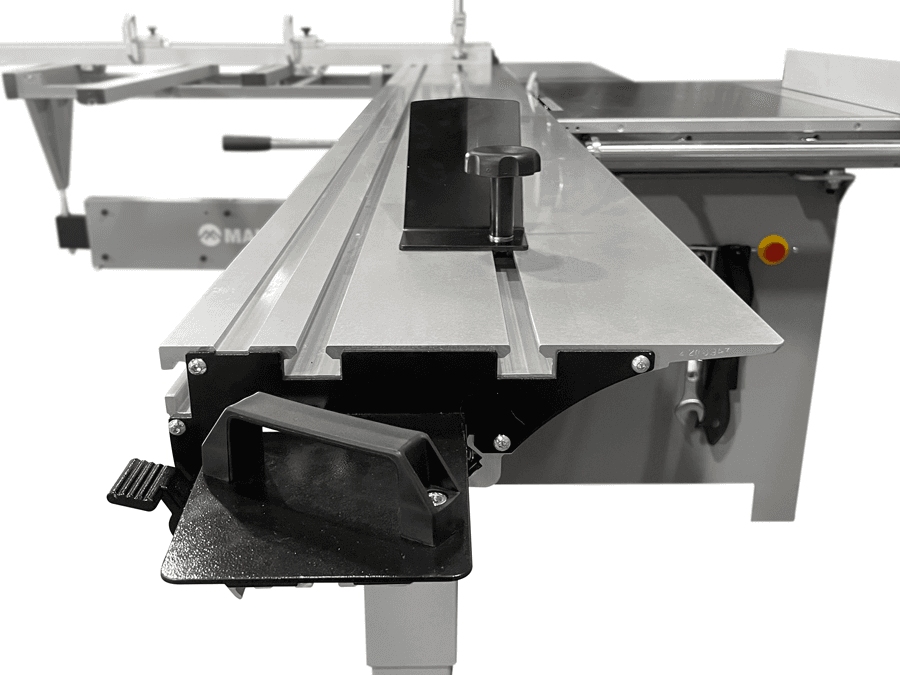

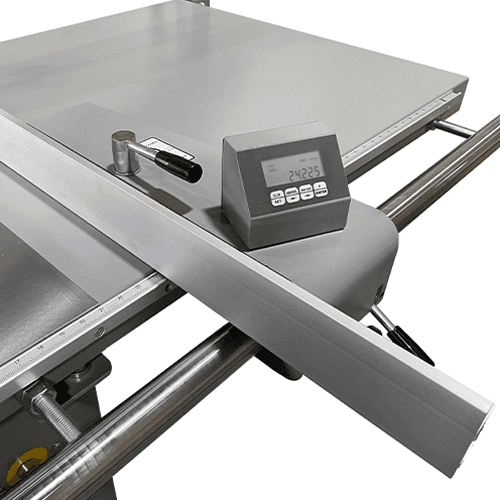

Maksiwa's highest-powered sliding panel saw, the BMP.3200.IR Platinum, is equipped with a 7.5HP motor and a ¾ HP scoring motor (3 phase). Its 126-inch sliding table is composed of anodized aluminum and works on linear guide rails that allow for smooth movement. It is also built with a 51-inch European-style rip fence, providing a digital readout with a micro-adjustment function. This fence is made of a heavy-duty cast and runs on a steel bar that has been finely polished.

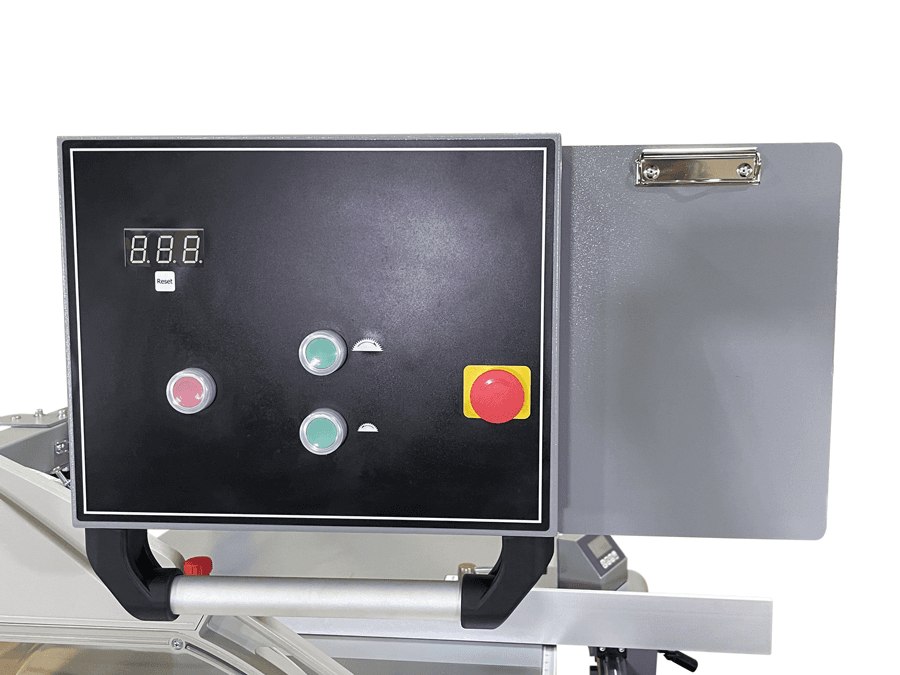

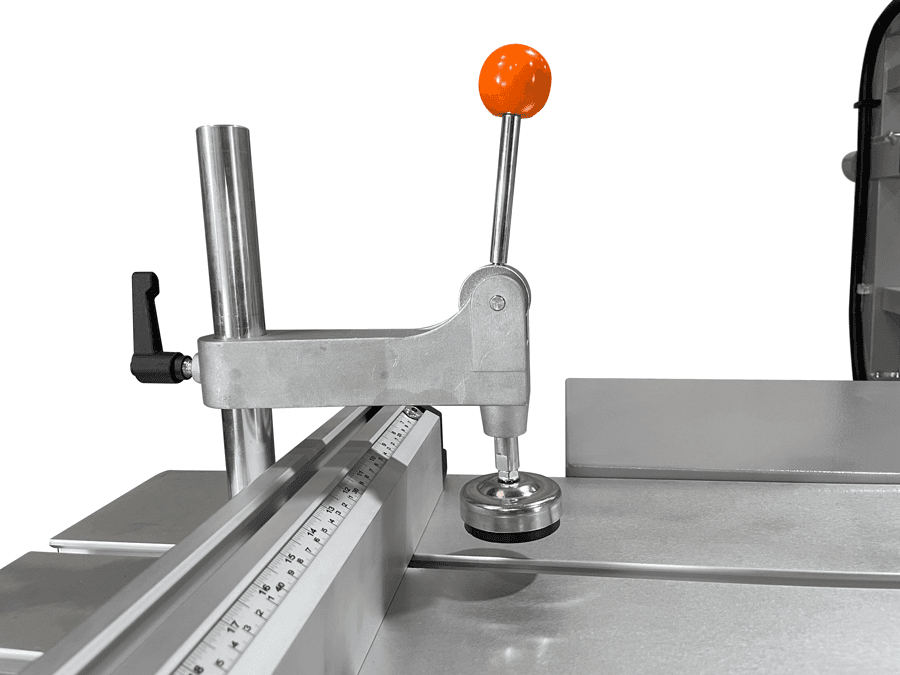

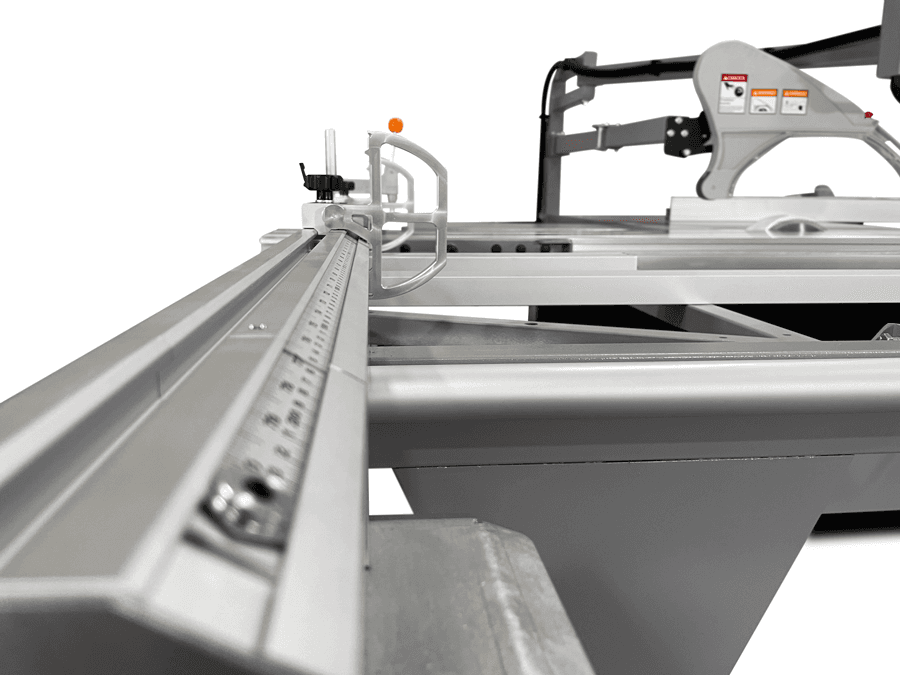

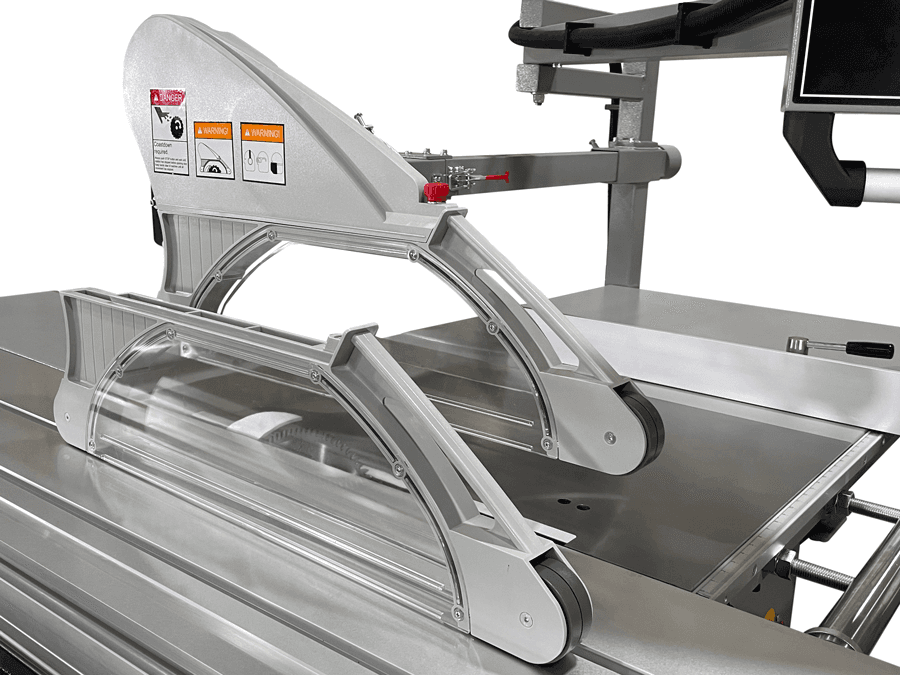

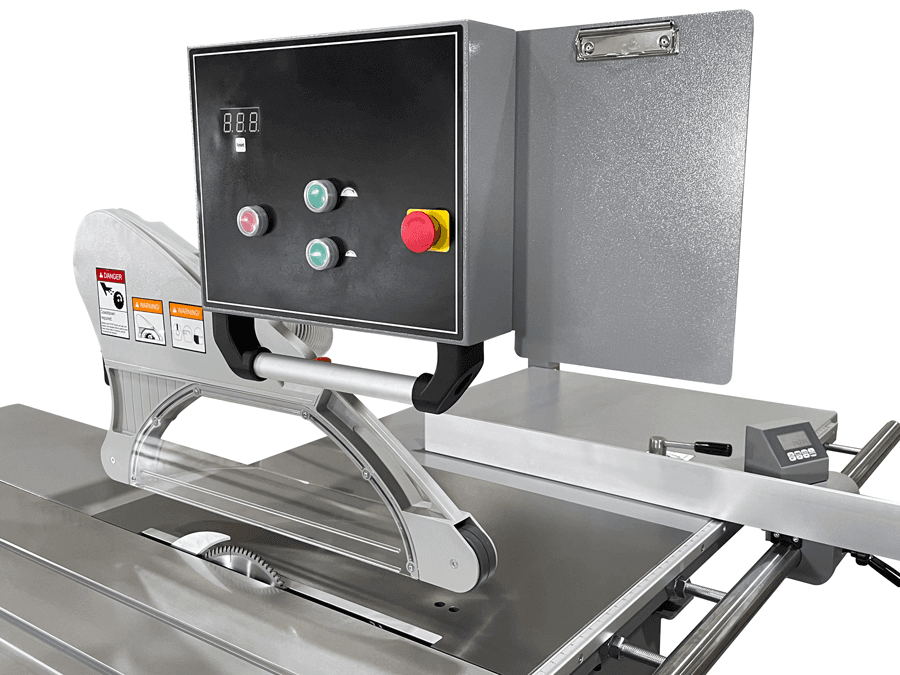

Thier heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140"), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.
CUTTING CAPACITY:
• Manual adjustment cutting width: 59"
• Crosscut fence closed: 78"
• Crosscut fence extended: B C = 135"
• Sliding table travel front: 204"
• Sliding table travel back: 205"
TECHNICAL INFORMATION:
• Sliding table dimension:126" x 15 ½" – 3200 x 360 mm
• Cast Iron fixed table: 21.6" x 35.3" / 896 x 548 mm
• Extension table (rear): 37 ½" / 952 x 896 mm
• Extension table (front): 12.6" x 32.7" / 830 x 320 mm
• Main saw blade (Max.): 305 mm
• Main saw bore: 30 mm
• Max. cutting height at 90 (355 mm): 4 13" / 90 mm
• Max. cutting height at 45 (355 mm): 2 3/4" / 63 mm
• Main motor power: 7.5 HP (3 ph)
• Main blade speed: 4000 rpm
• Scoring saw blade: 120 mm
• Scoring saw blade bore: 20 mm
• Scoring blade motor power :3/4 HP (0.56 kw)
• Scoring blade speed: 8000 rpm
• Cutting width: 1,300 mm

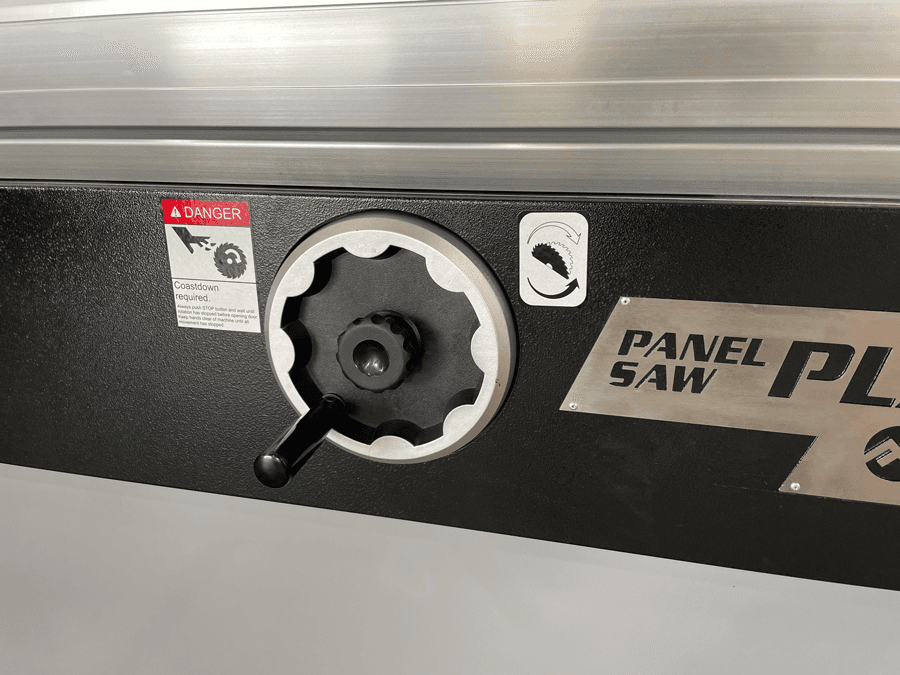

• Main saw blade tilting adjustment: Manual (0 45°)
• Main saw blade tilting adjustment: Manual
• Dust collection system (For overhead guard): 4.72" 120/ 64 mm (120/100 mm)
• Machine dimensions (extended): L 192" X W 280" X H 65"
• Warranty: 2 years
BLADE:
• Main blade diameter: 305 mm (12")
• Main blade arbor size: 1 3/16" (30 mm)
• Scoring blade diameter: 120 mm (4 ¾’’)
• Scoring blade arbor size: 3/4" (20 mm)
• Max tilt: 45°
• Max depth cut: 3 15/16"
• Max cutting length: 120"

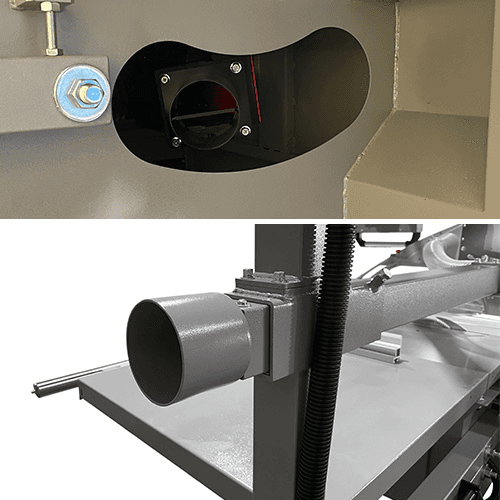

DUST COLLECTOR:
Port 1 diameter:4"
Port 2 diameter:4"
Minimum CFM needed: 1000 CFM
ELECTRICAL OPTIONS:
Main motor: 7.5 HP – 24 Amps
Main motor – Non-loaded blade speed: 4,000 RPM
Scoring motor: 3/4 HP – 6 Amps
Scoring motor – Non-loaded scoring blade speed: 8,000 RPM
