Cabineo 8 M6 Connector, White, Box of 2000

Cabineo is the newest connector from Lamello, and is an outstanding solution for cabinet shops and manufacturers using nested-based CNC routers. The toolpath may be quickly machined with a standard, straight-shank router bit without a tool change. The Cabineo connectors are simply tapped into the routed pocket and join cabinet components together by screwing into a mating 5mm shelf pin hole with nearly 200 pounds of clamping force. Cabineo may be covered with aesthetic cover caps, or parts may be inverted to allow for a completely invisible application. Because there is no pin or stud required with Cabineo, all components may be shipped to the jobsite as a true flat-pack, RTA solution. The M6 version of the Cabineo connector uses a metal helical insert or may be fastened directly into a tapped hole in metal furniture or fixture components.

Faetures:

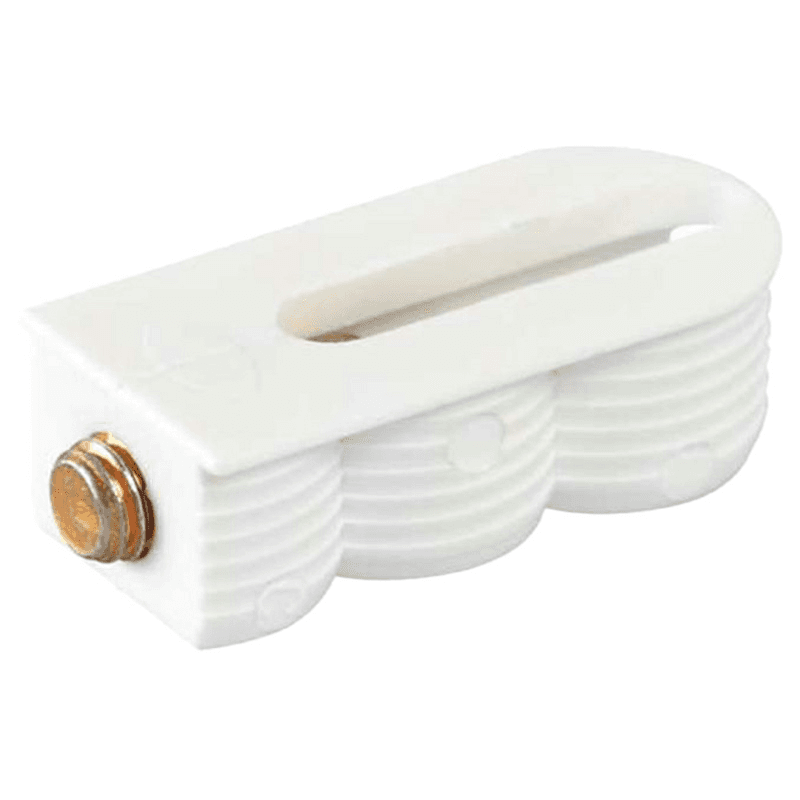

• Cabineo 8 M6 connector in white finish
• 33.8mm x 16.5mm x 10.8mm of size
• 12mm diameter or smaller cutter
• 5mm or 15mm diameter of drill
• Fiberglass reinforced plastic of material housing
• Installation Tolerance: Lateral Adjustment ? 0.1mm

More Advantages:
• Installation of fixed shelves or vertical dividers in an already assembled unit
• Detachable for transport or if the fixed shelves need adjusting
• Shallow element of 10mm allows for panels from 12mm thickness
• Dividing panel joints with Cabineo 8 (drill hole O 5mm x 8mm) from material thickness 16mm

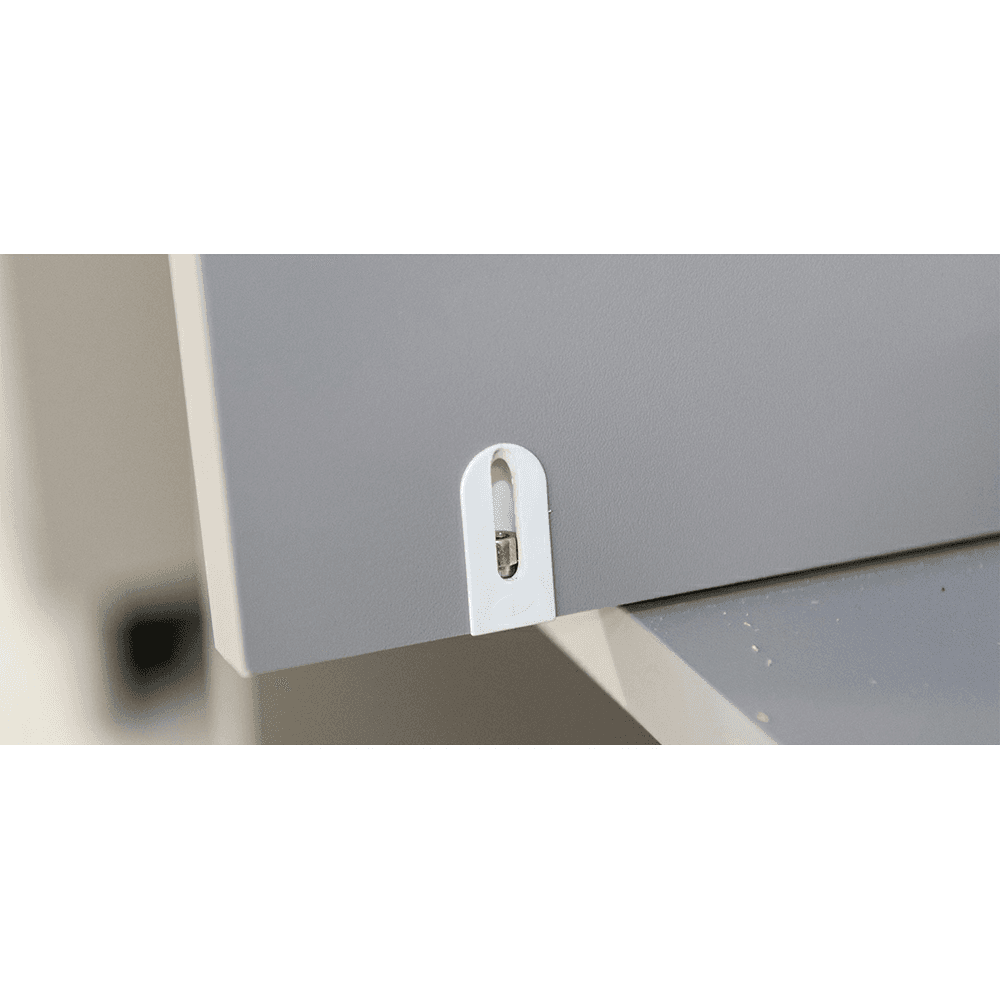

• Use with or without cover caps. Cover caps are available in various colors
• Metal insert threaded version available for exceptionally strong connections or for wood-to-metal component connections

Benefits:
Time-savings for the whole production process. Simple, Fast & Strong

1. Time-Saving in Production:
• Optimized process due to surface machining, no edge drilling necessary

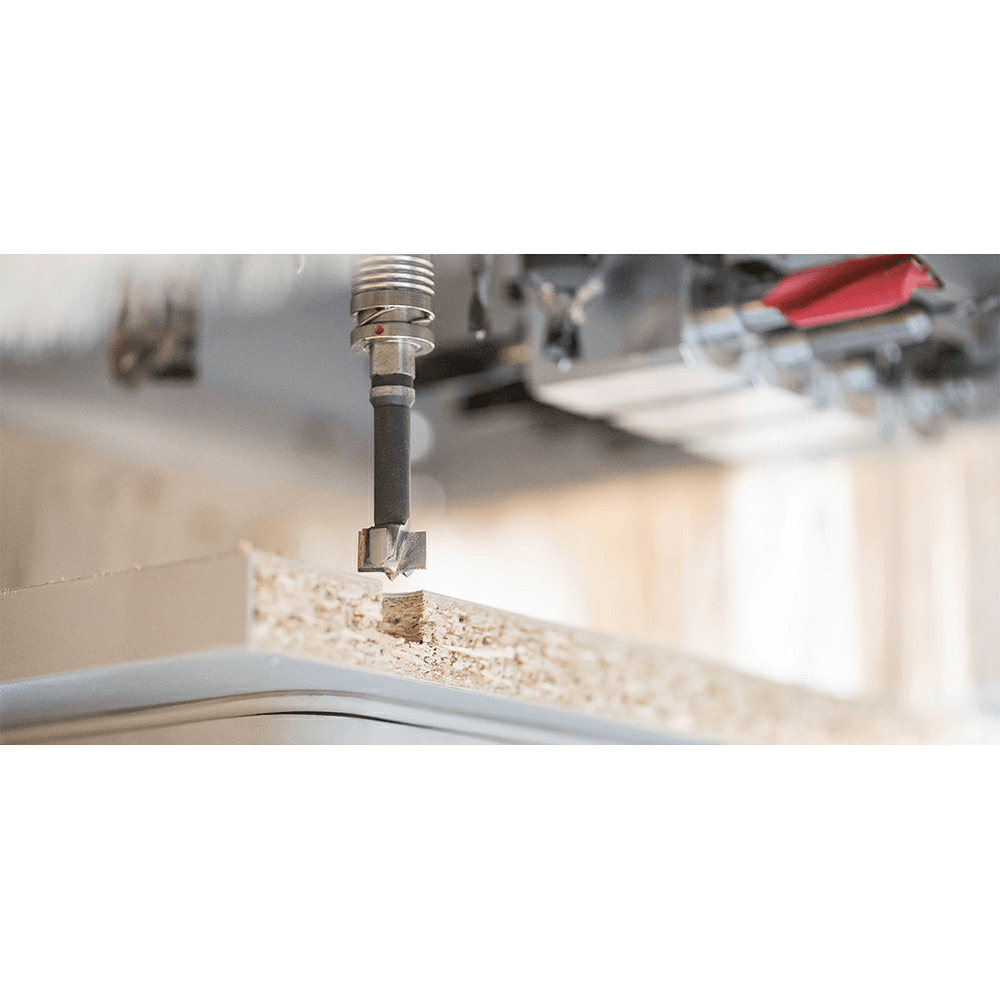

• Only one tool change from 5mm to 15mm drill, or rout the profiled shape with no tool change - use a standard CNC spiral bit
• No dowel holes means less drill holes

2. Time-Saving in Transportation:
• Efficient pre-installation of the one-piece connector in the factory
• Flat-Pack delivery with pre-installed connectors
• Connectors delivered installed in the workpiece; thus no hardware needs to be shipped separately

3. Time-Saving in the Assembly:
• One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary
• Easy positioning in the drill hole due to the protruding screw
• Fast assembly with a cordless drill

Applications:
• Cabinets, interiors, exhibitions, store fixtures, recreational vehicles
• Installed and free-standing wardrobes, kitchen units, libraries, bookshelves, display units, toilet units etc
• Corner joints between bottom or top shelves and the side panel, or joints between shelves and a separating panel
• Wear-resistant cabinet connector for various materials and increased strength
