A Compact Undermount Bar Sink Built for Island and Prep Station Use

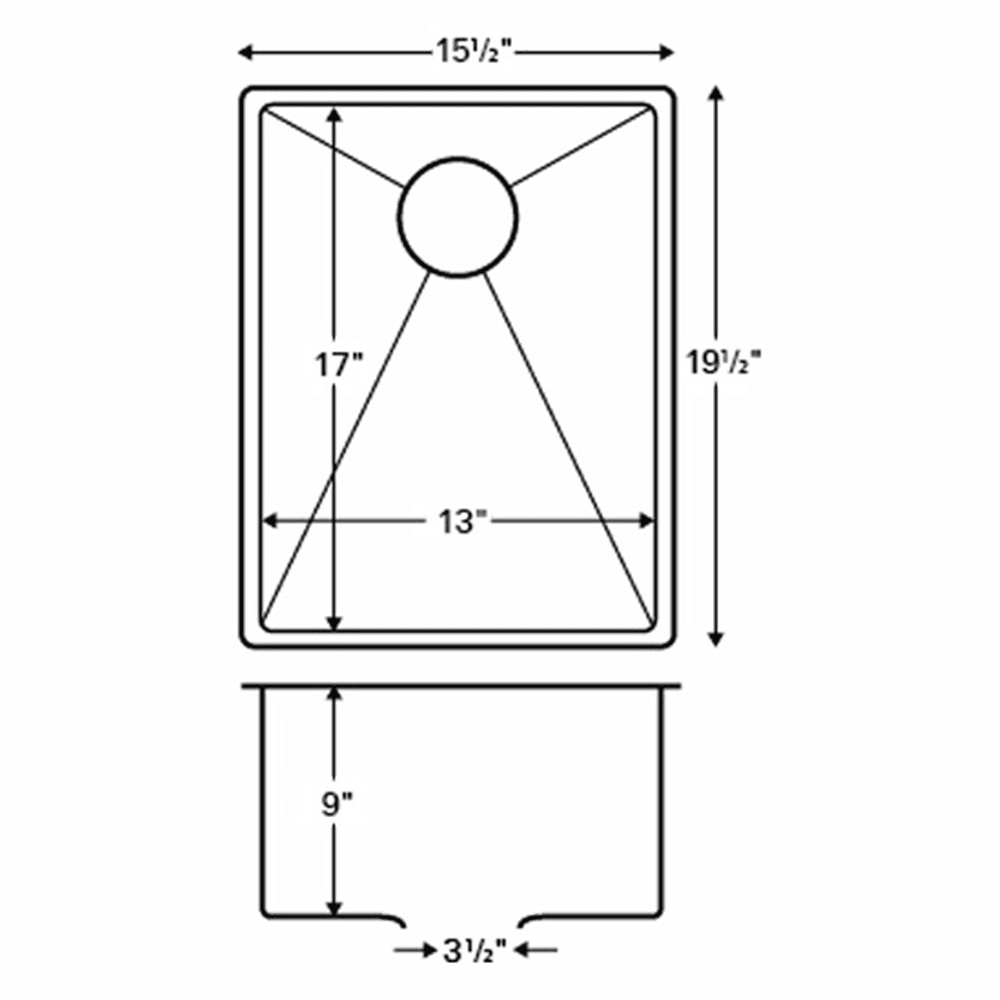

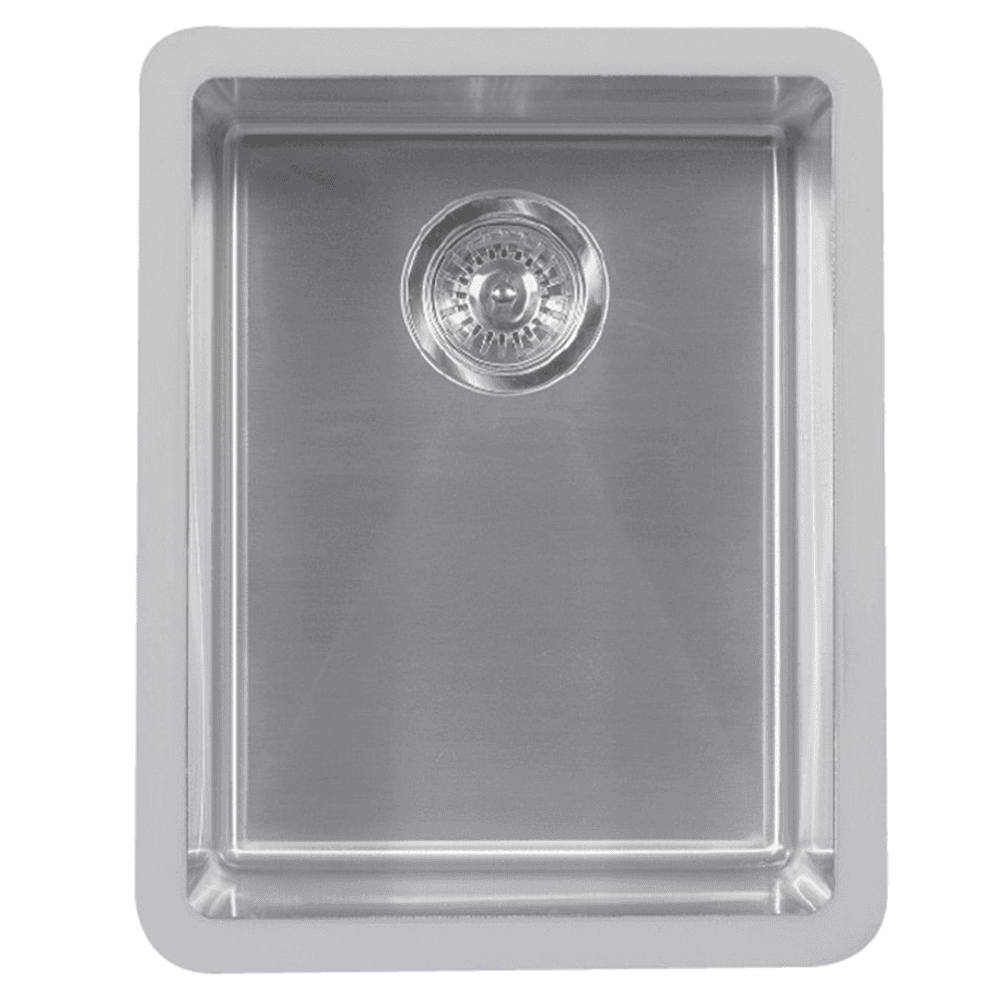

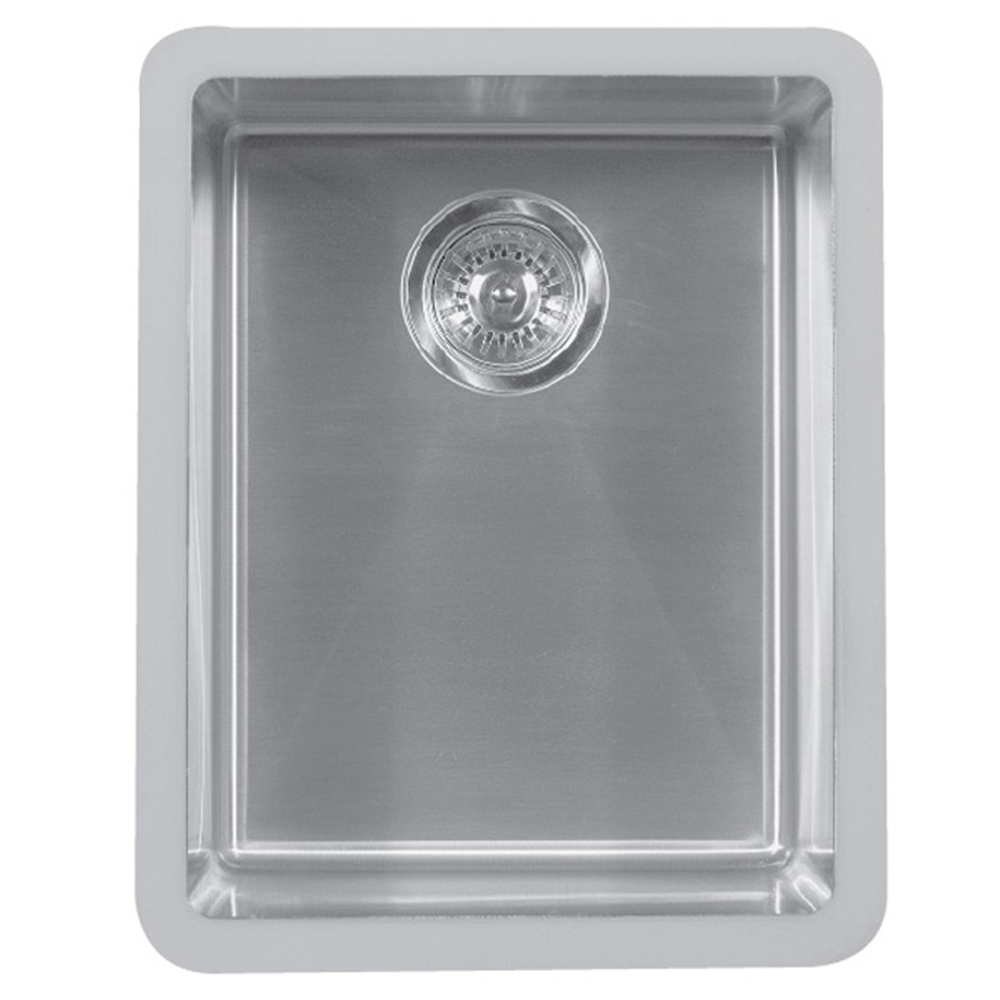

The Karran E-510 is a single-bowl undermount bar and prep sink in the Edge 500 series, sized at 15-1/2 by 19-1/2 by 9 inches to fit neatly into island cabinets, butler's pantries, and wet bars where a full-size sink would be too much. Constructed from 18-gauge stainless steel, it installs beneath the counter for a clean, wipe-down surface at the secondary station.
Key Features
• Edge 500 Series seamless rim is engineered to finish flush with laminate and solid surface countertops, eliminating the exposed seam a conventional drop-in rim creates.
• 18-gauge stainless steel construction delivers a durable, work-ready bowl that holds up to daily prep tasks at a bar or island station.
• Single-bowl configuration maximizes uninterrupted basin space within the compact 15-1/2 by 19-1/2 inch footprint.
• 9-inch bowl depth provides enough capacity for washing produce, glassware, or prep tools without a deep-bowl cabinet modification.
• Undermount installation keeps the rim below the countertop surface, so spills wipe straight into the bowl rather than catching on a ledge.
Where the E-510 Fits the Work
A 15-1/2 by 19-1/2 inch bowl works where a 33-inch kitchen sink plainly does not. Island cabinet runs, wet bar areas, butler's pantries, and secondary prep stations are the natural home for this sink. Its undermount profile pairs well with solid surface and laminate countertops where the Edge 500 seamless method hides the rim entirely. The 9-inch depth handles the tasks that belong at a prep station — rinsing, washing produce, filling pitchers, and cleaning smaller tools — without demanding the cabinet space a main kitchen sink would claim. Fabricators specifying secondary sinks for a full kitchen project often reach for a compact undermount to complement the primary bowl without duplicating it.
Stainless Construction and the Seamless Edge
The E-510 is 18-gauge stainless steel with the brushed satin finish standard to the Edge 500 series. What distinguishes Edge sinks from a conventional undermount is the rim geometry: it is designed to be finished flush with the countertop surface using the Edge seamless installation method — bevel-bit trimming, Karran seam adhesive, and the prescribed finishing steps for laminate or solid surface. The result is a countertop that flows into the bowl with no visible seam, no exposed rim edge, and no ledge where water can pool. This is a series-specific capability documented for laminate and solid surface countertops; it is not a feature of standard stainless undermount sinks.
Who This Sink Is For
Cabinet shops and countertop fabricators working on laminate or solid surface projects will get the most from the Edge 500's seamless capability. Homeowners and designers looking to add a secondary sink to an island, home bar, or pantry without a visible rim will find the compact single bowl a clean fit. Contractors sourcing a prep sink that installs flush — rather than proud of the counter — have a clear answer here. This one is built for indoor dry installations; it is not rated for outdoor or high-humidity unenclosed environments.
Does the seamless installation method require special tooling?
Yes. The Edge 500 seamless rim method calls for a bevel-bit router setup, Karran seam adhesive, and the documented finishing steps for the countertop material. Fabricators already working with laminate or solid surface typically have the core tooling; the adhesive and bevel bit may be ordered separately if not on hand.
Will this sink work with a stone or quartz countertop?
The Edge 500 seamless rim method is documented for laminate and solid surface countertops. For stone or quartz, a conventional undermount installation is possible, but the seamless flush-rim finish the Edge series is known for is not achievable in those materials — the rim would be visible. Confirm the countertop material before specifying the installation path.
What is included with the E-510?
The sink ships as a bare unit. A drain assembly, mounting clips, and a template are not included and must be sourced separately. Verify what your fabrication process requires before ordering.
Is the faucet drilled through the sink or the countertop?
The E-510 does not have a faucet deck, so the faucet and any accessories mount through the countertop behind the bowl. Plan countertop drillings accordingly when laying out the installation.
The Right Secondary Sink for a Clean, Seamless Counter
When the goal is a prep station that looks like it grew out of the counter rather than sitting on top of it, the Karran E-510 delivers that result in a footprint small enough for an island or bar cabinet.
