Compact Footprint And Seamless Edge Integration

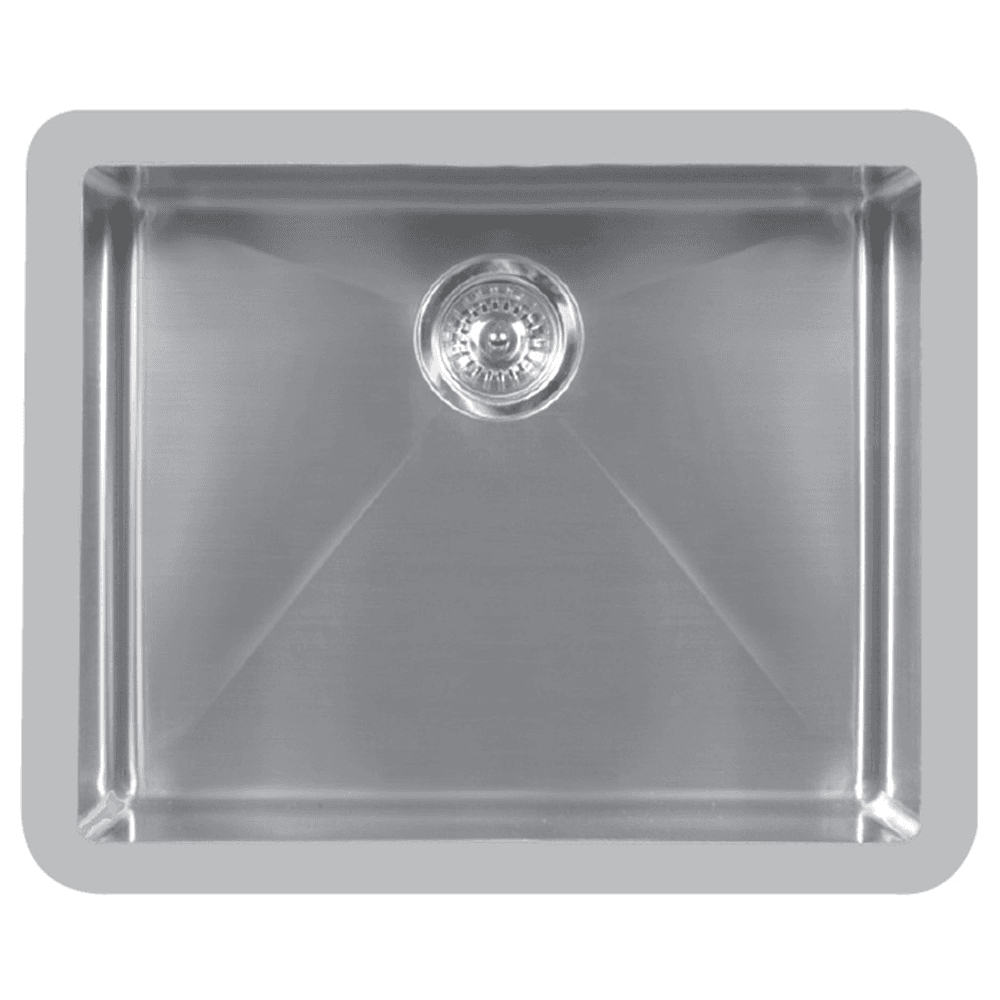

The Karran E-525 is an 18-gauge stainless steel single-bowl undermount sink in the Edge 500 Series, sized to fit cabinets where a larger double bowl simply will not go. Its engineered rim bonds flush with laminate and solid surface countertops for a completely integrated, seam-free surface — the defining capability of the Edge line.
Key Features
• Seamless rim engineering lets the sink integrate flush with laminate and solid surface countertops, leaving no exposed edge or visible seam.

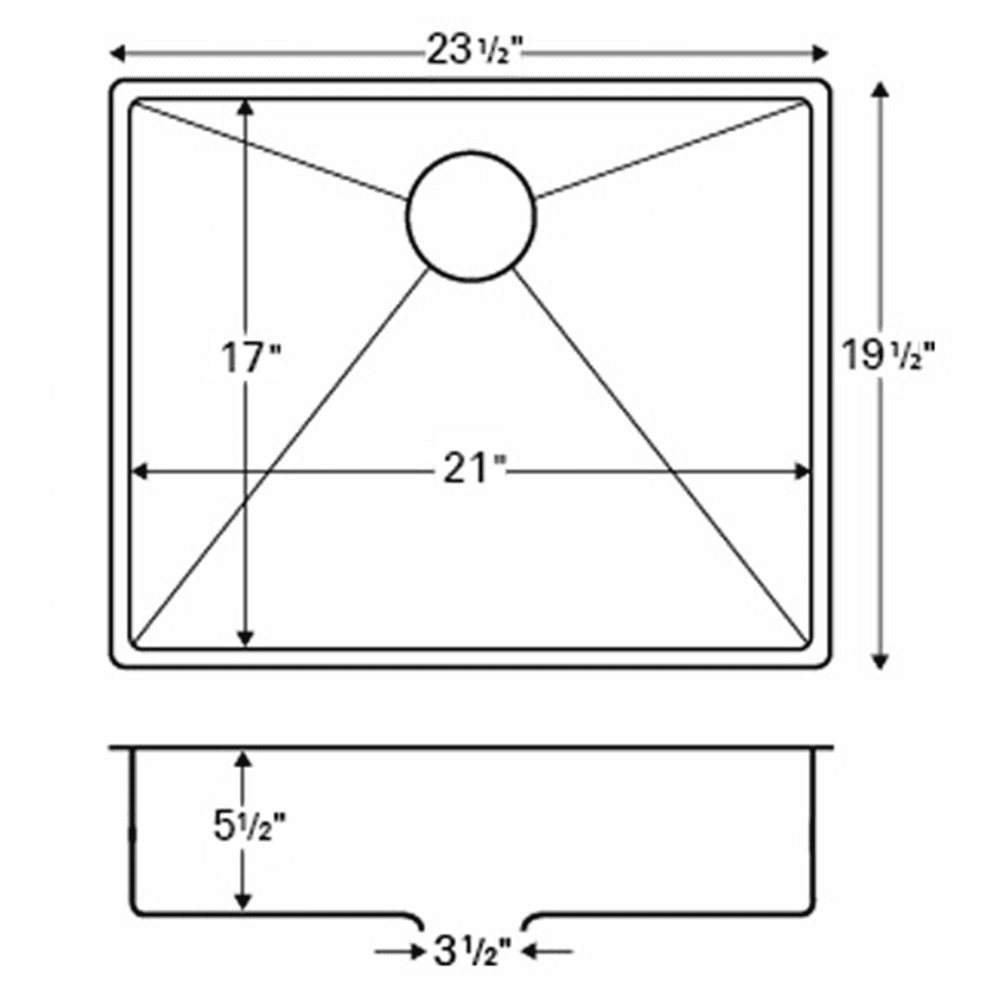

• Single-bowl layout maximizes uninterrupted interior workspace in a compact 23-1/2 by 19-1/2 inch footprint.
• 18-gauge stainless steel construction delivers solid rigidity and a brushed satin finish that resists surface marks in daily kitchen use.
• Undermount installation keeps the counter surface continuous and unobstructed from bowl edge to backsplash.
• ADA compliant when installed in accordance with ADA guidelines, supporting accessible kitchen design without a separate accessible-rated fixture.
• Rectangular bowl profile makes efficient use of the interior volume at this footprint size.
Where the E-525 Works Hardest
A 33-inch or 36-inch double-bowl sink dominates most kitchen spec sheets, but there are real situations where that footprint is not available: a tight galley run, a dedicated prep station on a peninsula, a bar area built into cabinetry with a 24-inch sink base, or a secondary wash point in a larger kitchen layout. The E-525 is sized for exactly those positions. At 23-1/2 by 19-1/2 inches overall, it fits into a 24-inch sink base while still delivering a bowl deep enough for practical prep and wash tasks. The single-bowl format means the entire interior is usable without a divider splitting the space, so pots, cutting boards, and sheet pans drop in without maneuvering around a partition.
The seamless rim is what separates this sink from a conventional undermount at the same size. Where a standard undermount leaves a countertop edge and a silicone bead visible at the bowl perimeter, the Edge 500 rim finishes flush — bonded, trimmed with a bevel bit, and finished so the laminate or solid surface surface flows directly into the bowl. For a fabricator building a laminate prep station or a solid surface countertop run, that finish is a deliverable the client can see and touch.
Construction and Surface Details
The bowl is Type 304 stainless steel at 18 gauge — a workhorse spec for residential kitchen and light commercial prep use. The brushed satin interior finish handles daily contact without showing fine scratches the way a mirror polish would. The rectangular interior profile keeps corners at a workable angle and gives the bowl a clean, contemporary look that pairs well with both laminate and solid surface countertop materials. Because the faucet mounts through the countertop rather than through a sink deck, faucet selection is open: single-hole, widespread, and bridge configurations all work depending on the countertop drillings.
Right Fit for Fabricators and Designers
Cabinet shops and countertop fabricators building laminate or solid surface kitchens get a sink that finishes to the same standard as the rest of the surface work — no visible rim to caulk, no exposed countertop edge to chip. Designers specifying accessible kitchens gain a code-path fixture without sacrificing the seamless aesthetic. Homeowners renovating a galley kitchen or adding a prep station to an island find a full-depth single bowl in a footprint that fits where larger sinks cannot go. Installation follows Karran's documented Edge seamless method; the actual sink should be on hand before the cutout is made.
Frequently Asked Questions
What countertop materials support the seamless installation method?
The Edge 500 Series seamless rim method is documented for laminate and solid surface countertops. Standard undermount installation in stone or quartz countertops uses conventional clip and silicone methods rather than the seamless rim process.
Is a template or mounting clips included with the E-525?
Template and clips are not included with Edge Series sinks. The countertop cutout should be laid out with the actual sink present before cutting. Karran offers DXF files for CNC cutouts.
Does the ADA compliance rating require any specific installation steps?
Yes. The sink is ADA compliant when installed in accordance with ADA guidelines — knee clearance, bowl depth, and mounting height all factor into a compliant installation, and those dimensions are determined at the job site, not at the factory.
Where does the faucet mount on this sink?
The E-525 has no faucet deck. The faucet and any accessories such as a soap dispenser mount through drillings in the countertop behind the bowl, which gives full flexibility on faucet configuration.
Is a drain or strainer included?
The drain assembly is sold separately. Select a basket strainer sized for a standard 3-1/2 inch kitchen drain opening and confirm compatibility with the E-525 before ordering.
The Right Sink for a Tight Plan
The E-525 gives fabricators and designers a seamless-capable, ADA-compliant single bowl in a footprint that opens up countertop runs that full-size sinks cannot serve — delivered in the brushed stainless finish that works in nearly any kitchen palette.
