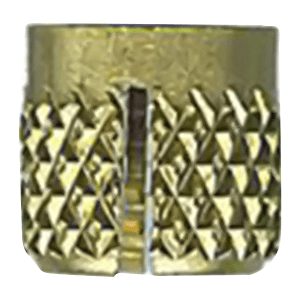

Brass Knurled Inserts for Reliable Sink Mounting
These #10-32 x 1/4" brass knurled inserts are the anchoring half of undermount and countertop sink mounting assemblies, providing the threaded seat that accepts a matching wing nut or machine screw to draw clips tight and hold the sink firmly in place. Sold in a 500-piece pack, they suit professional fabrication shops that cycle through hardware in quantity.
Key Features
• Brass construction resists corrosion and threads cleanly without galling or stripping under installation torque.
• #10-32 thread matches standard sink mounting clip and wing nut hardware used across common undermount systems.
• 1/4" body length suits typical mounting block thickness in solid-surface and laminate countertop applications.
• Knurled outer surface grips the mounting block or substrate to resist rotation as the fastener is tightened.
• 500-piece pack keeps the shop stocked for a full project schedule without frequent reorders.
Where These Inserts Fit in the Workflow
In a standard undermount sink installation, mounting blocks are bonded or positioned beneath the countertop around the cutout perimeter. Knurled inserts press or drive into those blocks, providing a captured threaded anchor. Wing nuts thread onto the exposed fastener end and bear against the clip, pulling the sink rim up against the underside of the deck. These inserts handle that anchoring role: once seated, they stay put while the wing nut does the clamping work. The same setup appears in solid-surface, laminate, and certain stone fabrication paths wherever clip-based undermount systems are used.
Material and Finish
Brass is the right choice for this position in the assembly. It threads precisely, holds torque without the galling risk that comes with two steel surfaces running together, and resists the moisture exposure that is normal beneath an active sink. The knurled exterior pattern is cut to bite into mounting block material and prevent the insert from spinning as the wing nut is snugged down, which matters when access below the counter is awkward and you cannot hold the insert by hand.
Who Reaches for a 500-Pack
Cabinet shops and countertop fabricators doing volume sink installs keep consumable hardware like this on the shelf rather than sourcing it job by job. A 500-piece pack covers a significant run of undermount installs and eliminates the per-project scramble for small hardware. The count also suits shops that supply hardware packets to their install crews alongside cut sheets and clips, so every technician leaves the shop with everything needed for the rough-in.
What pairs with these inserts to complete the mounting assembly?
Knurled inserts work alongside sink mounting clips and a matching wing nut — the wing nut threads onto the insert through the clip ear and draws the clip against the sink rim. Matching #10-32 zinc stamped wing nuts are available separately to complete the set.
How are these inserts installed into the mounting block?
They are typically pressed or driven into a pre-drilled hole in the mounting block. The knurled exterior grips the surrounding material and prevents the insert from turning when the wing nut is applied. The correct hole diameter for press fit depends on the mounting block material — verify with the block supplier or run a test fit before production.
Are these rated for a specific countertop material?
These inserts are a thread-and-grip fastener component, not a countertop-specific product. They are used wherever a #10-32 threaded anchor is needed in a sink mounting assembly — solid surface, laminate, and similar shop-fabricated systems. Compatibility with a specific countertop or mounting-block material depends on the system design, not the insert itself.
Can I order fewer than 500 at a time?
This SKU is sold as a 500-piece pack. If your volume needs differ, check the catalog for alternative pack sizes in this hardware family.
Small Hardware That Keeps Installs Moving
Running out of mounting inserts mid-project is the kind of delay that a well-stocked shop should never face. Keeping a 500-pack on hand means the hardware is there when the countertop is ready, the sink is set, and the crew is working on schedule.
