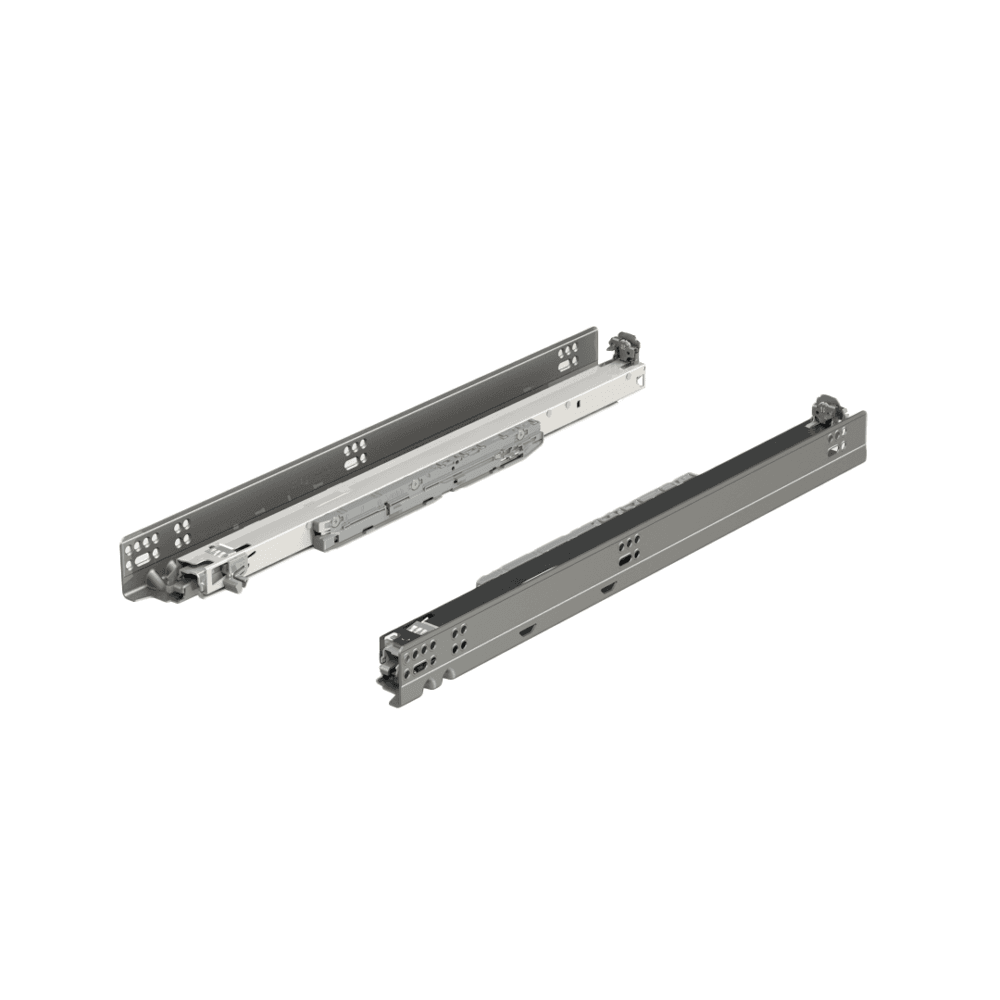

18" Movento 763H Undermount Drawer Slide for 5/8" Drawer Material, 125lb Capacity, Full Extension with BLUMOTION Soft-Closing

MOVENTO 763. Standard Duty Undermount Slides for Drawer Thickness up to 5/8"

MOVENTO is the latest advancement in concealed runner technology. It brings together all of the features, innovations and benefits that Blum has developed since first manufacturing drawer runners in the 1960s
Standard with soft close BLUMOTION, MOVENTO runners provide multiple solutions with a single runner. Combine with motion technologies, TIP-ON BLUMOTION or SERVO-DRIVE, to ensure drawers open with a light press of the front and close softly and quietly.

Features:
• Four-dimensional adjustment
• Elongated holes for depth adjustment
• Bottom mount holes
• 125lb static load capacity

Description:
• Full extension concealed runners
• Frameless or blocked-out face frame cabinets
• BLUMOTION soft closing
• Smooth running action

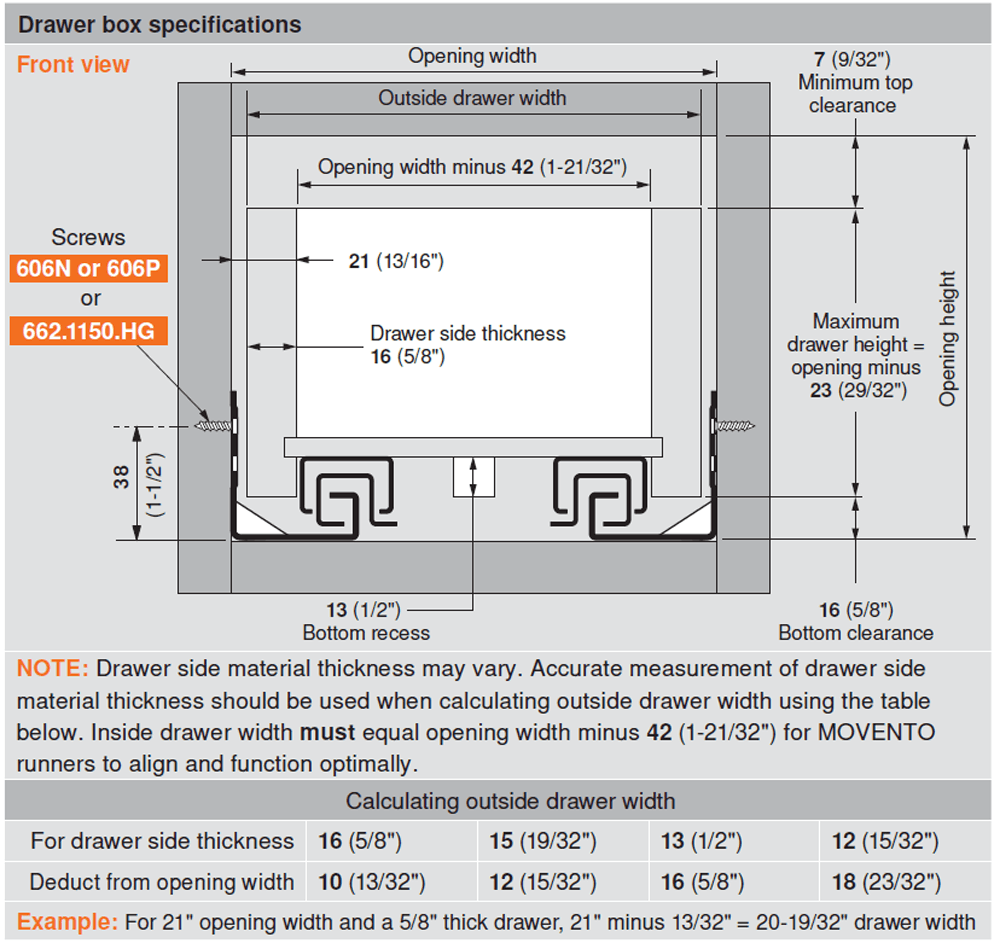

• 13 (1/2") to 16 (5/8") drawer thickness
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE

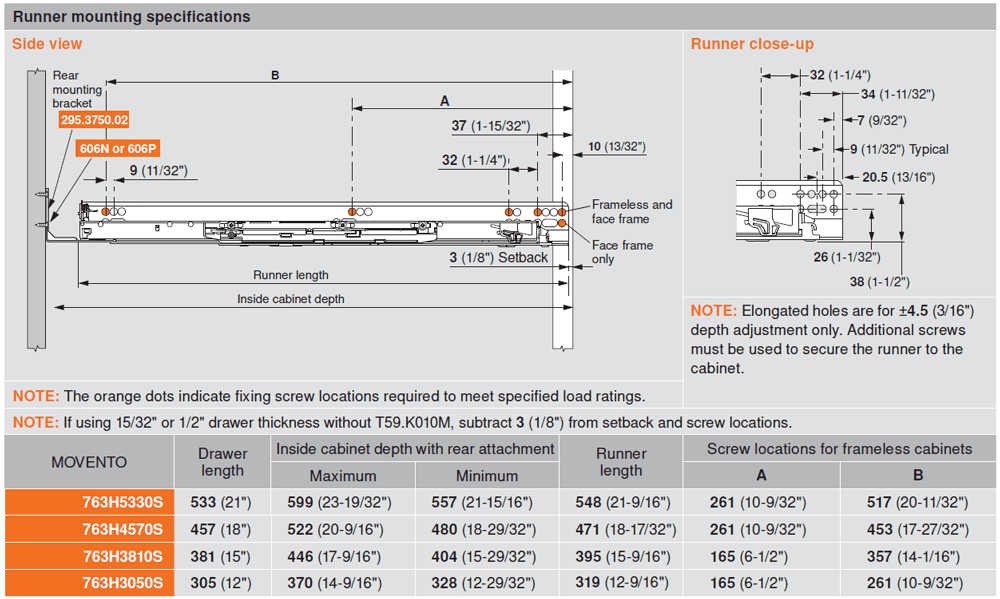

Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

Setback on Standard Drawers: 3mm (1/8")

See Locking Device for Inset Drawer Setbacks

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
