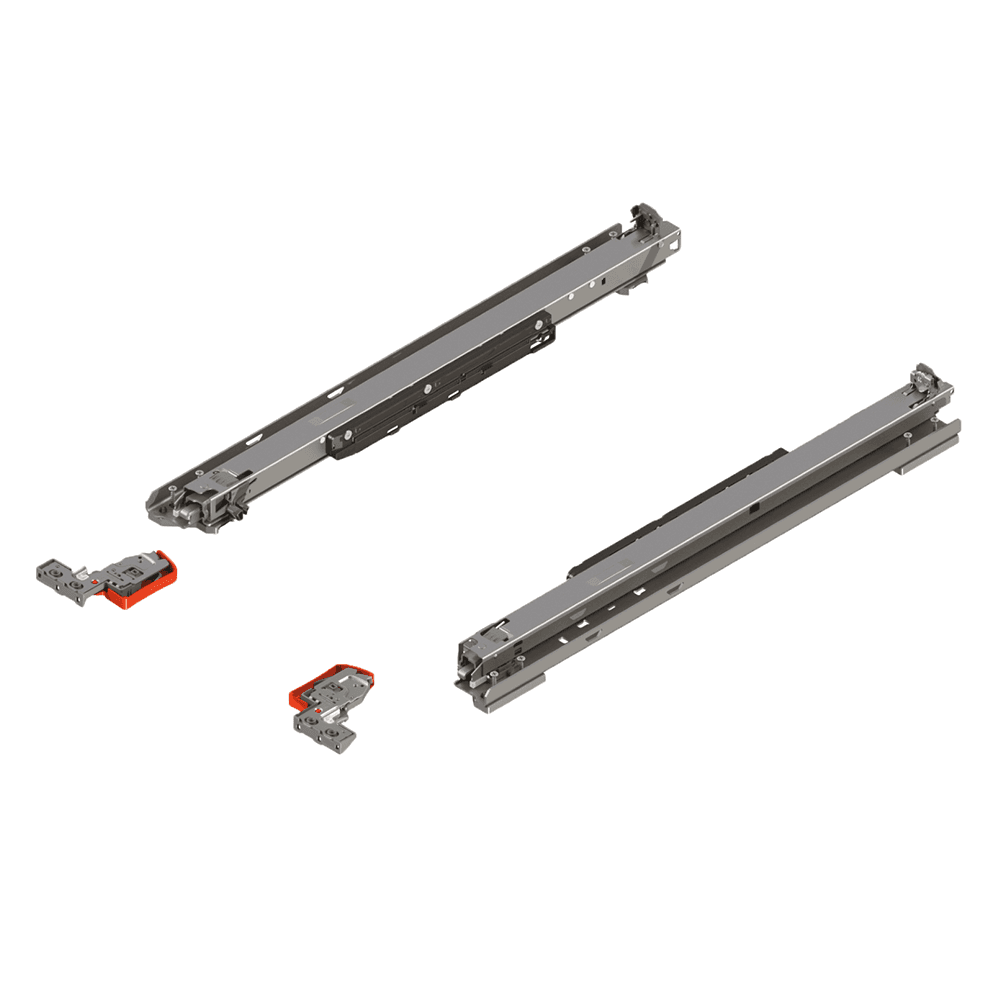

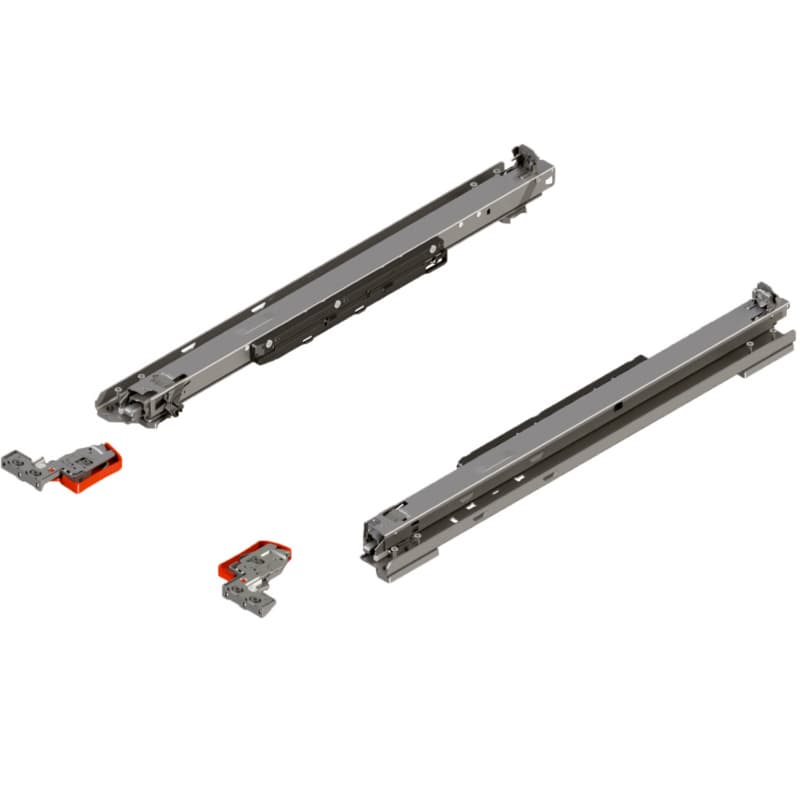

21" Movento 769R5330S Undermount Drawer Slide, 135lb Capacity Full Extension with BLUMOTION Soft-Closing
Item # B769R5330S
•Mfr # 769R5330S
$64.42
/Pair
Min Order: 1
Quantity Multiple by: 1
Product Details
MOVENTO is the latest advancement in concealed runner technology. It brings together all of the features, innovations and benefits that Blum has developed since first manufacturing drawer runners in the 1960s.
Features:
• MOVENTO heavy duty full extension concealed runners with BLUMOTION
• For 13 (1/2") to 16 (5/8") drawer side thickness
• 19 (3/4") over extension
• For face frame and frameless applications
• Tool-free side-to-side, height and tilt adjustment
• Maximum 6 (1/4") cabinet bottom recess
• 135lb static load capacity
• Designed to be used with SERVO-DRIVE or TIP-ON BLUMOTION
Set Includes:
• MOVENTO heavy duty runner set with pre-mounted #6 x 1" wood screws for installation (qty 8)
• Standard locking device (qty 2) with #6 x 5/8" wood screws for installation (qty 4)
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Features:
• MOVENTO heavy duty full extension concealed runners with BLUMOTION
• For 13 (1/2") to 16 (5/8") drawer side thickness
• 19 (3/4") over extension
• For face frame and frameless applications
• Tool-free side-to-side, height and tilt adjustment
• Maximum 6 (1/4") cabinet bottom recess
• 135lb static load capacity
• Designed to be used with SERVO-DRIVE or TIP-ON BLUMOTION
Set Includes:
• MOVENTO heavy duty runner set with pre-mounted #6 x 1" wood screws for installation (qty 8)
• Standard locking device (qty 2) with #6 x 5/8" wood screws for installation (qty 4)
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Length | |
| Finish | Zinc |
| Drawer Length | 21" |
| Closing Type | Soft-Closing |
| Model | Movento 769R5330S |
| Load Capacity | 135lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | Frameless/Face Frame |
| Mounting Type | Undermount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 1/2" to 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
