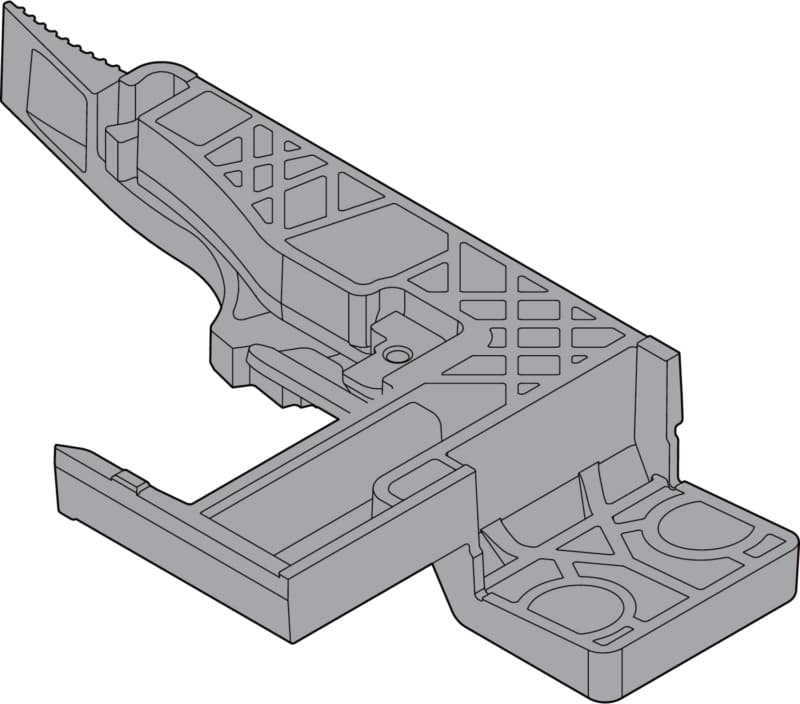

Movento Left-Hand Front Locking Device for Narrow Drawers
Item # BT51.0501.20L
•Mfr # T51.0501.20 LI
Left or Right: Left
Product Details

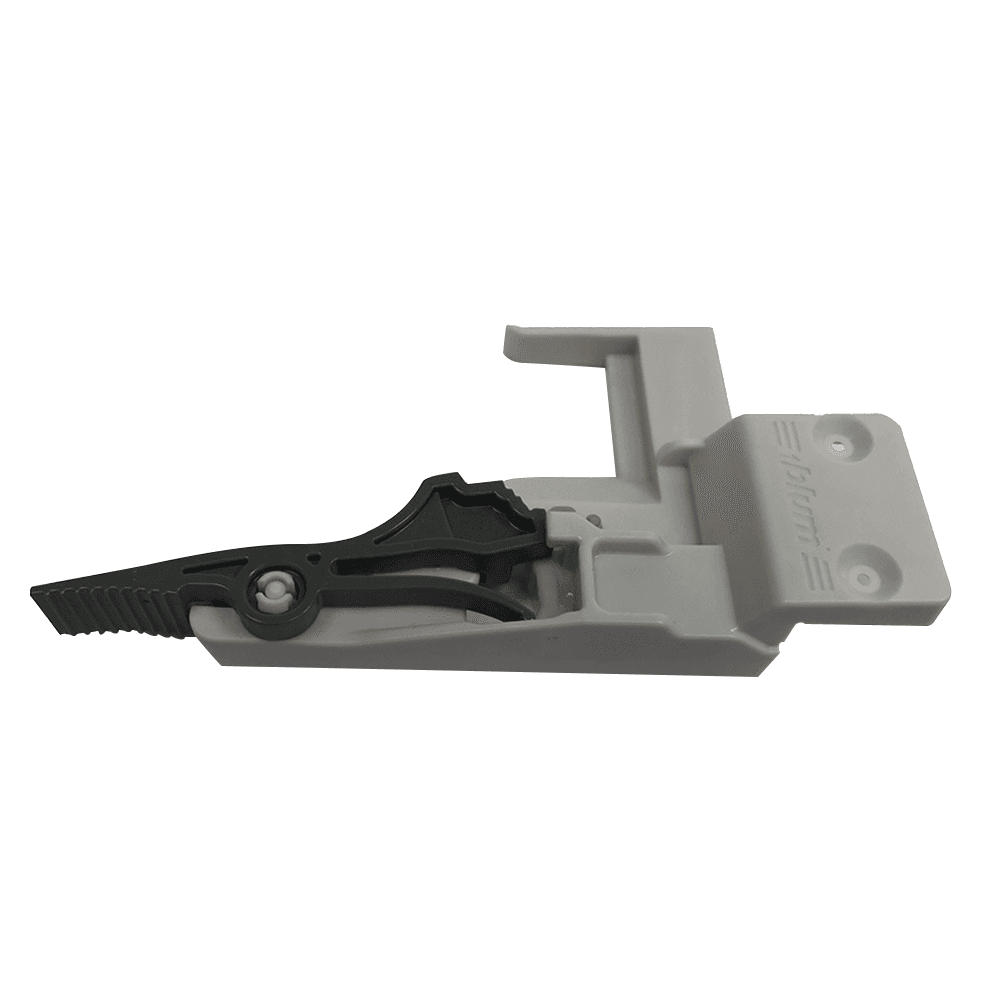

Movento Narrow Drawer Front Locking Device
LEFT SIDE ONLY. RIGHT ALSO REQUIRED
Features:
• For use with narrow drawers
• Maximum dynamic load capacity 25 lb
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Vertical mount, two-piece nylon
• Minimum inside drawer width 95 (3-3/4") without TIP-ON BLUMOTION
• Minimum sub-front thickness 16 (5/8")
• Designed for 13 (1/2") drawer bottom recess

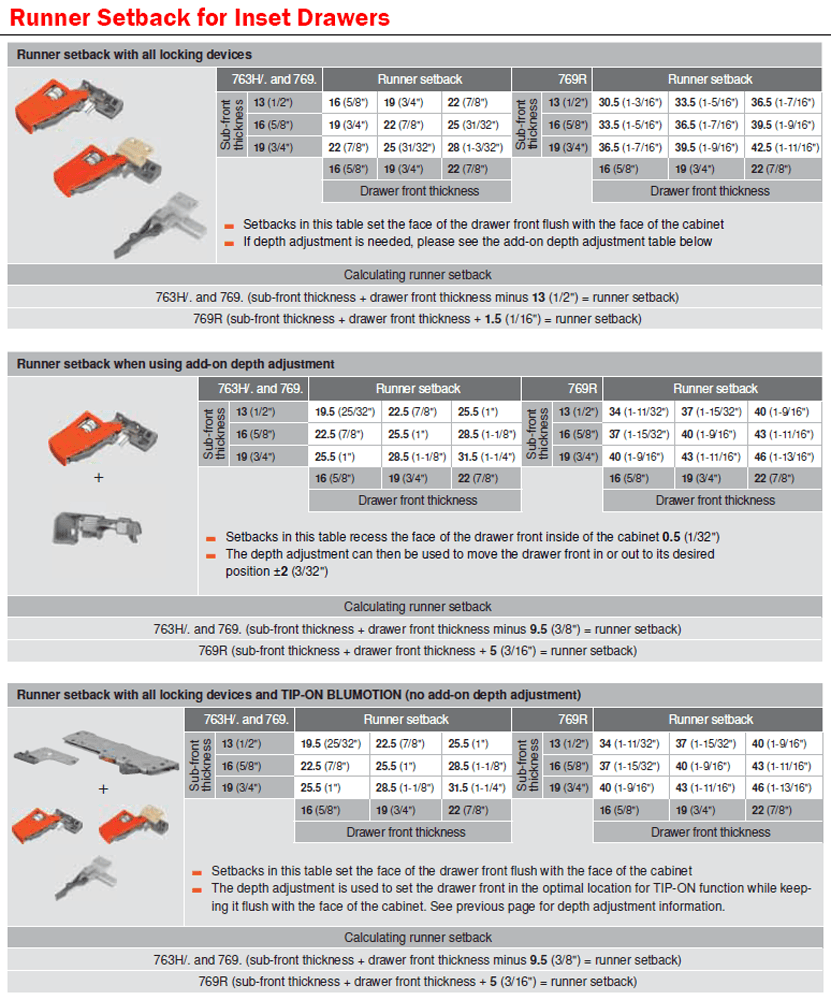

See diagram for slide setback for inset drawers
Locking Device Spacer for thin drawer fronts available.
LEFT SIDE ONLY. RIGHT ALSO REQUIRED
Features:
• For use with narrow drawers
• Maximum dynamic load capacity 25 lb
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Vertical mount, two-piece nylon
• Minimum inside drawer width 95 (3-3/4") without TIP-ON BLUMOTION
• Minimum sub-front thickness 16 (5/8")
• Designed for 13 (1/2") drawer bottom recess
See diagram for slide setback for inset drawers
Locking Device Spacer for thin drawer fronts available.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Movento |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Left |
| Cabinet Type | |
| Mounting Type | Vertical |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
