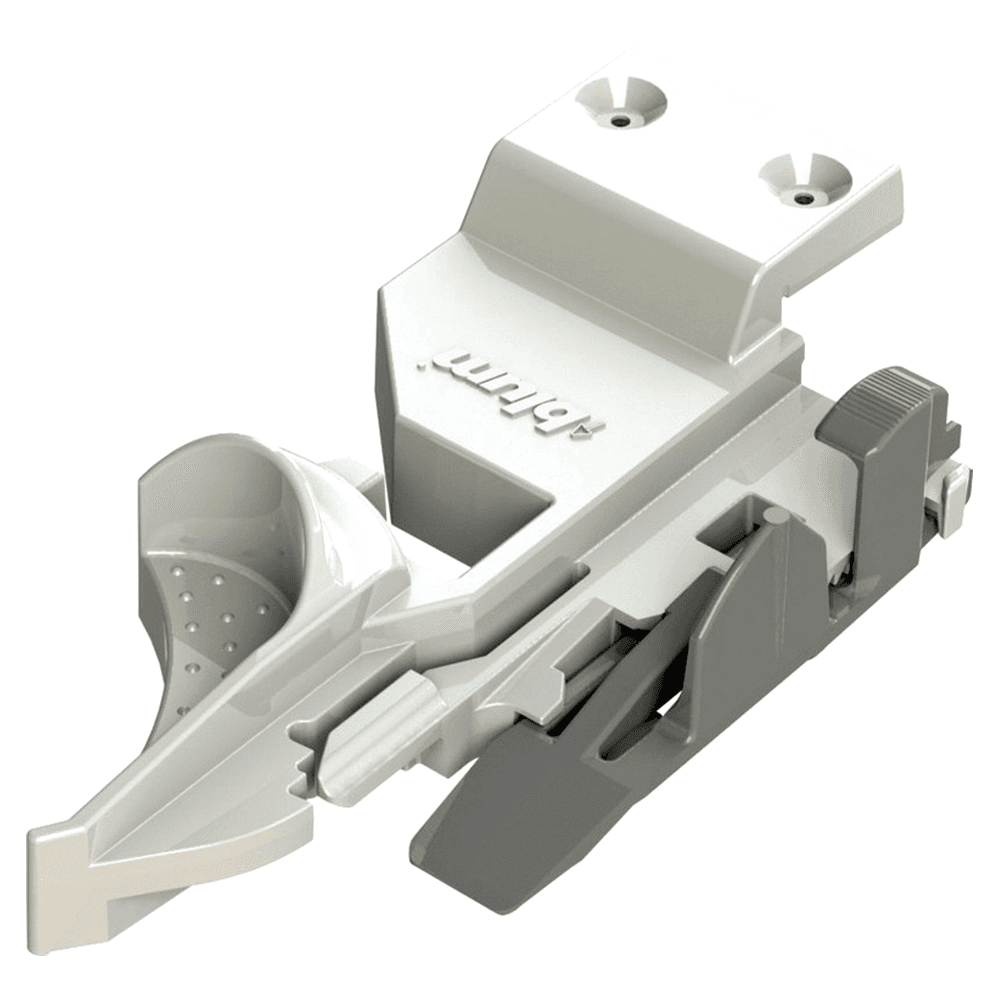

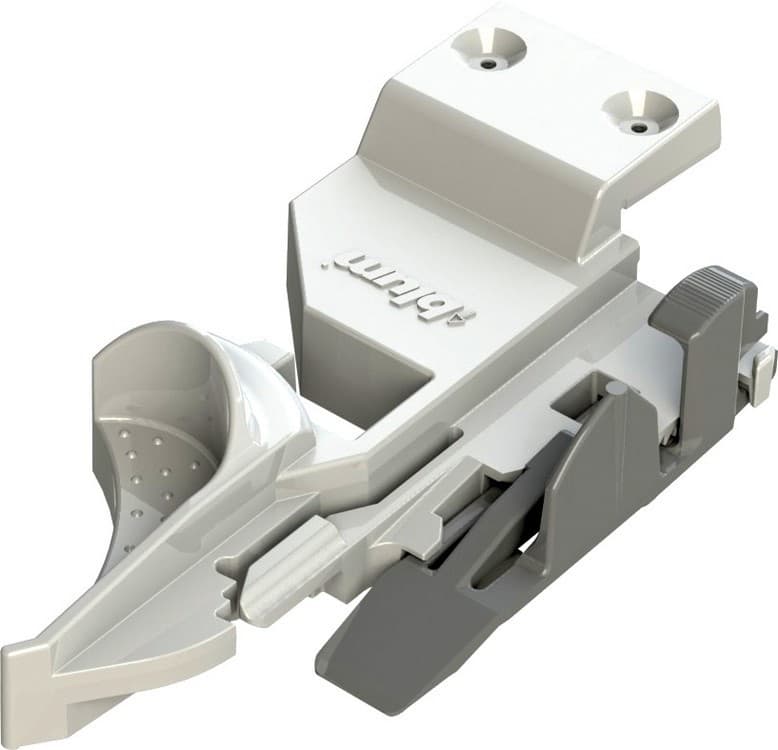

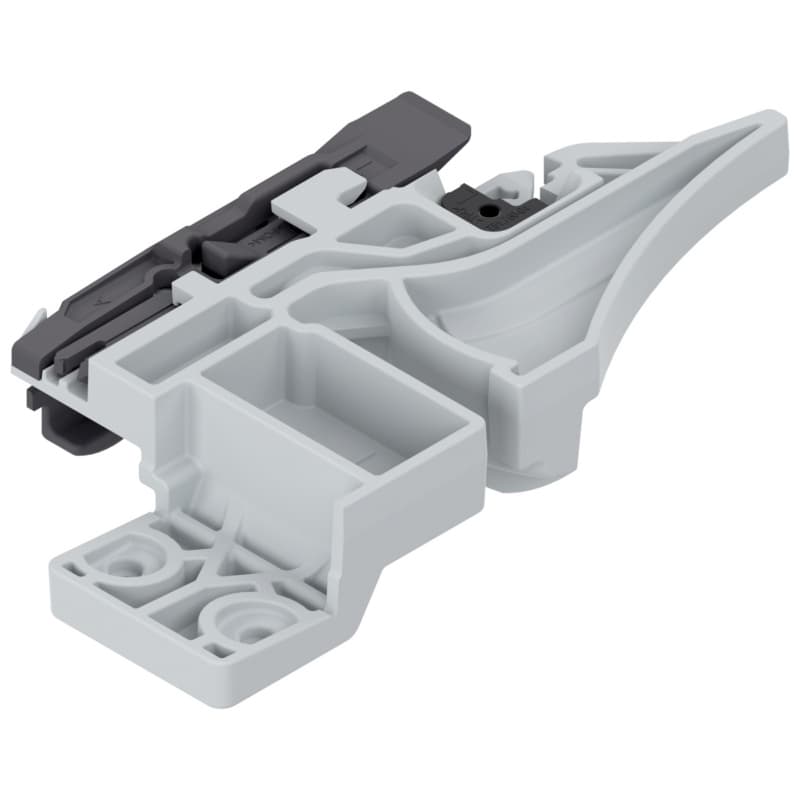

Tandem 563/569 Left-Hand Narrow Drawer Locking Device
6 items
24 items
100 items
Left or Right: Left
Product Details
Tandem 563/569 Narrow Drawer Locking Device, no side-to-side adjustment
LEFT SIDE ONLY. RIGHT ALSO REQUIRED
Features:
• For use with narrow drawers
• Maximum dynamic load capacity 25 lb
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Vertical mount, two-piece nylon
• Minimum inside drawer width 95 (3-3/4")
• Height adjustment +3 (1/8")
• Minimum sub-front thickness 16 (5/8")
• Designed for 13 (1/2") drawer bottom recess

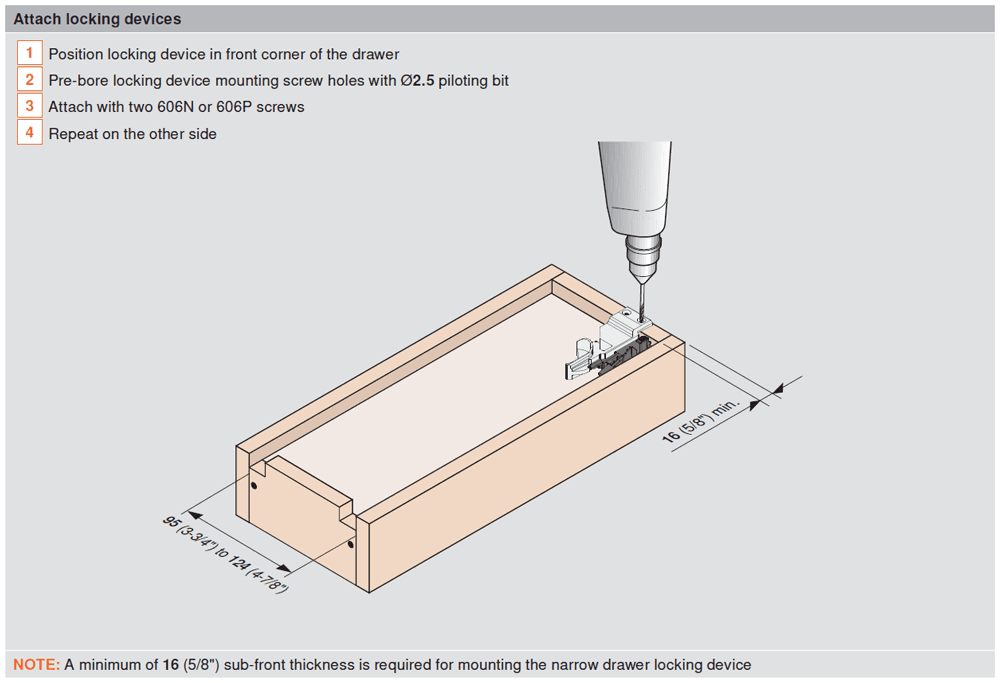

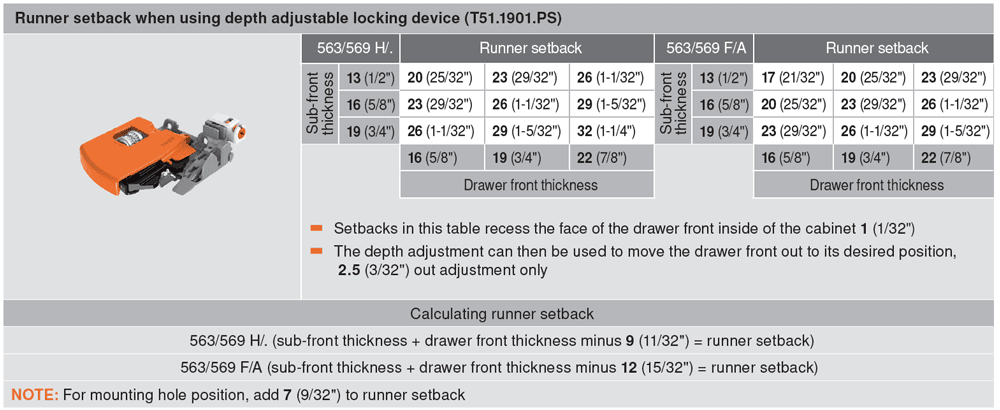

See diagram for slide setback for inset drawers
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 100 |
| Length | |
| Finish | Dust Gray |
| Drawer Length | |
| Closing Type | |
| Model | Tandem |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Left |
| Cabinet Type | |
| Mounting Type | Narrow |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
