Tandem 552/562/568 Right-Hand Locking Device

Item # BT51.1700R500
Mfr # T51.1700.04

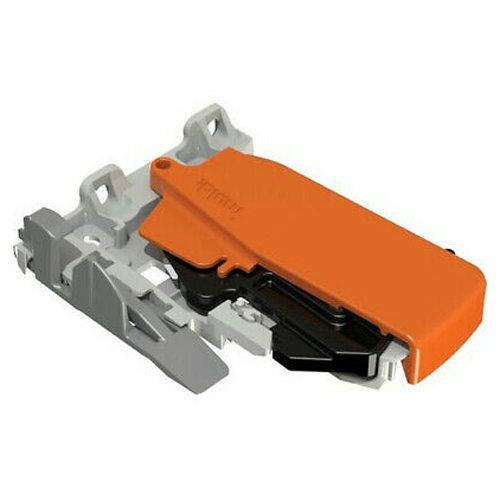

Blum Tandem 552/562/568 Right-Hand Locking Device - Accessories and Parts

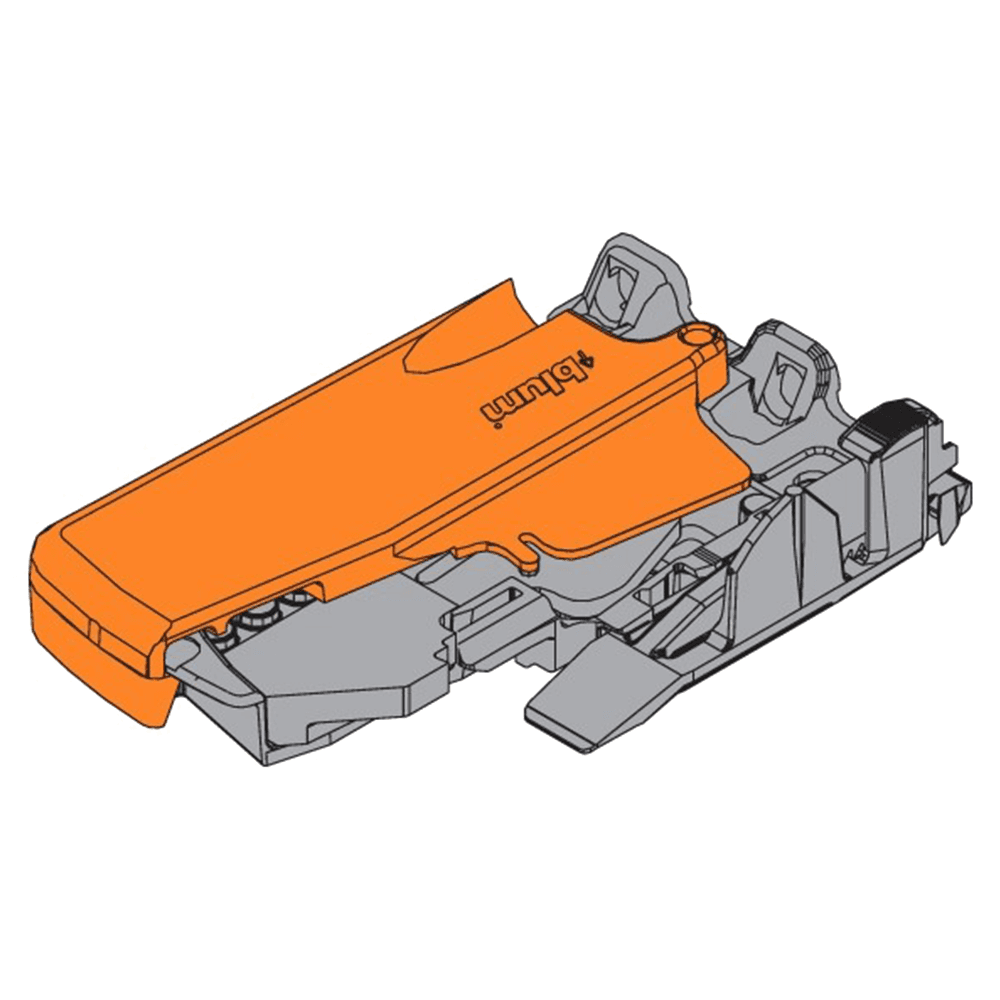

Blum Tandem 552/562/568 Right-Hand Locking Device - Close Up View

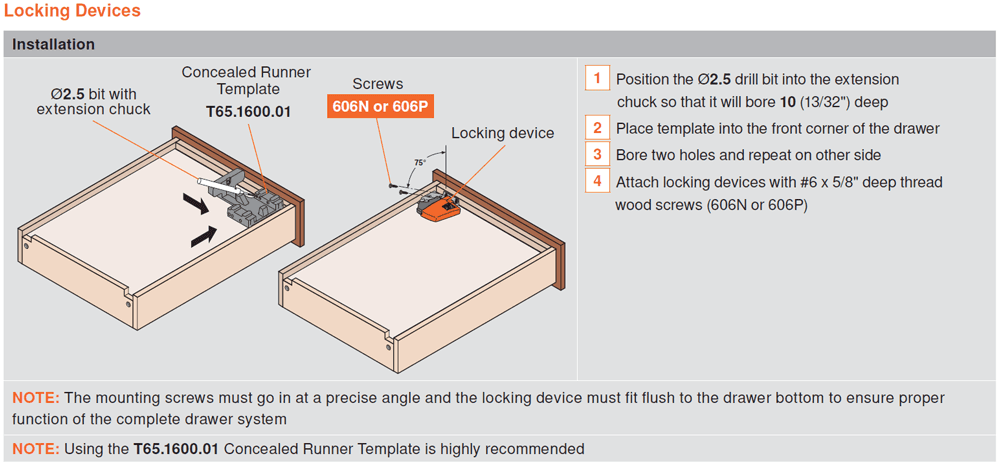

Blum Tandem 552/562/568 Right-Hand Locking Device - Dimensions and Specifications

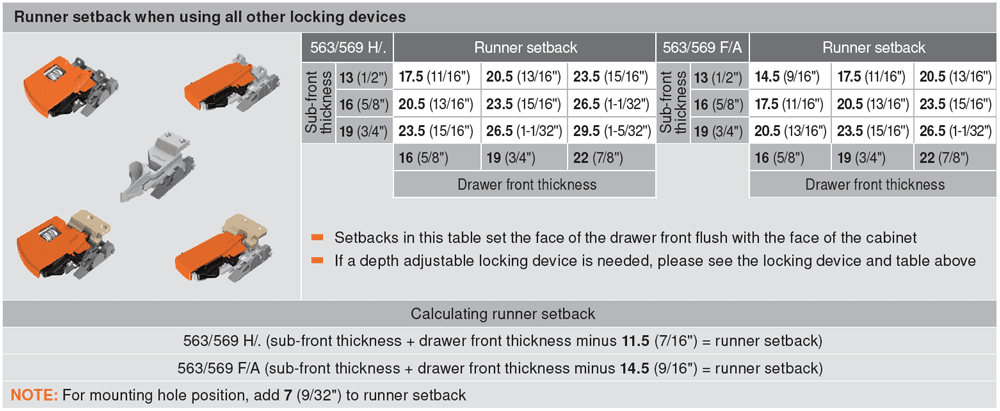

Blum Tandem 552/562/568 Right-Hand Locking Device - Functional View
$1.11
/Each
8 items
$0.78/Each

Left or Right: Right

Qty /
Min Order: 1
Quantity Multiple by: 1

Product Details

Features:
• Blum TANDEM locking device set
• Standard, left and right
• Includes both left and right handed locking devices
• Minimum inside drawer width of 4-3/4"
• Height adjustable up to 1/8"
• For use with 552, 562 and 568 series runners only

Specifications

Length
Finish
Drawer Length
Closing Type
ModelTandem 552/562/568
Load Capacity
Travel
Product TypeFront Locking Device
Left or RightRight
Cabinet Type
Mounting TypeStandard
Material
Slide Type
Height
Certifications
Width
Material Thickness
Cabinet Width
Thickness
Overlay
