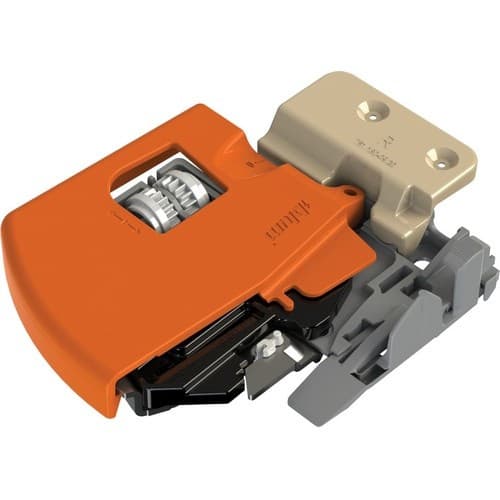

Tandem 563/569 Right-Hand Vertical Locking Device with Side Adjustment
6 items
48 items
100 items
Left or Right: Right
Product Details

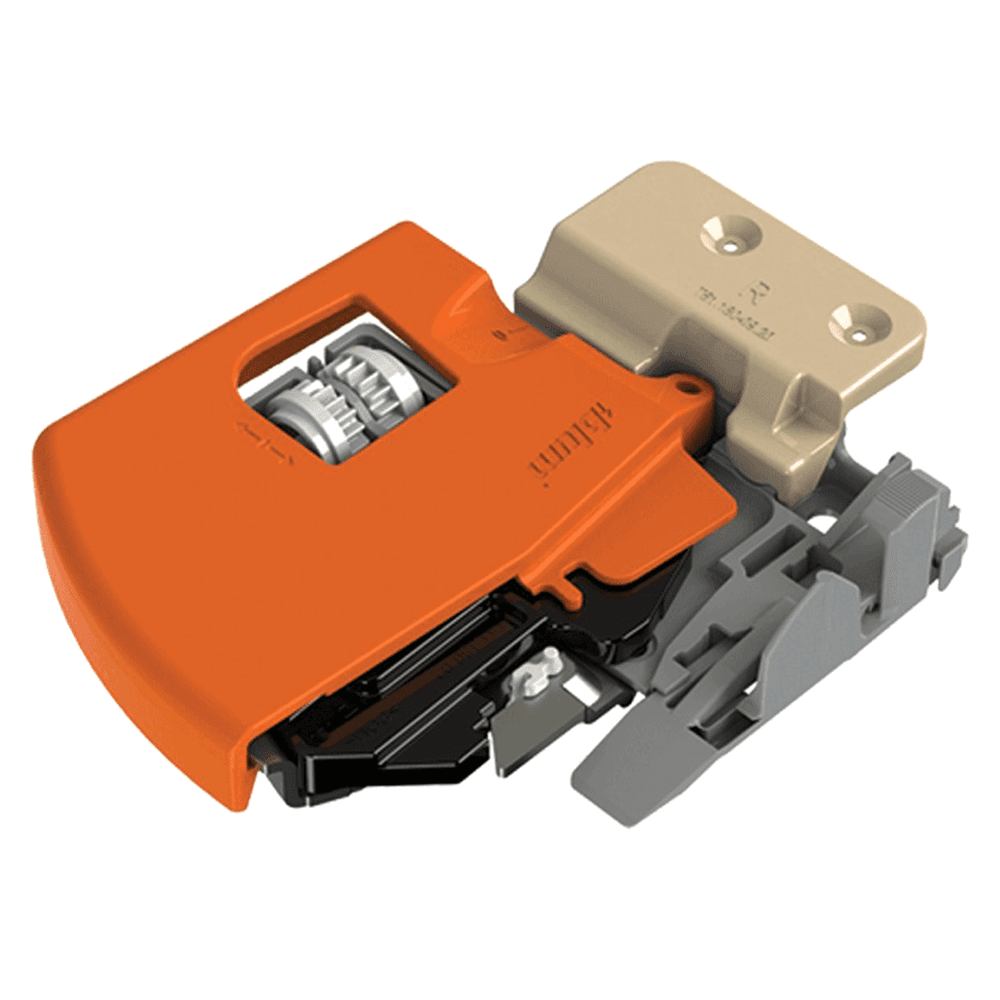

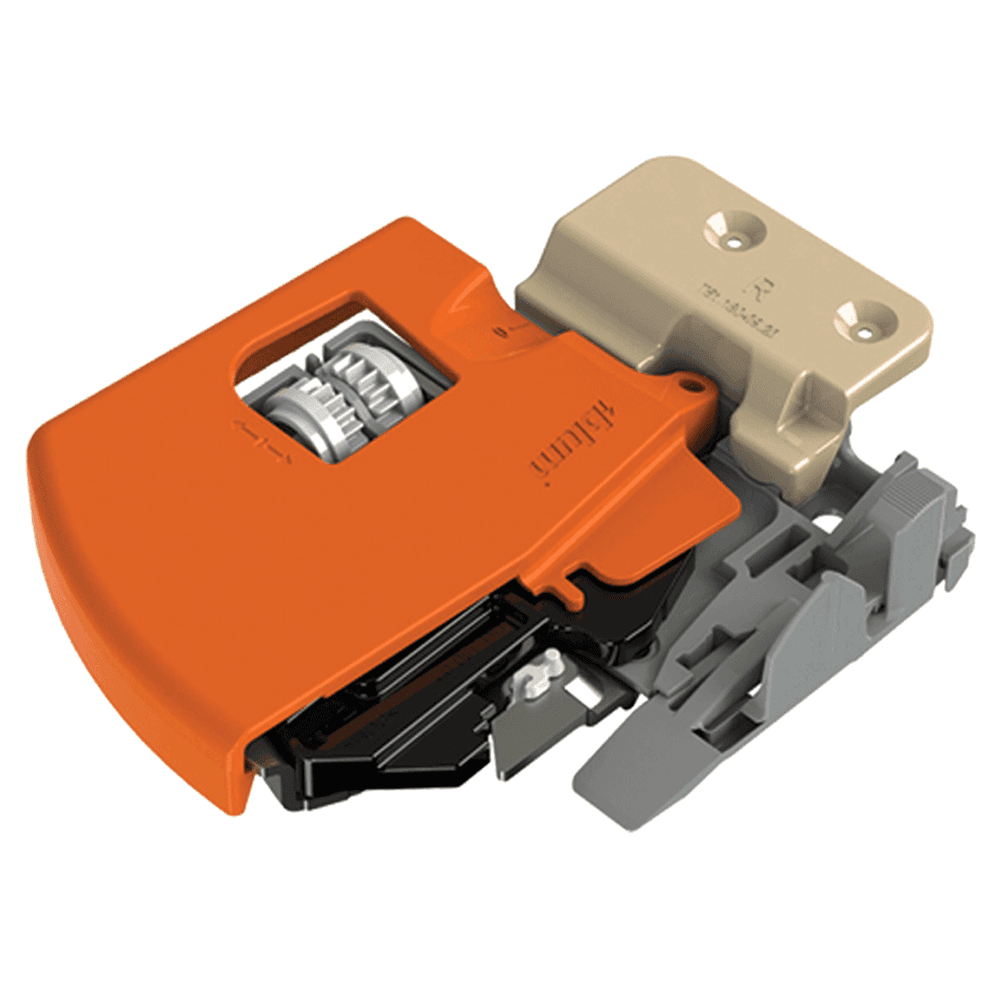

Tandem 563/569 Vertical Locking Device with Side Adjustment
RIGHT SIDE ONLY. LEFT ALSO REQUIRED
Features:
• Vertical mount locking device used to minimize sub-front splitting
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Steel base with synthetic, spring-loaded release levers
• Minimum inside drawer width 170 (6-11/16")
• Height adjustment +3 (1/8")
• Side-to-side adjustment ±1.5 (1/16")
• Minimum sub-front thickness 16 (5/8")
• Designed for 13 (1/2") drawer bottom recess

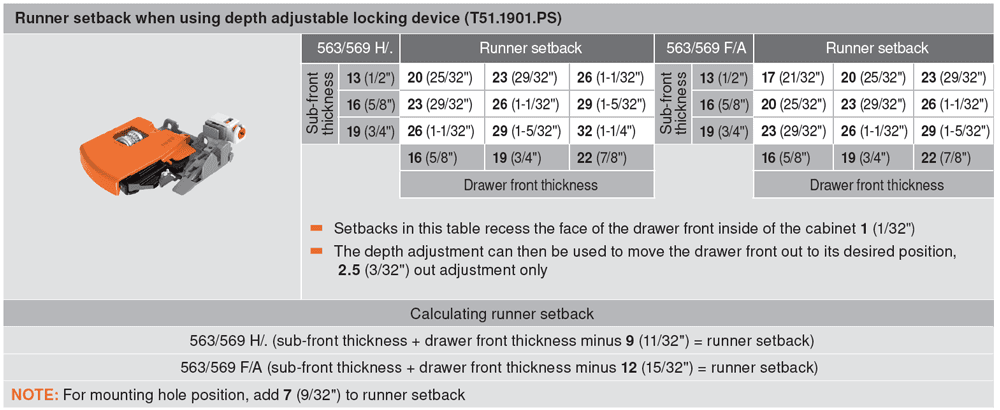

See diagram for slide setback for inset drawers
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Tandem 563/569 |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Right |
| Cabinet Type | |
| Mounting Type | Vertical |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
