Tandem 563/569 Left-Hand Depth Adjustable Locking Device with Side Adjustment
6 items
48 items
100 items
Left or Right: Left
Product Details

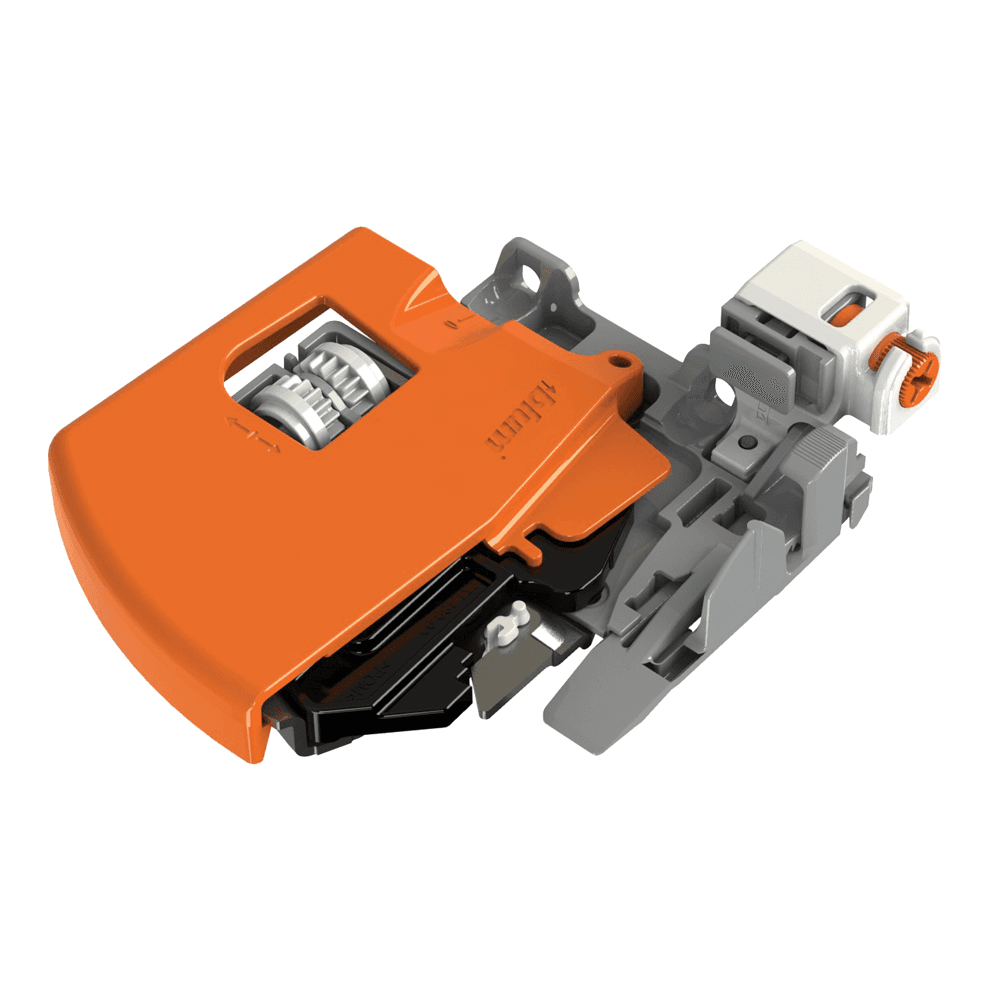

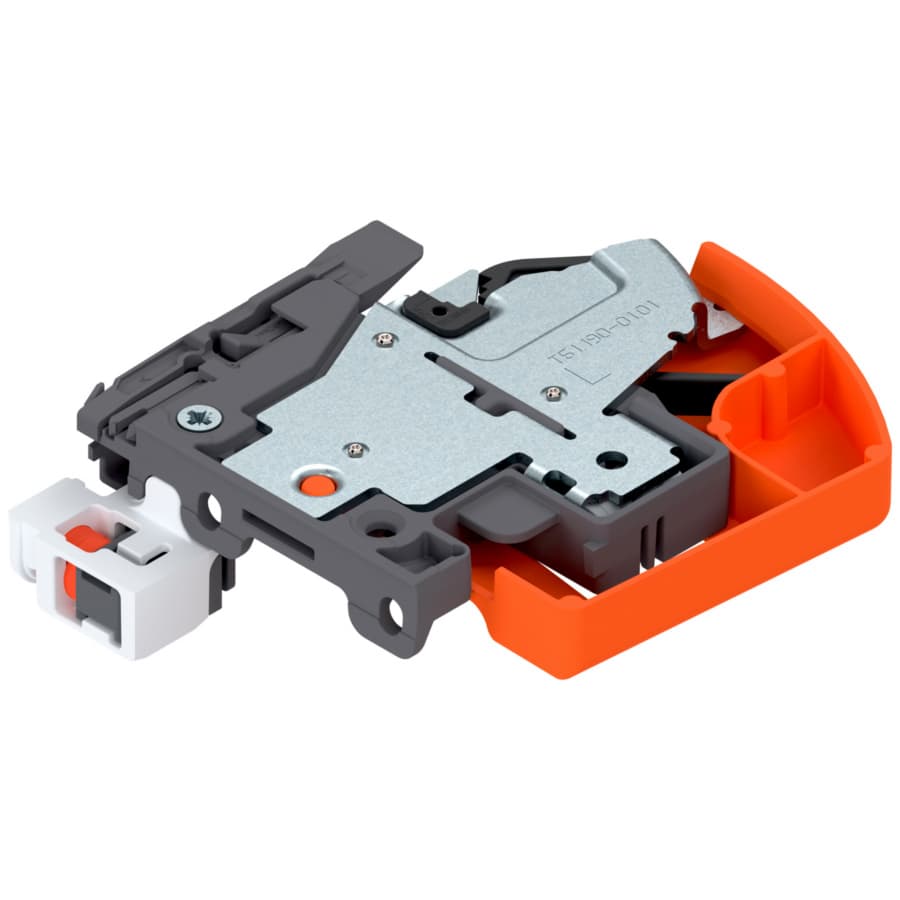

Tandem 563/569 Depth Adjustable Locking Device with Side Adjustment
LEFT SIDE ONLY. RIGHT ALSO REQUIRED
Features:
• Captive right device and self-aligning left device
• Self-adjusting drawer length tolerance
• Steel base with synthetic, spring-loaded release levers
• Minimum inside drawer width 170 (6-11/16")
• Height adjustment +3 (1/8")
• Side-to-side adjustment ±1.5 (1/16")
• Depth adjustment +2.5 (3/32"), preset at 0
• Minimum sub-front thickness 13 (1/2")
• Designed for 13 (1/2") drawer bottom recess
• Integrated 3 (1/8") distance bumper for inset or overlay SERVO-DRIVE applications

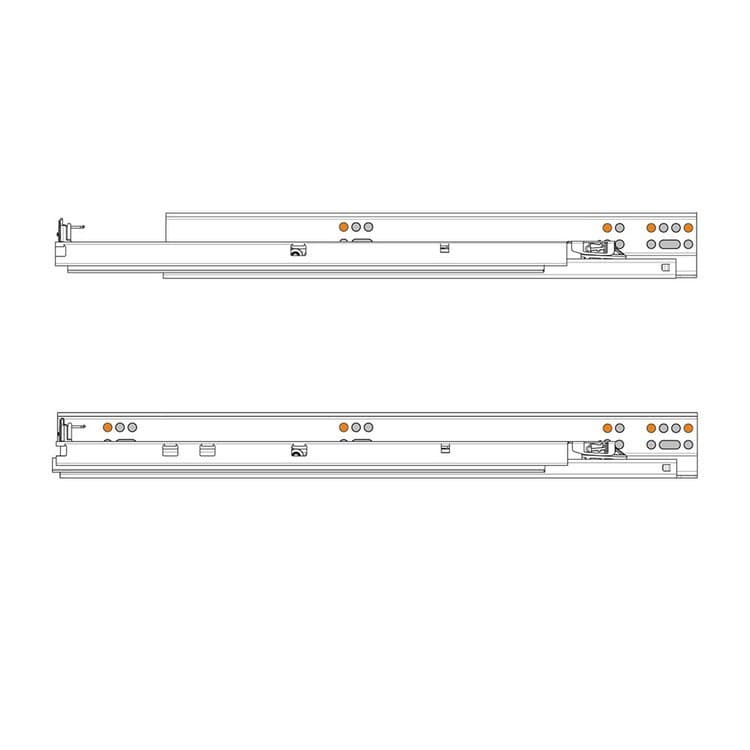

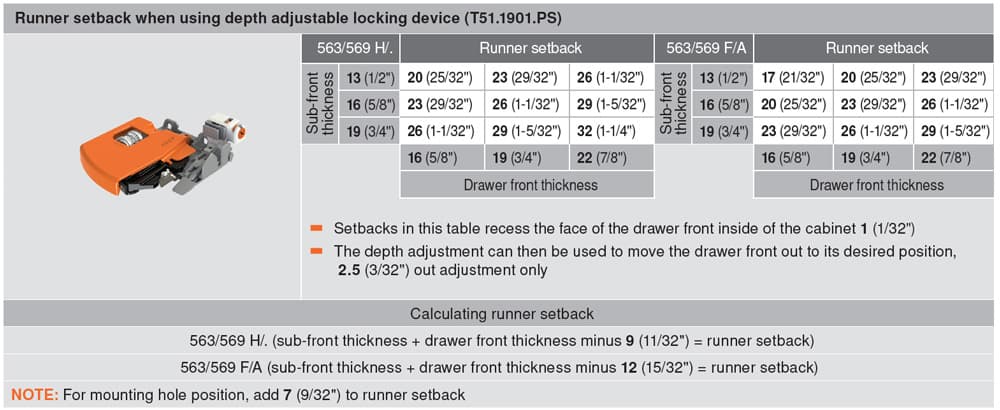

See diagram for slide setback for inset drawers
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 100 |
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Tandem 563/569 |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Left |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
