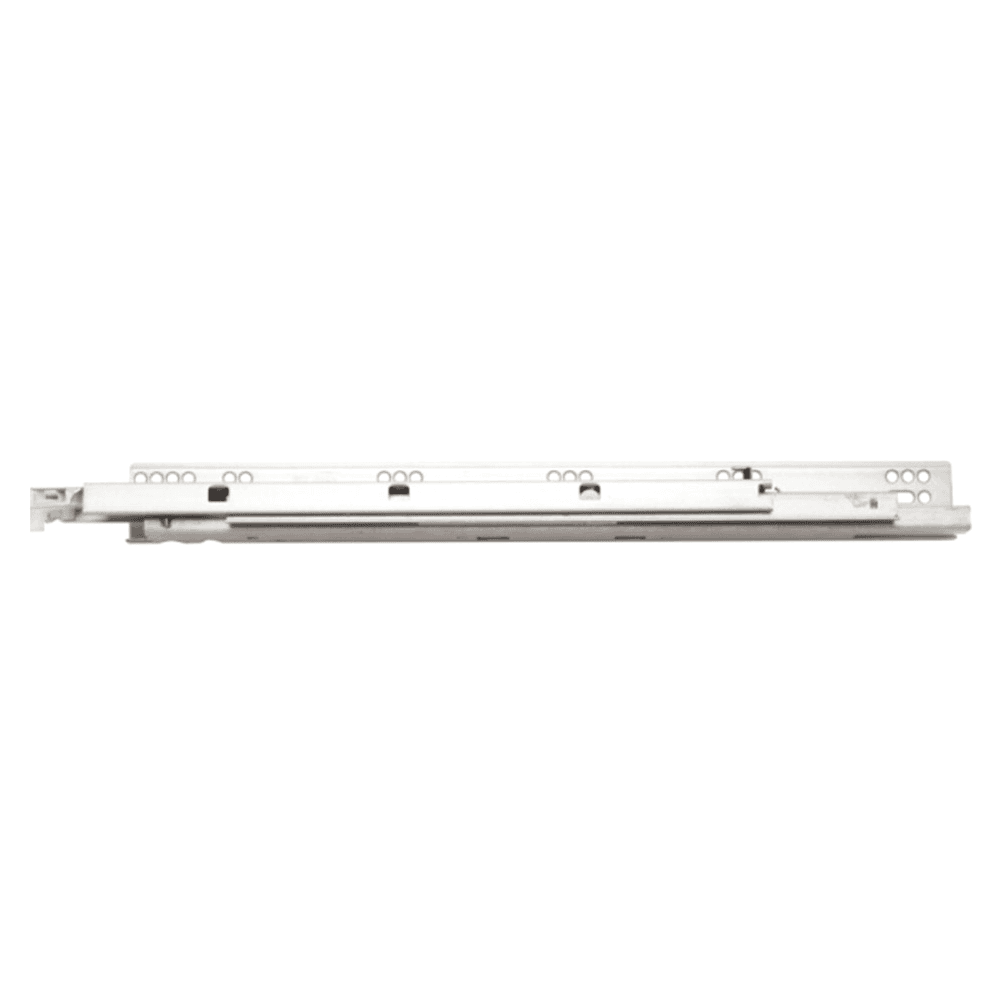

18" GS2070 Undermount Drawer Slide for 5/8" Material, 75lb Capacity, Full Extension, Soft-Closing
Item # KVGS2070-18B
•Mfr # KVGS-2070B 18
$17.29
/Pair
6 items
$16.04/Pair
48 items
$15.70/Pair
336 items
$15.48/Pair
In Stock
8 in stock at Brea, CA
Min Order: 1
Qty mult. by: 1
Product Details
GS2070 Standard Duty Undermount Slide for Drawer Thickness up to 5/8"
75 lb. class full extension drawer slide delivers concealed undermount function with smooth, quiet soft- close operation. A 2D release lever (sold separately) offers tool-free fine-tuning of your drawer installation. Recommended for drawer material thickness of 1/2" to 5/8".
Features:
• Model: GS2070 Full Extension Soft-Close Undermount Drawer Slide
• Drawer Material Thickness: 1/2" to 5/8"
• Module: Soft-Close
• Mounting: Undermount
• Disconnect: Lever Release
• Hole Pattern: 32mm
• Face-Frame Mounting: Yes
• Type: Roller Bearing
• Travel: Full Extension
• Finish: Zinc
• Length: 9", 12", 15", 18", 21"
• Height: 1.87" [47.6mm]
• Release Levers: 2070-2D-RL: Up/Down and Side-to-Side Adjustment.
• Action: Telescopic
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
75 lb. class full extension drawer slide delivers concealed undermount function with smooth, quiet soft- close operation. A 2D release lever (sold separately) offers tool-free fine-tuning of your drawer installation. Recommended for drawer material thickness of 1/2" to 5/8".
Features:
• Model: GS2070 Full Extension Soft-Close Undermount Drawer Slide
• Drawer Material Thickness: 1/2" to 5/8"
• Module: Soft-Close
• Mounting: Undermount
• Disconnect: Lever Release
• Hole Pattern: 32mm
• Face-Frame Mounting: Yes
• Type: Roller Bearing
• Travel: Full Extension
• Finish: Zinc
• Length: 9", 12", 15", 18", 21"
• Height: 1.87" [47.6mm]
• Release Levers: 2070-2D-RL: Up/Down and Side-to-Side Adjustment.
• Action: Telescopic
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 6 |
| Length | |
| Finish | Zinc |
| Drawer Length | 18" |
| Closing Type | Soft-Closing |
| Model | GS2070 |
| Load Capacity | 75lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Undermount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 1/2" to 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
