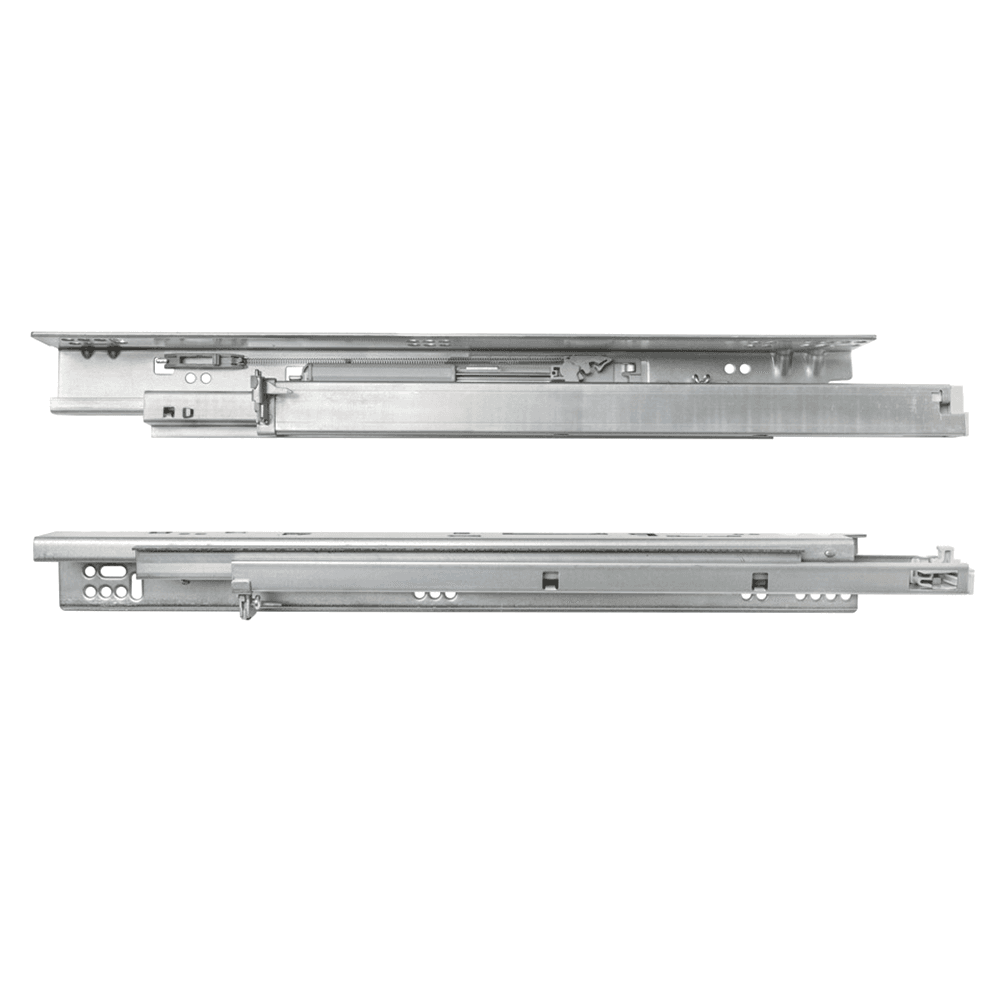

18" MuV+ Undermount Drawer Slide for 5/8" Material, 75lb Capacity Full Extension Soft-Closing
Item # KVMUVP-18B
•Mfr # MUVAB 18
$28.81
/Pair
6 items
$24.33/Pair
48 items
$22.20/Pair
Drawer Length: 18"
Min Order: 1
Qty mult. by: 1
Product Details
MuV+ Standard Duty Undermount Slides for Drawer Thickness up to 5/8"
MuV+ 75lb class full extension drawer slide raises the bar for concealed undermount function with an integrated soft-close module that delivers smoother, quieter-than-ever operation. 1D, 2D and 3D release levers (sold separately) offer tool-free, optimal fine-tuning of drawer installation. Recommended for drawers up to 32" wide and drawer material thickness up to 5/8". KV has redesigned the pivoting latch in their patented soft-close module with a cushioning polymer that significantly increases sound dampening for a close that`s almost beyond quiet - making MuV+ arguably the quietest undermount slide on the market today.
Features:
• For use with drawer material thickness from 1/2" to 5/8"
• 32mm hole pattern matches existing industry standards
• Full extension travel
• Redesigned pivoting latch increases sound dampening for a quieter close
• Updated soft-close module allows pull-force adjustment to maintain smooth operation
• Three release levers allow adjustments in installed drawers
• Bottom mounting holes for flat surface mounting
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
MuV+ 75lb class full extension drawer slide raises the bar for concealed undermount function with an integrated soft-close module that delivers smoother, quieter-than-ever operation. 1D, 2D and 3D release levers (sold separately) offer tool-free, optimal fine-tuning of drawer installation. Recommended for drawers up to 32" wide and drawer material thickness up to 5/8". KV has redesigned the pivoting latch in their patented soft-close module with a cushioning polymer that significantly increases sound dampening for a close that`s almost beyond quiet - making MuV+ arguably the quietest undermount slide on the market today.
Features:
• For use with drawer material thickness from 1/2" to 5/8"
• 32mm hole pattern matches existing industry standards
• Full extension travel
• Redesigned pivoting latch increases sound dampening for a quieter close
• Updated soft-close module allows pull-force adjustment to maintain smooth operation
• Three release levers allow adjustments in installed drawers
• Bottom mounting holes for flat surface mounting
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 6 |
| Length | |
| Finish | Zinc |
| Drawer Length | 18" |
| Closing Type | Soft-Closing |
| Model | MuV+ |
| Load Capacity | 75lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Undermount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 1/2" to 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
