15" Futura SMOVE 7555 Undermount Drawer Slide for 5/8" Material, 100lb Capacity,Full Extension, Soft-Closing
Item # SALA7555/381-CP6
•Mfr # A7555/381 CP6
$20.43
/Pair
6 items
$18.71/Pair
30 items
$18.02/Pair
Drawer Length: 15"
Min Order: 1
Qty mult. by: 1
Product Details

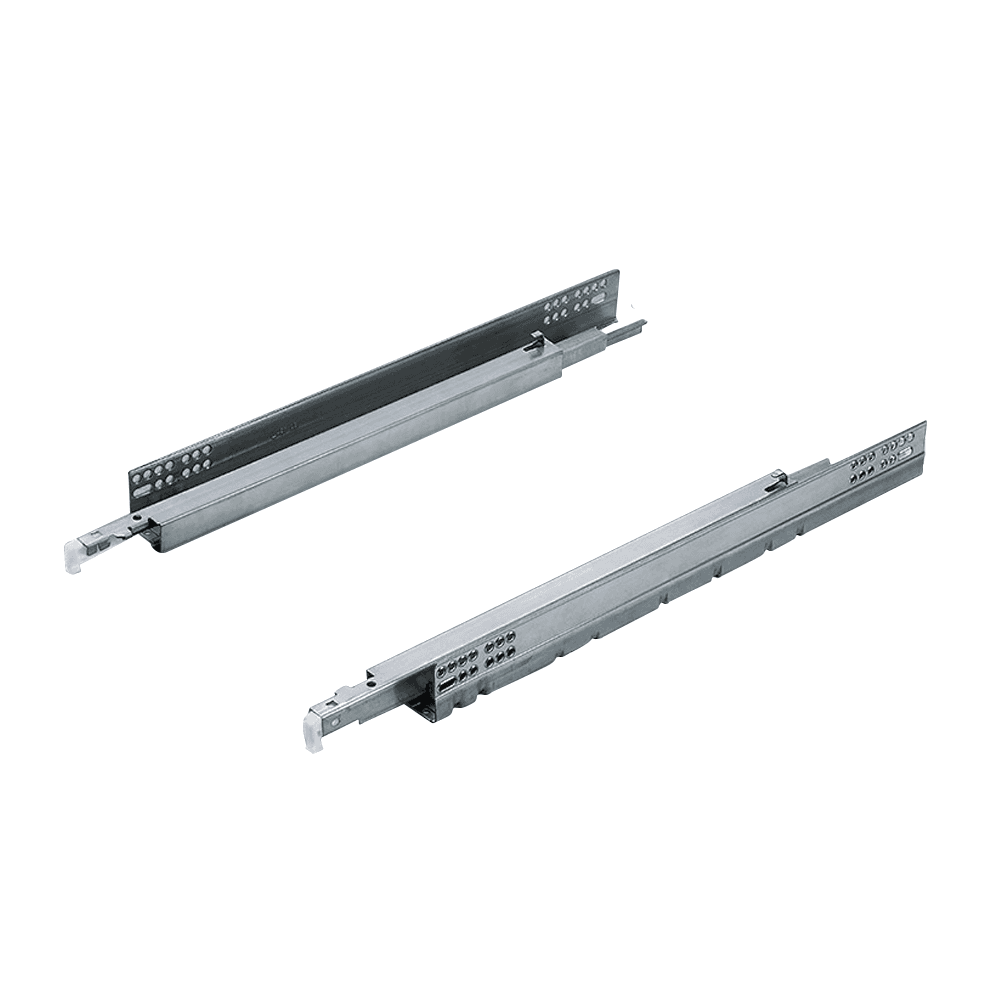

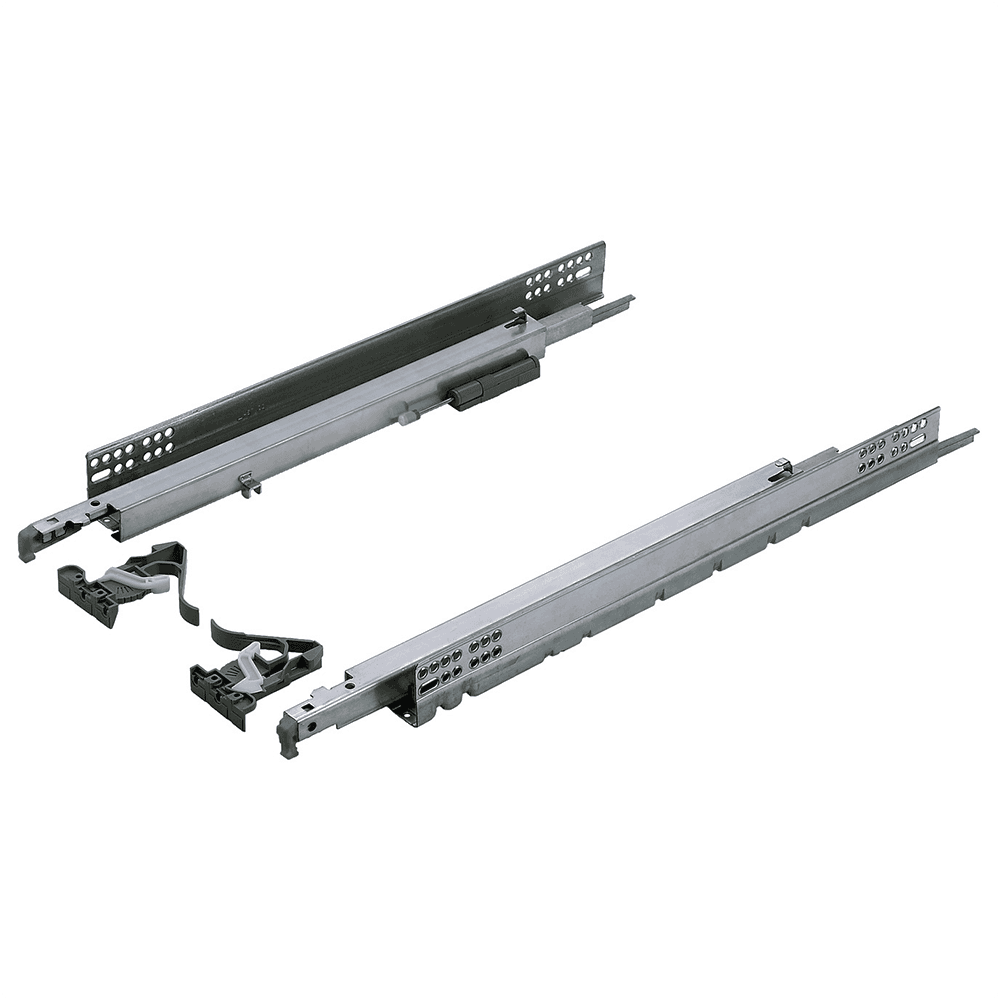

Futura Smove Standard Duty Undermount Slides for Drawer Thickness up to 5/8"
Futura, the concealed runner produced by Salice, is suitable for all drawer opening applications, with full-extension.
With Smove soft close feature fully integrated in the runner system.
Features:
• Load capacity: 100 lbs static/75 lbs dynamic.
• Full Extension
• With Smove soft closing.
• Adjustable clips allow for easy drawer insertion and removal.
• Finish: bright zinc-plated.
• For 16 mm (5/8") max drawer material.
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Futura, the concealed runner produced by Salice, is suitable for all drawer opening applications, with full-extension.
With Smove soft close feature fully integrated in the runner system.
Features:
• Load capacity: 100 lbs static/75 lbs dynamic.
• Full Extension
• With Smove soft closing.
• Adjustable clips allow for easy drawer insertion and removal.
• Finish: bright zinc-plated.
• For 16 mm (5/8") max drawer material.
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Specifications
| Box Quantity | 1 |
| Length | |
| Finish | Bright Zinc-Plated |
| Drawer Length | 15" |
| Closing Type | Soft-Closing |
| Model | Futura |
| Load Capacity | 100lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
