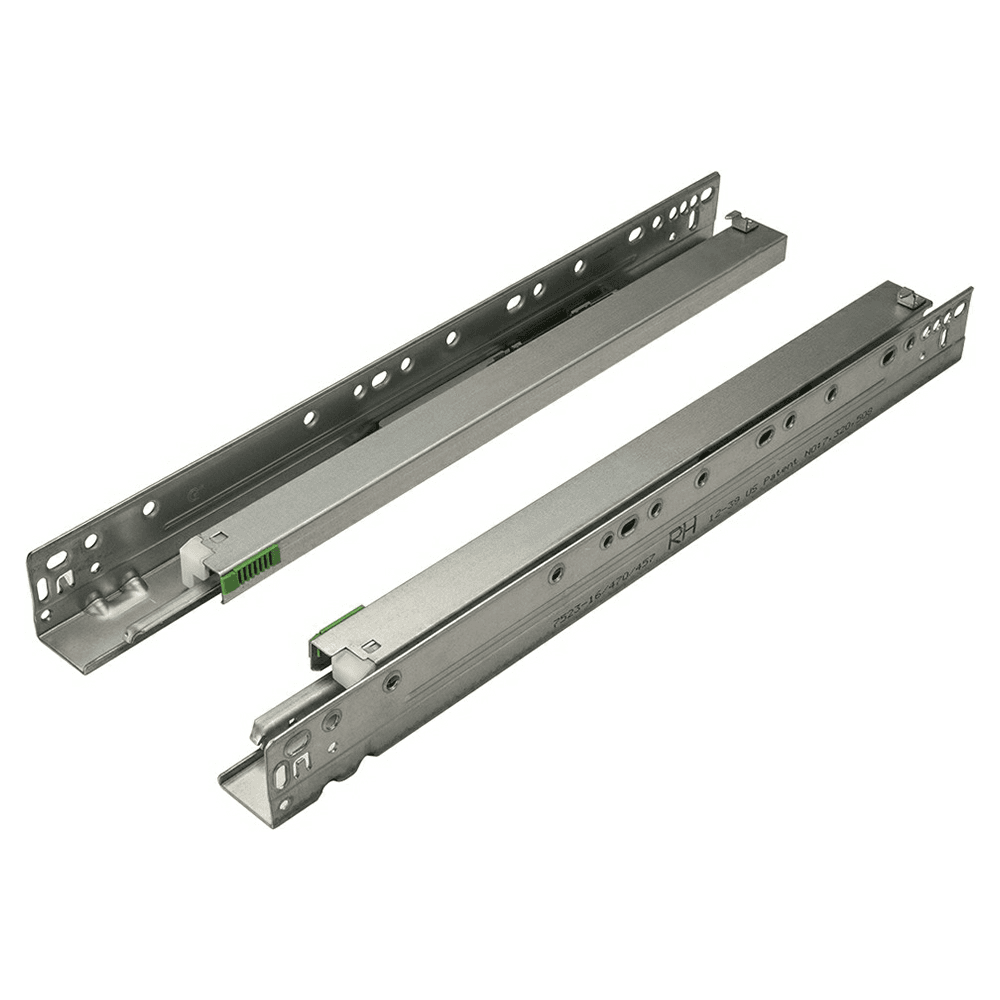

21" Elite Plus 16 Undermount Drawer Slide for 5/8" Material, 100lb Capacity, Full Extension, Soft-Closing
Item # G13365S-21BB
•Mfr # 13365S-12
$18.52
/Pair
Drawer Length: 21"
Min Order: 1
Quantity Multiple by: 1
Product Details
Elite Plus 16 Standard Duty Undermount Drawer Slide for 5/8" Material
Features:
• Zinc plated, roll formed steel components
• Precision, smooth-running synthetic roller carriages
• Liquid damper softly glides drawers to a stop
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Full extension
• Height adjustment +2.5mm (3/32") with suitable front locking device
• Side adjustment ?1.5mm (1/16") with suitable front locking device
• Positive tracked right side, ? 1.5mm (1/16") side tolerance on left side
• Self-closing mechanism engages 30mm (1 1/4") before closed position
• Weight capacity: 75 lb dynamic, 100 lb static
• Meets and exceeds ANSI/BHMA A156.9 Standard, Grade 1
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Features:
• Zinc plated, roll formed steel components
• Precision, smooth-running synthetic roller carriages
• Liquid damper softly glides drawers to a stop
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Full extension
• Height adjustment +2.5mm (3/32") with suitable front locking device
• Side adjustment ?1.5mm (1/16") with suitable front locking device
• Positive tracked right side, ? 1.5mm (1/16") side tolerance on left side
• Self-closing mechanism engages 30mm (1 1/4") before closed position
• Weight capacity: 75 lb dynamic, 100 lb static
• Meets and exceeds ANSI/BHMA A156.9 Standard, Grade 1
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Length | |
| Finish | Zinc |
| Drawer Length | 21" |
| Closing Type | Soft-Closing |
| Model | Elite Plus 16 |
| Load Capacity | 75Ib |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | Face Frame/Frameless |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
