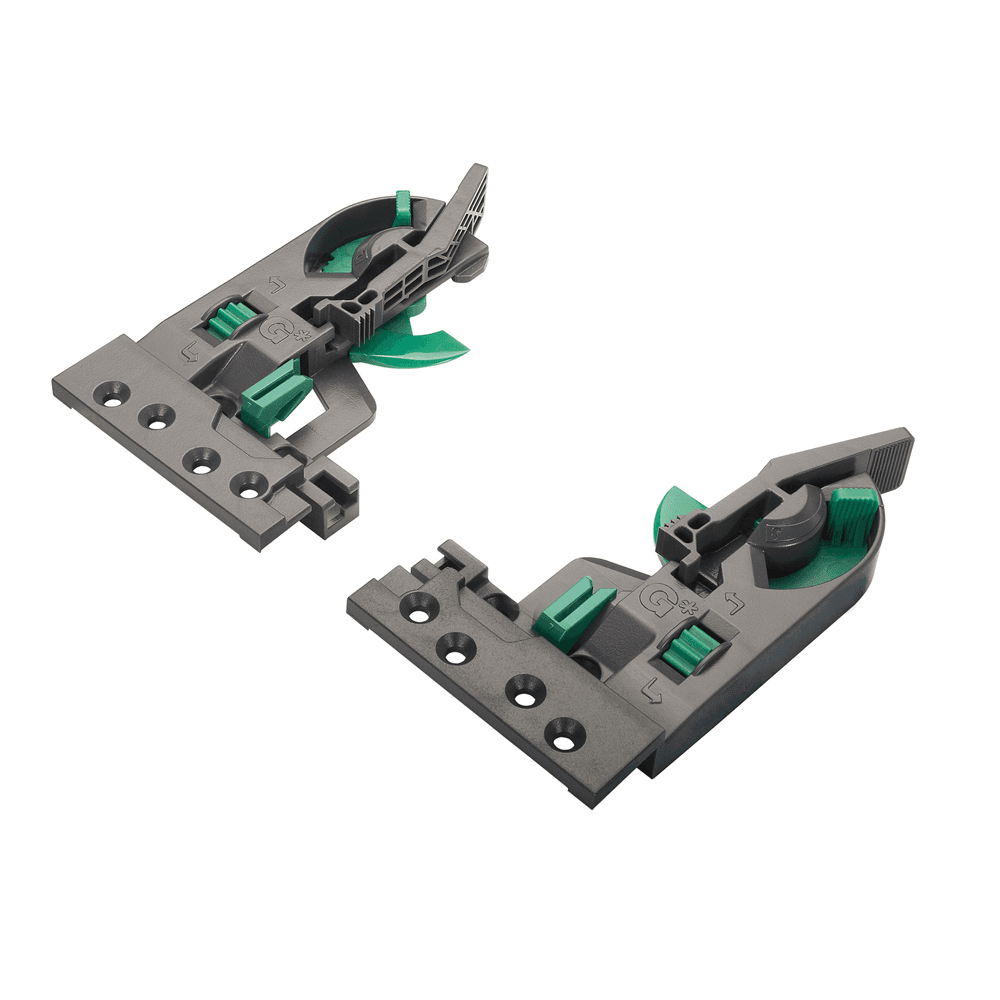

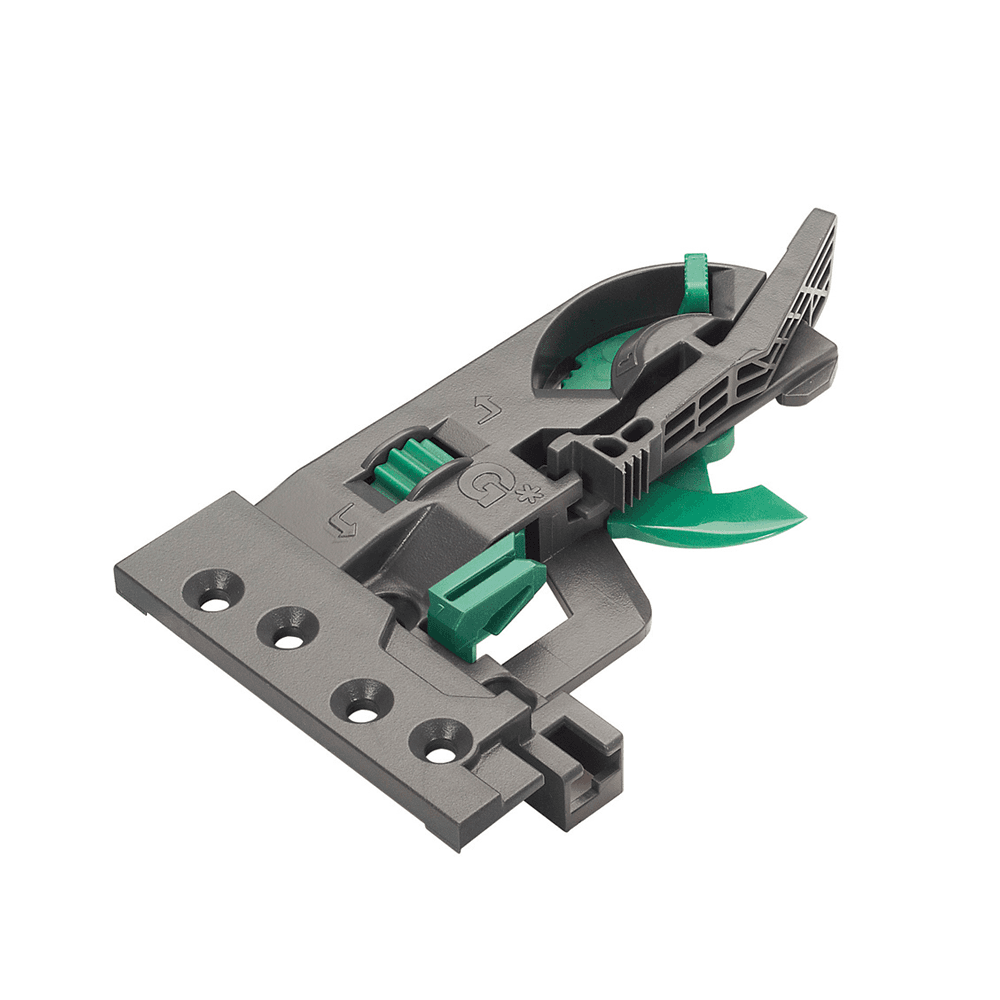

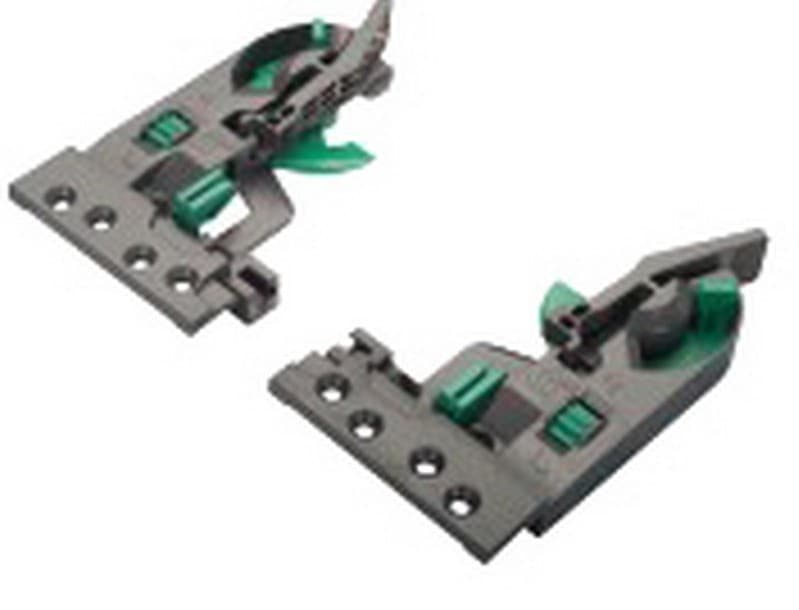

Dynapro 2D Left-Hand Front Locking Device with Flange
5 items
200 items
Left or Right: Left
Product Details
Dynapro 2D Locking Device with Height & Side Adjustment, No Flange
LEFT SIDE ONLY. RIGHT ALSO REQUIRED
Features:
• Provides 2D adjustment for drawers
• For all drawer applications up to 48" in width
• Minimum inside drawer width 150mm (5 7/8")
• Lightweight, high strength material

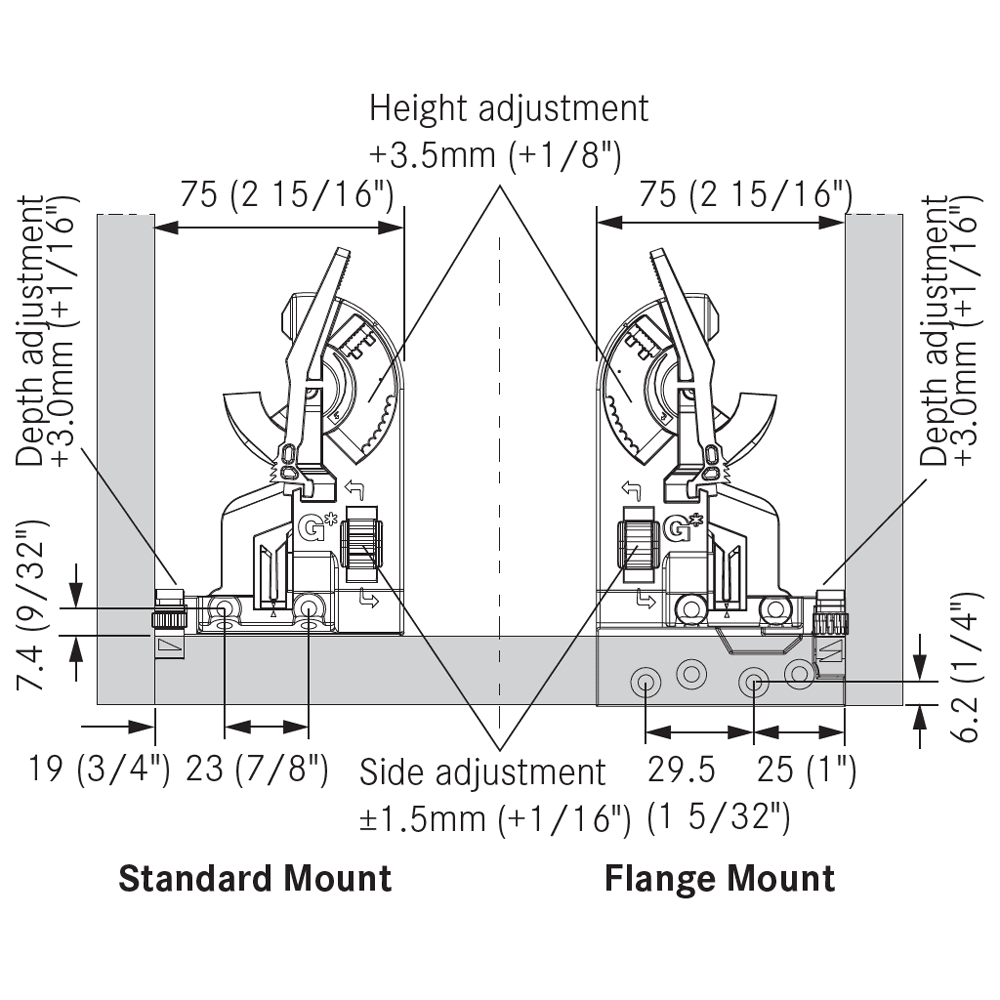

• Height adjustment range: +3.5mm
• Side adjustment range: ±1.5mm
Pre-drilling recommended Ø2.5mm (3/32")
Patent Pending

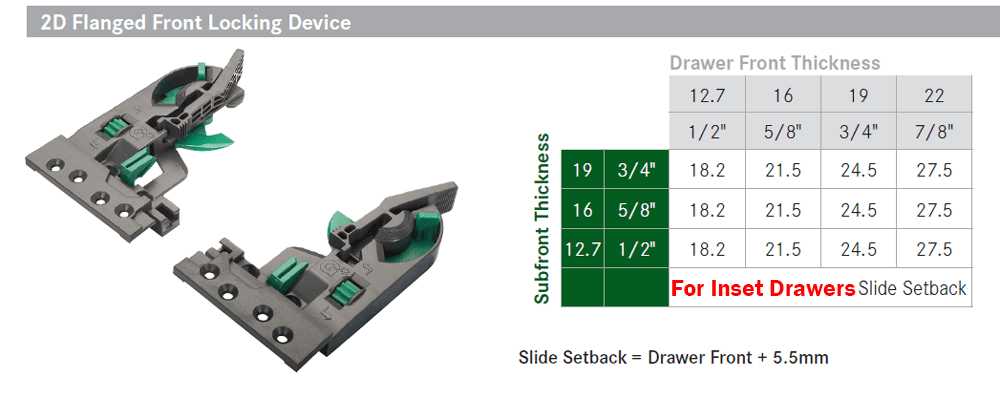

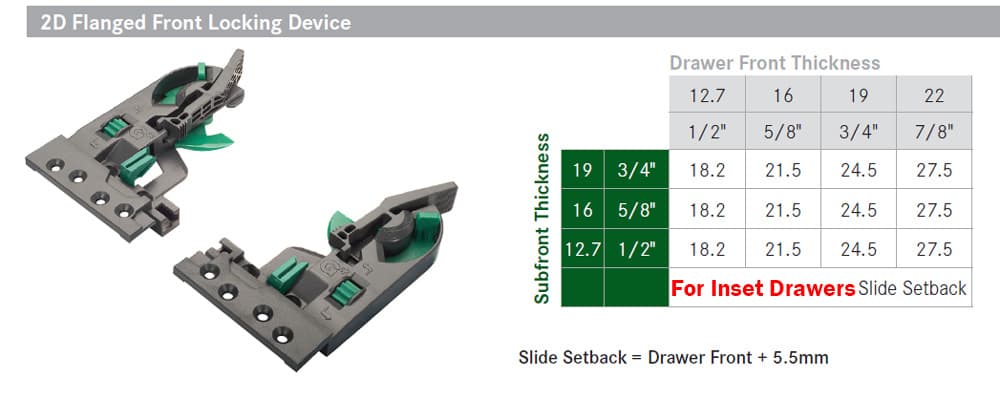

See diagram for slide setback for inset drawers
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 200 |
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Dynapro |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Left |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
