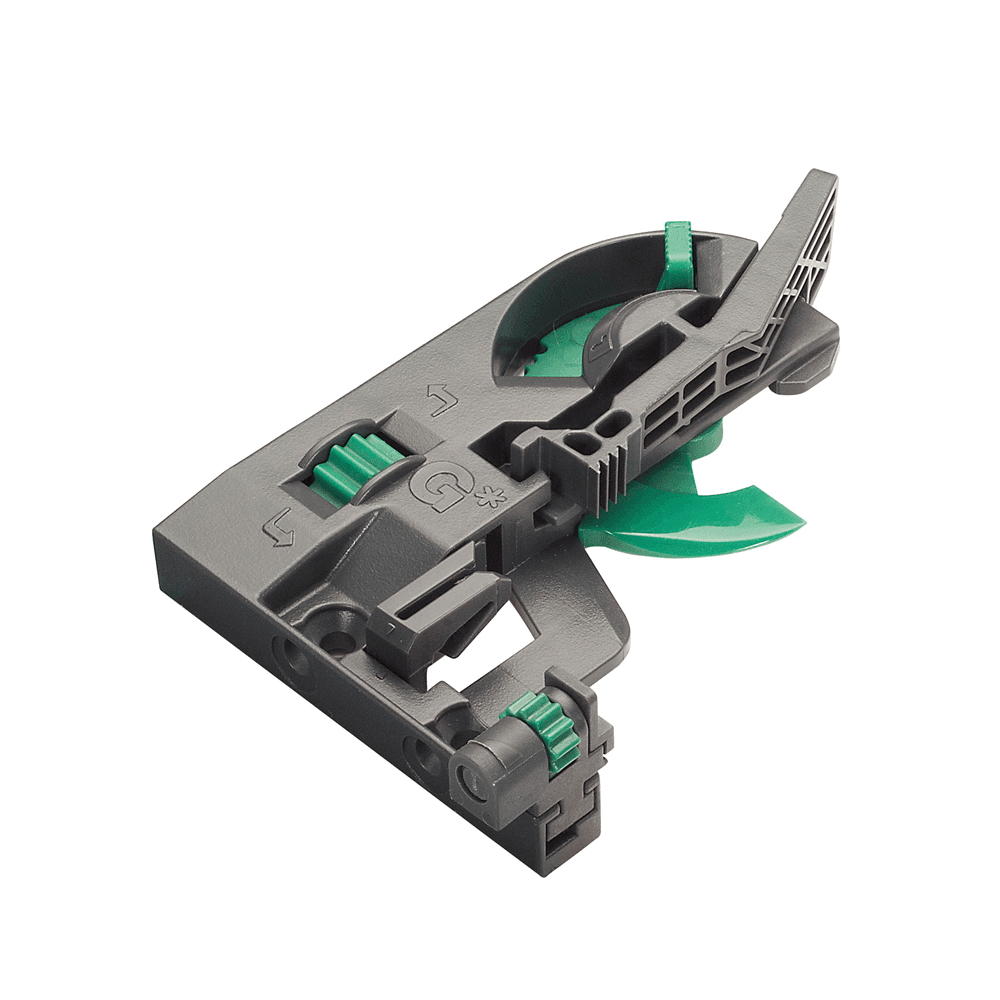

Dynapro 3D Left Front Locking Device No Flange

Dynapro 3D Locking Device with Height, Side & Depth Adjustment, No Flange

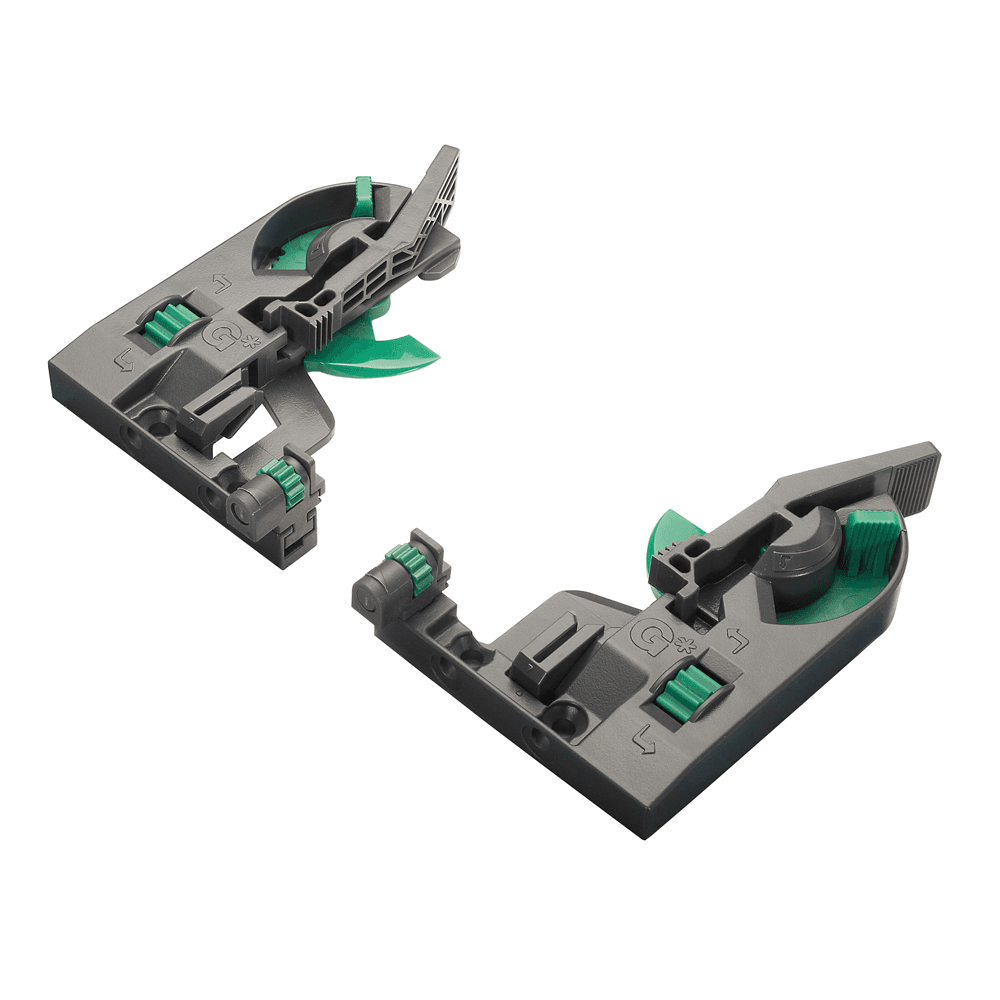

LEFT SIDE ONLY. RIGHT ALSO REQUIRED

Features:
• Provides 2D or 3D adjustment for drawers
• For all drawer applications up to 48" in width
• Minimum inside drawer width 150mm (5 7/8")
• Lightweight, high strength material

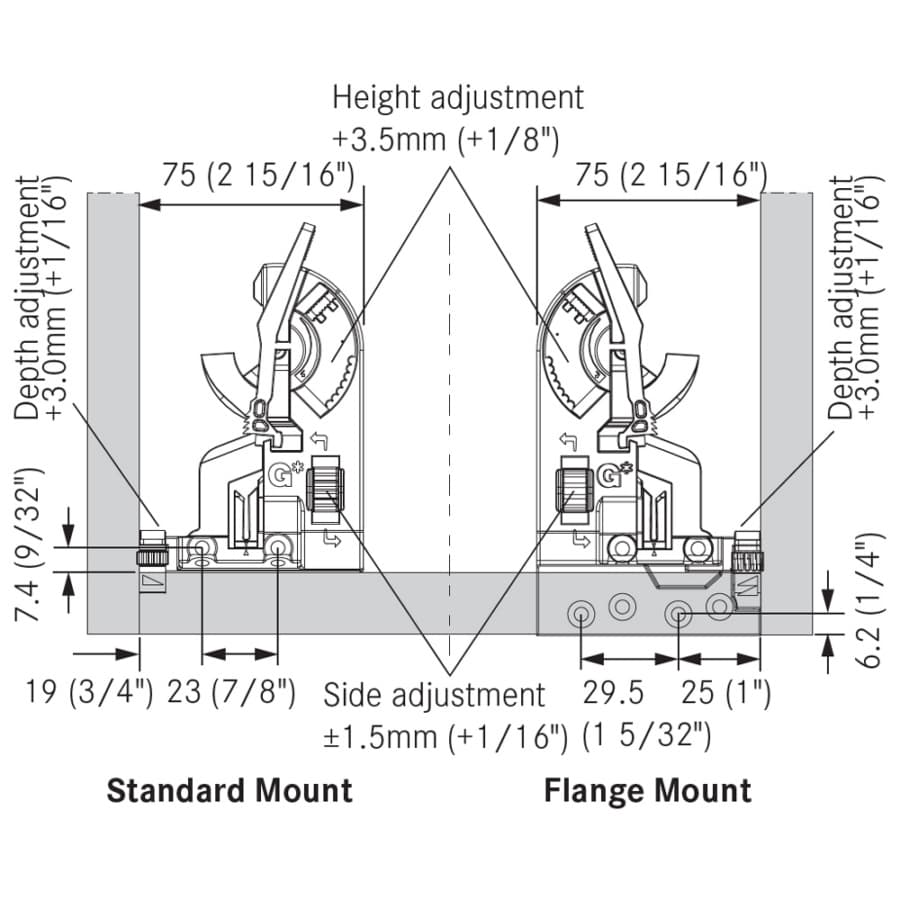

• Height adjustment range: +3.5mm
• Side adjustment range: ±1.5mm
• Depth adjustment range: +3.0mm forward adjustment

Pre-drilling recommended Ø2.5mm (3/32")
Patent Pending

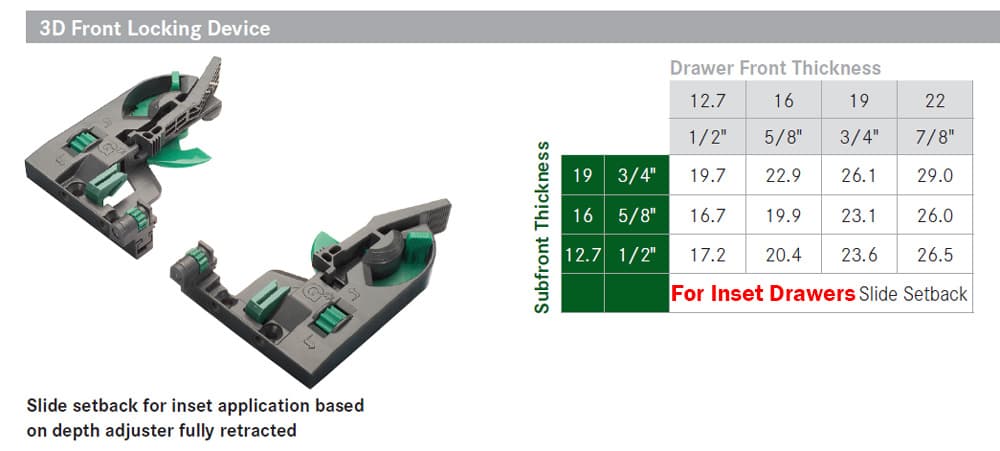

See diagram for slide setback for inset drawers
