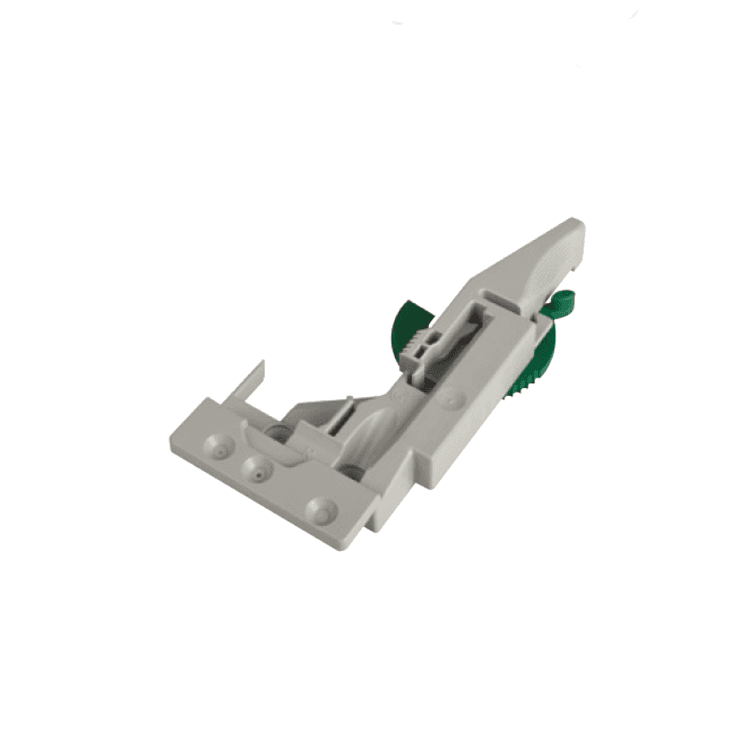

Dynapro Eco Right Front Locking Device with Flange
Item # GDPF134116421233
•Mfr # F134116421233
$1.49
/Each
5 items
$1.26/Each
50 items
$1.23/Each
200 items
$1.14/Each
Left or Right: Right
Min Order: 1
Quantity Multiple by: 1
Product Details

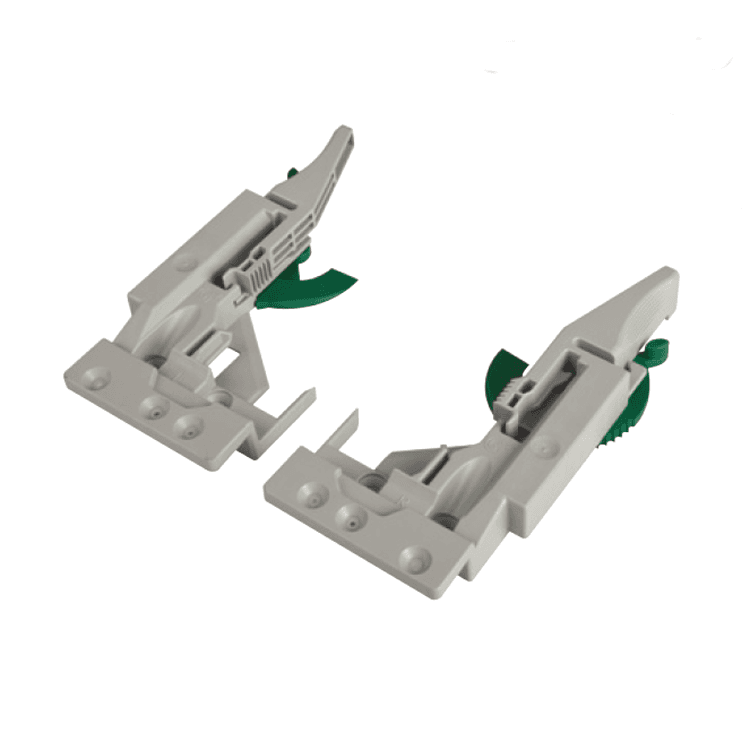

Dynapro Eco Front Locking Device with Height Adjustment
RIGHT SIDE ONLY. LEFT ALSO REQUIRED
Features:
• Provides height adjustment for drawers
• For all drawer applications up to 48" in width
• Minimum inside drawer width 150mm (5 7/8")

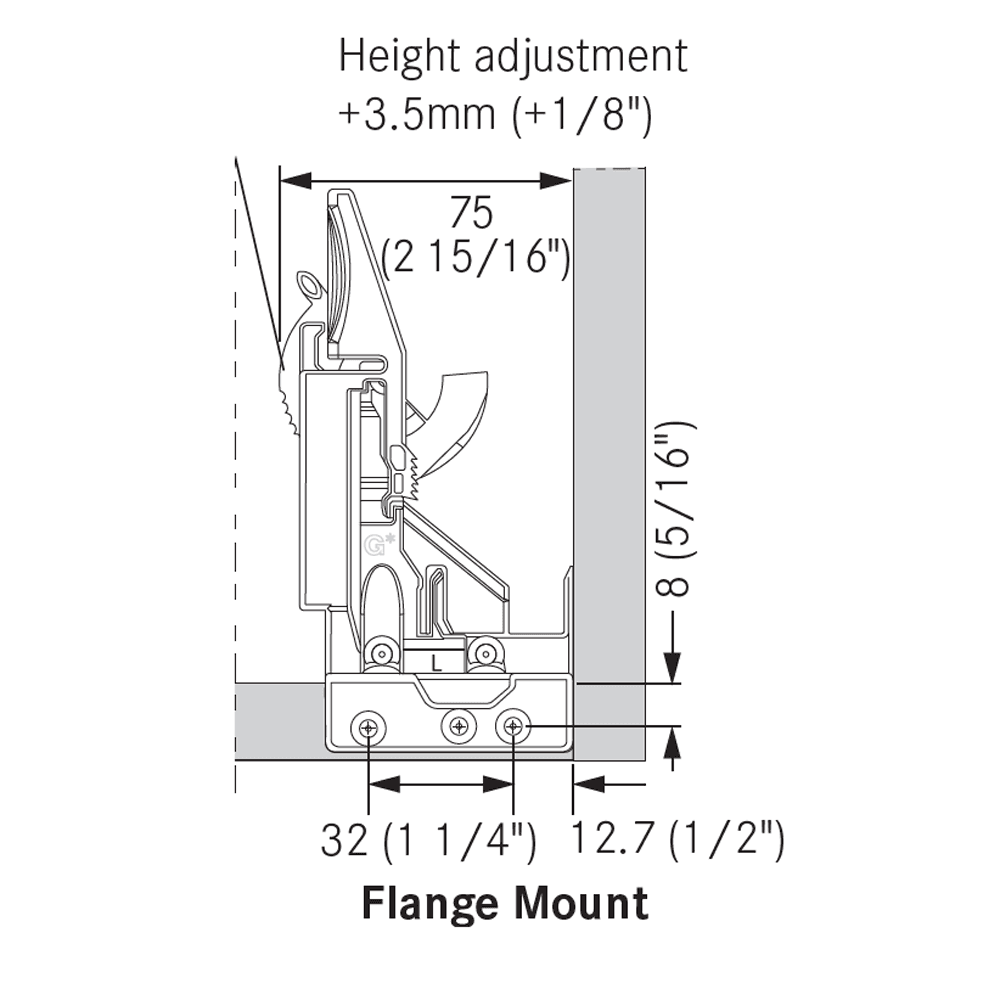

• Height adjustment range: +3.5mm
Pre-drilling recommended Ø2.5mm (3/32")

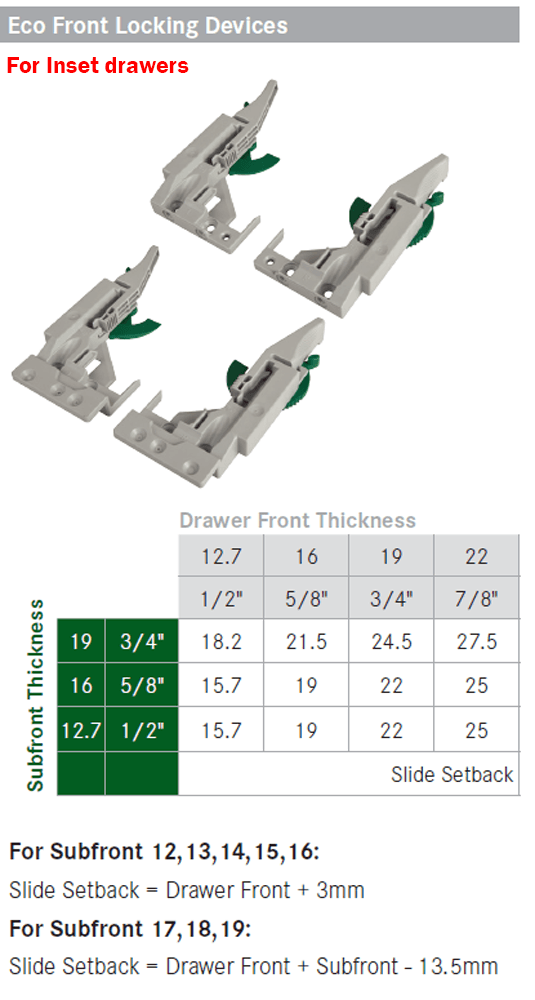

See diagram for slide setback for inset drawers
Downloads
Specifications
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Dynapro |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Right |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
