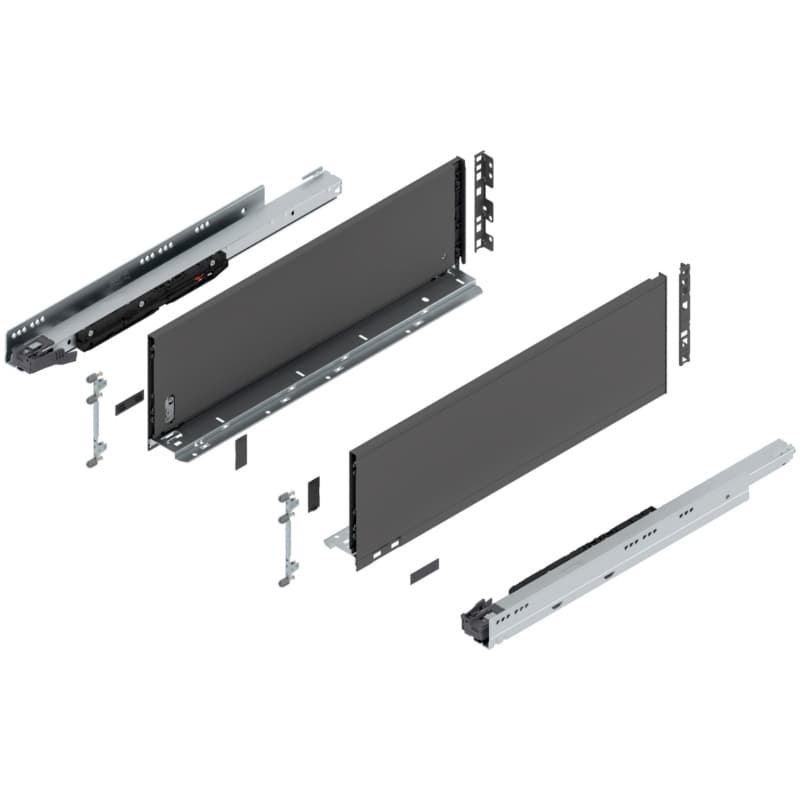

22" Legrabox Drawer System C Height, 7-0/0", 170lb Capacity Full-Extension with BLUMOTION, Orion Gray
Item # B773C55S-22GR
•Mfr # 773C55S0S
$109.84
/Set
10 items
$100.99/Set
45 items
$94.15/Set
Length: 22"
Finish: Orion Gray
Min Order: 1
Quantity Multiple by: 1
Product Details
The LEGRABOX cabinet profile is a system that combines sleek design with superior running characteristics. Even when heavily loaded and fully extended, LEGRABOX opens with ease and has minimal sag. This box system impresses with its slim sides, offering maximum storage space in drawers.
Ordering LEGRABOX is easy with V1 packaging that includes all parts needed to start building a drawer.
Features:
• Full extension drawer system with BLUMOTION
• Smooth running action
• Three-dimensional drawer front adjustment
• Static load capacity of 170 lb
• Drawer profile height 177 (7")
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE

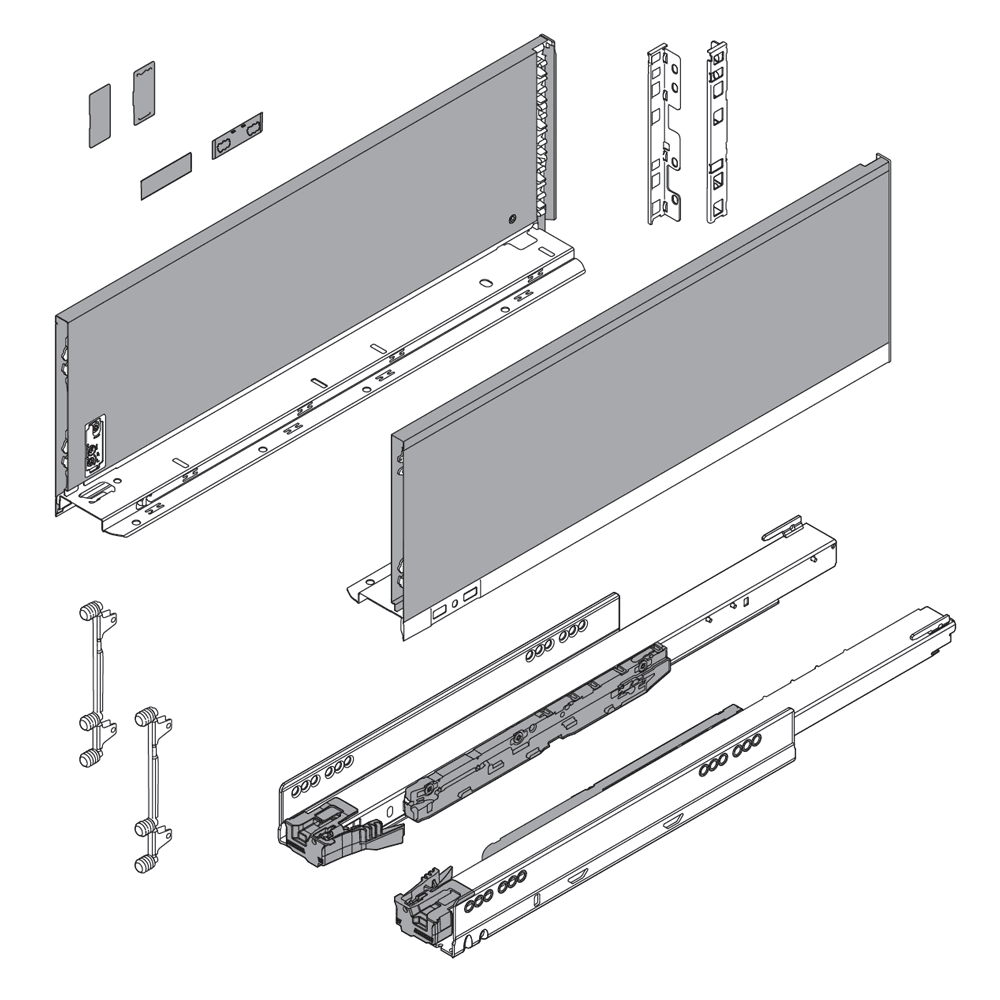

Includes:
• (1 Pair) B770C5502S-GR - 22" C-Height 7" Drawer Profile, Orion Gray
• (1 Pair) B753.5501S - 22" Full Extension Cabinet Profile, 155lb Capacity w/Blumotion

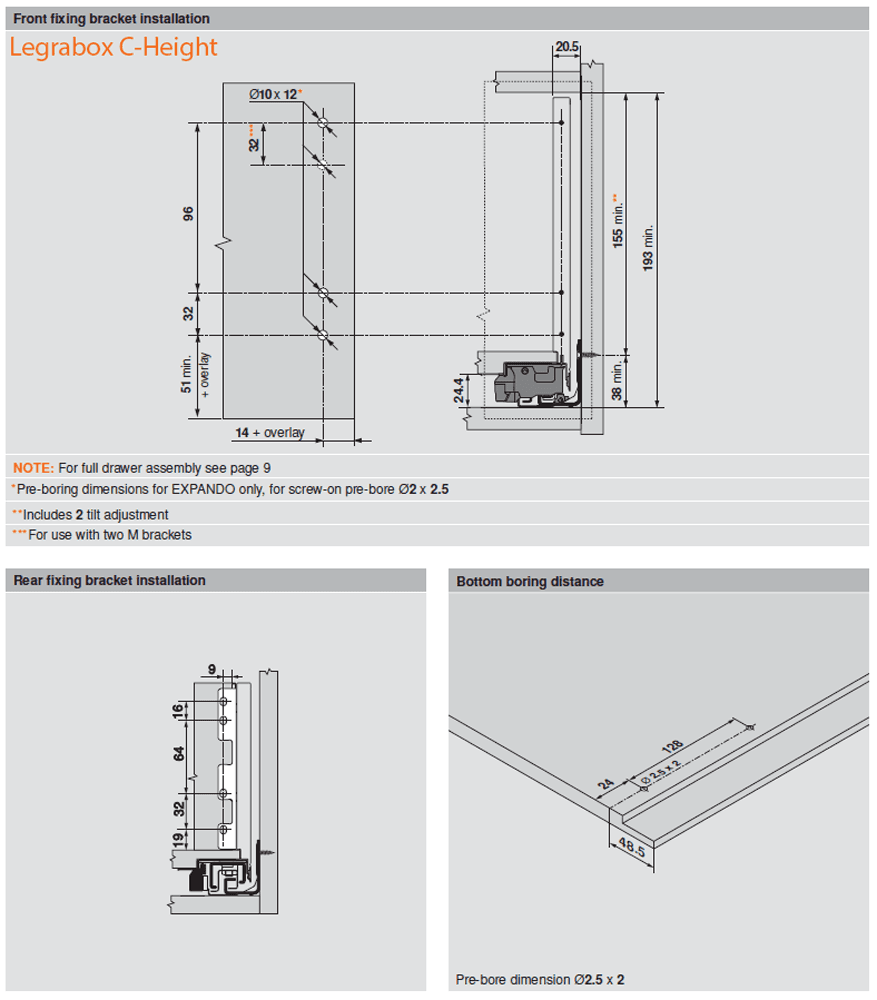

• (2 Each) BZF7C70E2 - Front Fixing Bracket for C-Height 7", Expando
• (1 Pair) BZB7C000S-GR - Rear Bracket for C-Height Drawer Members, Orion Gray
Ordering LEGRABOX is easy with V1 packaging that includes all parts needed to start building a drawer.
Features:
• Full extension drawer system with BLUMOTION
• Smooth running action
• Three-dimensional drawer front adjustment
• Static load capacity of 170 lb
• Drawer profile height 177 (7")
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE
Includes:
• (1 Pair) B770C5502S-GR - 22" C-Height 7" Drawer Profile, Orion Gray
• (1 Pair) B753.5501S - 22" Full Extension Cabinet Profile, 155lb Capacity w/Blumotion
• (2 Each) BZF7C70E2 - Front Fixing Bracket for C-Height 7", Expando
• (1 Pair) BZB7C000S-GR - Rear Bracket for C-Height Drawer Members, Orion Gray
Specifications
| Drawer Length | |
| Length | 22" |
| Finish | Orion Gray |
| Drawer Height | 7-0/0" |
| Product Type | Complete Drawer System |
| Closing Type | Soft-Closing |
| Load Capacity | 170lb |
| Travel | Full Extension |
| Material | Steel |
| Fixing | |
| Left or Right | |
| Model | |
| Width | |
| Mounting Type | |
| Material Thickness | |
| Bracket Type | |
| Gap | |
| Slide Type |
