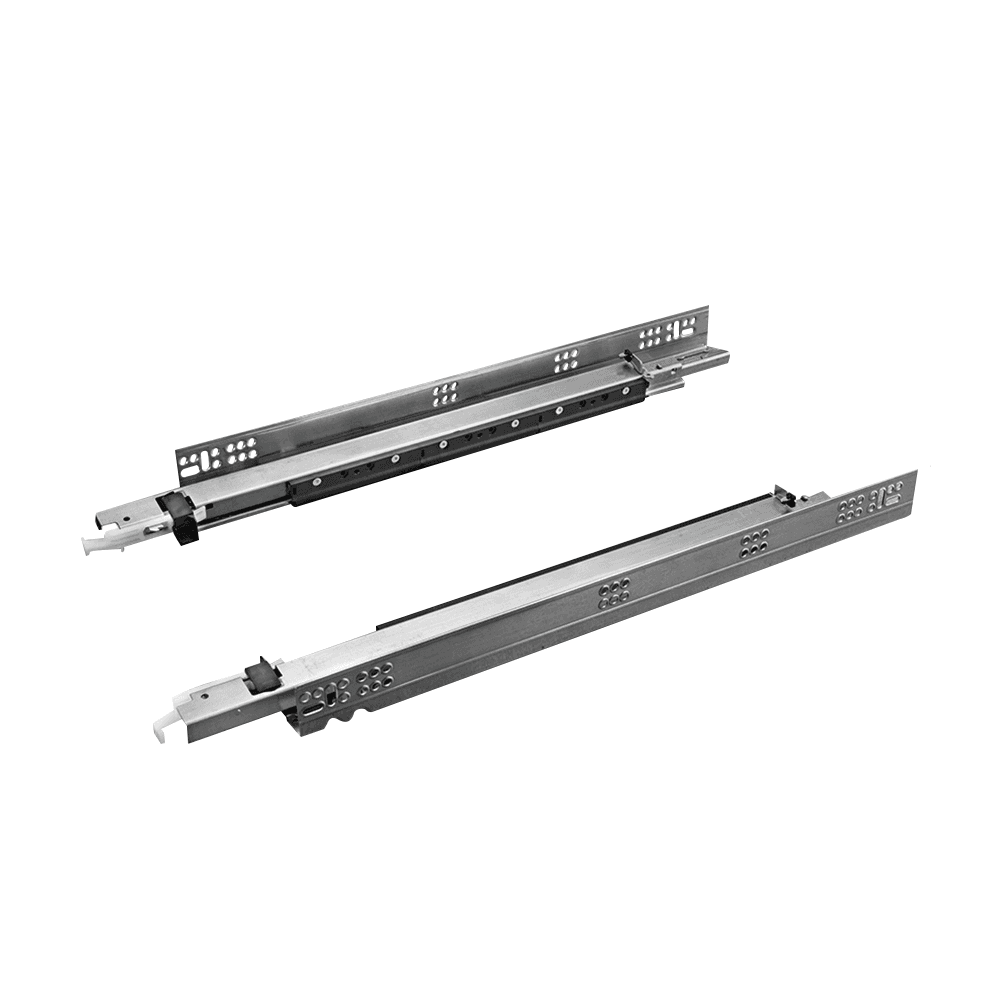

21" F70 PUSH Frameless Undermount Drawer Slide for 5/8" Material, 170lb Capacity, Full Extension, Push-To-Open
Item # SALF70FLPO-21B
•Mfr # G7U6P533CXF6
$37.77
/Pair
6 items
$34.44/Pair
Drawer Length: 21"
Min Order: 1
Qty mult. by: 1
Product Details
F70 PUSH Frameless Heavy-Duty Undermount Drawer Slide for 5/8" Material
Features:
• Full extension slide for 1/2" (12 mm) to 5/8" (16 mm) drawer thickness
• 170 lbs static load capacity
• Elongated holes for depth and height adjustment
• Adjustable clips allow for easy drawer insertion/removal; special clip for narrow drawers
• Integrated tool free height adjustments + 2.5 mm
• Tool free depth adjustments +/- 3 mm
• Tool free side adjustments +/- 1.5 mm
• Optional tool free tilt adjustment +3 mm
• Can be used for face frame application with block out
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Features:
• Full extension slide for 1/2" (12 mm) to 5/8" (16 mm) drawer thickness
• 170 lbs static load capacity
• Elongated holes for depth and height adjustment
• Adjustable clips allow for easy drawer insertion/removal; special clip for narrow drawers
• Integrated tool free height adjustments + 2.5 mm
• Tool free depth adjustments +/- 3 mm
• Tool free side adjustments +/- 1.5 mm
• Optional tool free tilt adjustment +3 mm
• Can be used for face frame application with block out
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Downloads
Specifications
| Box Quantity | 1 |
| Length | |
| Finish | Bright Zinc-Plated |
| Drawer Length | 21" |
| Closing Type | Push-to-Open |
| Model | F70 PUSH |
| Load Capacity | 170lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | Frameless (Short) |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 1/2" to 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
