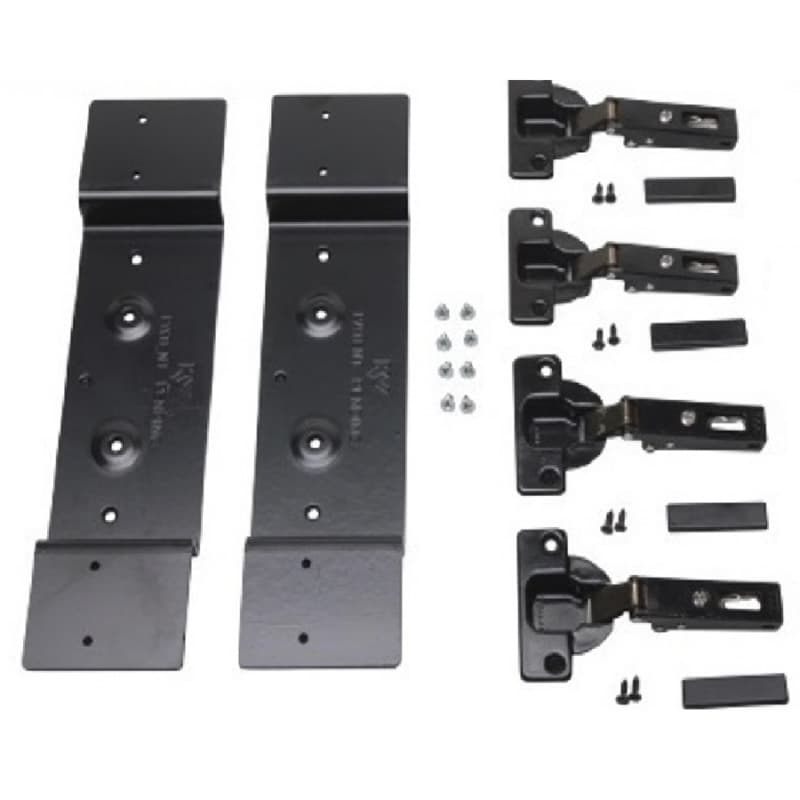

8091 Salice Full Overlay Hinge Kit for Pocket Door Slide with 75lb Capacity, Black
Item # KV8091-3/4S
•Mfr # 8091FULL3/4 S
$62.80
/Package
6 items
$58.08/Package
Min Order: 1
Quantity Multiple by: 1
Product Details
NOTE: Requires the use of a partition wall within the cabinet or opening!
The Knape & Vogt Full Overlay Bracket Kit has been designed toprovide for a full overlay on doors up to 3/4" thick. The specialized mounting bracket is easily attached to the 4x4 Pocket Door system and does not compromise the operating characteristics of the KV 8091 series product. The KV 4X4 Pocket Door system is able to accommodate doors up to 75 pounds and 72" in height.

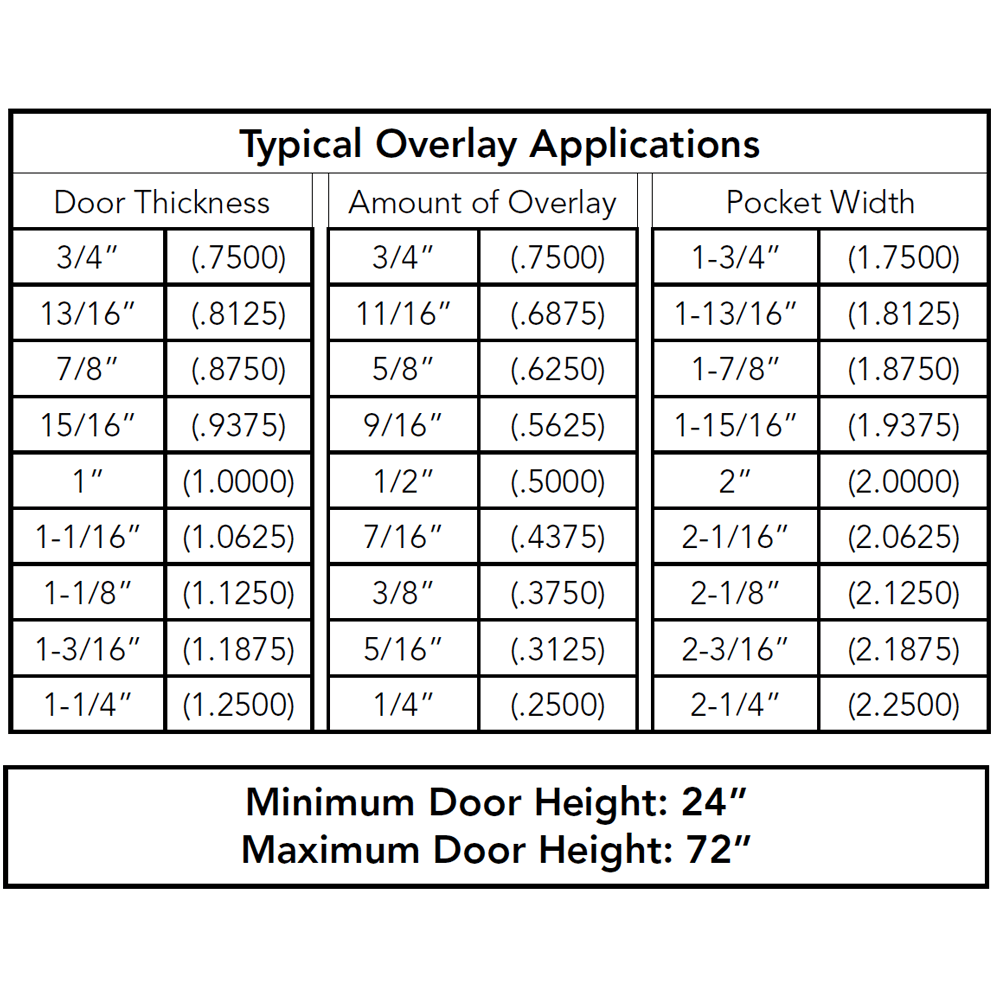

Doors greater than 3/4" thick may be used but the amount of overlay is decreased. The amount of overlay and partition width can be determined using the following formulas:
Amount of Overlay=1.5" minus Door Thickness.
Partition Width=1" plus Door Thickness.

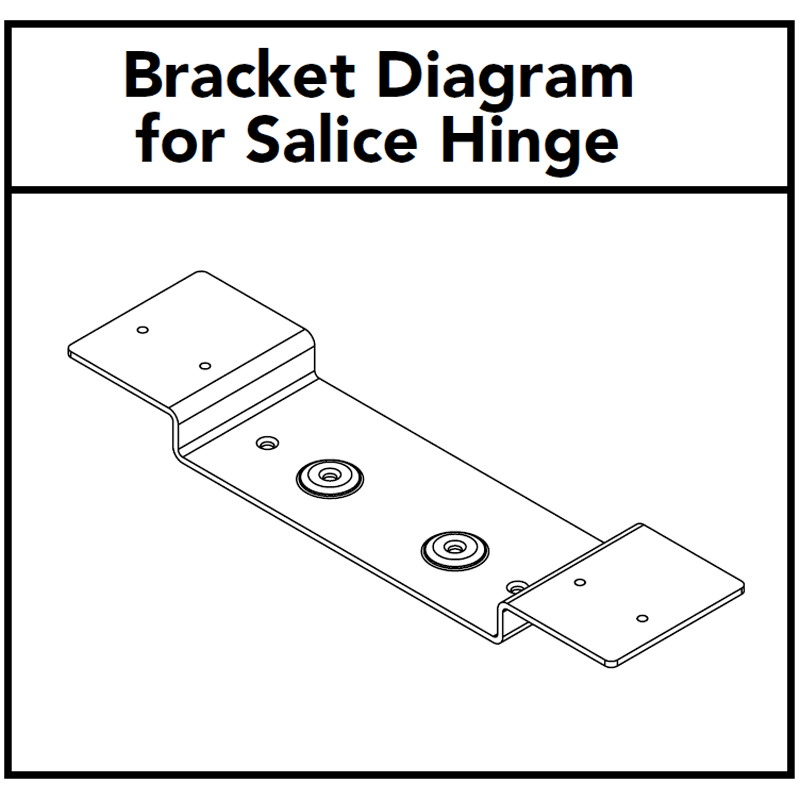

These mounting brackets have been developed for Salice overlay hinges.
As with all Knape & Vogt drawer slides, the 4x4 Pocket Door is designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA, and KCMA.
Features:
• Provides a full door overlay on doors up to 3/4" thick
• Does not compromise key performance features of 4x4 Pocket Doorr system
• Requires 1 pair KV8091 series slides and 1 pinion shaft
• 75lb load rating

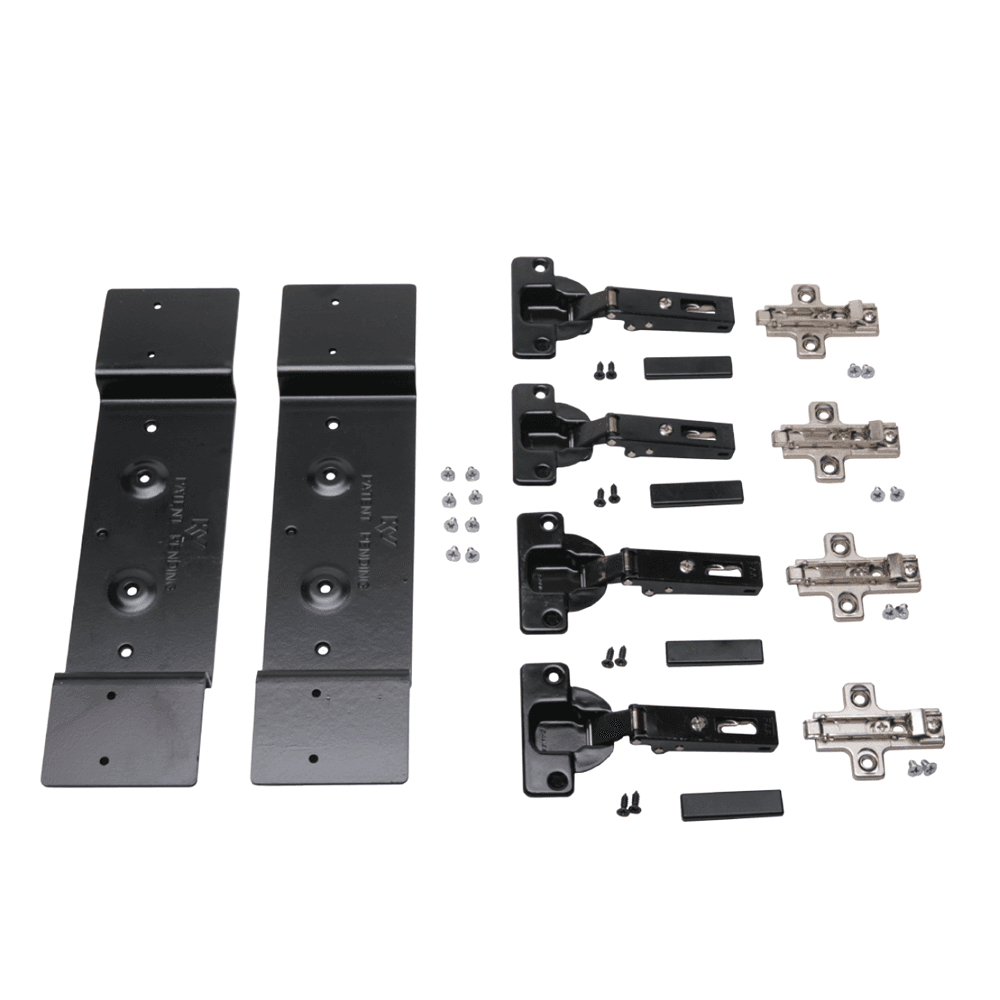

Kit Contents for Salice Hinges
• 2 Brackets
• 4 Protective Door Felt Pads
• Bracket Mounting Hardware
The Knape & Vogt Full Overlay Bracket Kit has been designed toprovide for a full overlay on doors up to 3/4" thick. The specialized mounting bracket is easily attached to the 4x4 Pocket Door system and does not compromise the operating characteristics of the KV 8091 series product. The KV 4X4 Pocket Door system is able to accommodate doors up to 75 pounds and 72" in height.
Doors greater than 3/4" thick may be used but the amount of overlay is decreased. The amount of overlay and partition width can be determined using the following formulas:
Amount of Overlay=1.5" minus Door Thickness.
Partition Width=1" plus Door Thickness.
These mounting brackets have been developed for Salice overlay hinges.
As with all Knape & Vogt drawer slides, the 4x4 Pocket Door is designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA, and KCMA.
Features:
• Provides a full door overlay on doors up to 3/4" thick
• Does not compromise key performance features of 4x4 Pocket Doorr system
• Requires 1 pair KV8091 series slides and 1 pinion shaft
• 75lb load rating
Kit Contents for Salice Hinges
• 2 Brackets
• 4 Protective Door Felt Pads
• Bracket Mounting Hardware
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Length | |
| Finish | Black |
| Left or Right | |
| Closing Type | |
| Load Capacity | 75lb |
| Travel | |
| Minimum Clearance | |
| Cup Diameter | |
| Door Thickness | |
| Cabinet Type | |
| Mounting Type | |
| Material | Steel |
| Slide Type | |
| Product Type | Full Overlay Hinge Kit |
