ZBox 6023 Drawer Slide with 100lb Capacity, Full Extension, 3-3/8", White Epoxy, 16

Item # GZBOX6023-16WH
Mfr # 30135-03

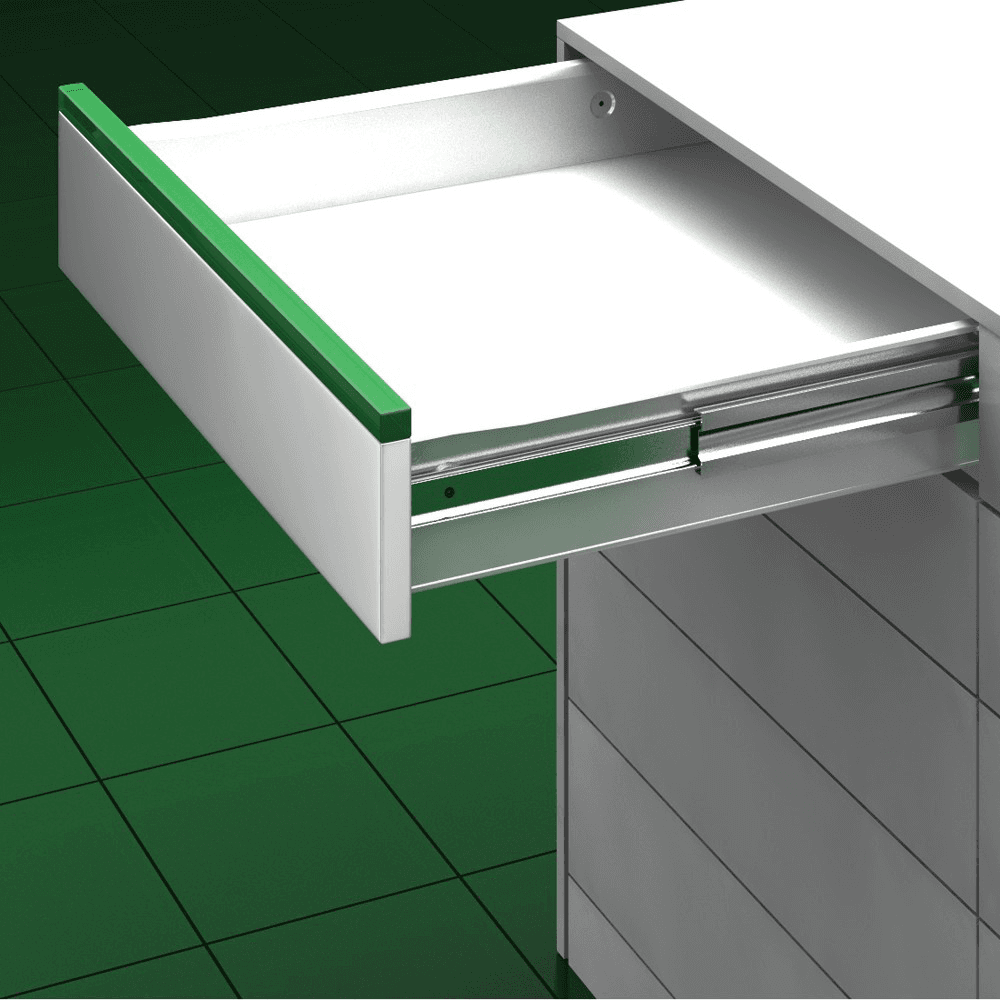

Grass ZBox 6023 Drawer Slide - Installation Diagram

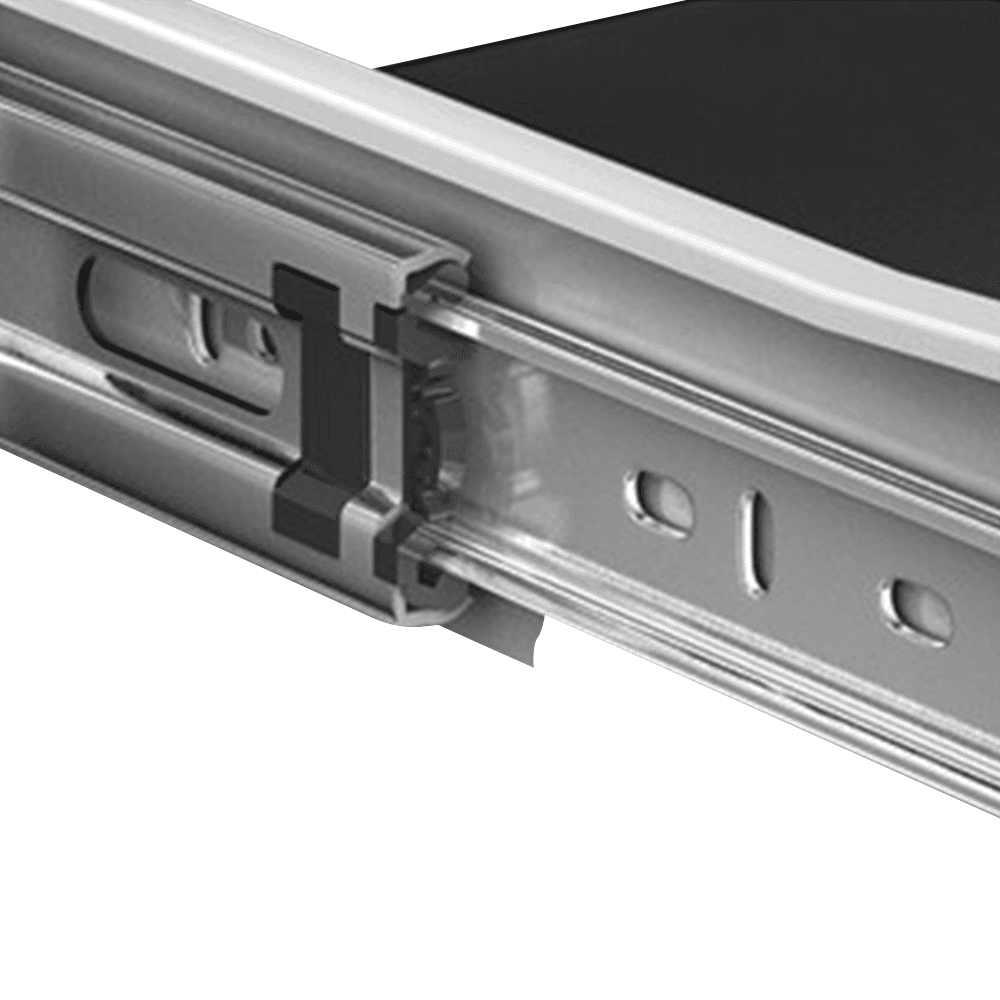

Grass ZBox 6023 Drawer Slide - Side View

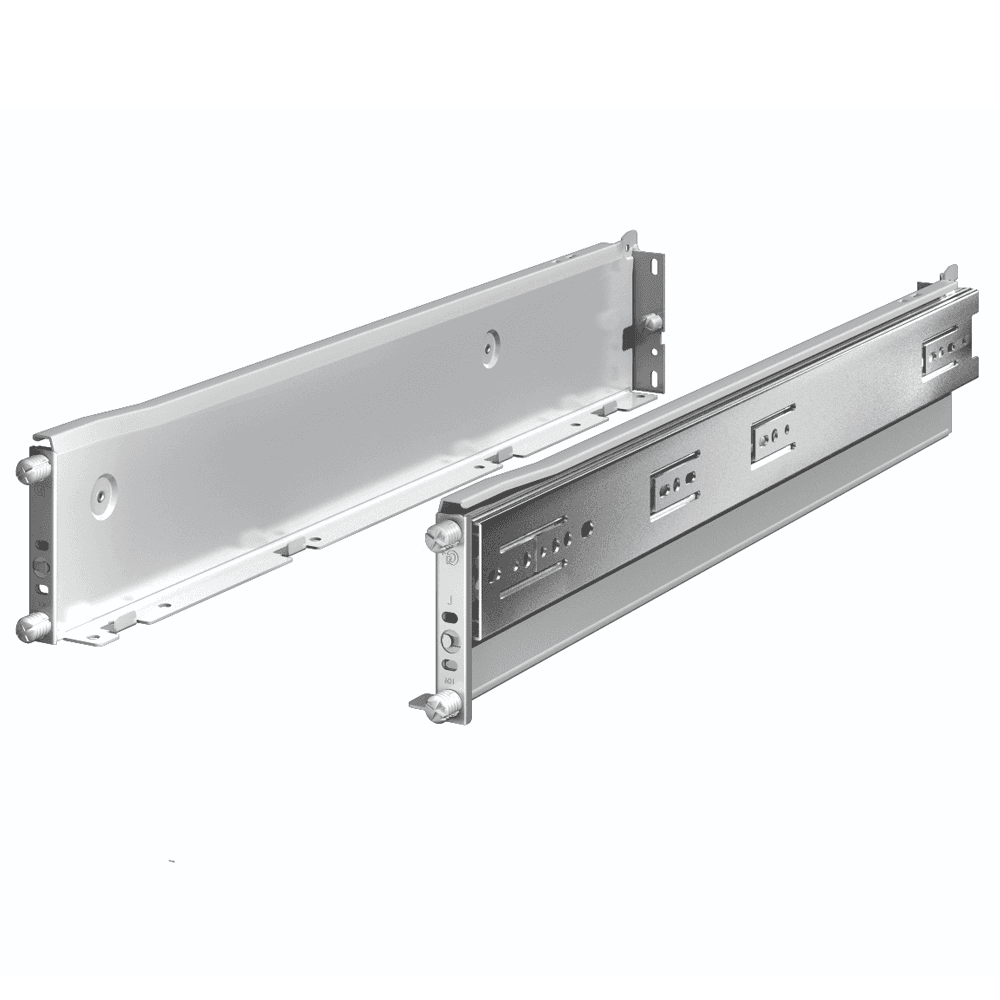

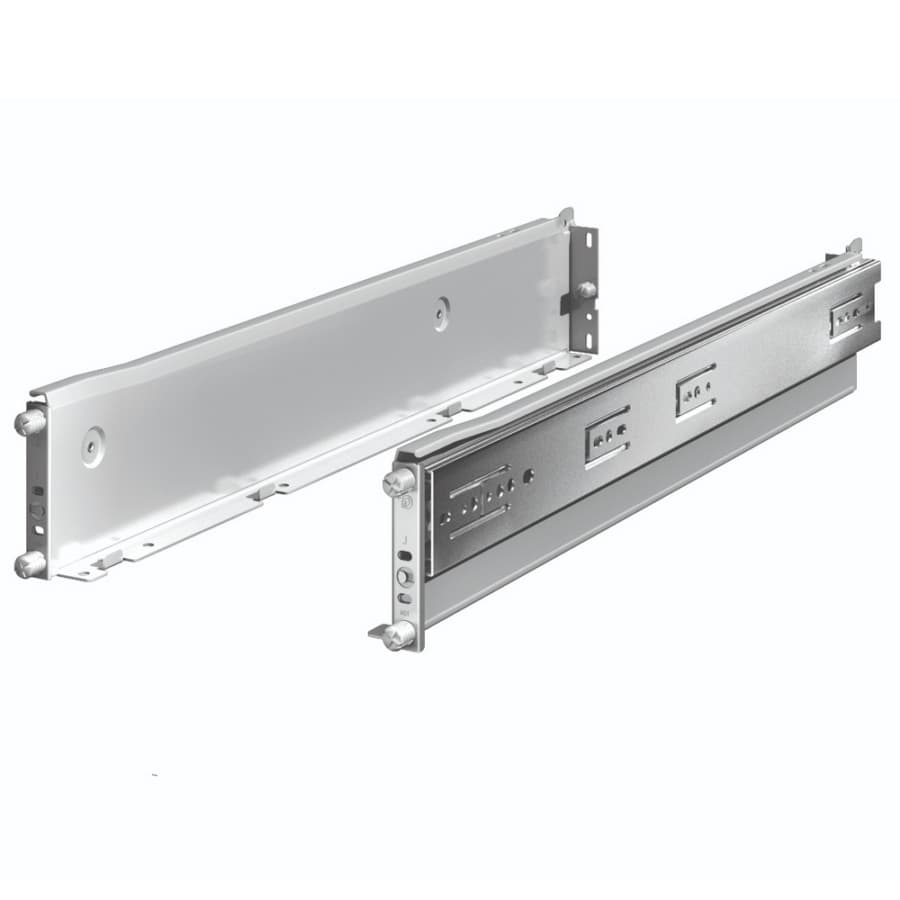

Grass ZBox 6023 Drawer Slide with 100lb Capacity, Full Extension, 3-3/8", White Epoxy, 16 - Front View
$26.49
/Pair
5 items
$22.58/Pair
50 items
$21.23/Pair

Length: 16"

Product Details

The combined strength of the ball bearing slides with the Zargen's steel construction offers a drawer solution that saves time and money with its quick drawer box construction and simple installation. Three heights and five lengths provide a wide range of possibilities for your cabinet construction.

Features:
• Integrated side mount ball bearing drawer slide and metal drawer side
• Ball bearing telescopic full extension
• Hold-in detent ensures drawers stay closed
• Easy lever disconnect for removal of drawer box from cabinet member
• Drawer side - white epoxy finish; drawer slide - zinc coated steel
• Frameless or face frame rame application
• Front slotted hole for face frame mounting
• Continuous bearings ensure smooth running performance
• Manufactured from cold rolled steel
• Drawer slide releases for easy installation
• Face frame rear mounting bracket available
• Meets and exceeds ANSI/BHMA 156.9 Grade 1 testing requirements

Specifications

Drawer Length
Length16"
FinishWhite Epoxy
Drawer Height3-3/8"
Product TypeDrawer Slide
Closing TypeDetent
Load Capacity100lb
TravelFull Extension
MaterialSteel
Fixing
Left or Right
Model
Width
Mounting Type
Material Thickness
Bracket Type
Gap
Slide Type
