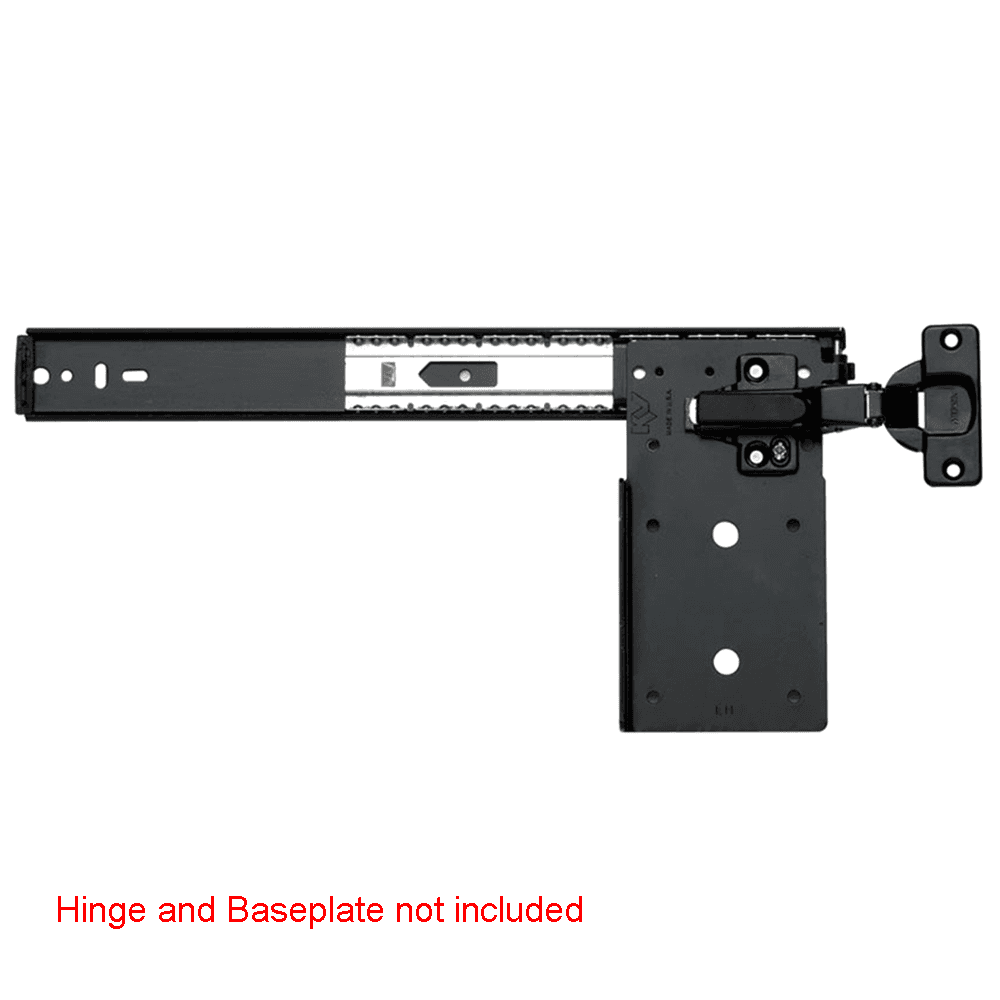

8081 EZ Pivot Door Slide No Hinge or Baseplate, 30lb Capacity, Anochrome, 12
Item # KV8081-12
•Mfr # 8081PEZ 12
$31.83
$34.40
/Pair
You save $2.57
10 items
$31.83/Pair
Length: 12"
Min Order: 10
Qty mult. by: 10
Product Details
Features:
• 3/4 extension
• Mounts vertically or horizontally
• Recommended for 5/8" to 3/4" door and maximum door dimension of 24" x 42"
• Clip-on, self-closing three-way adjustable door hinge with 35mm cup bore diameter
• L-shaped follower-strip bracket for positive attaching and vertical alignment to wood follower-strip
• Cushioned stops and door hold-out feature and adjustable slots for installation ease
• Hinge and baseplate not included
• For a model that includes the hinge and baseplate, see KV8080
• 3/4 extension
• Mounts vertically or horizontally
• Recommended for 5/8" to 3/4" door and maximum door dimension of 24" x 42"
• Clip-on, self-closing three-way adjustable door hinge with 35mm cup bore diameter
• L-shaped follower-strip bracket for positive attaching and vertical alignment to wood follower-strip
• Cushioned stops and door hold-out feature and adjustable slots for installation ease
• Hinge and baseplate not included
• For a model that includes the hinge and baseplate, see KV8080
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 10 |
| Length | 12" |
| Finish | Anochrome |
| Left or Right | |
| Closing Type | Standard Closing |
| Load Capacity | 30lb |
| Travel | 3/4 Extension |
| Minimum Clearance | 1-23/32" |
| Cup Diameter | |
| Door Thickness | |
| Cabinet Type | Frameless |
| Mounting Type | Side-Mount |
| Material | Steel |
| Slide Type | Ball Bearing |
| Product Type | Pivot Door Slide |
