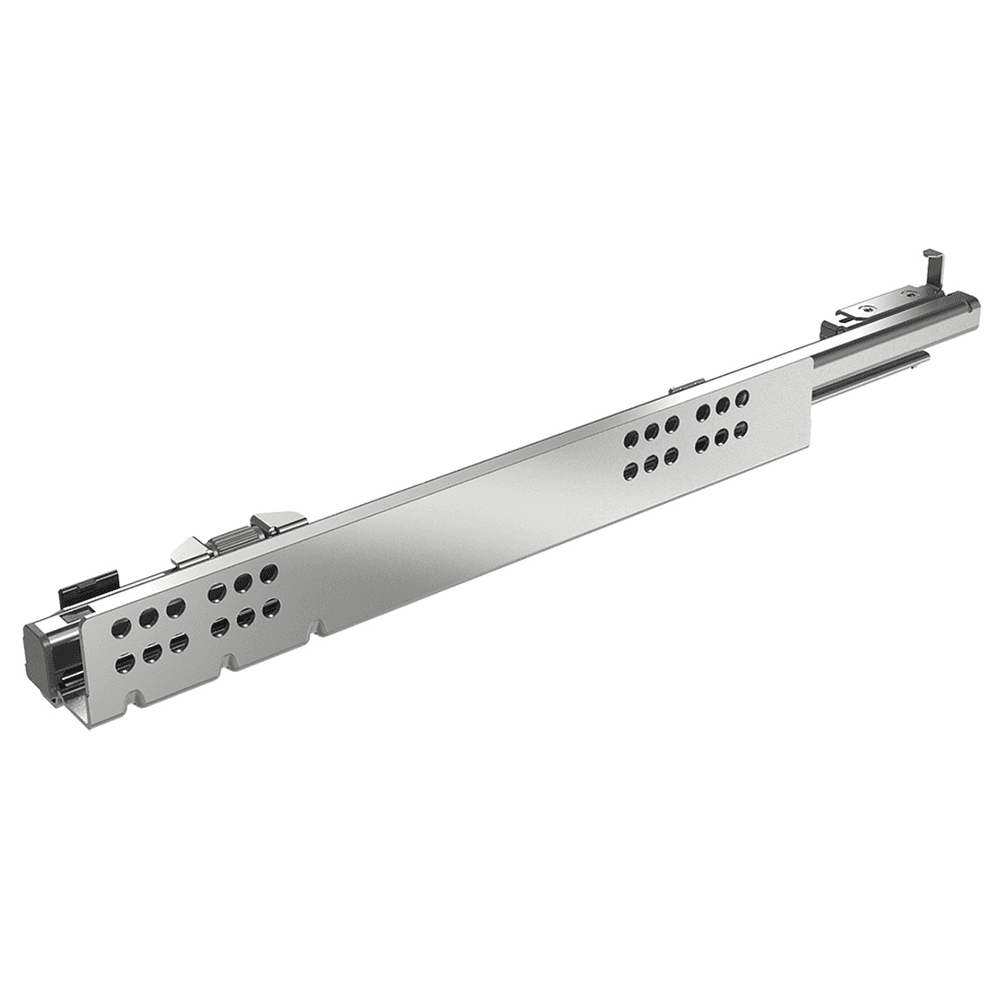

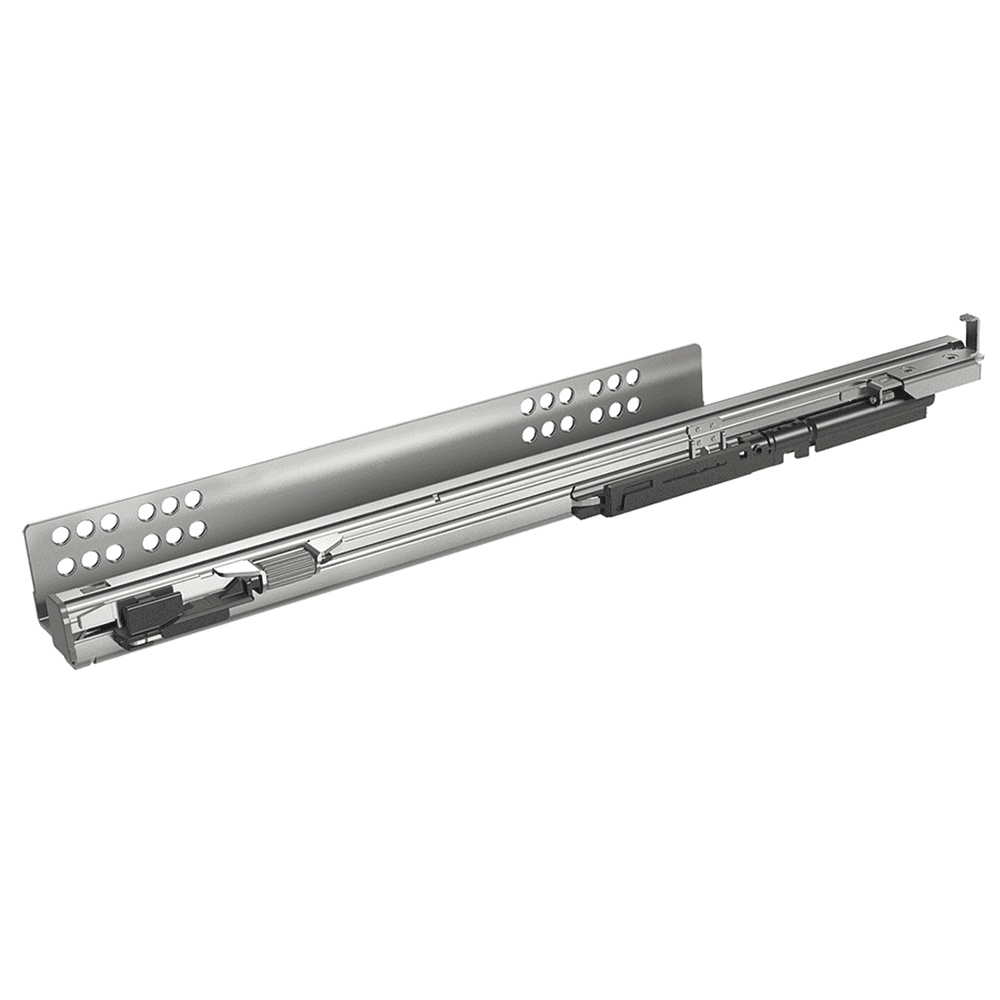

Quadro 4D V6 Right Drawer Runner with 30kg Capacity, Full Extension, Silent System, 520mm
10 items
Drawer Length: 520mm
Left or Right: Right
Product Details
• 520mm long right drawer runner
• Convenient slide on installation with 4D catches and tilt adjustment
• Integrated silent system
• Load capacity up to 30kg for standard applications
• Optional can be retrofitted with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; can be retrofitted with synchronization
• Tool-less, intuitive adjustment of the drawer front panel
• Height adjustment up to + 2mm
• Side adjustment up to +/- 1.5mm (max. drawer side profile thickness 15mm)
• Depth adjustment up to +/- 2mm
• Tilt adjustment
• Load capacity to EN 15338, Level 3
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Length | |
| Finish | Galvanized |
| Drawer Length | 520mm |
| Closing Type | Silent System |
| Model | |
| Load Capacity | 30kg |
| Travel | Full Extension |
| Product Type | Drawer Runner |
| Left or Right | Right |
| Cabinet Type | |
| Mounting Type | |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
