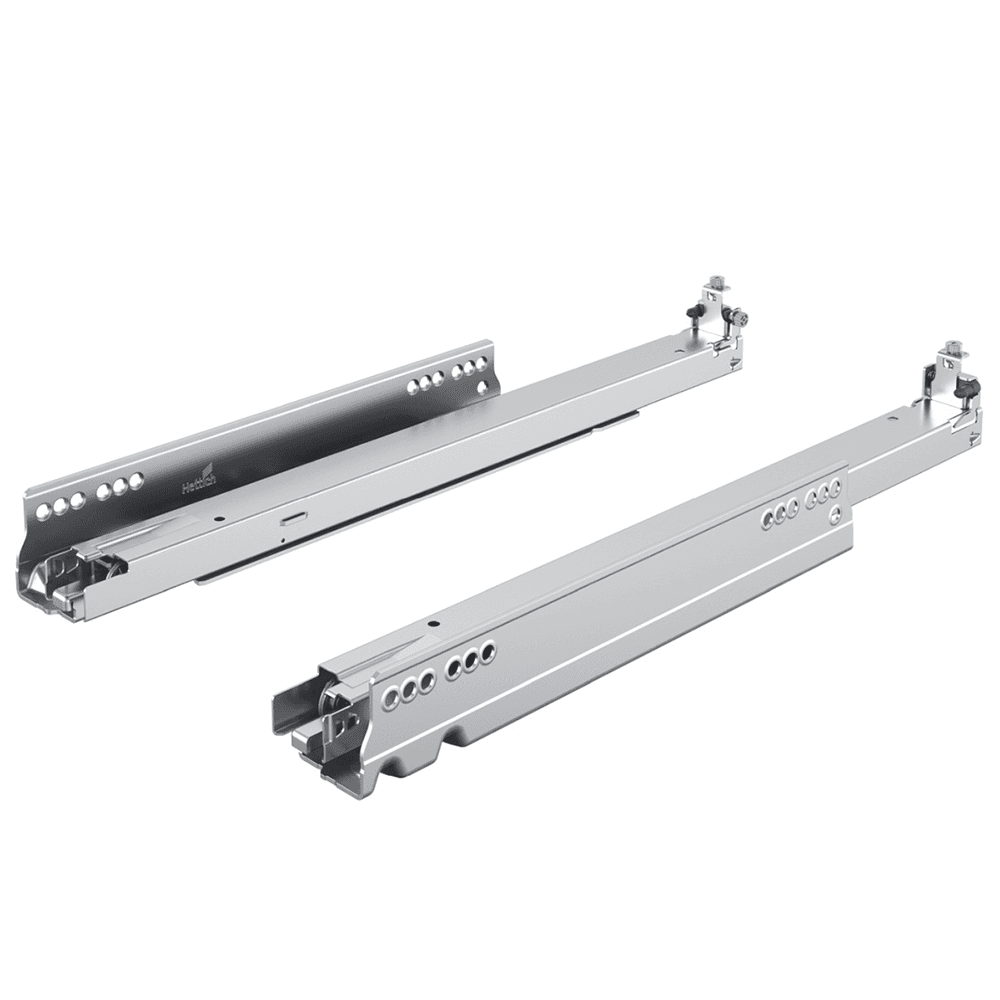

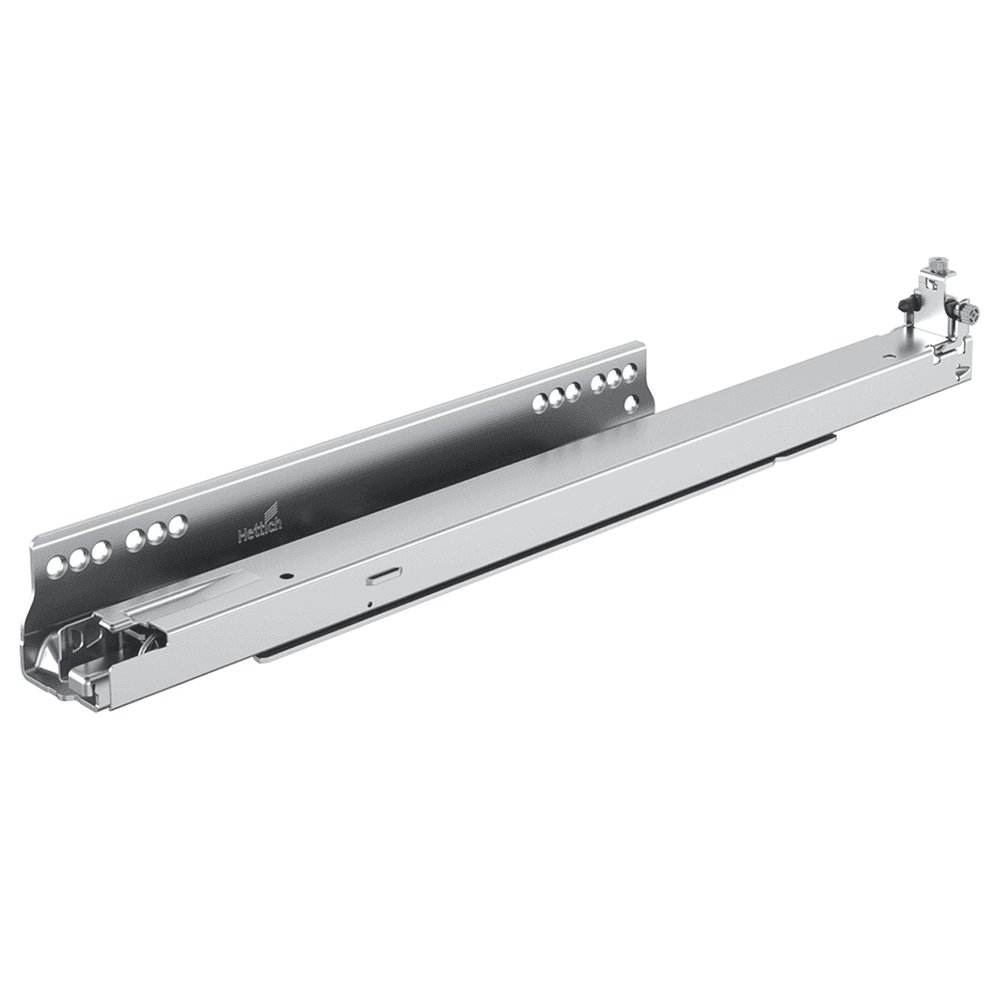

Actro 5D Left Drawer Runner with 40kg Capacity, Full Extension, Silent System, 250mm
Item # HET9257059
•Mfr # 9257059
Drawer Length: 250mm
Left or Right: Left
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• 250mm long left drawer slide in galvanized finish
• Full extension runner for combining with wooden drawer
• Optional: push-to-open silent opening system
• Tool-less height adjustment up to +3mm, side adjustment up to +/-1.5mm, tilt adjustment up to +4mm and radial adjustment up to +/-1.5mm
• Optional: depth adjustment up to + 4mm
• Load capacity to EN 15338, Level 3
• 250mm long left drawer slide in galvanized finish
• Full extension runner for combining with wooden drawer
• Optional: push-to-open silent opening system
• Tool-less height adjustment up to +3mm, side adjustment up to +/-1.5mm, tilt adjustment up to +4mm and radial adjustment up to +/-1.5mm
• Optional: depth adjustment up to + 4mm
• Load capacity to EN 15338, Level 3
Downloads
Specifications
| Length | |
| Finish | Galvanized |
| Drawer Length | 250mm |
| Closing Type | Silent System |
| Model | |
| Load Capacity | 40kg |
| Travel | Full Extension |
| Product Type | Drawer Runner |
| Left or Right | Left |
| Cabinet Type | |
| Mounting Type | |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
