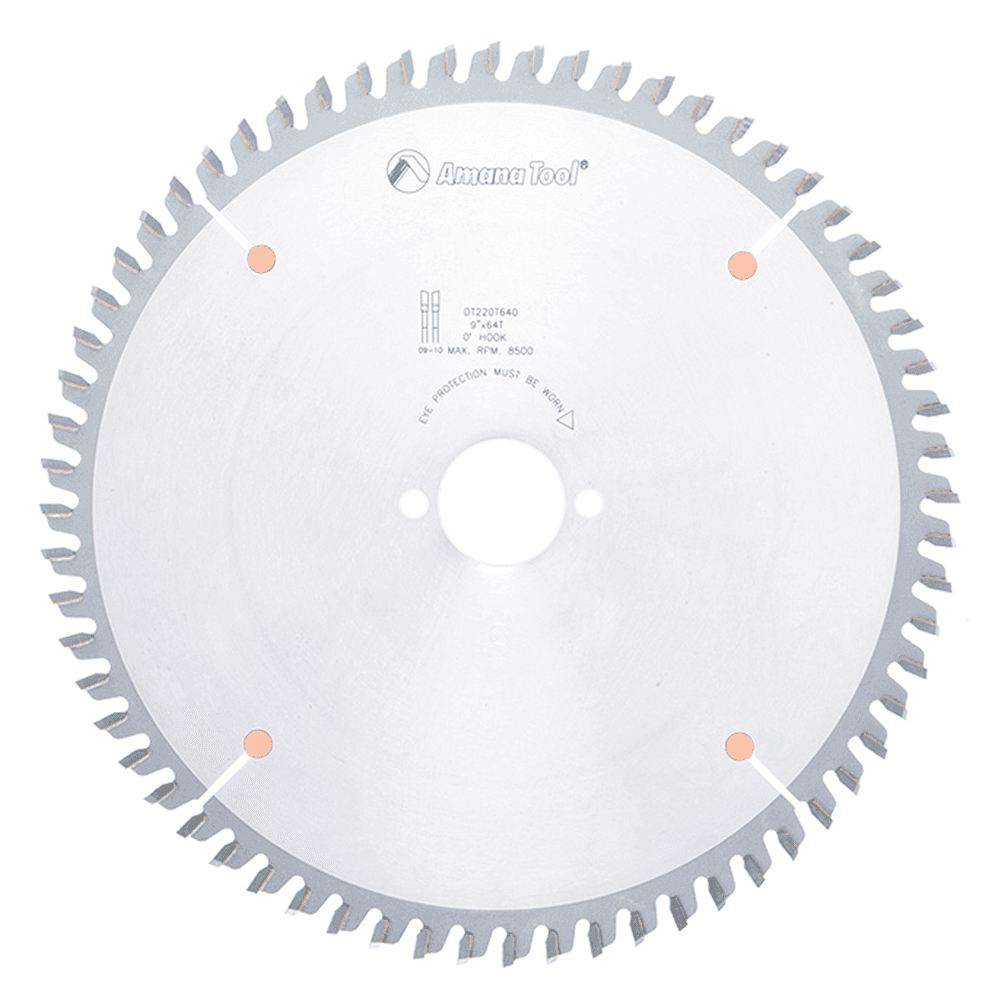

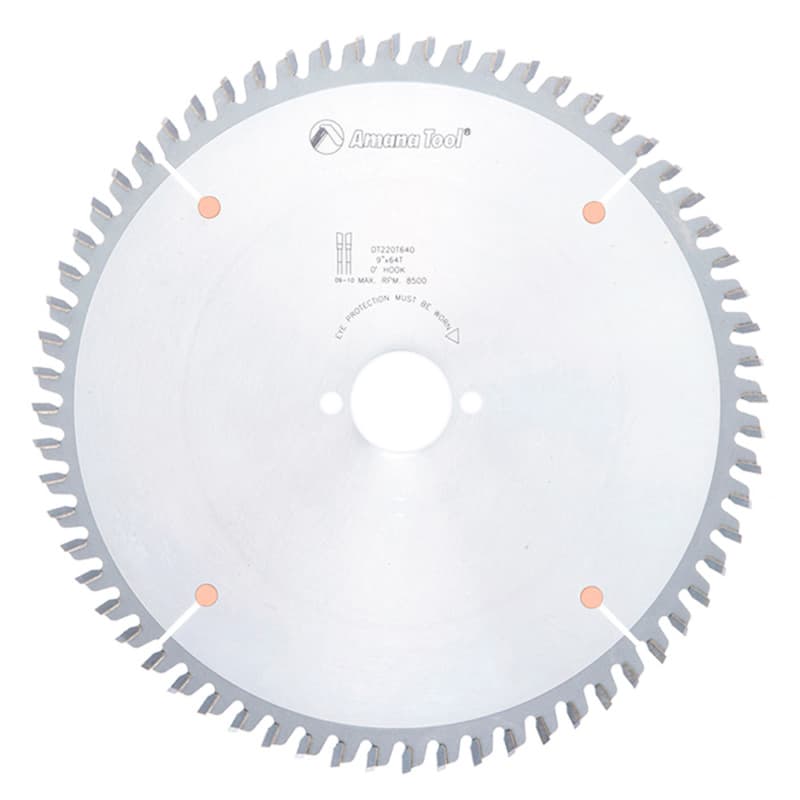

220mm x 64 Teeth Ditec Holz-Her General Purpose Saw Blade, High Alternate Top Grind
Item # ANDT220T640
•Mfr # DT220T640
$168.59
/Each
Min Order: 1
Qty mult. by: 1
Product Details
If you cut melamine on a regular basis, this is the blade you should use. It has the same features as our regular melamine blades - the MB series and MSB series - such as thicker than standard plate, high tooth count, and the H-ATB grind, but this blade has long-lasting DITEC carbide tips.
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Designed specifically for the Holz-Her 220mm panel saws
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Designed specifically for the Holz-Her 220mm panel saws
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | Melamine |
| Arbor | 30mm |
| Blade Diameter | 220mm |
| Blade Type | Panel Saw Blade |
| Blade Material | Carbide Tipped |
| Kerf | 3.2mm |
| Number of Teeth | 64 |
| Bore Diameter | 30mm |
| Hook Angle | 0° |
| Tooth Grind Type | High Alternate Top Bevel |
