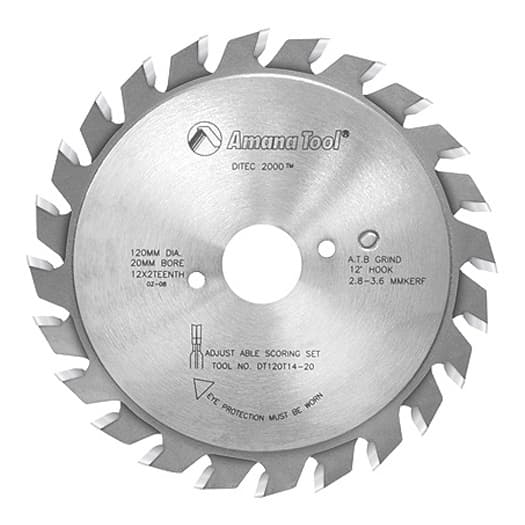

120mm x 24 Teeth Ditec 2000 Adjustable Scoring Set Saw Blade
Item # ANDT120T14-20
•Mfr # DT120T14-20
$165.99
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Used on panel saws or sliding table saws with separate scoring units for chip-free cuts on both sides of the material. Adjustable scoring sets consist of two 12-tooth saw blades with shims to adjust the kerf width (2.8mm to 3.6mm). Used in combination with our industrial saw blades with standard kerf (example #612721, #DT12721, etc.).
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | Scoring Particleboard/Laminate |
| Arbor | 20mm |
| Blade Diameter | 120mm |
| Blade Type | Chip-Free |
| Blade Material | Carbide Tipped |
| Kerf | 2.8mm - 3.6mm |
| Number of Teeth | 24 |
| Bore Diameter | 20mm |
| Hook Angle | |
| Tooth Grind Type | Alternate Top Bevel |
