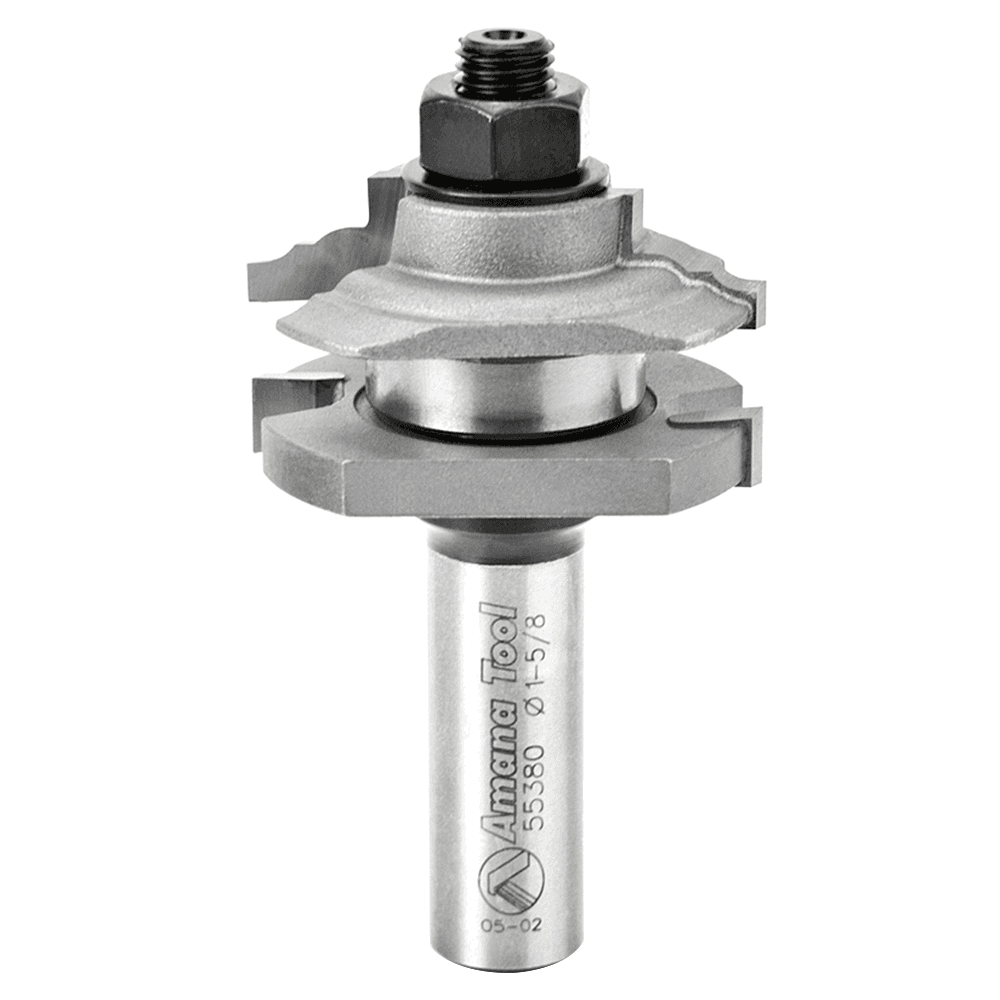

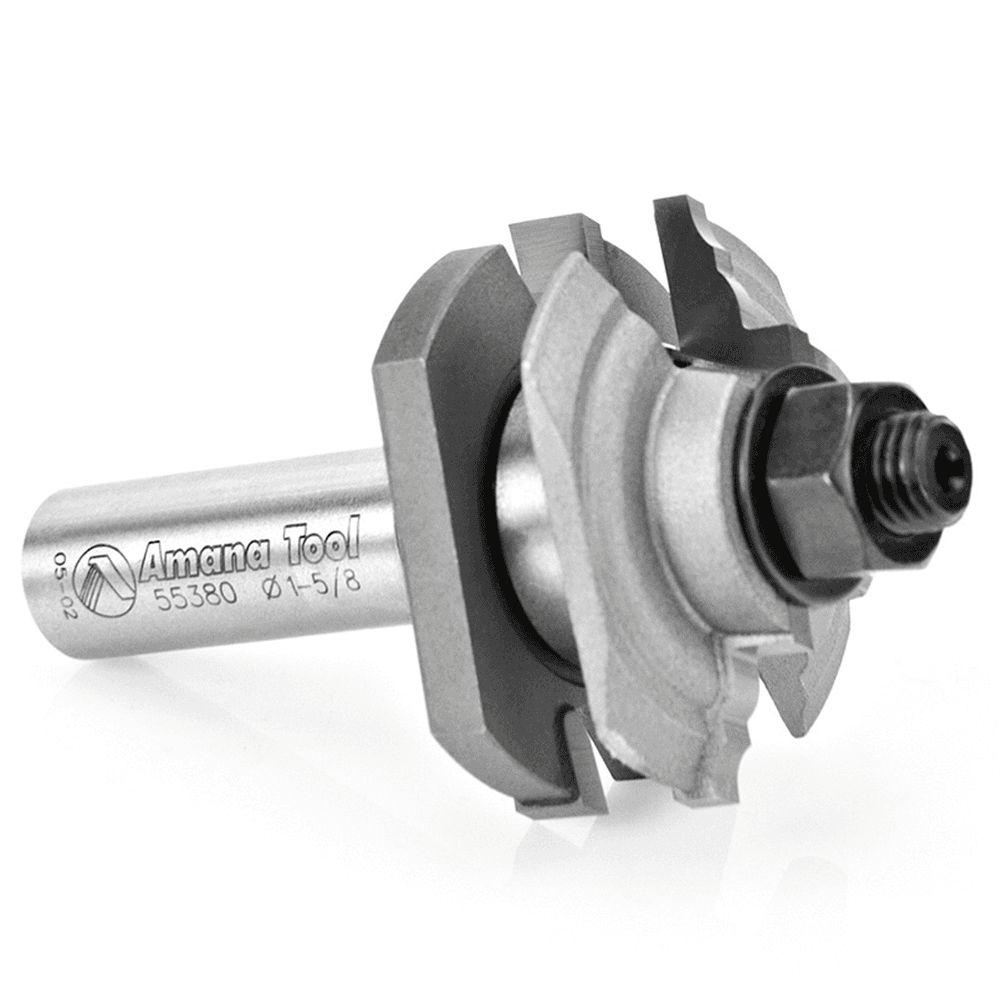

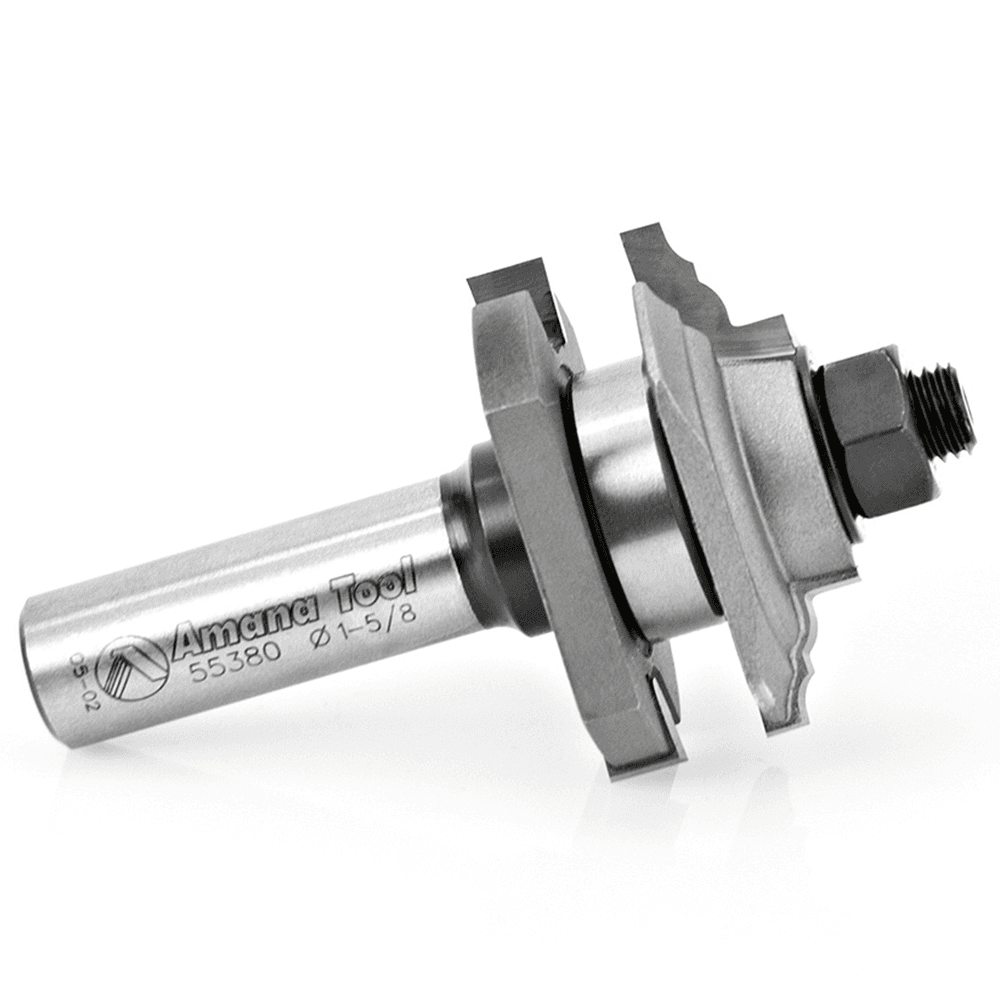

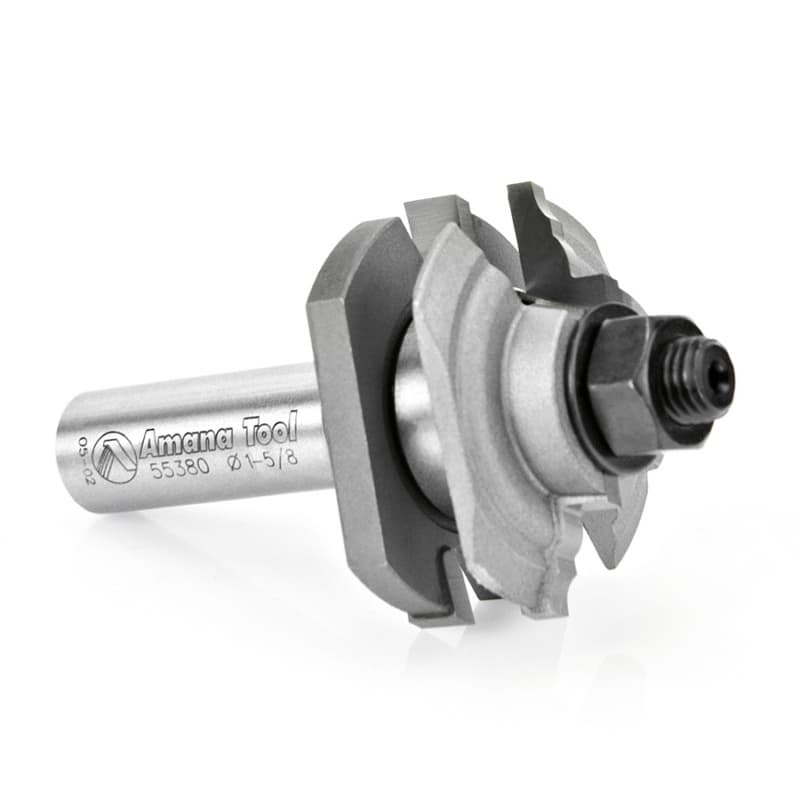

1-5/8" x 3" Classical Reversible Stile and Rail Assembly, 2-Wing, 1/2" Shank
Item # AN55380
•Mfr # 55380
$89.71
/Each
Product Details

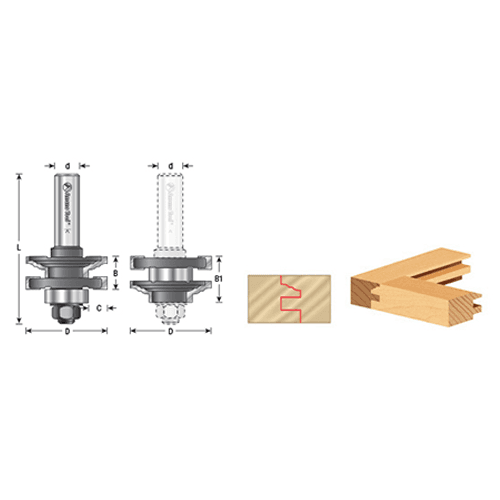

Cut both the stiles and rails with a single economical assembly. Switch from the stile cut to the rail cut simply by rearranging the cutters and bearing on the arbor. Because the profile and the cope are cut with the same cutter, you get a perfect fit. The assembly order for each setup is shown in the drawing. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
Features:
Use one tool for both cuts by reversing the assembly
Includes shims that give perfect alignment before and after sharpening
for best results, the rail cut should be done on a router table
2-Wing
With ball bearing guide
Ogee pattern
Features:
Use one tool for both cuts by reversing the assembly
Includes shims that give perfect alignment before and after sharpening
for best results, the rail cut should be done on a router table
2-Wing
With ball bearing guide
Ogee pattern
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
Height | |
Width | |
Cutting Diameter | 1-5/8" |
Application | |
Material | Carbide Tipped |
Product Type | Stile and Rail Assembly |
Length | 3" |
Degree of Cut | |
Shank Diameter | 1/2" |
