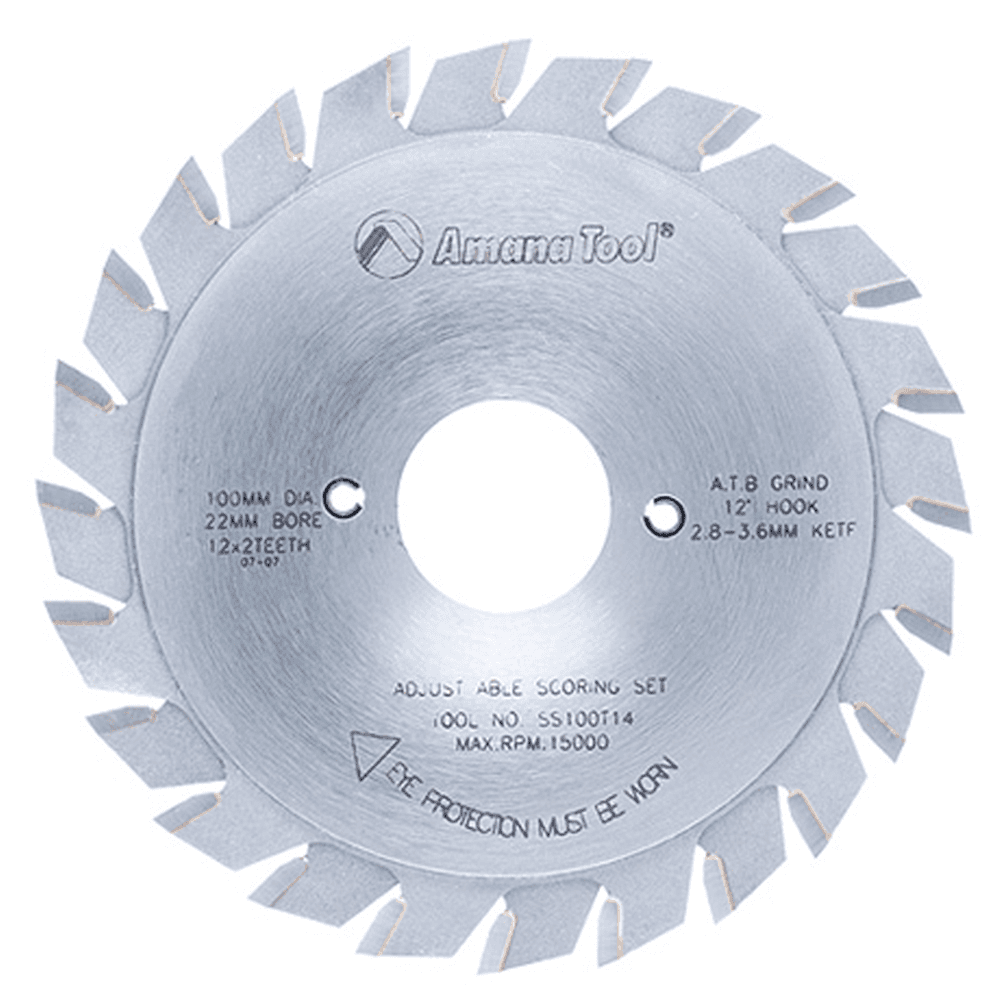

100mm x 24 Teeth Adjustable Type Scoring Saw Blade
Item # ANSS100T14
•Mfr # SS100T14
$148.50
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Used on panel saws and sliding table saws with separate scoring units for chip-free cuts on both sides of the material. Adjustable scoring sets consist of two 12-tooth saw blades with shims to adjust the kerf width (2.8mm to 3.6mm). Used in combination with our industrial saw blades '6' series only.
This adjustable scoring set with 22mm bore can be converted to either 3/4" bore by ordering two each #BU-130 bushings, or to 20mm bore by ordering two each #BU-140 bushings.
Note: Due to many different scoring machine sizes (particularly arbor sizes), it is advisable to measure both the scoring and main blades that are presently on your machine (diameter, bore, kerf, etc.).
This adjustable scoring set with 22mm bore can be converted to either 3/4" bore by ordering two each #BU-130 bushings, or to 20mm bore by ordering two each #BU-140 bushings.
Note: Due to many different scoring machine sizes (particularly arbor sizes), it is advisable to measure both the scoring and main blades that are presently on your machine (diameter, bore, kerf, etc.).
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | |
| Arbor | 22mm |
| Blade Diameter | 100mm |
| Blade Type | Scoring Saw Blade |
| Blade Material | Carbide Tipped |
| Kerf | 2.8mm - 3.6mm |
| Number of Teeth | 24 |
| Bore Diameter | 22mm |
| Hook Angle | 12° |
| Tooth Grind Type | Alternate Top Bevel |
