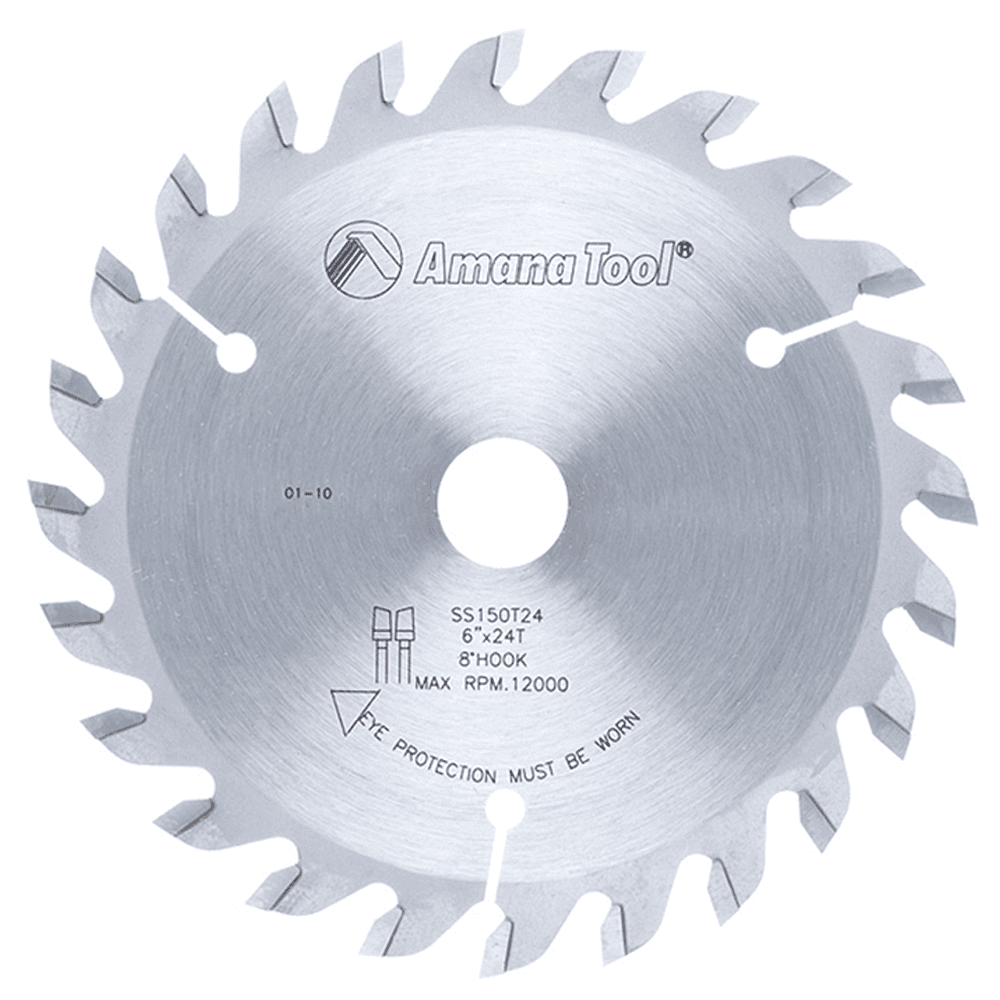

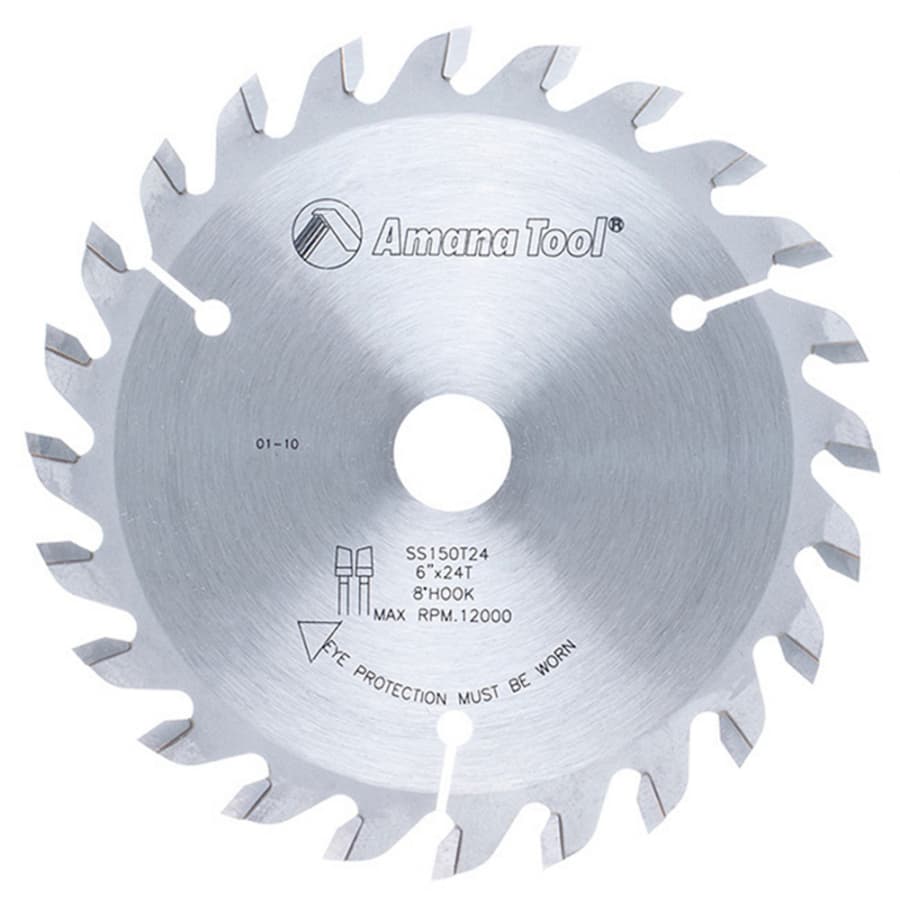

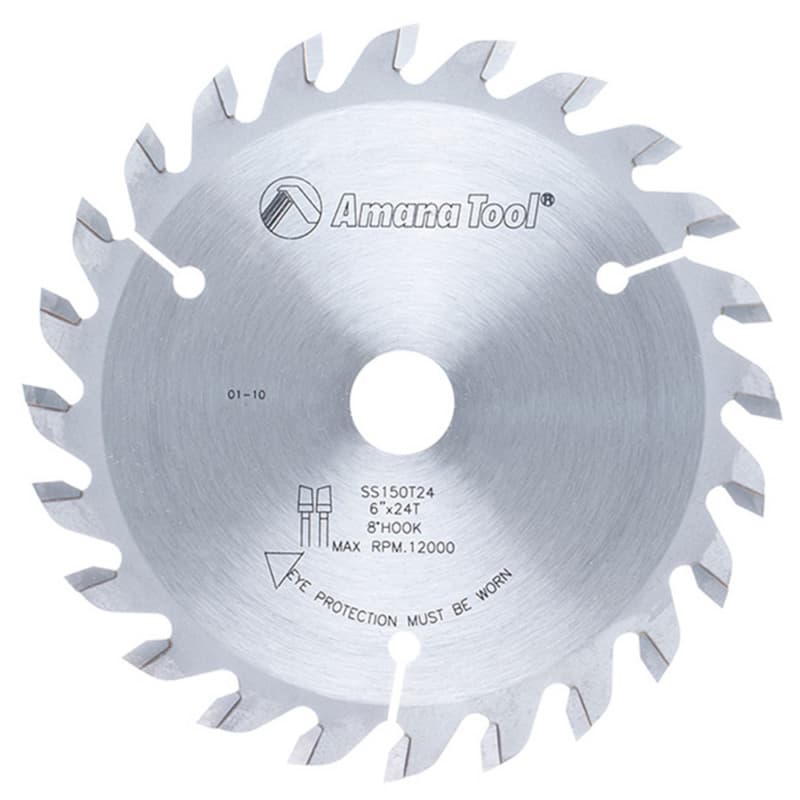

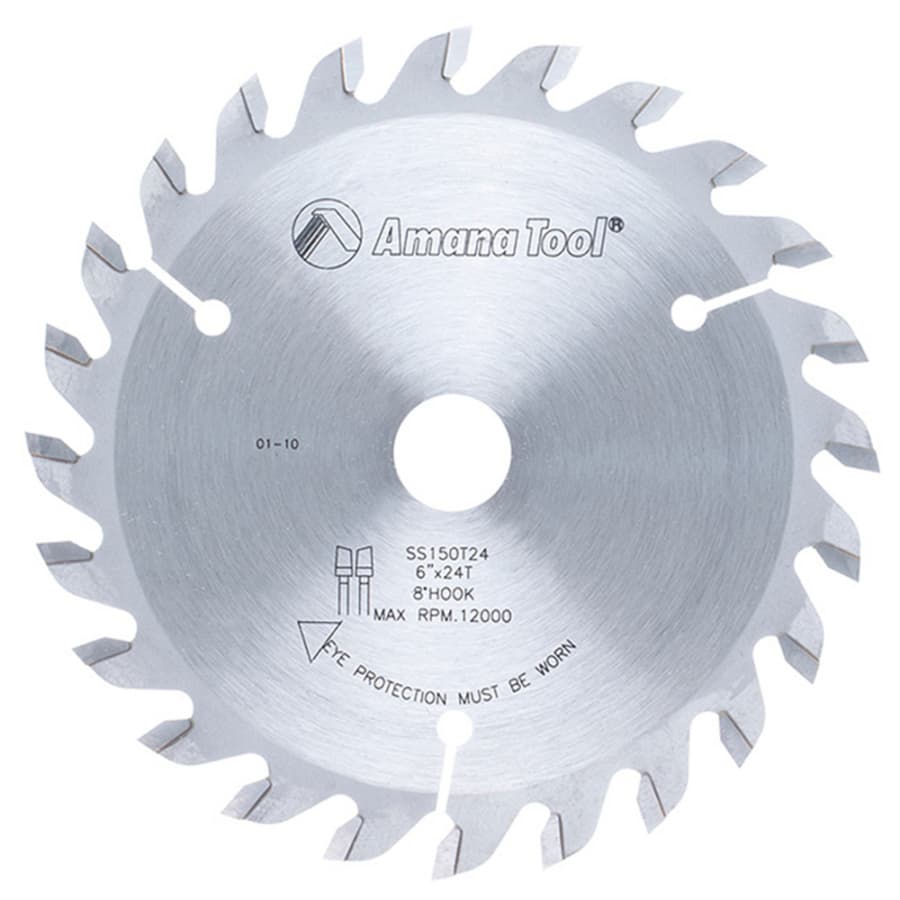

150mm x 24 Teeth Conical Type Scoring Saw Blade
Item # ANSS150T24
•Mfr # SS150T24
Product Details
This conical-type scoring blade is similar to the DITEC scoring blade, but features our standard carbide tips. Match the kerf width of your main blade by adjusting the scoring blade's cutting depth. Range typically is 1mm (for example, from 4.4mm to 5.4mm). Select a scoring blade with a range matching your main blade's kerf width. Use in combination only with our '7' series industrial saw blades (#714721, 716961, etc.). Use also in combination with the new DITEC panel saw blades.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Arbor | 20mm |
| Blade Diameter | 150mm |
| Blade Type | Scoring Saw Blade |
| Blade Material | Carbide Tipped |
| Kerf | 4mm - 5mm |
| Number of Teeth | 24 |
| Bore Diameter | 20mm |
| Hook Angle | 8° |
| Tooth Grind Type | Alternate Top Bevel |
