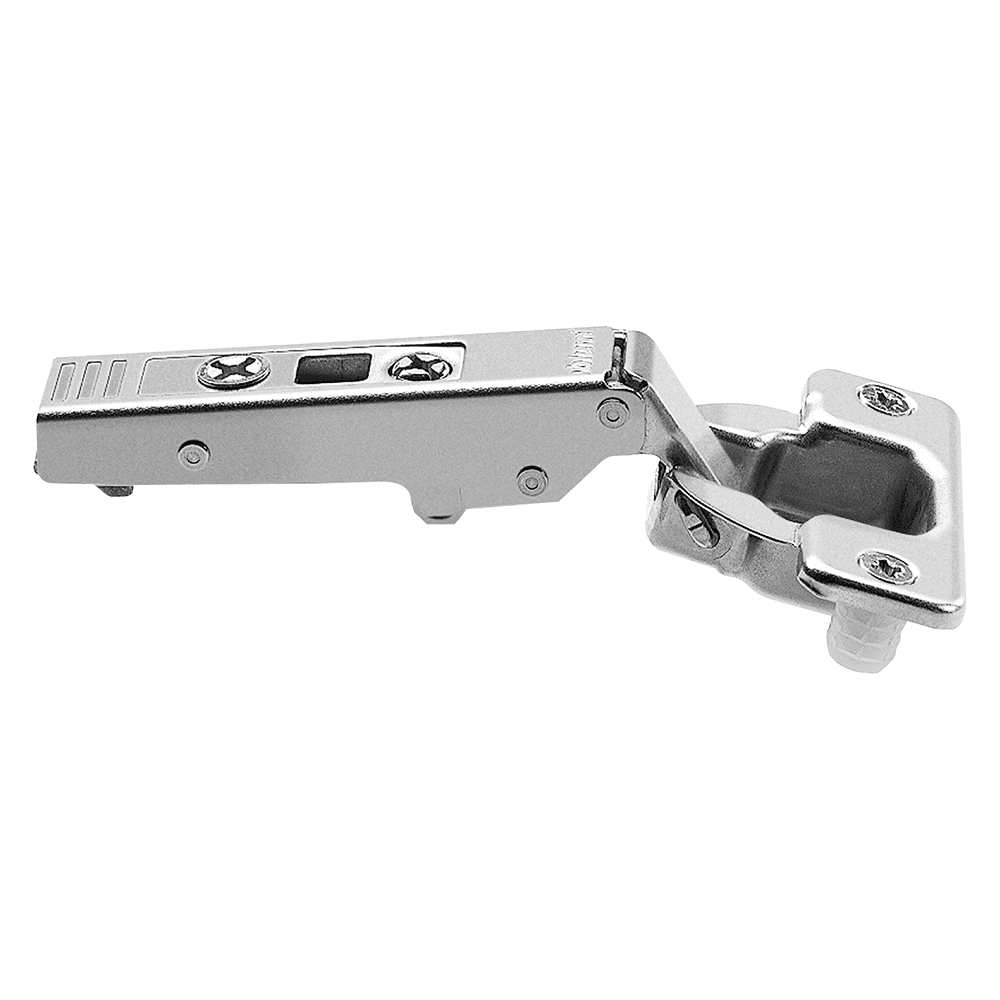

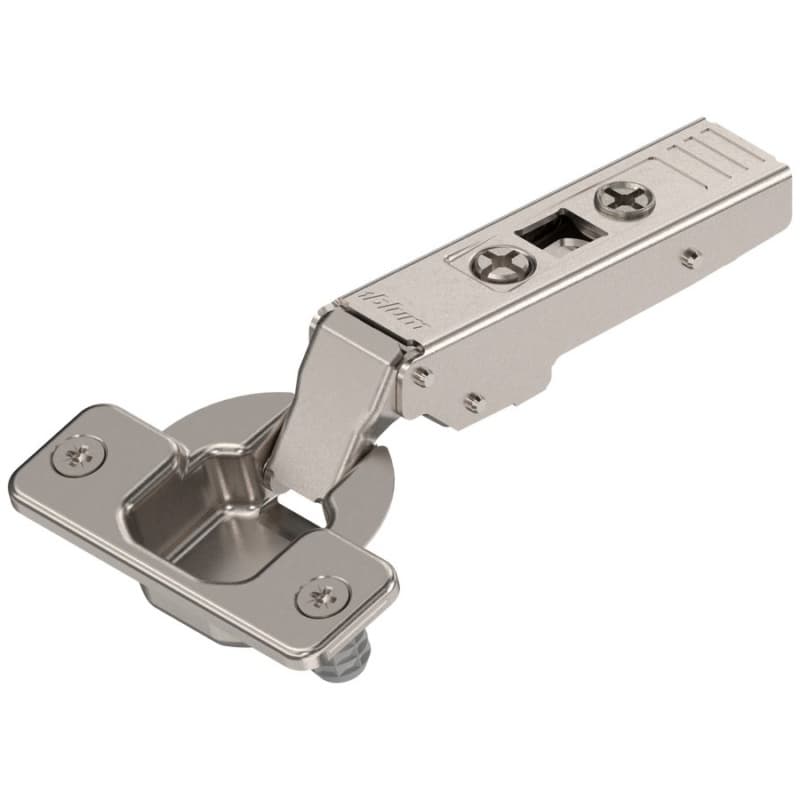

Clip Top 107° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # B75T158
•Mfr # 75T1580
$1.80
/Each
250 items
$1.54/Each
Mounting Type: Dowelled
Min Order: 1
Quantity Multiple by: 1
Product Details
CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet.
Features:
• Three-dimensional adjustment
• Available with INSERTA attachment
• For door thicknesses up to 19 (3/4")
• 86˚ angle restriction clip available (74.1103)
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Features:
• Three-dimensional adjustment
• Available with INSERTA attachment
• For door thicknesses up to 19 (3/4")
• 86˚ angle restriction clip available (74.1103)
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 107° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
