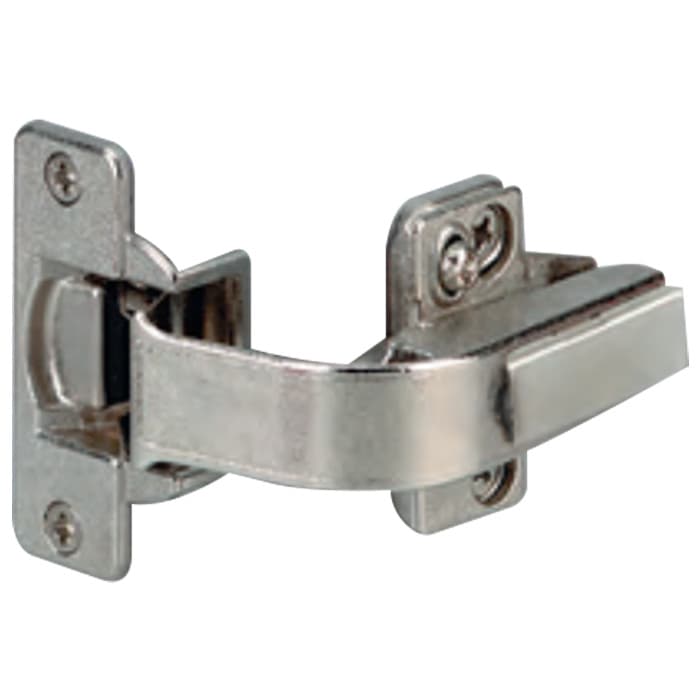

Nexis Pie-Cut Corner 110° Opening Hinge, 48mm Bore Pattern, Self-Closing, Nickel-Plated, Dowelled
Item # GNX146.700.02.0015
•Mfr # F015072859225
Product Details
Features:
• Minimal cup depth of 12mm
• Designed for thin or profile doors
• Excellent minimum gap requirements with door thicknesses up to 20mm
• Works with 45mm and 48mm boring pattern
• Minimal cup depth of 12mm
• Designed for thin or profile doors
• Excellent minimum gap requirements with door thicknesses up to 20mm
• Works with 45mm and 48mm boring pattern
Specifications
| Mounting Type | Dowelled |
| Overlay | |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Pie-Cut Corner Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 48mm |
| Cup Diameter | 35mm |
| Cup Depth | 1/2" |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type | Face Frame/Frameless |
