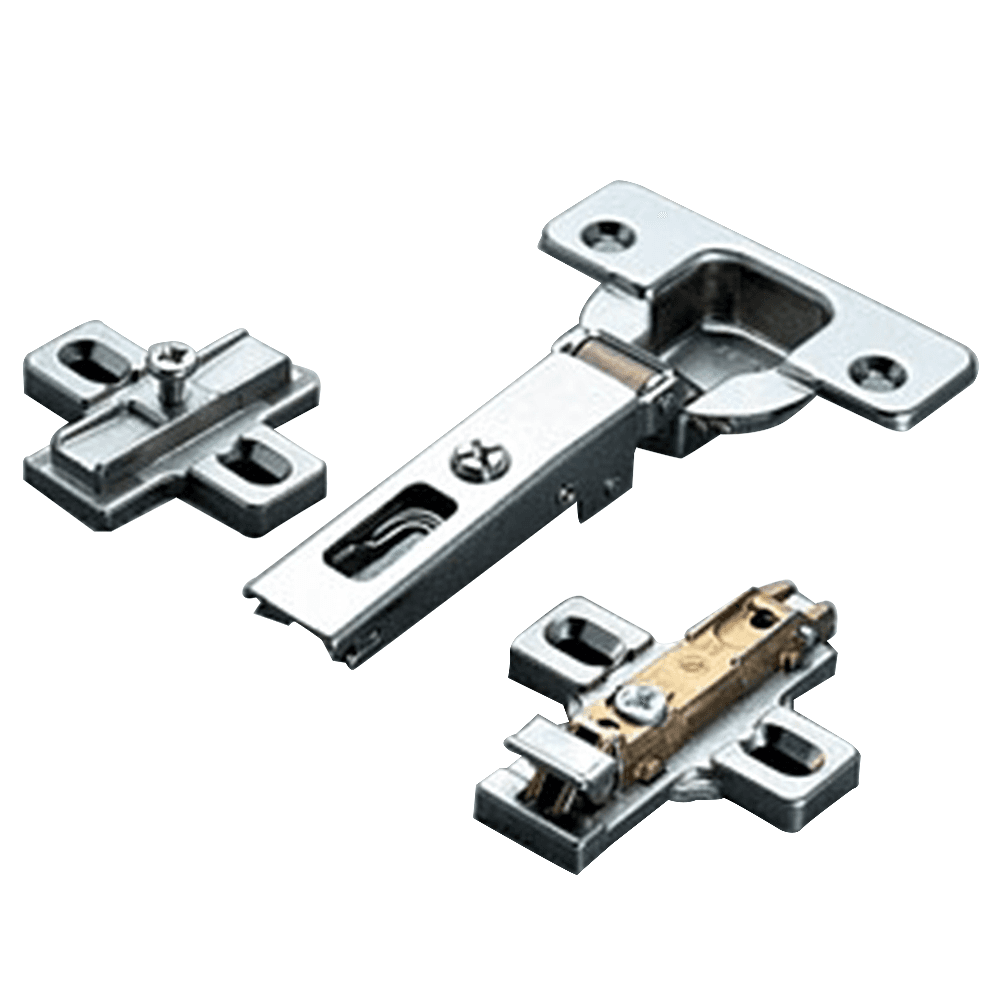

Series 200 94° Opening Thick Door Hinge, 45mm Bore Pattern, Self-Closing, 1/2" Overlay, Nickel-Plated, Dowelled
Item # SALC2RBD99
•Mfr # C2RBD99
$2.14
/Each
300 items
$1.96/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• For kitchen cabinets and furniture
• For doors up to 32mm with special profiles
• 11mm deep steel cup
• Possible drilling distance on the door from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Domer snap-on mounting plates
• Compensating side adjustment from -1.5mm to +4.5mm
• Depth adjustment with Domer snap-on mounting plates from -0.5mm to +2.8mm
• Anti-sliding safety stop
• For kitchen cabinets and furniture
• For doors up to 32mm with special profiles
• 11mm deep steel cup
• Possible drilling distance on the door from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Domer snap-on mounting plates
• Compensating side adjustment from -1.5mm to +4.5mm
• Depth adjustment with Domer snap-on mounting plates from -0.5mm to +2.8mm
• Anti-sliding safety stop
Specifications
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
